Parameters: Input Voltage: 6~32V Output Voltage: 1.25~32V (Input Must Be 1.5 Higher Than Output.) Output Current: Max.5V, Adjustable, Recommend The Use Of Within 4.5A. (Over 2A Or 35W, Please Enhance Heat Dissipation.Constant Current Needs Above 2V Output Voltage, Then Can Be Adjusted. Only In The Status Of Constant Current Can Current Adjustment Work.) Output Power: Max.75W (Recommend The Use Of Within 50W, Please Reduce Power If The Dropout Voltage Is Large) Operating Temperature: -20 ~+70? Operating Frequency: 180Khz Conversion Efficiency: Up To 96% Short Circuit Protection: Yes Input Reverse Polarity Protection: None Over-Temperature Protection: Yes (Automatically Shut Off The Output When Over-Temperature.) Connection: Terminals Or Solder Terminals; Vin Is Input; Vout Is Output Module Dimension: 65.6 X 40 X 25Mm Voltage-Calibration Method: In The Case Of Power Off, Press And Hold The ''Set'' Key And Power On, Then Enter Into Voltage Calibration Mode, And Lcd Screen Starts To Flash, Release The ''Set'' Key; Press ''Set'' And ''Ent'' Key To Increase Or Reduce The Voltage To The Right Input Voltage. It Will Automatically Saves After 2S, Then Power Off And The Calibration Is Complete. Current-Calibration Method: Suitable For No-Load With Current Display Or Slightly Large Current. In The Case Of Power Off, Press And Hold ''Ent'' And Power On, Then Enter Into Current Calibration Mode And Lcd Screen Starts To Flash, Release The ''Ent'' Key; Press ''Set'' And ''Ent'' Key To Increase Or Reduce The Voltage To The Right Value. It Will Automatically Saves After 2S, Then Power Off And The Calibration Is Complete. Package Includes: 2 X Dc-Dc Adjustable Step-Down Power Supply Module With Shell 8 X Copper Cylinder Screws M3*6 8 X Double-Pass Screws M3*12 16 X Roundhead Screws M3*6
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions

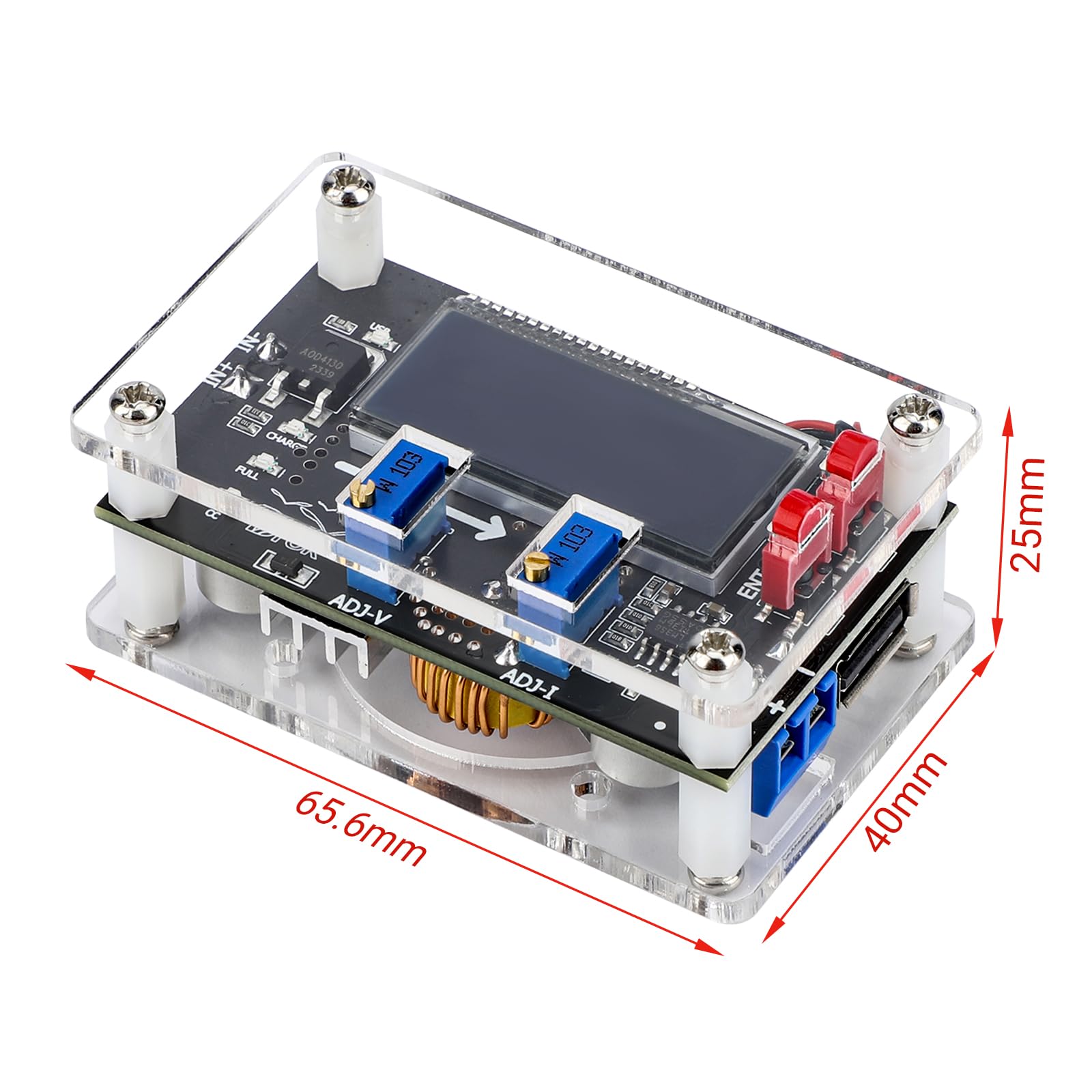

Q: What are the dimensions of the DROK DC Adjustable Buck Converter?A: The module dimensions are sixty-five point six millimeters by forty millimeters by twenty-five millimeters. It is compact and designed for easy installation.
Q: What is the input voltage range for this power converter?A: The input voltage range is six to thirty-two volts. This allows for flexibility in various applications.
Q: What is the maximum output power of the DROK converter?A: The maximum output power is seventy-five watts. However, it is recommended to operate within fifty watts for optimal performance.
Q: How do I use the DROK DC Adjustable Buck Converter?A: To use the converter, connect the input voltage to the VIN terminals and adjust the output voltage at VOUT according to your needs. Follow the calibration methods provided in the user manual.
Q: Is the DROK converter suitable for charging batteries?A: Yes, it can be used as a battery charger. It is designed to provide a constant voltage output, making it ideal for charging applications.
Q: Can I use this converter for LED driving?A: Yes, it is suitable as a constant current LED driver module. It supports a wide range of applications including LED lighting.
Q: How should I store the DROK converter?A: Store the converter in a dry and cool place, away from direct sunlight. Ensure it is protected from moisture and physical damage.
Q: What safety features does this power converter have?A: It includes short circuit protection and over-temperature protection. The output will automatically shut off in case of overheating.

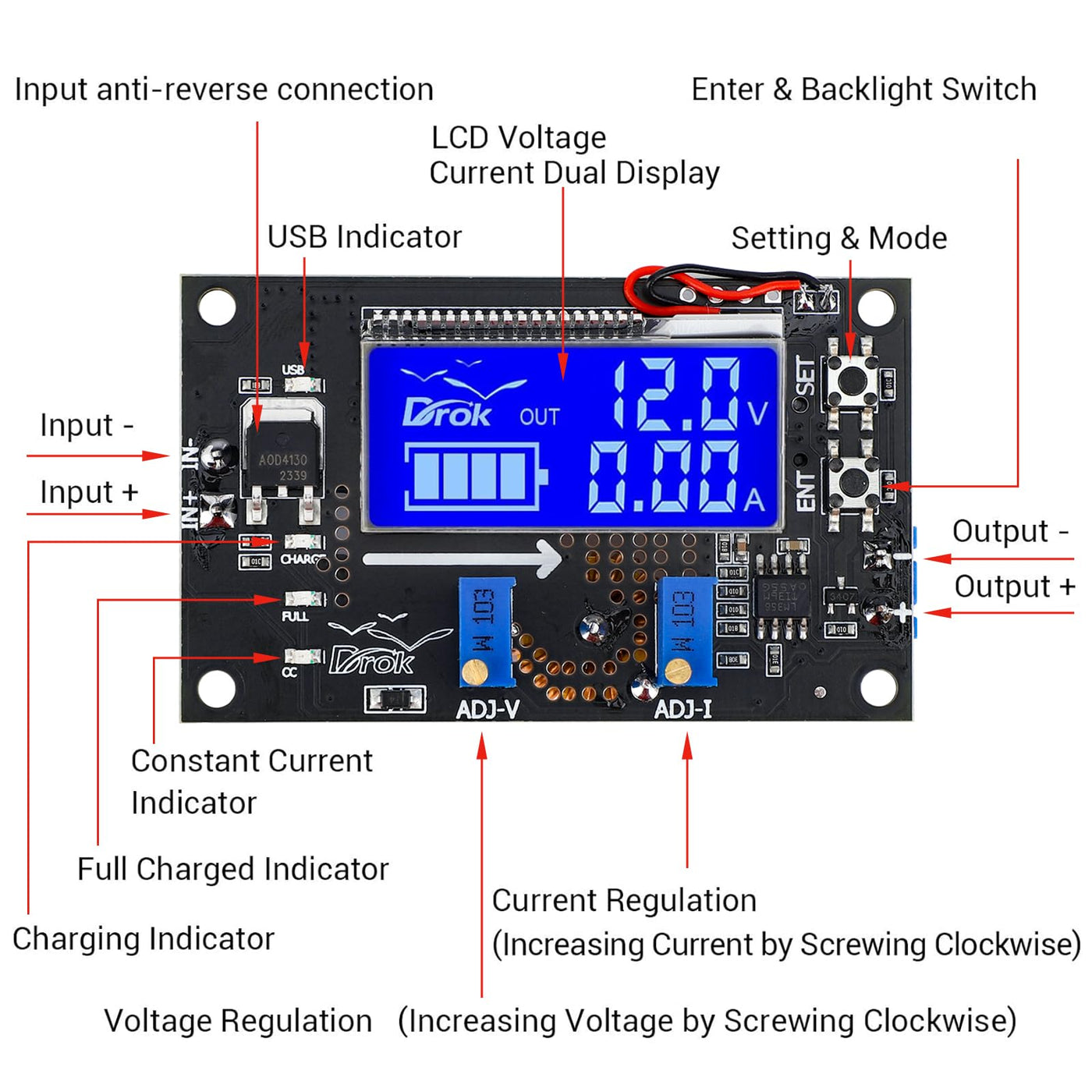

Q: How do I calibrate the voltage on the DROK converter?A: To calibrate voltage, power off the unit, press and hold the 'SET' key while powering on. Adjust the voltage using the 'SET' and 'ENT' keys as needed.
Q: Can I return the DROK DC Adjustable Buck Converter if I have issues?A: Yes, it typically comes with a return policy. Please check the specific return guidelines provided by the seller.
Q: What should I do if the converter arrives damaged?A: If the converter arrives damaged, contact customer support immediately for assistance with a replacement or refund.
Q: Is there a warranty for the DROK buck converter?A: Yes, this product usually comes with a warranty. Review the warranty details included with your purchase.
Q: How can I enhance heat dissipation when using this converter?A: To enhance heat dissipation, ensure that the converter has adequate airflow and consider using an external heat sink if operating near maximum output.
Q: What types of connections can I use with this module?A: You can use either terminals or solder terminals for connections. Make sure to connect VIN to the input and VOUT to the output.
Q: Is this converter user-friendly for beginners?A: Yes, the DROK converter is designed with user-friendly features such as an LCD screen for easy monitoring of voltage and current.
Q: Does it come with installation accessories?A: Yes, the package includes the power supply module along with screws for easy installation. It also includes a protective shell.
