If There'S Any Problem, Please Feel Free To Ask Us For More Information. Parameters Input Voltage: Dc 6-30V Output Voltage: Dc 0.5-30V Adjustable Output Current: 4A (Max), Adjustable, Recommended To Use Within 3A.&Nbsp; Note: If The Output Current Or Power Is More Than 2.5A Or 35W, You? Better Enhance The Heat Dissipation.&Nbsp; Output Power: 60W (Max), Recommended To Use Within 50W.&Nbsp; Note: Please Reduce The Power When The Difference Between Input And Output Voltage Is Large.&Nbsp; Operating Temperature: -20~+70? Note: Pay Attention To The Temperature Of The Power Tube When Using This Module, Please Strengthen Heat Dissipation If It Exceeds 70?. Wiring: Terminals Or Solder Terminals; Vin Means Input; Vout Means Output.&Nbsp; Protections Short Circuit Protection: Yes (Currently Constant Current Value) Over Temperature Protection: Yes (Automatically Turn Off The Output If Over-Temperature) Tips: There Is An Additional Fan Opening On The Bottom Of The Module Shell, Which Can Be Used To Add A Fan. Input Reverse Polarity Protection: Yes Output Anti-Backflow: Yes Voltage Calibration If You Find That The Measuring Values Are Not Accurate, Please Do As Follow: In The Condition Of Power Off, Hold Press The ?Etbutton And Power On To Enter The Voltage Calibration Mode, At This Time The Lcd Screen Starts To Flash.&Nbsp; Then Release The ?Etbutton, Press The ?Etbutton To Increase Voltage Value While Press The ?Ntbutton To Reduce, Till The Input Voltage Value Is Correct. E.G. If Input Voltage Is 12.65V, Adjust The Voltage Value To 12.65V. It Will Automatically Be Saved After 2 Seconds, Then Power Off The Module To Finish Calibrating.&Nbsp; Package Includes: 2 X Boost Buck Converter Module; Components For The Case (Nylon Post *16; Screw *16; Acrylic Board *4)
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the input voltage range for the DROK Adjustable Voltage Regulator?A: The input voltage range is DC six to thirty volts. This allows flexibility in various applications requiring different voltage levels.
Q: What is the maximum output current of this voltage converter?A: The maximum output current is four amps. However, it is recommended to operate within three amps for optimal performance.
Q: What is the output power capacity of the DROK Voltage Regulator?A: The output power capacity is sixty watts. It is advisable to use it within fifty watts to ensure reliability.

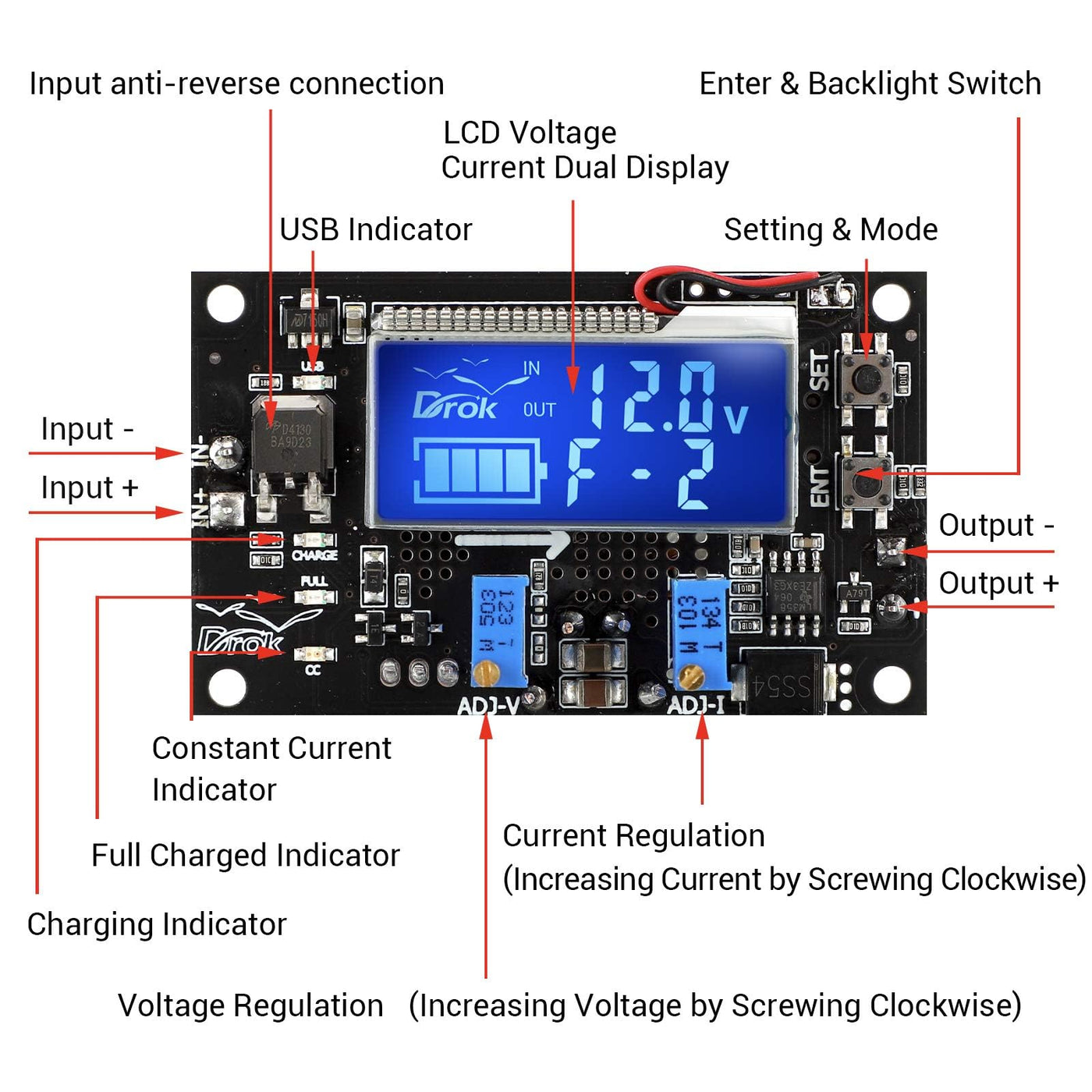

Q: How do I adjust the output voltage on this converter?A: You can adjust the output voltage from zero point five to thirty volts. This is done using the ‘SET’ and ‘ENT’ buttons during calibration.
Q: What features are included in the DROK Adjustable Voltage Regulator?A: The regulator includes short circuit protection, over-temperature protection, and a clear LCD display for real-time voltage and current monitoring.
Q: Is this voltage converter suitable for DIY projects?A: Yes, this converter is ideal for DIY projects. Its adjustable output makes it versatile for various applications like battery charging or LED driving.
Q: How do I install the DROK Adjustable Voltage Regulator?A: Installation involves connecting the input and output terminals according to the markings. You can use either terminals or solder connections for your setup.
Q: Can I use this converter to charge batteries?A: Yes, it can be used as a battery charger. Ensure the output settings match your battery's requirements for safe charging.
Q: What should I do if the voltage reading is inaccurate?A: You can enter calibration mode to adjust the voltage reading. Hold the ‘SET’ button while powering on to access this feature.
Q: How should I care for the DROK voltage regulator?A: Ensure proper heat dissipation during use, especially if temperatures exceed seventy degrees Celsius. Regularly check for any signs of wear or damage.
Q: Is the DROK Adjustable Voltage Regulator safe to use?A: Yes, it includes multiple safety features like short circuit and over-temperature protection. Always follow usage guidelines for safe operation.
Q: How do I store the voltage converter when not in use?A: Store the converter in a cool, dry place. Avoid exposing it to extreme temperatures or moisture to maintain its functionality.
Q: What happens if the device arrives damaged?A: If it arrives damaged, contact customer support for return or replacement options. Keep the original packaging for the return process.
Q: Can I use this converter for LED lighting applications?A: Yes, it is suitable for driving high-power LED lights. Ensure the output current settings match the requirements of your LED setup.
Q: What types of protection does this voltage regulator offer?A: It offers short circuit protection, over-temperature protection, input reverse polarity protection, and output anti-backflow protection.
Q: Is there a warranty for the DROK Adjustable Voltage Regulator?A: Yes, it typically comes with a standard warranty. Check with the seller for specific warranty details and coverage.
