Diymall 0.96'' Oled Module I2C Iic Serial 128X64 Lcd Led White Light Ssd1306 Driver Display For Arduino Micro:Bit (Pack Of 2Pcs)

Frequently Asked Questions

• Q: What is the resolution of the DIYmall OLED module? A: The resolution is one hundred twenty-eight by sixty-four pixels. This high resolution allows for clear and detailed display of graphics and text.

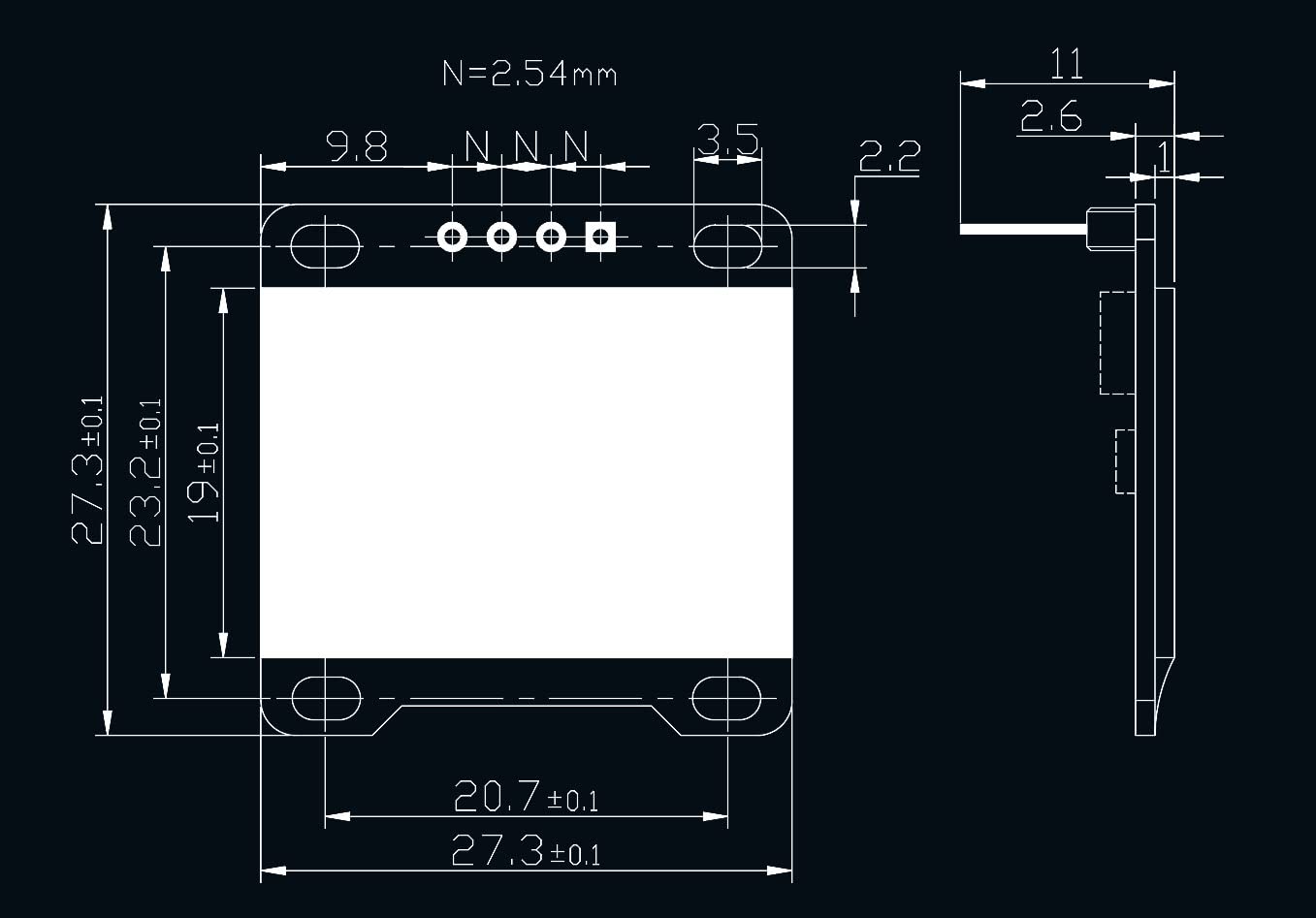

• Q: What are the dimensions of the OLED display? A: The OLED module measures twenty-seven millimeters by twenty-seven millimeters by four point one millimeters. This compact size makes it ideal for various projects.
• Q: What voltage range does the OLED module support? A: The module supports a voltage range of three point three volts to five volts DC. This wide voltage capacity allows it to be used with various microcontrollers.

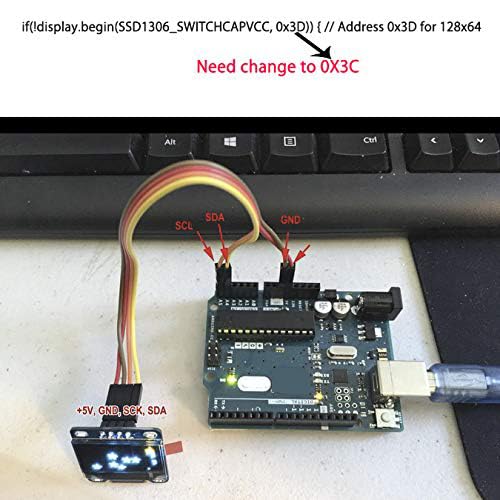

• Q: How do I connect the OLED display to an Arduino? A: To connect the OLED display, use the IIC communication interface, connecting the VCC, GND, SCL, and SDA pins to the corresponding pins on the Arduino. Ensure proper wiring to avoid any issues.
• Q: Can I use multiple OLED modules at the same time? A: Yes, you can use multiple OLED modules simultaneously. You may need to adjust the IIC address for each module to avoid conflicts.
• Q: What platforms are compatible with the DIYmall OLED module? A: The module is compatible with Arduino, the fifty-one series, MSP430 series, and STM32 microcontrollers. This versatility makes it suitable for a range of applications.
• Q: What is the working temperature range of the OLED module? A: The working temperature range is from negative thirty degrees to eighty degrees Celsius. This wide range ensures reliable performance in diverse environments.
• Q: How do I care for the OLED module? A: To care for the OLED module, avoid exposing it to moisture and extreme temperatures. Store it in a dry place and handle it carefully to prevent physical damage.
• Q: Is the OLED display safe for long-term use? A: Yes, the OLED display has low power consumption of zero point zero four watts during normal operation. This feature contributes to its longevity and safety.
• Q: What should I do if the OLED display is not working? A: If the display is not working, first check all connections to ensure they are secure. If issues persist, verify the code and libraries used in your project.
• Q: Does the OLED module require a specific driver? A: Yes, the OLED module uses the SSD1306 driver. Make sure to include this driver in your code for it to function properly.

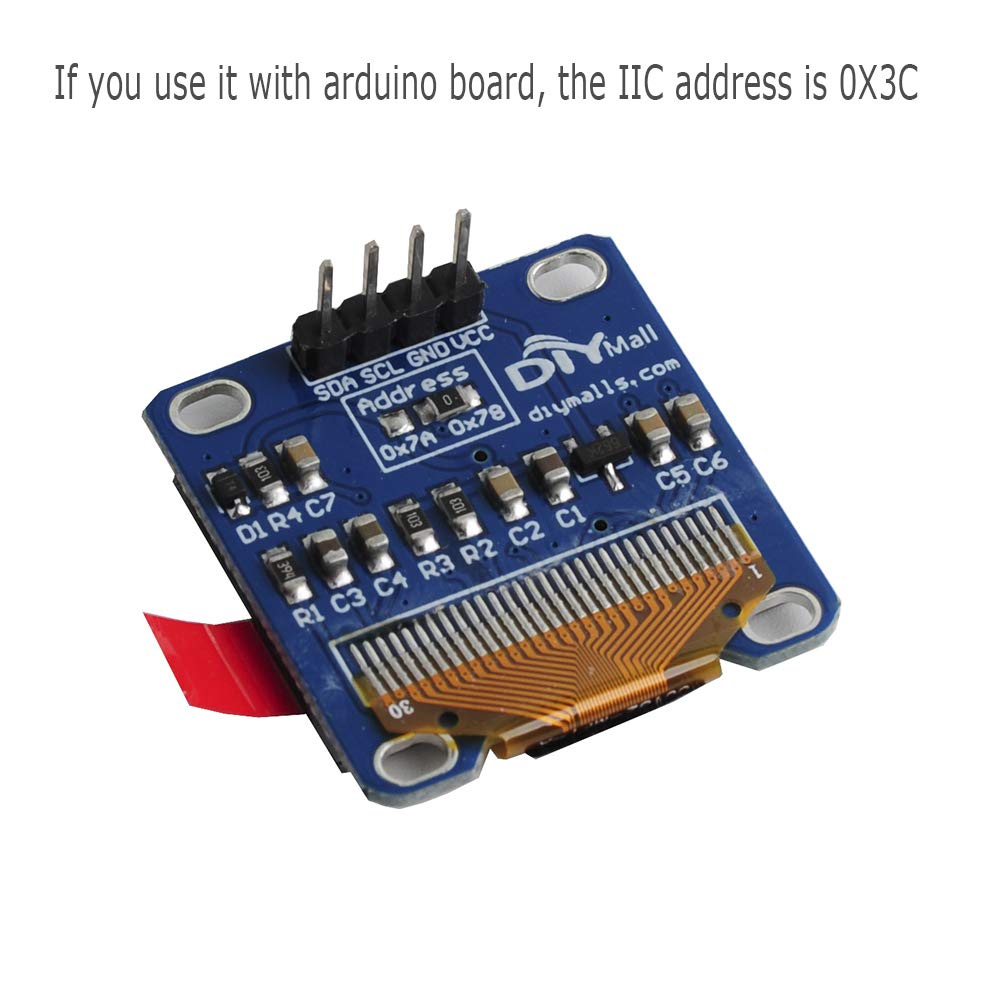

• Q: Can the IIC address of the OLED module be changed? A: Yes, the IIC address can be changed. This feature allows for flexibility when using multiple displays with different devices.
• Q: What is included in the package of the OLED module? A: The package includes two pieces of the zero point ninety-six inch IIC OLED modules. This ensures you have a spare for your projects.
• Q: Is there a backlight for the OLED display? A: No, the OLED display does not have a backlight. It uses self-lighting technology, which provides high contrast and visibility without additional power consumption.
• Q: How can I install the OLED module? A: To install the OLED module, use the four square holes for mounting. This design simplifies the installation process, ensuring a secure fit.
