These Dc Buck Boost Converters Are Excellent Power Transformers. They Feature Wide Input Voltage, Low Power Consumption, High Efficiency, Great Reliability. They Can Work Safely And Reliable In -40?C~80?C Range. Widely Used To Golf Cart, Motor, Speaker, Gps, Led Car Display Screen, Air-Conditioner, Electric Fan, Solar Energy, Photo-Voltaic Power, Dvd, Industrial Equipment Ect. Synchronous Rectification Technologythe Synchronous Rectifier Circuit Use Mosfet Instead Of Rectifier Diode To Greatly Reduce The Loss Of The Rectifier And Improve The Converter Efficiency, Maximum Efficiency:=95% Intelligent Protectionassembled With Smart Chip--Has Features Of Over-Current /Over-Load /Low-Load /Short-Circuit /Over-Heat Intelligent Protection100% Waterproof Modulecompact Aluminium Shell With Epoxy Potting Is Ip68 Waterproof, Anti-Shock, Damp-Proof , Anti-Dust Protection And Better Heat Dissipation, Adapt To A Variety Of Harsh Environment And Extend Service Lifesmt Processfr-4 Multilayer Lines, Resistors, Capacitors And Switch Mos Tube Are Smd Components With High Integration, High Reliability, High Stabilityeasy Installation---Positive And Negative Wires Can? Be Reversed Connectionnotes: It'S Normal That The Case Is Hot When Converter Inside Temp Is Over 113?, Converter Will Protect Itself When Inside Temp Is Over 185?.Specification: Input Voltage: 12V/24V/36V Nominal, Accept: 8V - 40V Input Rangeno-Load Input Current: =10Ma Output Voltage: Dc 12V ?2% Output Current: 6A Ripple Wave: 50Mvstarting Delay Time: = 2S Maximum Efficiency: =95%Non-Isolated Module Size: 74Mm X74Mm X 32Mm Net Weight: 250G / 8.8Ozpackage Include:1X Dc Voltage Converter 8V-40V To 12V 6A 72W
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the input voltage range for the DC Voltage Reducer Converter?A: The input voltage range is from eight volts to forty volts. This wide range allows it to be compatible with various power sources.
Q: What is the output voltage and current of this converter?A: The output voltage is twelve volts with a maximum current of six amps. This specification makes it suitable for multiple applications.
Q: What are the dimensions of the DC Voltage Reducer Converter?A: The dimensions are seventy-four millimeters by seventy-four millimeters by thirty-two millimeters. This compact size is ideal for installation in tight spaces.

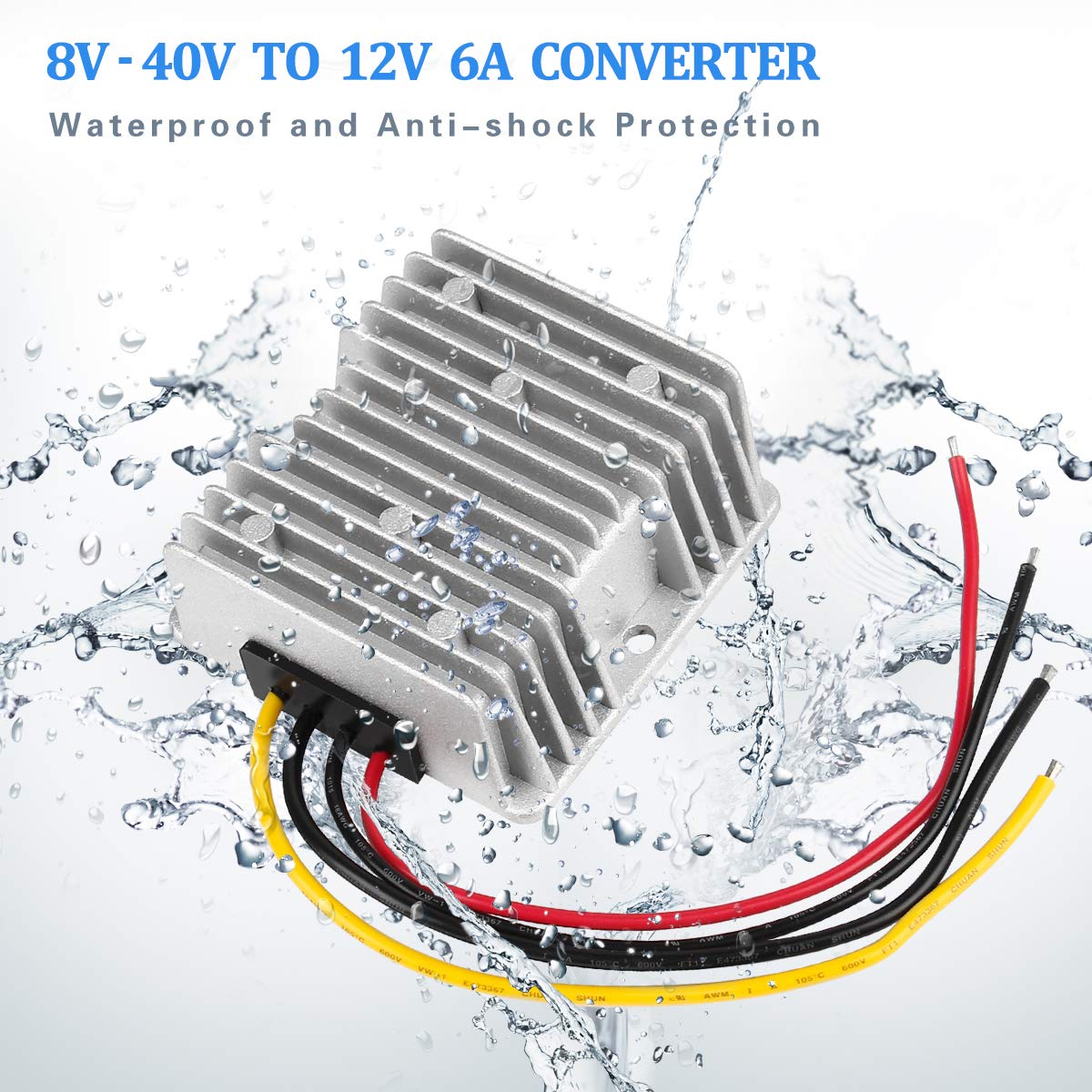

Q: Is the DC Voltage Reducer Converter waterproof?A: Yes, it is one hundred percent waterproof. The compact aluminum shell with epoxy potting provides IP68 protection.

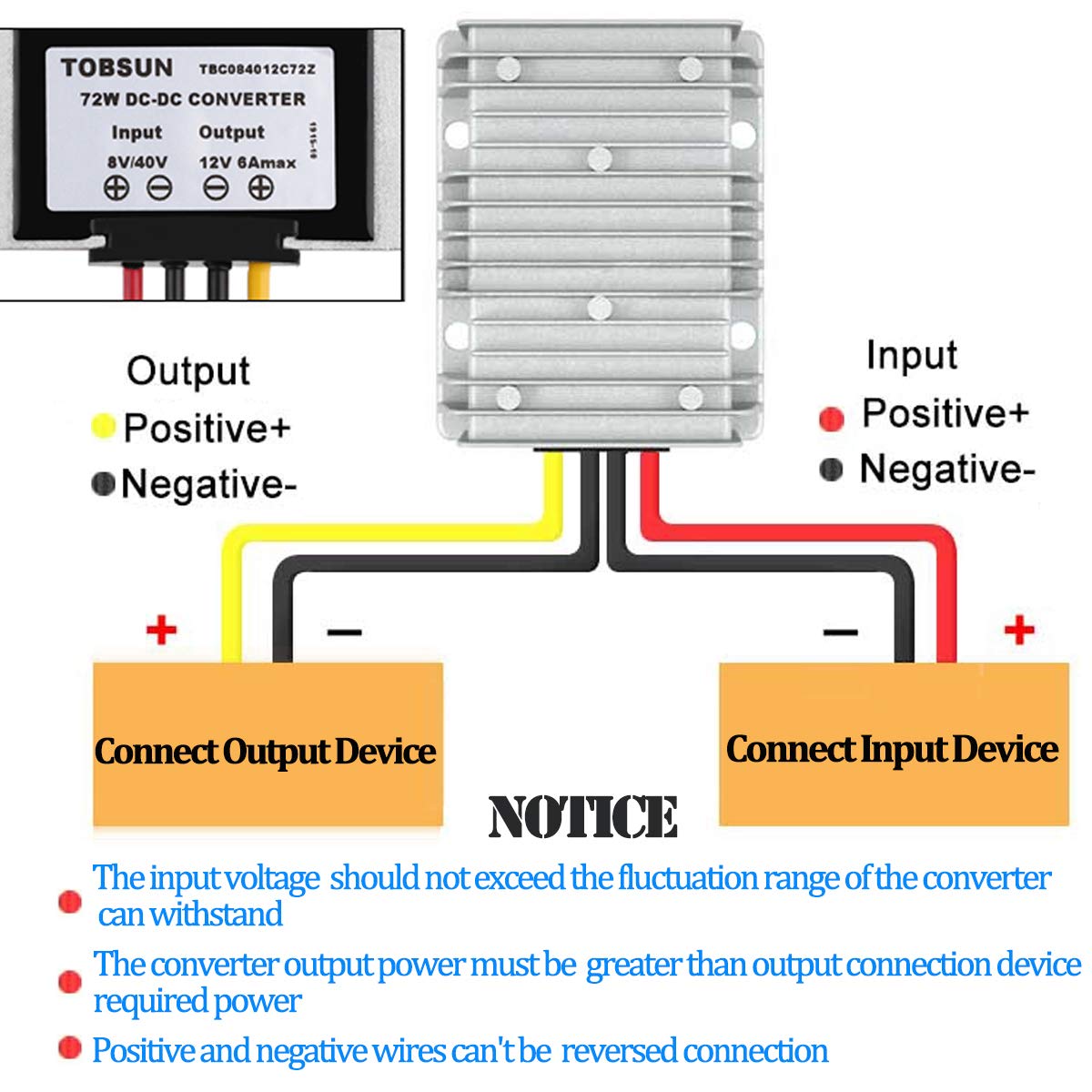

Q: How do I install the DC Voltage Reducer Converter?A: Installation is easy, as the positive and negative wires cannot be reversed. Just connect the wires properly to ensure safe operation.
Q: Can this converter be used in extreme temperatures?A: Yes, it can operate safely in temperatures ranging from negative forty degrees Celsius to eighty degrees Celsius. This feature ensures reliability in harsh environments.
Q: How do I keep the DC Voltage Reducer Converter in good condition?A: To maintain it, ensure proper wiring connections and avoid exposing it to excessive heat. Regular checks for any physical damage can also help prolong its life.
Q: What safety features does this converter have?A: It includes over-current, over-load, low-load, short-circuit, and over-heat intelligent protection. These features ensure safe operation under various conditions.
Q: Is there a warranty for the DC Voltage Reducer Converter?A: Yes, there is a one-year replacement assurance along with a thirty-day money-back guarantee. This provides peace of mind for your purchase.
Q: What should I do if the converter arrives damaged?A: If it arrives damaged, please contact customer support for assistance. They will guide you through the return process or replacement options.
Q: How does the synchronous rectification technology improve efficiency?A: This technology uses MOSFETs instead of rectifier diodes, significantly reducing losses and achieving a maximum efficiency of ninety-five percent.
Q: Can I use this converter for solar energy applications?A: Yes, it is suitable for solar energy applications among others. Its versatility makes it ideal for various devices, including solar setups.
Q: What is the ripple wave of the output voltage?A: The ripple wave is fifty millivolts. This low ripple ensures stable output and better performance of connected devices.
Q: Is this converter suitable for use with golf carts?A: Yes, it is widely used in golf carts and other similar applications. Its specifications are well-suited for such vehicles.
Q: What materials are used in the construction of this converter?A: The converter features a compact aluminum shell and uses high-quality SMD components for reliability and stability. This enhances both durability and performance.
