Sizing Information Pads Should Be Sized So There Is No More Than 50 Pounds Per Square Inch Of Machine Weight On It When Installed (Most Machinery Is Designed With Approximately 50 Psi Maximum Base Loading) Installing A Pad Equal To The Size Of The Foot With 1/2?? Overlap All Around Will Generally Insure Proper Loading To Dampen Vibration Example: A Machine Weighing 1800 Pounds Will Require An Anti - Vibration Pad Approximately 6?? X 6?? (1800 ??50 Psi = 36 Square Inches Or One 6 X 6 Pad). A 3 X 3 Pad Under Each Leg Is Required, Provided The Weight Is Distributed Evenly Among The Four Legs For Impact Machines (Punch Presses, Drop Hammers) A Lesser Loading Capacity Is Recommended - Generally 25 Psi A Double Thickness Of A Pad May Be Used To Accomplish Proper Loading If Desired When Hold Down Bolts Are Necessary, The Bolt Should Be Isolated From The Machine Recommended Maximum Loading Capacity: 50 Lbs Per Square Inch
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions

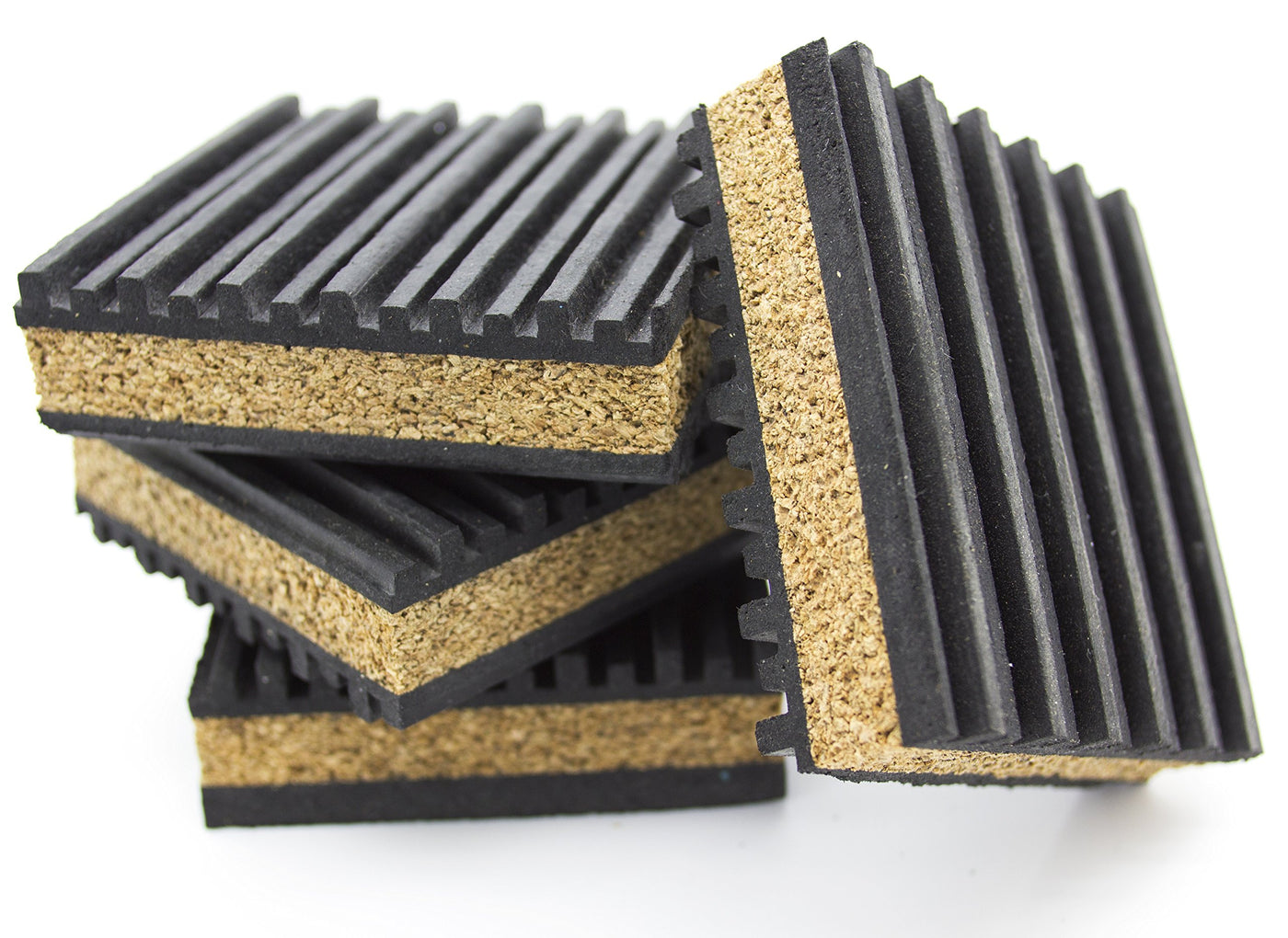

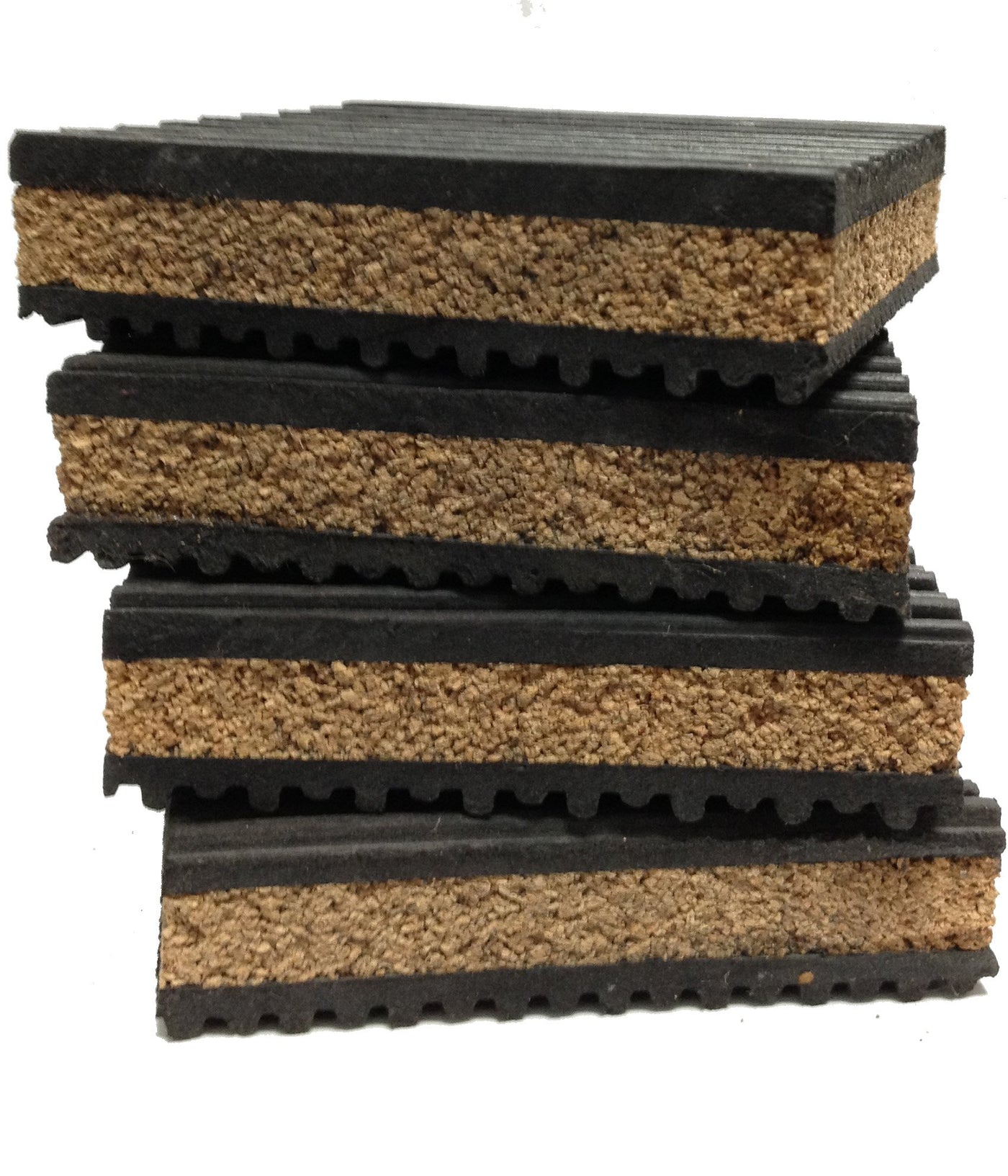

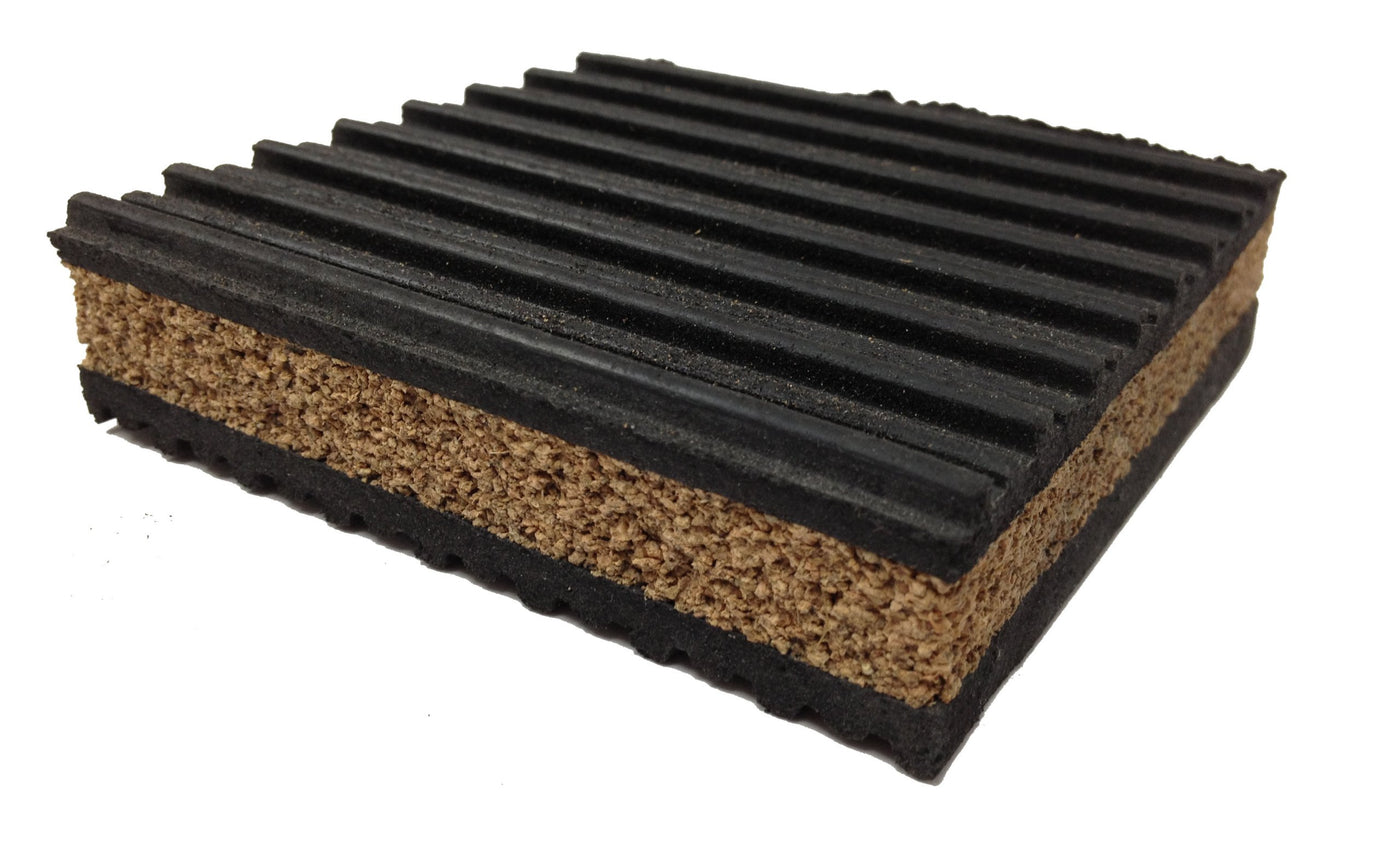

Q: What are the dimensions of the Cork & Rubber Anti Vibration Pads?A: The Cork & Rubber Anti Vibration Pads measure six inches by six inches.
Q: What material are these anti-vibration pads made from?A: These anti-vibration pads are made from rubber and cork.
Q: How thick are the Cork & Rubber Anti Vibration Pads?A: The pads are seven-eighths of an inch thick.
Q: How much weight can each pad support?A: Each pad supports a maximum loading capacity of fifty pounds per square inch.
Q: How do you properly install the anti-vibration pads?A: Install the pads so that there is no more than fifty pounds per square inch of machine weight on them.
Q: Can these pads be used for heavy machinery?A: Yes, they are suitable for heavy machinery weighing up to eighteen hundred pounds.
Q: What is the recommended overlap when installing these pads?A: A half-inch overlap around each pad is generally recommended for proper loading.
Q: Are these pads suitable for impact machines?A: Yes, but for impact machines, a lesser loading capacity of twenty-five pounds per square inch is recommended.
Q: How do you clean the anti-vibration pads?A: To clean the pads, simply wipe them down with a damp cloth.
Q: What is the best way to store the Cork & Rubber Anti Vibration Pads?A: Store the pads in a dry, cool place to maintain their integrity.
Q: Are these pads resistant to water and oil?A: Yes, the pads are designed to resist aging, compression set, water, and oil.
Q: Can I use these pads under lighter machines?A: Yes, they can be used under lighter machines as long as the weight does not exceed the recommended capacity.
Q: What should I do if the pads arrive damaged?A: If the pads arrive damaged, contact customer support for a replacement or refund.
Q: Is there a warranty on these anti-vibration pads?A: Yes, these pads typically come with a manufacturer's warranty for defects.
Q: Can I use these pads with hold down bolts?A: Yes, if using hold down bolts, they should be isolated from the machine.
Q: Are these pads safe for all types of flooring?A: Yes, they are safe for various types of flooring, provided they are installed correctly.
