Coolerguys Thermal Fan Controller (Rev. 4)
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
Coolerguys Thermal Fan Controller (Rev. 4)
$34.14
Sold Out

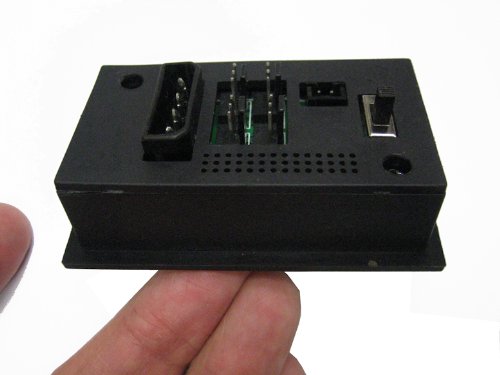

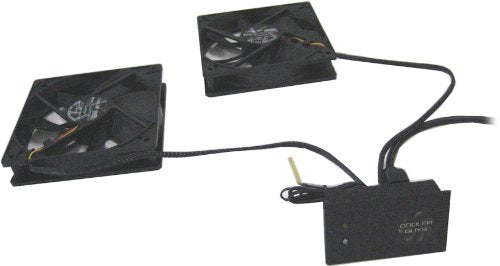

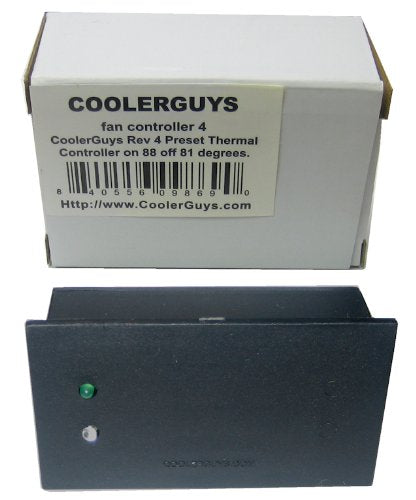

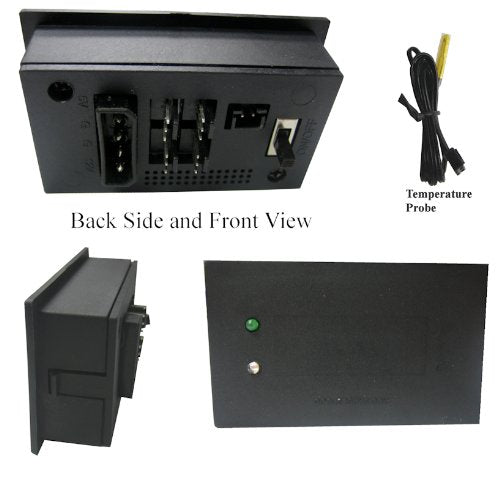

Coolerguys Thermal Fan Controller (Rev. 4) Designed to work with our 100-240v 12/5v External Power Supply or any standard computer supply to power 12v devices. NOT COMPATIBLE WITH ANY LITE KITS or 5v FANS This controller has 2 functions. 1. Continuously power up to 2000ma (2A) worth of devices when the switch is in the up position (top green led will be lit) 2. Thermally control up to 2000ma (2A) worth of devices when the back switch is in the bottom position, when the temperature is >=88F(31C) it will power on the 3pin ports and stay powered on until the temperature falls below 81F(27C). Package Includes (1) Controller Device: 75mm x 44mm x 25mm / Cutout: 68mm x 38mm (1) Thermal Probe 18 (please leave the protective shield on) Specifications: (1) 4pin female molex port, 12v, ground, ground, 5v to power the device (4) 3pin male connectors, 12v & ground out only, 3rd pin inactive (1) 3mm Green LED, only lights when you are using in continuous mode with switch in up position (1) 3mm Dual Red/Green LED, when switch is in down thermal control position this will be red when below 81F and Green when the controller has activated the 3pin devices *Controller draws 100ma *Maximum power draw to not exceed 1800ma (1.8A) or it can damage the device
