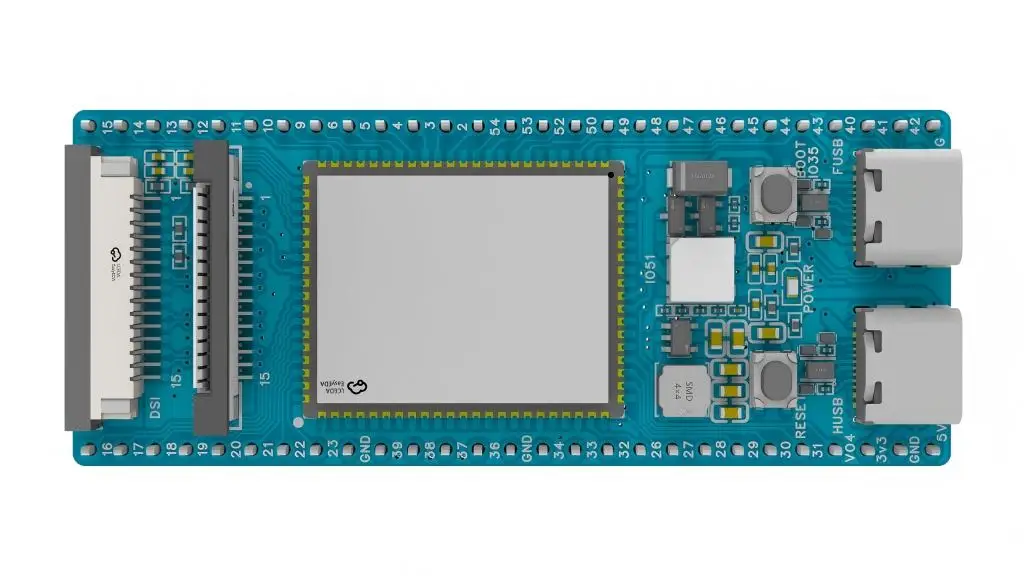

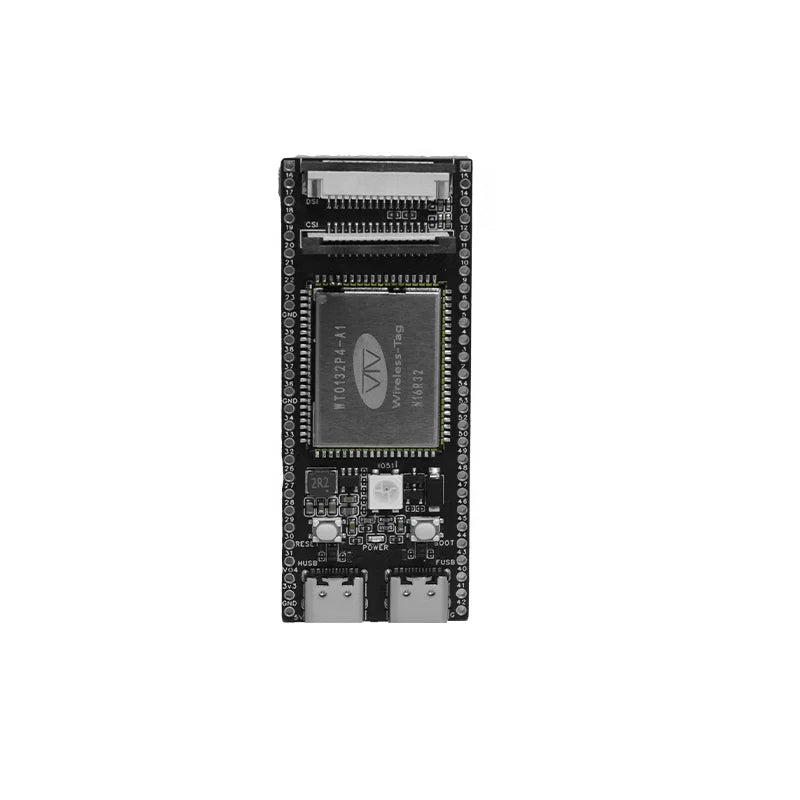

Powered by Espressif high-performance ESP32-P4 360MHz RISC-V chip, this mini board only measures 69×28mm, adopts mature WT0132P4-A1 core module + double-layer PCB design, balancing hardware stability and cost control. It integrates complete multimedia peripheral interfaces that most tiny dev boards lack, making it a cost-effective all-in-one solution for makers, students, engineers and commercial prototype development.
✨ Core Points
Mini Pocket Form Factor, Space-Saving Design
Ultra-small 69×28mm dimension, easy to embed into wearable devices, mini robots, compact monitoring equipment and limited-space embedded products, greatly reducing product casing development difficulty.

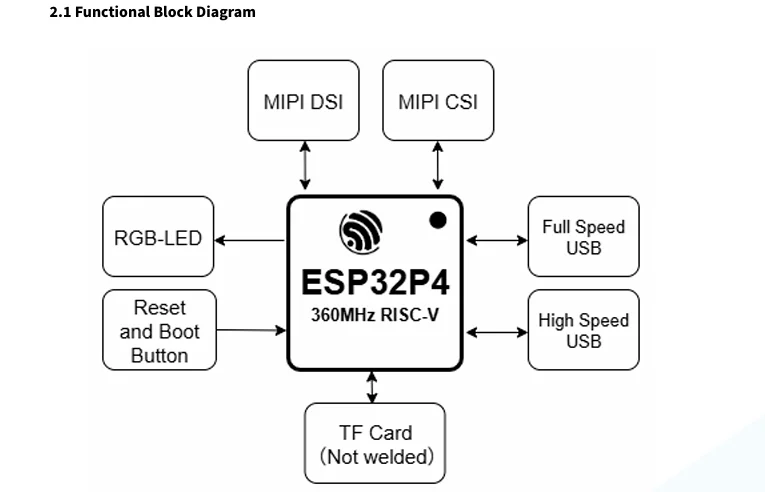

Dual MIPI Native Interfaces – Support Camera + LCD At The Same Time
Onboard 1.0mm pitch 15Pin MIPI CSI (camera) + MIPI DSI (display) FPC connectors, Raspberry Pi compatible pin definition, directly connect screen & camera without extra adapter boards, perfect for image acquisition, visual interaction projects.
Dual Type-C USB, Dual-Speed Data & Power Supply
J3 FUSB: Full-speed USB 12Mbps, for firmware flash, serial debug
J4 HUSB: High-speed USB 480Mbps OTG, can output max 500mA power to external USB devices
Reversible Type-C plug, one cable for power, download and communication, no more plug direction trouble.
Full GPIO Breakout + Breadboard Compatible

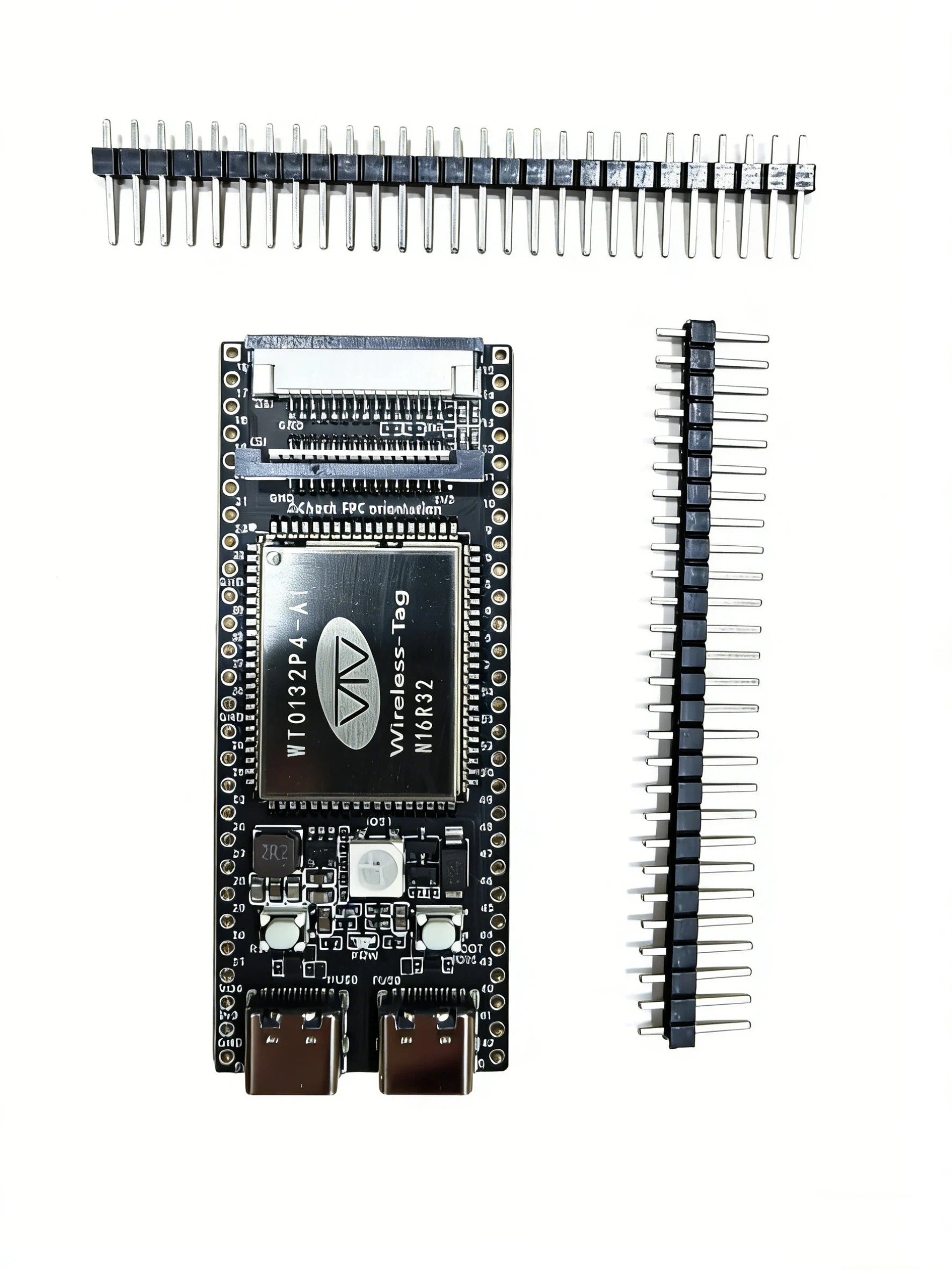

All chip IO pins fully led out via standard 2.54mm pitch pin headers (J6+J7), plug-and-play with breadboard, freely expand sensors, motors, relays and other peripherals, flexible secondary development.
Onboard RGB WS2812 Status Indicator
Built-in single-wire RGB LED (IO51), customizable colorful light logic for power, Wi-Fi connection, task running, fault alarm status feedback, no need to weld extra indicator lights.
Complete Control Buttons & Expansion Reserve
Independent RESET reset key + BOOT download key, one-click enter flashing mode; reserved unsoldered MicroSD 4-wire SDIO slot, users can weld TF card slot for large-capacity local storage.
Stable Hardware & Official ESP-IDF Full Support
Based on mass-produced WT0132P4-A1 module, double-layer PCB stable circuit design; fully compatible with official ESP-IDF development framework, official sample codes open for quick project verification.
