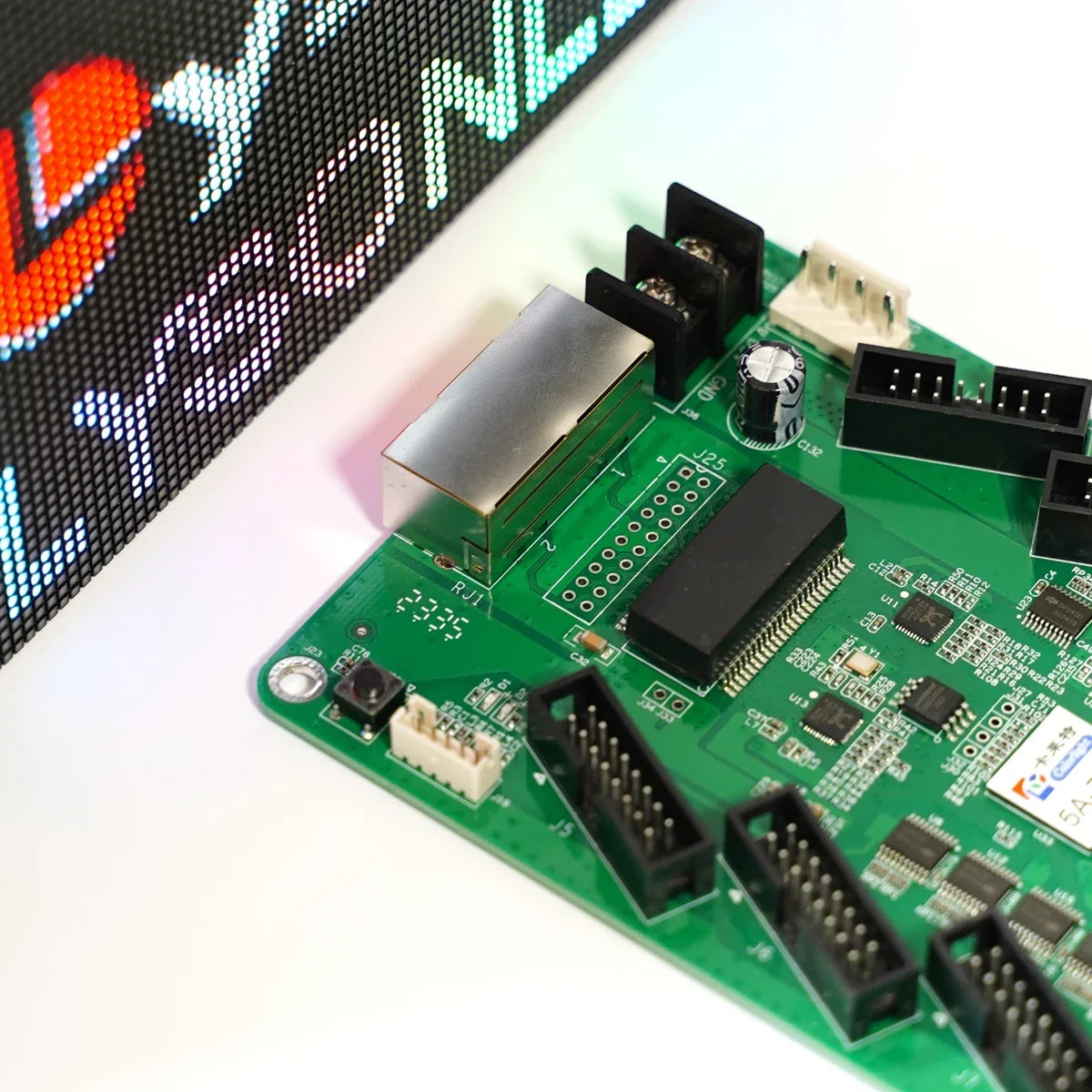

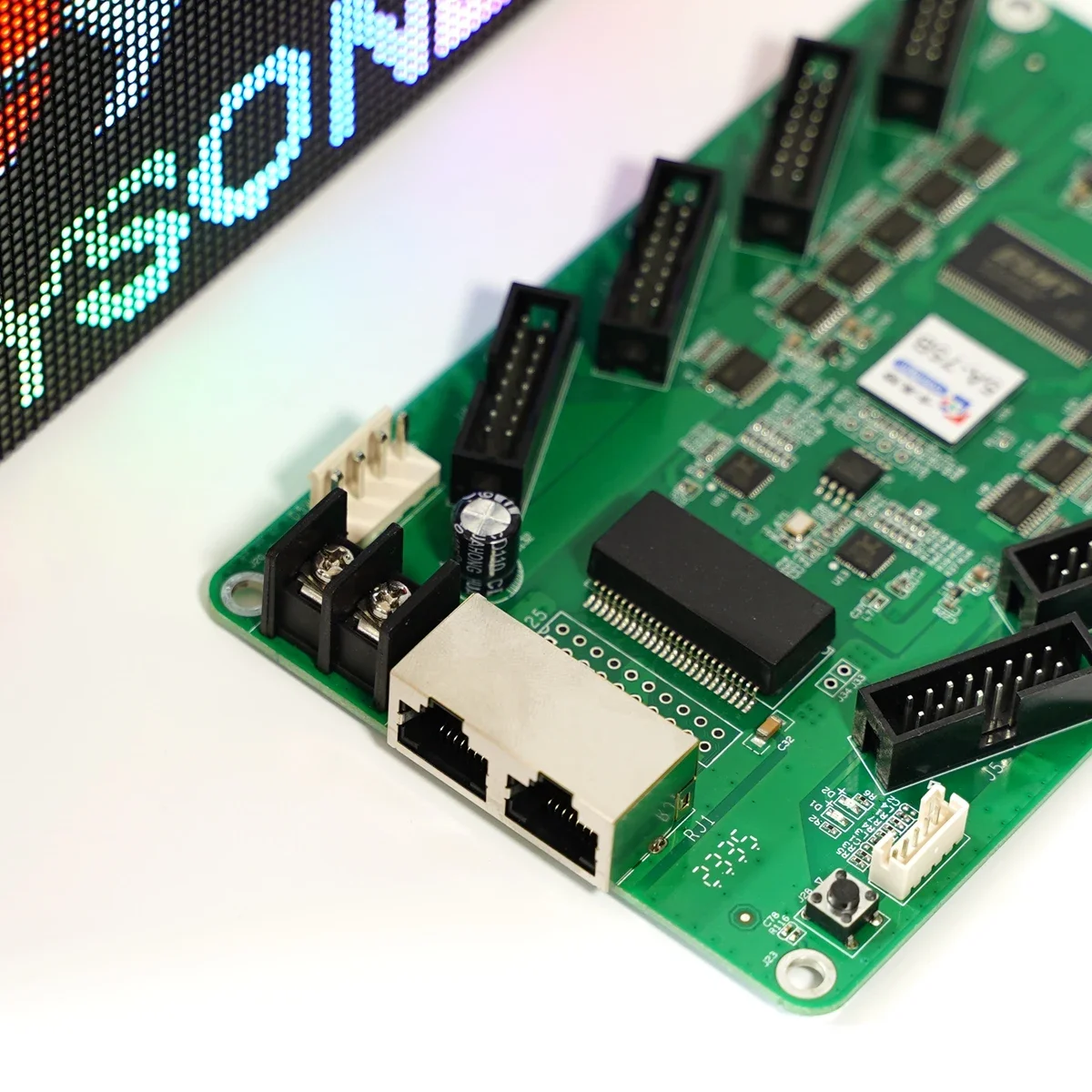

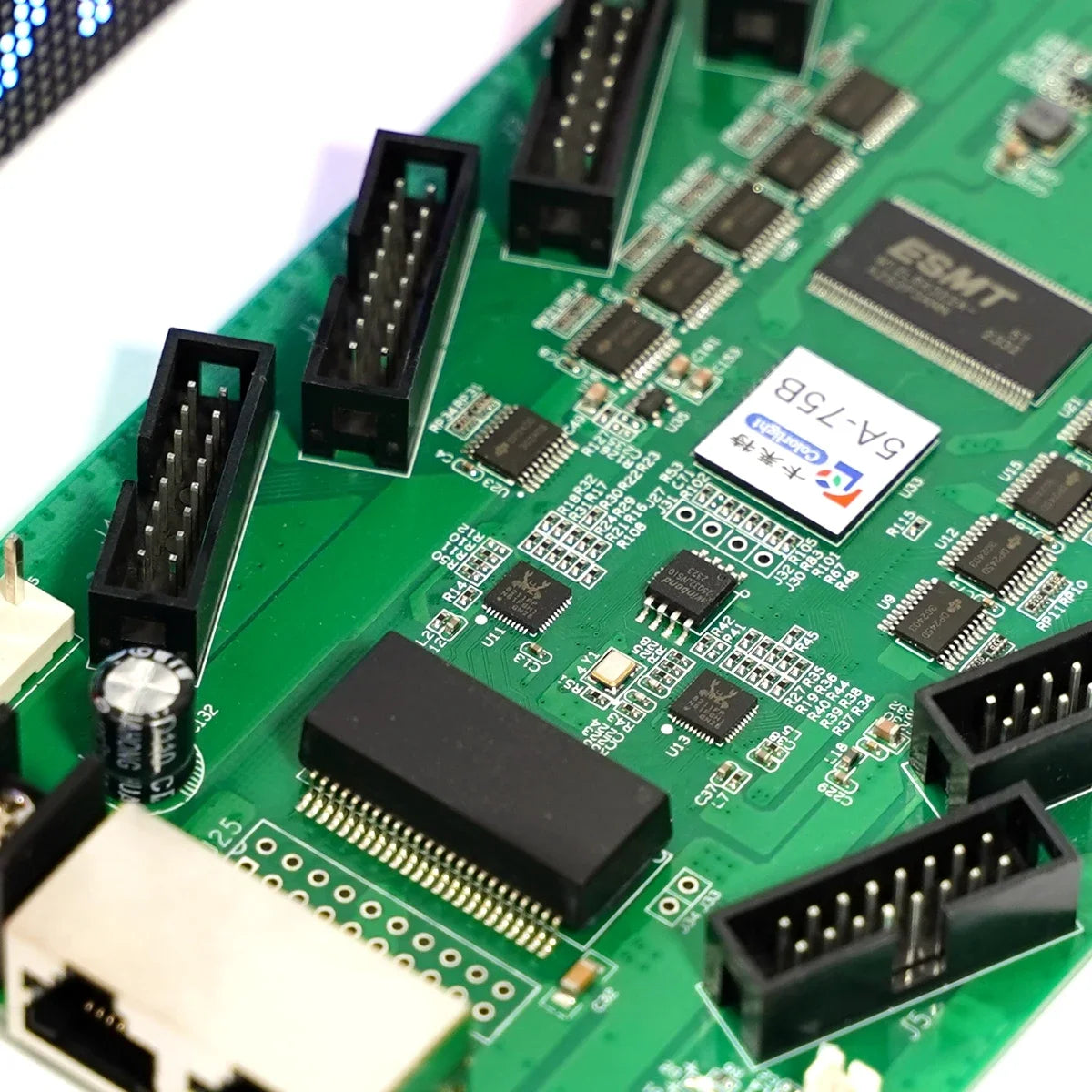

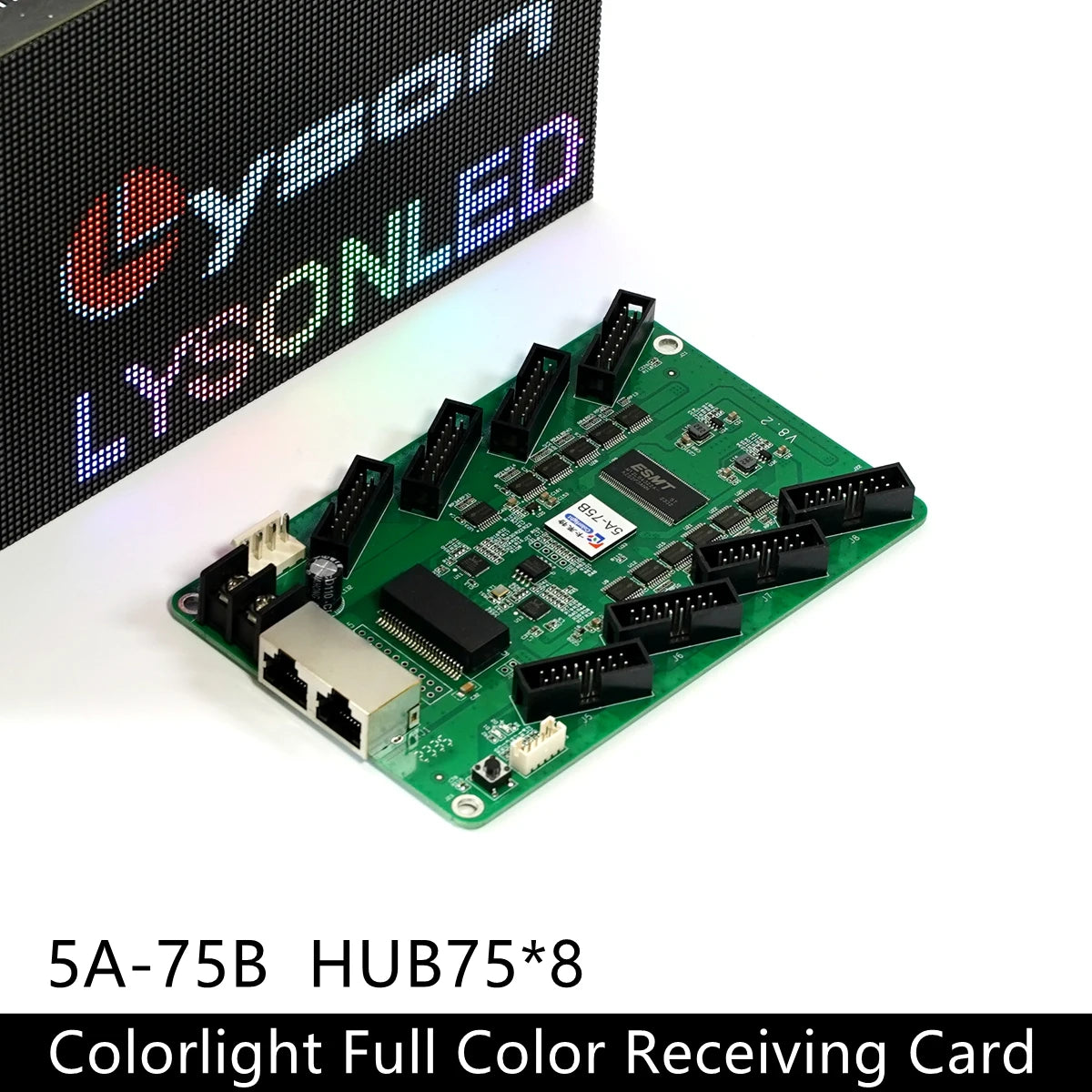

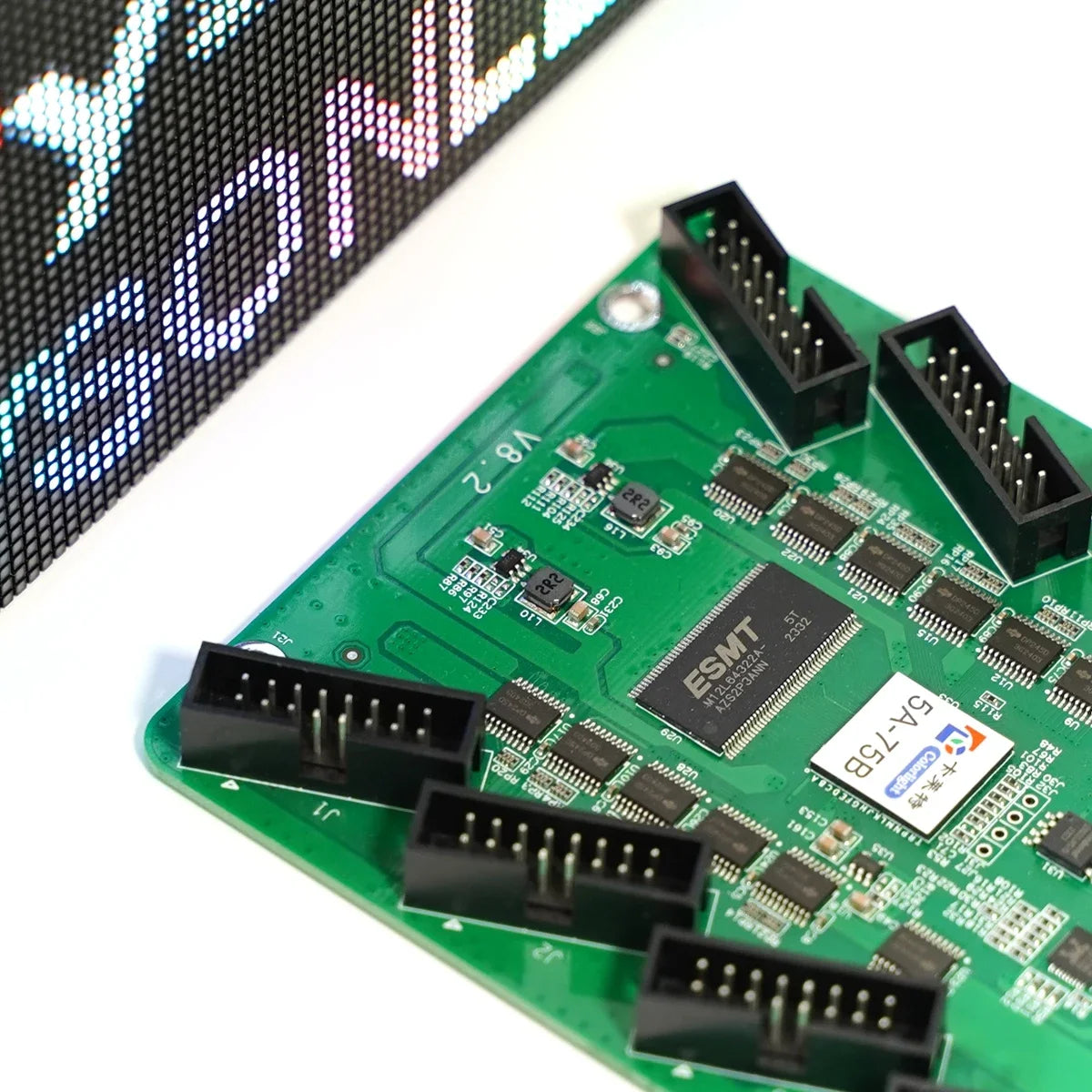

Colorlight 5A-75B 8xHUB75E Ports Full Color LED Video Wall Receiving Card Work With S2 Sending
Features ·Integrated HUB75 interface, more convenient with less cost.
·Reduces the plug connectors and malfunction, lower failure rate.
·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: partial dark at row, reddish at low gray, shadow problems can be solved.
·Supports high-precision point-by-point calibration in the Brightness and the chromaticity.
·Supports conventional chips, PWM chips and lighting chips.
·Supports any scan mode from static to 64 scans.
·Supports any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Supports 16 groups of RGB signal output.
·Large loading capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC3.3~5.5V.
·First adopt all components face up configuration to reduce damage.
·Compatible with all series of Colorlight’s sending devices.
Control system parameters Sending device All series of Colorlight’s sending devices
Control area of every card Full-color: 256×512 pixels Correction area of every card 256×512pixels Network port exchange Supported, arbitrary use Synchronization Nanosecond synchronization between cards
Display module compatibility Chip support Supports conventional chips, PWM chips, lighting chips and other mainstream chips
Scan type Supports 64 scans Module specifications support Supports 8192 pixels within any row, any column The direction of the cable Supports route from left to right, from right to left, from top to bottom, from bottom to top Data groups 16 RGB data groups Data folded Supports to fold on the same or opposite direction Module snapshot Supports any pumping point Data serial transmission Supports RGB, R8G8B8, R16G16B16, etc in the form of serial Compatible device and interface type Communication distance UTP cable≤140m
CAT6 cable≤170m
Optic fiber: Single Mode Fiber Converter≤20km
Multi-Mode Fiber Converter ≤550m (Use RP Repeater to extend unlimited)
Compatible with transmission equipment Gigabit switch, fiber converter, optical switches
DC power interface Wire terminal HUB Interface Type HUB75 Physical parameters Size 143×93mm Input voltage DC 3.3V~5.5V Rated current 0.6A Rated power 3W Storage and transport temperature -50℃~125℃ Operating Temperature -20℃~75℃ Body static resistance 2KV Weight 100g
Monitoring function (in conjunction with mutil-function card) Monitoring functions Real time monitoring environment information like temperature, humidity, smog Remote control Supports for relay switch to turn on/off the power supply of equipments remotely Other features Pixel level calibration Supported Loop backup Supported Shaped screen Supports various freeform display, spherical display, creative display, etc. through the data arbitrary offset
