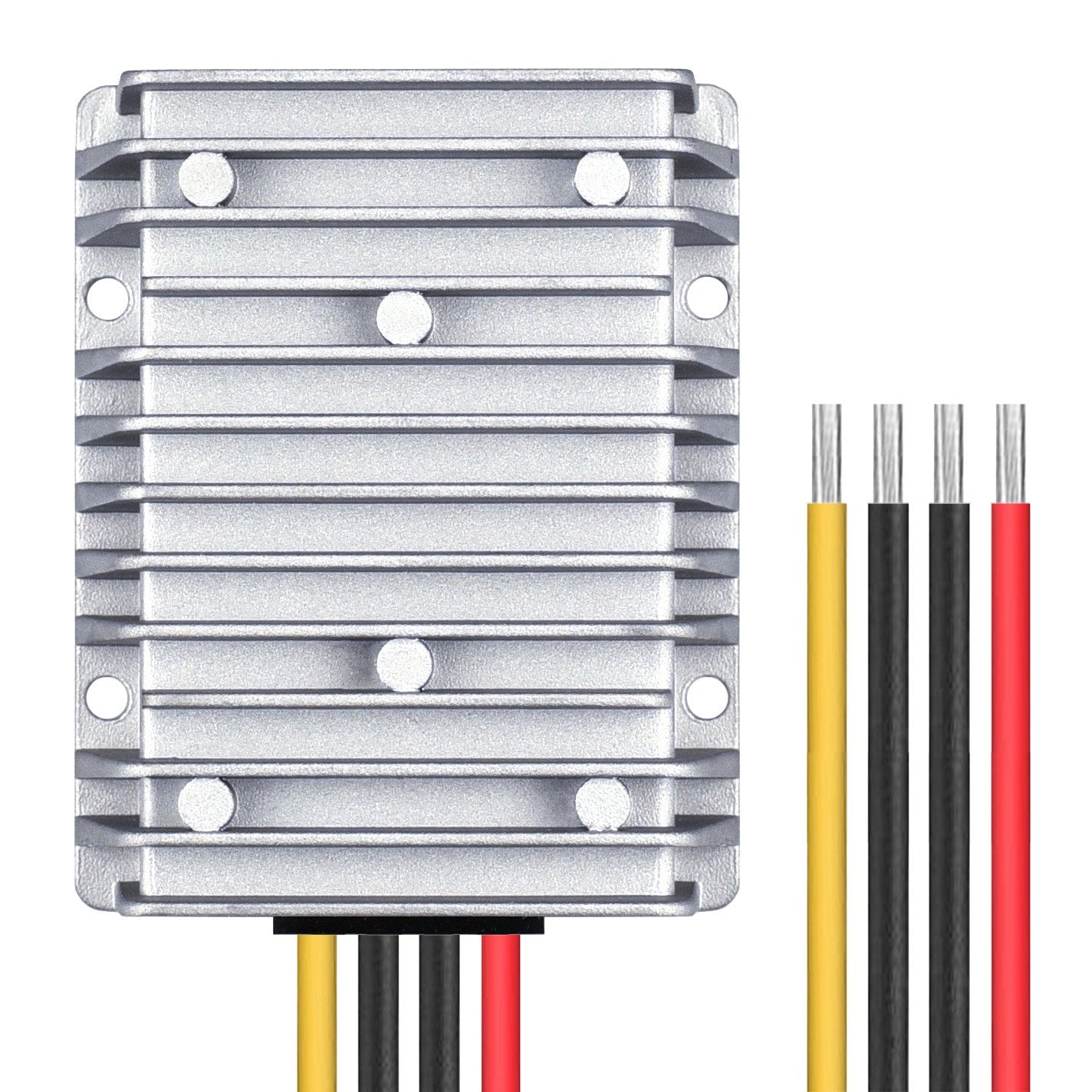

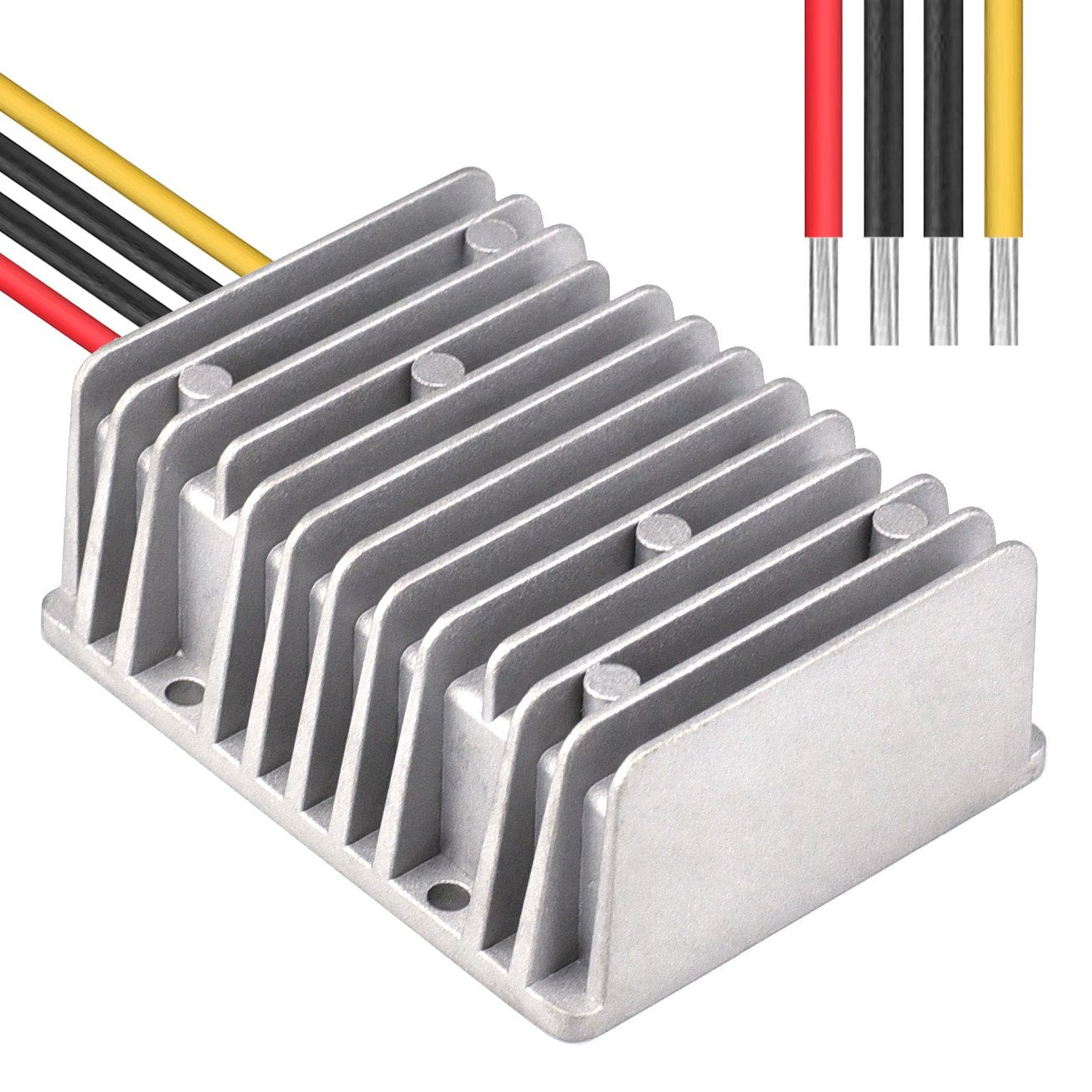

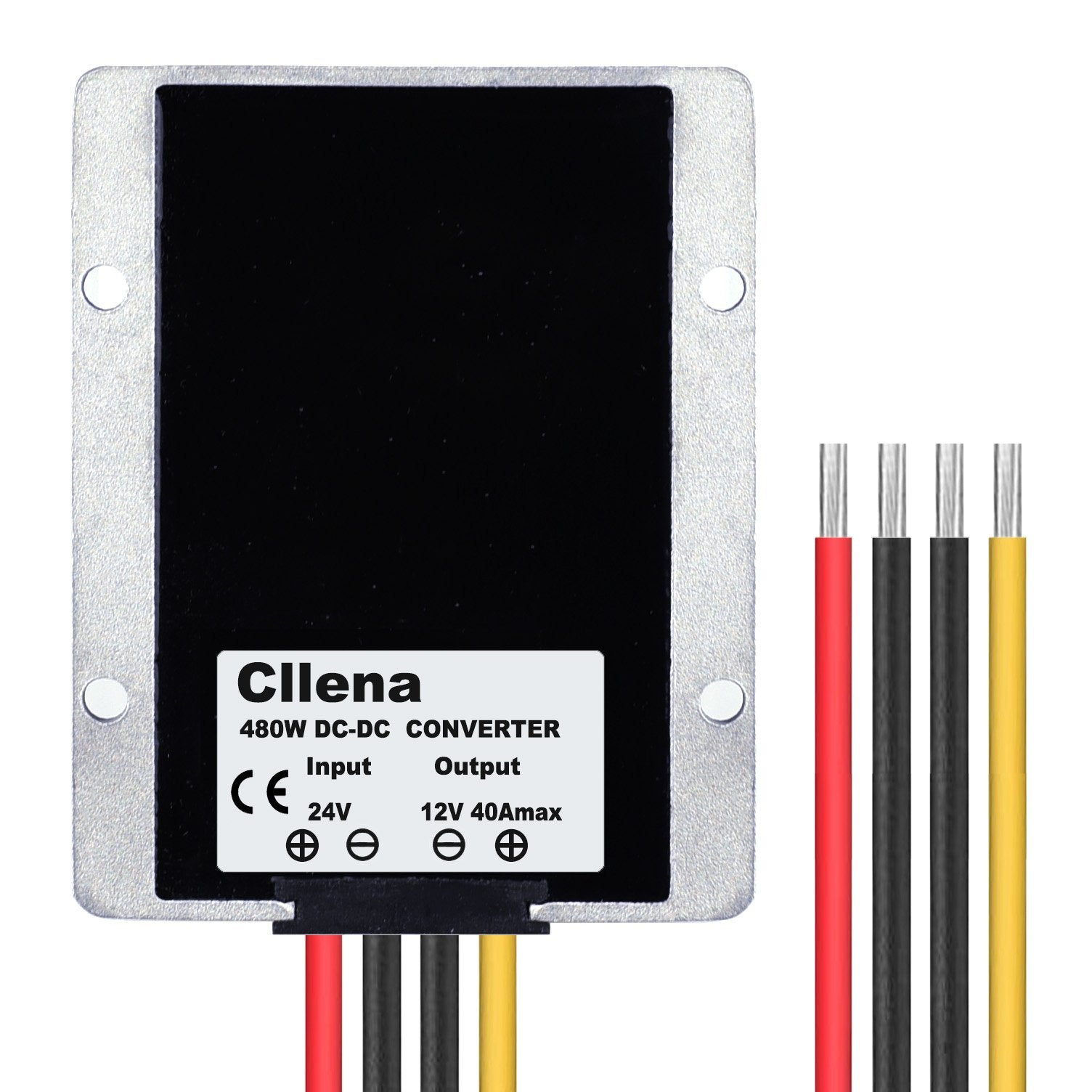

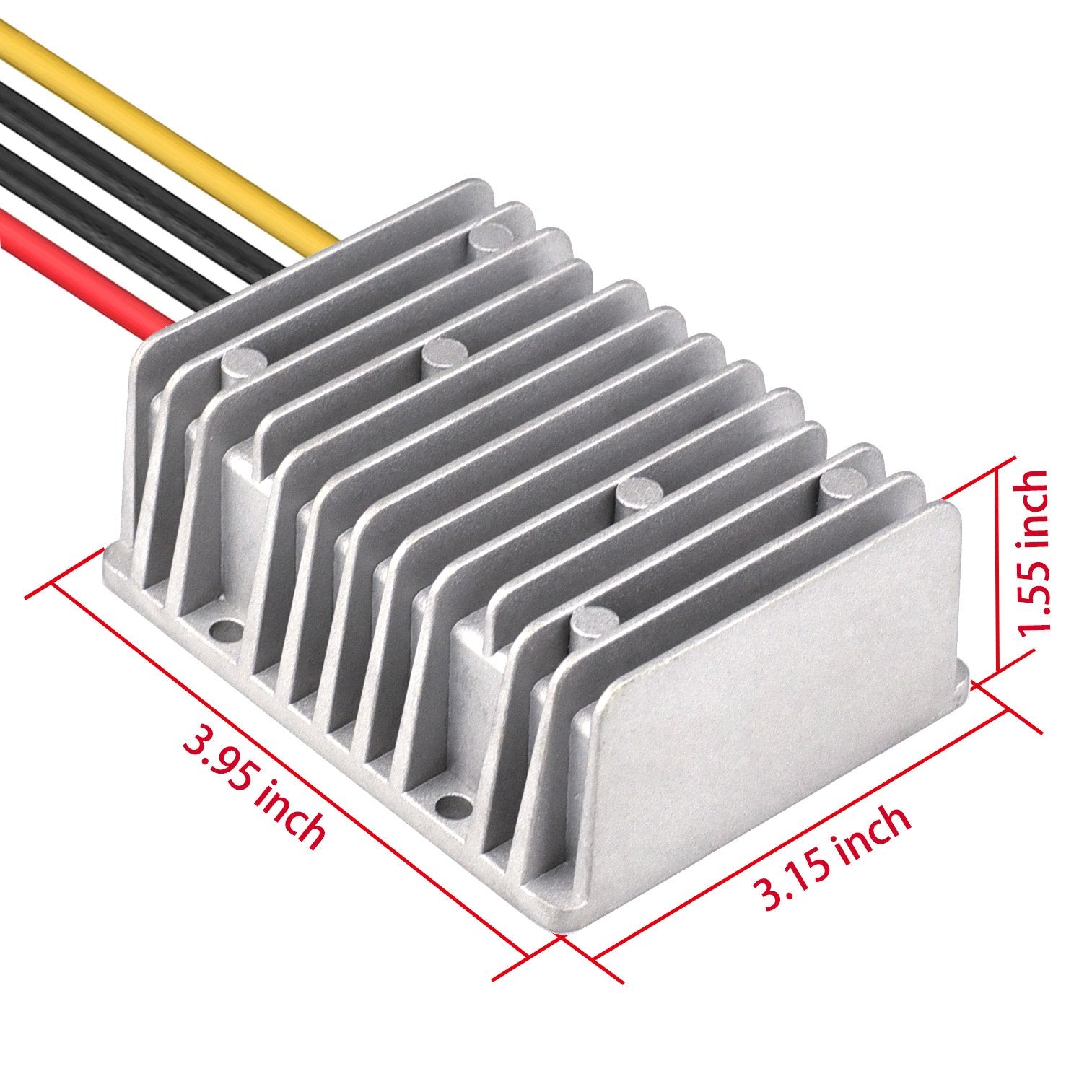

Cllena Dc/Dc Voltage Converter Regulator Dc 24V Step Down To 12V 40A 480W Buck Transformer Waterproof
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
Cllena Dc/Dc Voltage Converter Regulator Dc 24V Step Down To 12V 40A 480W Buck Transformer Waterproof
$43.41
Sold Out
Wiring: Output+ To Load+, Output- To Load-; Input+ To Bat+, Input- To Bat- Note: * Never Connect To Solar Panel, Pwm/Mppt Charge Controller, Inverter Or Wind Turbine. * Never Charge. Keep Good Air Convection. * Never Reverse The Polarity. * Use The Enough Big Cable To Avoid The Voltage Drop. Application: 24V Dc As Input Power To 12V Dc Appliances As Output Load. Specifications: Input Rated Voltage: 24V Dc Input Voltage Range: 18-35V Dc Output Voltage: Dc12V 40A Output Rated Power: 480W Efficiency: 97% (Half Load); 95% (Full Load) Ripple: 200Mvp Line Regulation: 0.2% Load Regulation: 0.2% Voltage Accuracy: 1.5% Enclosures: Ip68 Case Operating Temperature: -40~85C Weight: 550G Features: 1. 100% Full Power And Stable Current Output, Non-Isolated Module. 2. Industry Grade Dc24V To Dc 12V Step-Down Converter, Efficiency Up To 95%. 3. Die-Cast Aluminum Shell, Epoxy Potting, Cooling By Free Air Convection; Waterproof Level Ip68 And Anti-Shock Protection. 4. Protections: Over-Current, Over-Voltage, Over-Temperature, Over-Load And Short-Circuit, Auto-Recovery When Device Is Back To Normal Operating. 5. Certificates: Ce/Rohs, 1 Year Warranty, Lifetime Up To 100,000 Hours. Package Included: 1 X Dc 24-12V 40A Voltage Converter Questions: How To Choose The Correct Current For Loads? For Example, If The Max Current Of Your Load Device Is 10A, Then Choose 10A/0.8=12.5A At Least For Resistive Loads According To International Standard. If The Load Device Is Motor Or Compressor, Then You May Choose 10A/0.5=20A According To Real Testing Result Since The Motor And Compressor Starting Current May Be 2-3 Times Than Nominal Current.
⚠️ WARNING (California Proposition 65):www.P65Warnings.ca.gov .
