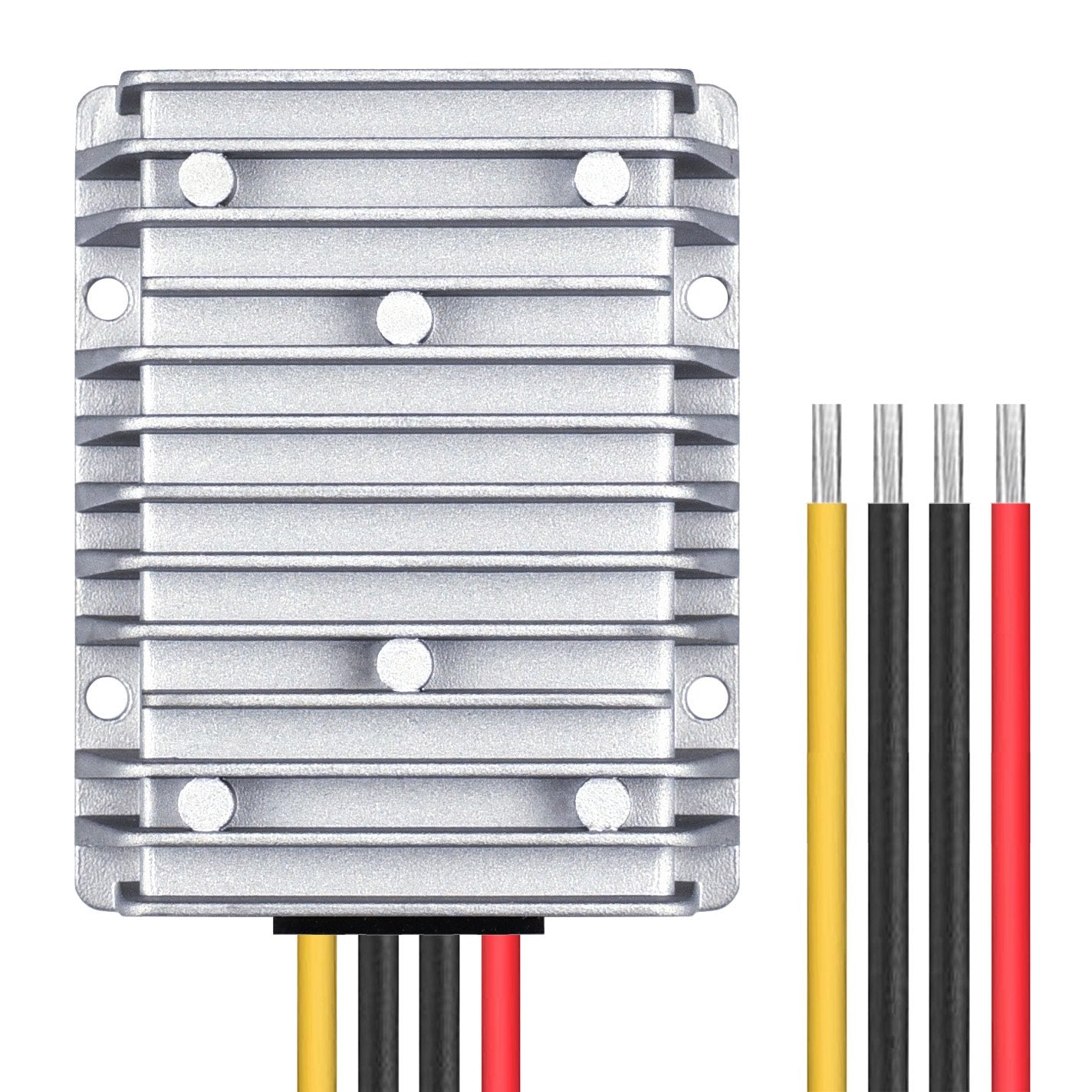

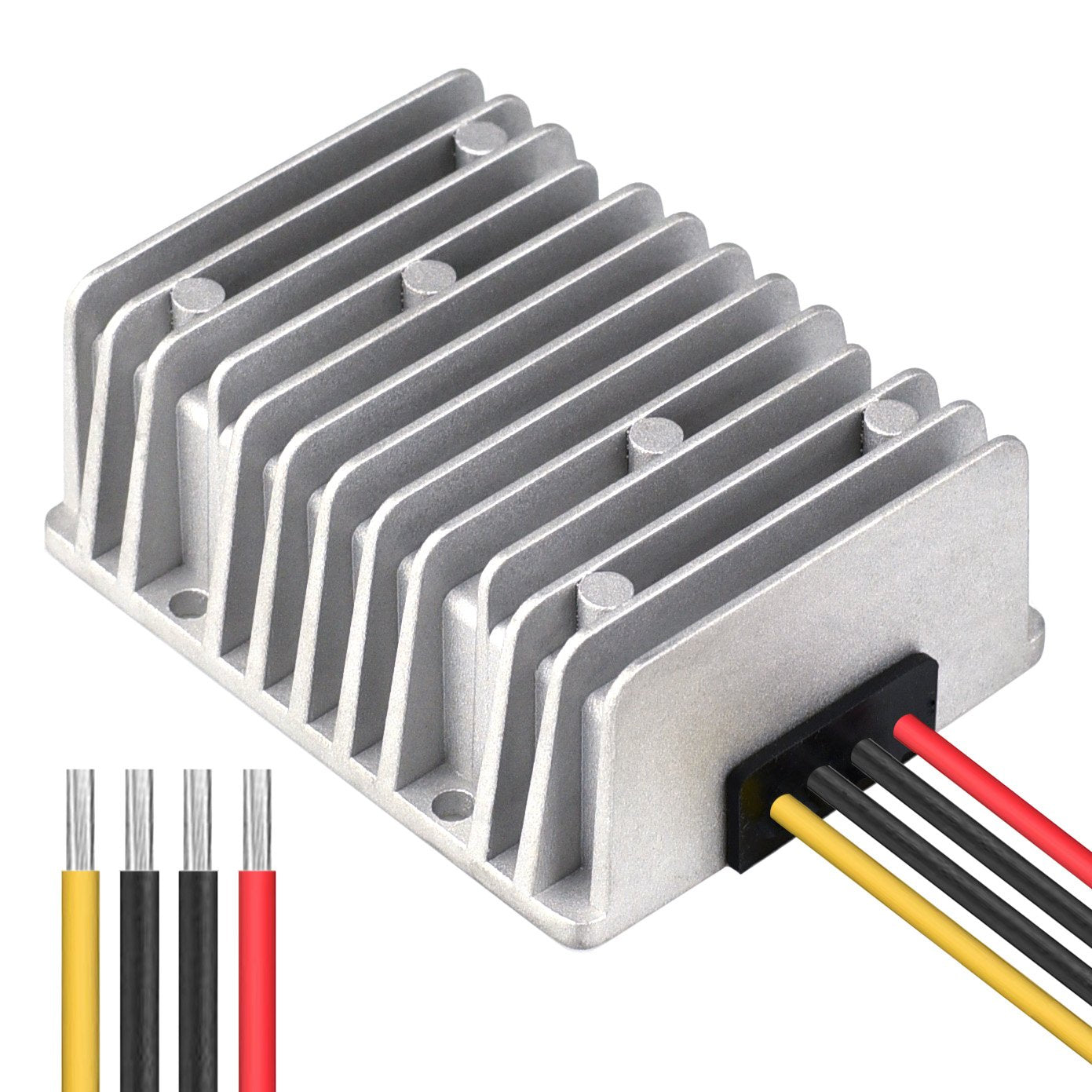

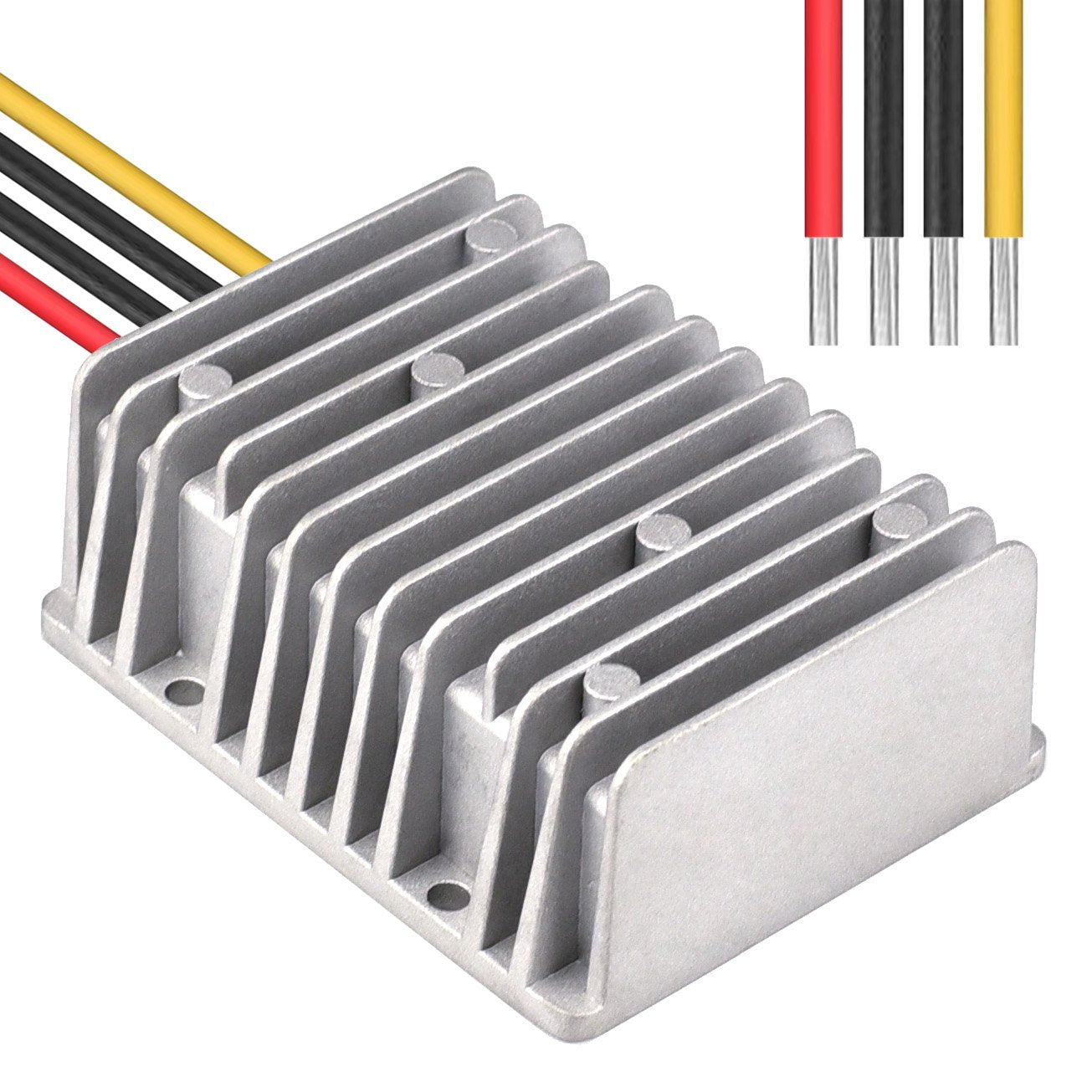

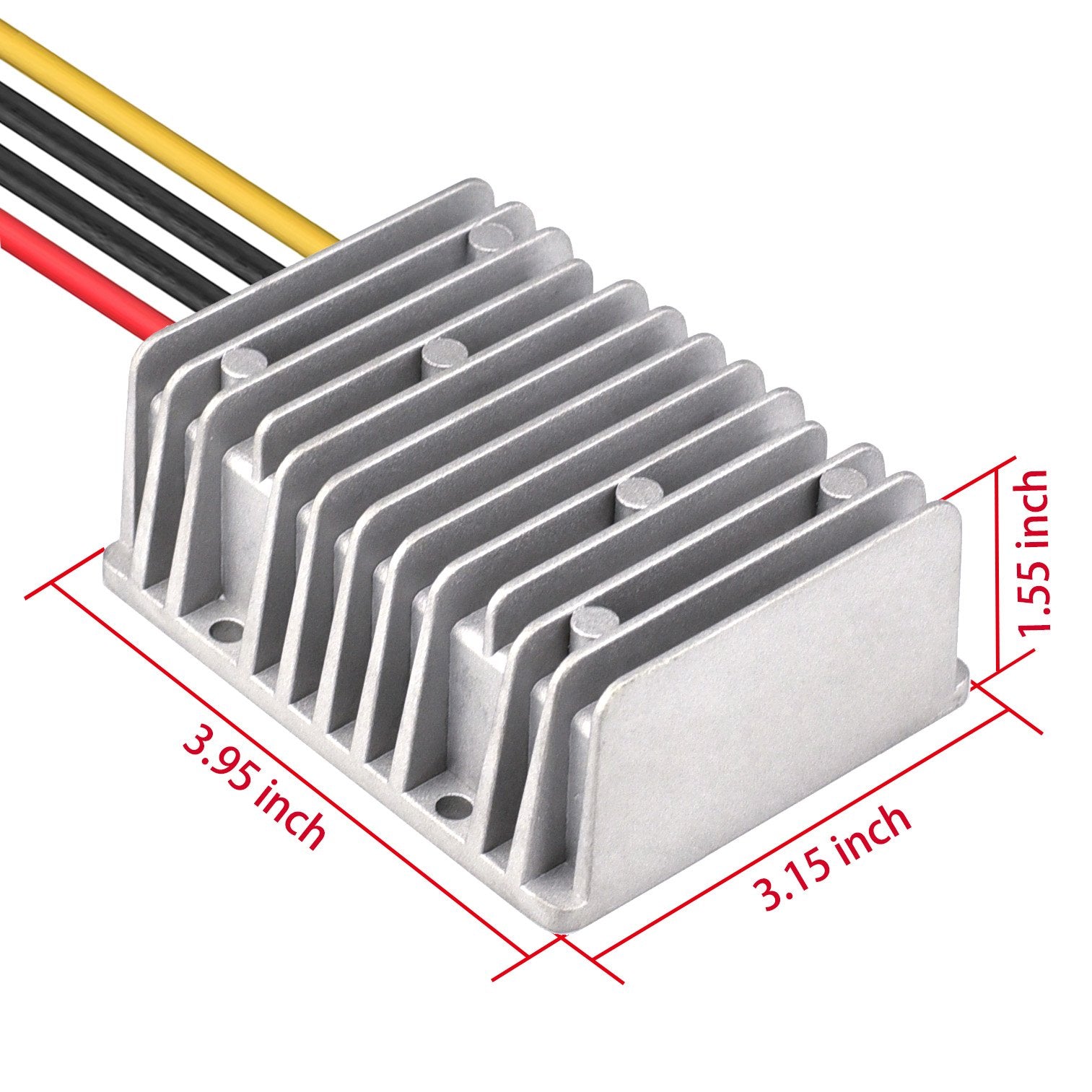

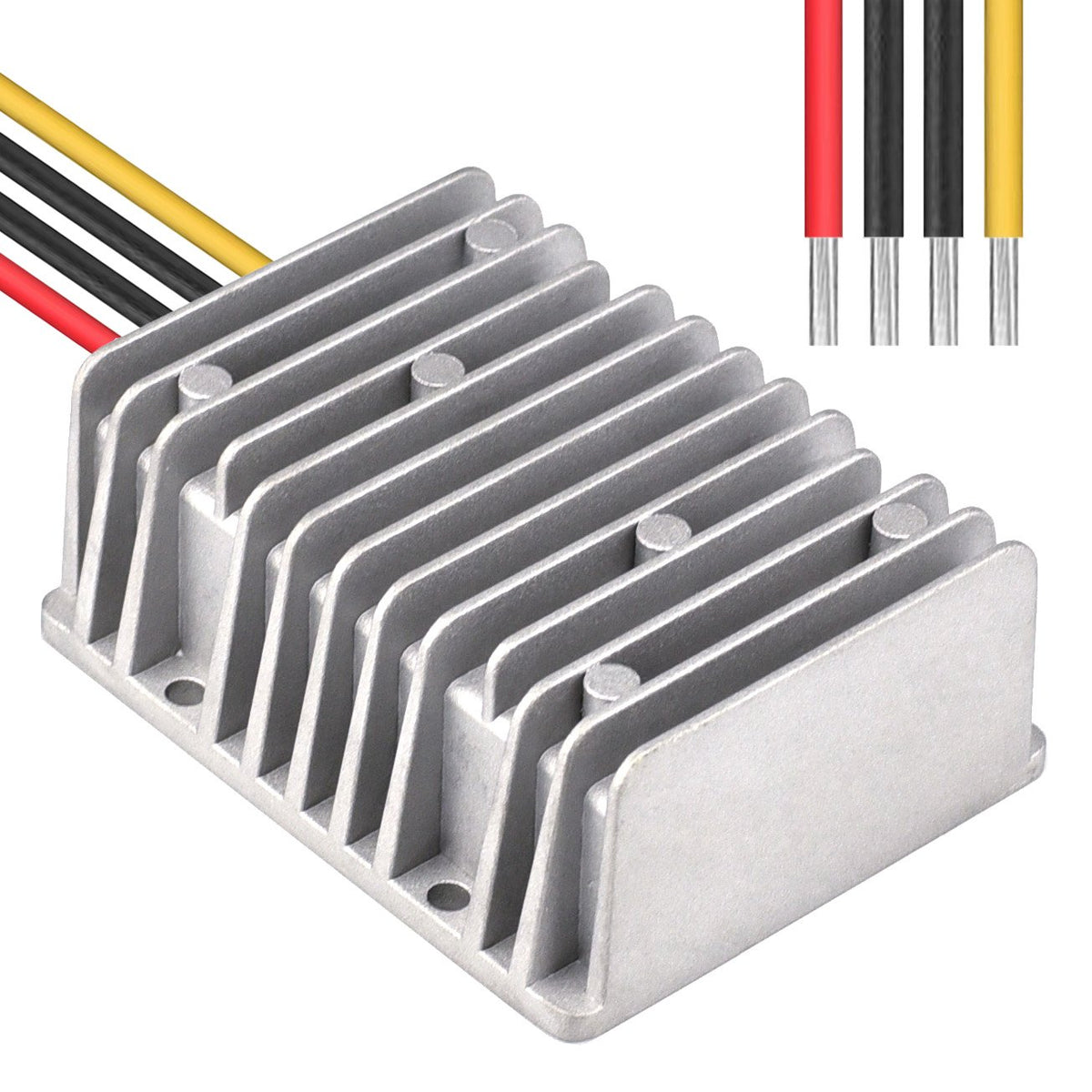

Wiring: Output+ To Load+, Output- To Load-; Input+ To Bat+, Input- To Bat- Note: * Never Connect To Solar Panel, Pwm/Mppt Charge Controller, Inverter Or Wind Turbine. * Never Charge The Battery. Keep Good Air Convection. * Never Reverse The Polarity. * Use The Enough Big Cable To Avoid The Voltage Drop. Application: 12V Dc Battery As Input Power To 24V Dc Appliances As Output Load. Specifications: Input Rated Voltage: 12V Dc Input Voltage Range: 10V-16 Dc Output Voltage: 24V Dc Output Current: 25 Amp Output Rated Power: 600W Efficiency: 97% (Half Load); 95% (Full Load) Ripple: 200Mvp Line Regulation: ?0.2% Load Regulation: ?0.2% Voltage Accuracy: ?1.5% Enclosures: Ip68 Case Operating Temperature: -40~85?C Weight: 550G Features: 1. 100% Full Power And Stable Current Output, Non-Isolated Module. 2. Industry Grade Dc 12V To Dc 24V Step Up Converter, Efficiency Up To 95%. 3. Die-Cast Aluminum Shell, Epoxy Potting, Cooling By Free Air Convection; Waterproof Level Ip68 And Anti-Shock Protection. 4. Protections: Over-Current, Over-Voltage, Over-Temperature, Over-Load And Short-Circuit, Auto-Recovery When Device Is Back To Normal Operating. 5. Certificates: Ce/Rohs, 1 Year Warranty, Lifetime Up To 100,000 Hours. Package Included: 1 X Dc 12V-24V 25A Step Up Converter Questions: How To Choose The Correct Current For Loads? For Example, If The Max Current Of Your Load Device Is 10A, Then Choose 10A/0.8=12.5A At Least For Resistive Loads According To International Standard. If The Load Device Is Motor Or Compressor, Then You May Choose 10A/0.5=20A According To Real Testing Result Since The Motor And Compressor Starting Current May Be 2-3 Times Than Nominal Current.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the input voltage range for the Cllena DC/DC Boost Converter?A: The input voltage range is from ten volts to sixteen volts DC. This allows flexibility in power supply options for various applications.
Q: What is the output voltage of this boost converter?A: The output voltage is twenty-four volts DC. This fixed output is ideal for powering specific DC appliances.
Q: What is the maximum output current of the Cllena converter?A: The maximum output current is twenty-five amps. This capability supports high-demand devices that require significant power.
Q: What is the efficiency rating of the Cllena DC/DC Boost Converter?A: The efficiency rating is up to ninety-seven percent at half load and ninety-five percent at full load. This high efficiency helps reduce energy waste.
Q: What is the weight of the Cllena Boost Converter?A: The converter weighs five hundred fifty grams. This lightweight design facilitates easy installation in various setups.

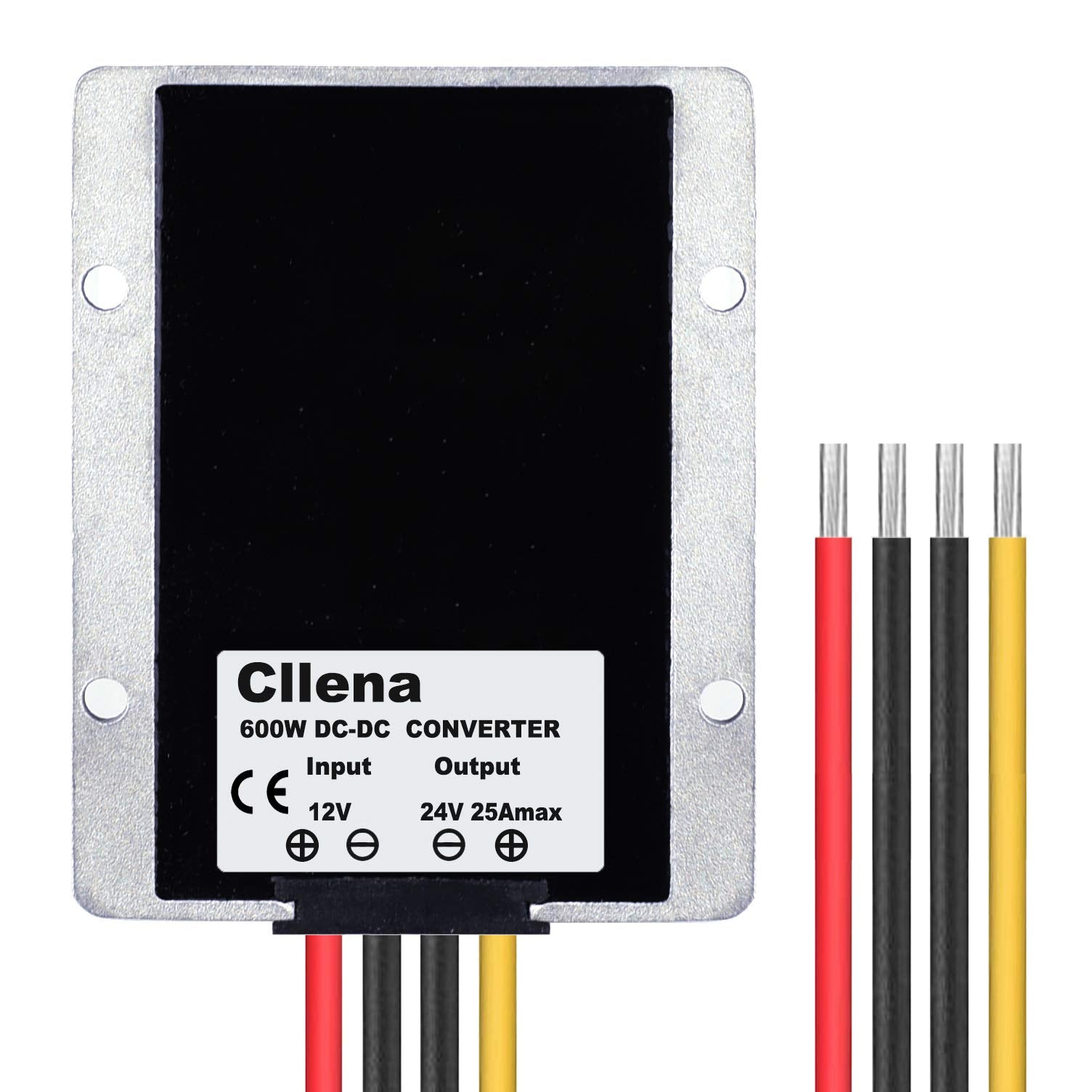

Q: How do I connect the Cllena DC/DC Boost Converter?A: Connect OUTPUT+ to LOAD+ and OUTPUT- to LOAD-. Then, connect INPUT+ to BAT+ and INPUT- to BAT-. Follow these guidelines for proper setup.
Q: Can I use this converter with solar panels?A: No, you should not connect it to solar panels or charge controllers. It is designed for DC battery input only.
Q: What types of devices can I power with this converter?A: You can power twenty-four-volt DC appliances such as trucks, car audio systems, and LED lights. It’s suitable for various electronic applications.
Q: What safety features does the Cllena converter include?A: It includes protections against over-current, over-voltage, over-temperature, and short circuits. These features enhance safety during operation.
Q: What is the warranty period for the Cllena Boost Converter?A: The warranty period is one year. This coverage provides peace of mind regarding product reliability.
Q: What should I do if the converter overheats?A: If the temperature exceeds forty degrees Celsius, reduce the power or improve heat dissipation. This helps maintain optimal performance.
Q: How long can I expect the Cllena converter to last?A: The expected lifetime is up to one hundred thousand hours. This durability makes it a long-term investment for your power needs.
Q: Is the Cllena Boost Converter waterproof?A: Yes, it has an IP68 waterproof rating. This feature allows for safe outdoor and challenging environment usage.
Q: How should I care for the Cllena DC/DC Boost Converter?A: Ensure good air circulation around the device and avoid exposure to moisture. Proper care extends its lifespan and reliability.
Q: What is the operating temperature range for this converter?A: The operating temperature range is from negative forty to eighty-five degrees Celsius. This wide range makes it suitable for various climates.
Q: What if my Cllena converter arrives damaged?A: Contact customer support immediately to initiate a return or exchange. They will guide you through the warranty process for damaged items.
