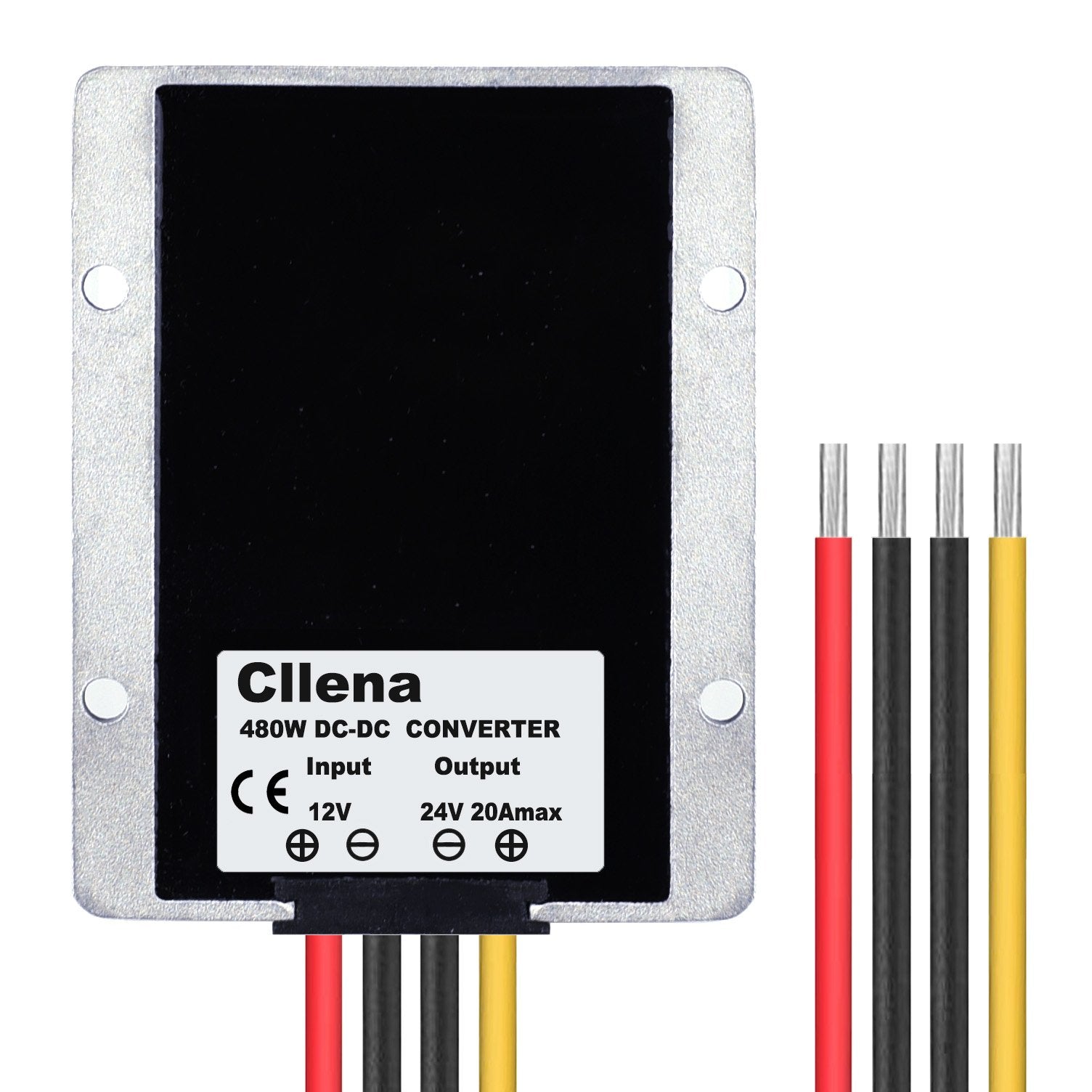

Wiring: Output+ To Load+, Output- To Load-; Input+ To Bat+, Input- To Bat- Note: * Never Connect To Solar Panel, Pwm/Mppt Charge Controller, Inverter Or Wind Turbine. * Never Charge The Battery. Keep Good Air Convection. * Never Reverse The Polarity. * Use The Enough Big Cable To Avoid The Voltage Drop. Application: 12V Dc Battery As Input Power To 24V Dc Appliances As Output Load. Specifications: Input Rated Voltage: 12V Dc Input Voltage Range: 10V-16 Dc Output Voltage: 24V Dc Output Current: 20 Amp Output Rated Power: 480W Efficiency: 97% (Half Load); 95% (Full Load) Ripple: 200Mvp Line Regulation: 0.2% Load Regulation: 0.2% Voltage Accuracy: 1.5% Enclosures: Ip68 Case Operating Temperature: -40~85C Weight: 550G Features: 1. 100% Full Power And Stable Current Output, Non-Isolated Module. 2. Industry Grade Dc 12V To Dc 24V Step Up Converter, Efficiency Up To 95%. 3. Die-Cast Aluminum Shell, Epoxy Potting, Cooling By Free Air Convection; Waterproof Level Ip68 And Anti-Shock Protection. 4. Protections: Over-Current, Over-Voltage, Over-Temperature, Over-Load And Short-Circuit, Auto-Recovery When Device Is Back To Normal Operating. 5. Certificates: Ce/Rohs, 1 Year Warranty, Lifetime Up To 100,000 Hours. Package Included: 1 X Dc 12V-24V 20A Step Up Converterquestions: How To Choose The Correct Current For Loads? For Example, If The Max Current Of Your Load Device Is 10A, Then Choose 10A/0.8=12.5A At Least For Resistive Loads According To International Standard. If The Load Device Is Motor Or Compressor, Then You May Choose 10A/0.5=20A According To Real Testing Result Since The Motor And Compressor Starting Current May Be 2-3 Times Than Nominal Current.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the input voltage range for the Cllena DC/DC Boost Converter?A: The input voltage range is from ten volts to sixteen volts DC. This range ensures compatibility with various power sources.
Q: What is the output voltage of this converter?A: The output voltage is twenty-four volts DC. This fixed output is designed for powering twenty-four-volt appliances.
Q: What is the maximum output current of the converter?A: The maximum output current is twenty amps. This allows it to handle substantial electrical loads.
Q: What is the rated power of the Cllena boost converter?A: The rated power is four hundred eighty watts. This indicates its capacity to deliver power efficiently to connected devices.
Q: What is the efficiency of the boost converter?A: The efficiency is up to ninety-seven percent at half load. At full load, the efficiency is about ninety-five percent.
Q: What are some of the key features of this product?A: Key features include over-current, over-voltage, over-temperature protections, and a waterproof IP68 rating. These features enhance durability and safety.
Q: How do I connect the boost converter to my power source?A: Connect OUTPUT+ to LOAD+ and OUTPUT- to LOAD-. Connect INPUT+ to BAT+ and INPUT- to BAT-. Follow these wiring instructions carefully.
Q: Can I use this converter with a solar panel?A: No, you should never connect this converter to a solar panel. It is not designed for use with solar energy systems.
Q: What appliances can I power with this converter?A: You can power various twenty-four-volt DC appliances like LED lights, car audio systems, and electric motors. It is suitable for a range of applications.
Q: Is this converter waterproof?A: Yes, the converter has an IP68 waterproof rating. This makes it suitable for outdoor use and protects it from dust and moisture.
Q: How should I store the boost converter?A: Store the converter in a cool, dry place away from direct sunlight. Ensure it's kept in a protective case to avoid physical damage.
Q: What should I do if the converter gets too hot?A: If the converter exceeds forty degrees Celsius, reduce the power or enhance heat radiation. This helps prevent overheating.
Q: Does this product come with a warranty?A: Yes, the product includes a one-year warranty. This covers any manufacturing defects or issues that may arise during normal use.
Q: What happens if the converter arrives damaged?A: If the converter arrives damaged, contact customer support for assistance. They can guide you through the return or replacement process.
Q: Are there any specific precautions I need to take when using this converter?A: Yes, avoid reversing polarity and ensure good air convection around the unit. Following these precautions will enhance safety and performance.
