Application:12V Dc Battery As Input Power To 24V Dc Appliances As Output Load. Reminder: * Keep Good Air Convection. * Input Power Should Be Lead Acid Battery Or Lithium Battery. * This Converter Cant Charge The Battery. * Please Install Correct Fuse In Input Cable. * Dont Connect Negative Or Gnd To Vehicle Case Or Chassis. * Never Connect The Converter To A Solar Panel Or Wind Turbine. That Will Burn The Converter. * Be Sure Of The Correct Polarity Of Input And Output Connection, Never Reverse The Polarity, Or It Burns The Converter. * Please Dont Install Any Meters Between Converter To Battery And Converter To Loads. * When In Doubt, The Larger Current Converter Is Always A Better Choice. Specifications: Input Rated Voltage: 12V Dc Input Voltage Range: 10V-16 Dc Output Voltage: 24V Dc Output Current: 100 Amp Output Rated Power: 2400W Efficiency: 97% (Half Load); 95% (Full Load) Ripple: 200Mvp Line Regulation: 0.2% Load Regulation: 0.2% Voltage Accuracy: 1.5% Enclosures: Ip68 Case Operating Temperature: -40~85C Total Size: 300*195*90Mm(L*W*H) Weight: 6Kg Features: 1. 100% Full Power And Stable Current Output, Non-Isolated Module. 2. Industry Grade Dc 12V To Dc 24V Step Up Converter, Efficiency Up To 95%. 3. Die-Cast Aluminum Shell, Epoxy Potting, Cooling By Free Air Convection; Waterproof Level Ip68 And Anti-Shock Protection. 4. Protections: Over-Current, Over-Voltage, Over-Temperature, Over-Load And Short-Circuit, Auto-Recovery When Device Is Back To Normal Operating. 5. Certificates: Ce/Rohs, 1 Year Warranty, Lifetime Up To 100,000 Hours. Package Included: 1 X Dc 12V-24V 100A Step Up Converter
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Cllena DC/DC Boost Converter?A: The dimensions are three hundred millimeters long, one hundred ninety-five millimeters wide, and ninety millimeters high. This compact size makes it suitable for various applications.
Q: What is the weight of the Cllena DC/DC Boost Converter?A: The weight is six kilograms. This weight contributes to its sturdy design and efficient performance.
Q: What is the input voltage range for this converter?A: The input voltage range is ten to sixteen volts DC. This allows compatibility with various battery types.

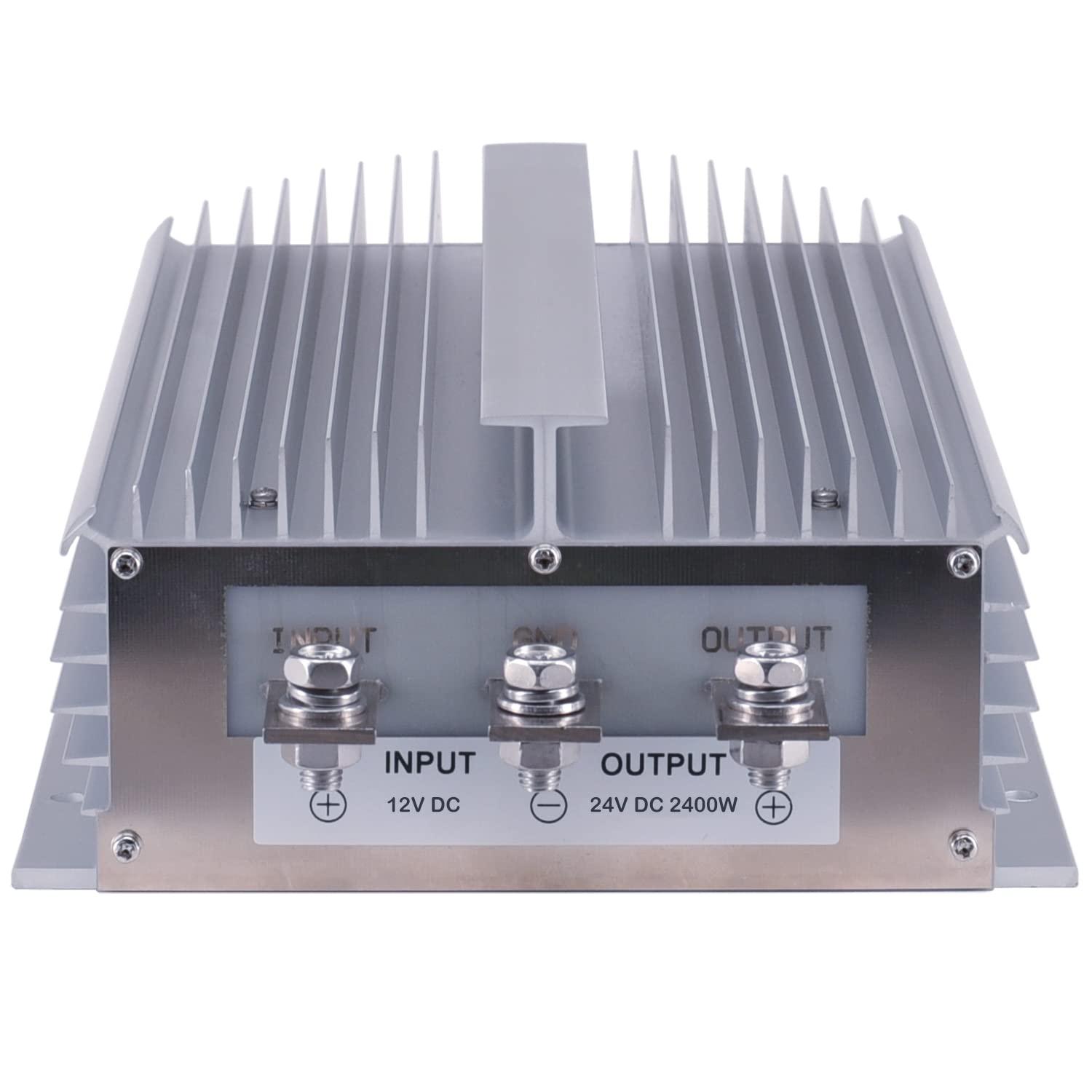

Q: How do I install the Cllena DC/DC Boost Converter?A: To install, connect the input to a twelve-volt DC battery and the output to your twenty-four-volt appliances. Ensure correct polarity to avoid damage.
Q: Can I use this converter to charge batteries?A: No, this converter cannot charge batteries. It is designed solely for stepping up voltage from a battery to appliances.
Q: Is it safe to use this converter for outdoor applications?A: Yes, it has an IP68 waterproof rating, making it suitable for outdoor use. It also features anti-shock protection.
Q: How should I store the Cllena DC/DC Boost Converter?A: Store it in a dry and cool place, avoiding extreme temperatures. Ensure it is not exposed to moisture to maintain its functionality.
Q: What safety features does this converter have?A: It includes protections against over-current, over-voltage, over-temperature, short-circuit, and overload. These features enhance safety and reliability.
Q: What appliances can I power with this converter?A: You can power various twenty-four-volt appliances such as car audio systems, LED lights, and monitoring systems. Ensure they do not exceed the power limit.
Q: How do I ensure proper ventilation for this converter?A: Ensure good air convection around the unit. Avoid placing it in enclosed spaces to prevent overheating.
Q: Does this converter have a warranty?A: Yes, it comes with a one-year warranty. This provides assurance of its quality and durability.
Q: What should I do if the converter is not working?A: First, check all connections for correct polarity and secure fitting. If it still does not work, consult the manufacturer's warranty service.
Q: Can I use this converter with solar panels?A: No, it is not compatible with solar panels. Connecting it to a solar panel may damage the converter.
Q: What is the efficiency rating of this converter?A: The efficiency rating is up to ninety-seven percent at half load and ninety-five percent at full load. This high efficiency minimizes energy loss.
Q: What materials are used in the construction of this converter?A: The converter features a die-cast aluminum shell with epoxy potting for durability. This design enhances its waterproof and anti-shock capabilities.
