Wiring: Output+ To Load+, Output- To Load-; Input+ To Bat+, Input- To Bat- Note: * Never Connect To Solar Panel, Pwm/Mppt Charge Controller, Inverter Or Wind Turbine. * Never Charge The Battery. Keep Good Air Convection. * Never Reverse The Polarity. * Use The Enough Big Cable To Avoid The Voltage Drop. Application: 36V/48V Dc Battery As Input Power To 24V Dc Appliances As Output Load. Specifications: Input Rated Voltage: 48V Dc Input Voltage Range: 30-60V Dc Output Voltage: Dc 24V 30A Output Rated Power: 720W Efficiency: 97% (Half Load); 95% (Full Load) Ripple: 200Mvp Line Regulation: ?0.2% Load Regulation: ?0.2% Voltage Accuracy: ?1.5% Enclosures: Ip68 Case Operating Temperature: -40~85?C Weight: 550G Features: 1. 100% Full Power And Stable Current Output, Non-Isolated Module. 2. Industry Grade Dc48V To Dc 24V Step-Down Converter, Efficiency Up To 95%. 3. Die-Cast Aluminum Shell, Epoxy Potting, Cooling By Free Air Convection; Waterproof Level Ip68 And Anti-Shock Protection. 4. Protections: Over-Current, Over-Voltage, Over-Temperature, Over-Load And Short-Circuit, Auto-Recovery When Device Is Back To Normal Operating. 5. Certificates: Ce/Rohs, 1 Year Warranty, Lifetime Up To 100,000 Hours. Package Included: 1 X Dc 48-24V 30A Voltage Converter Questions: How To Choose The Correct Current For Loads? For Example, If The Max Current Of Your Load Device Is 10A, Then Choose 10A/0.8=12.5A At Least For Resistive Loads According To International Standard. If The Load Device Is Motor Or Compressor, Then You May Choose 10A/0.5=20A According To Real Testing Result Since The Motor And Compressor Starting Current May Be 2-3 Times Than Nominal Current.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Cllena DC 48V to 24V converter?A: The converter measures five inches in length, two inches in width, and four inches in height.
Q: What is the input voltage range for this voltage reducer?A: The input voltage range is between thirty and sixty volts DC.
Q: What is the output power rating of this converter?A: The output power rating is seven hundred twenty watts.
Q: What is the efficiency rating of the Cllena converter?A: The converter has an efficiency of ninety-seven percent at half load and ninety-five percent at full load.

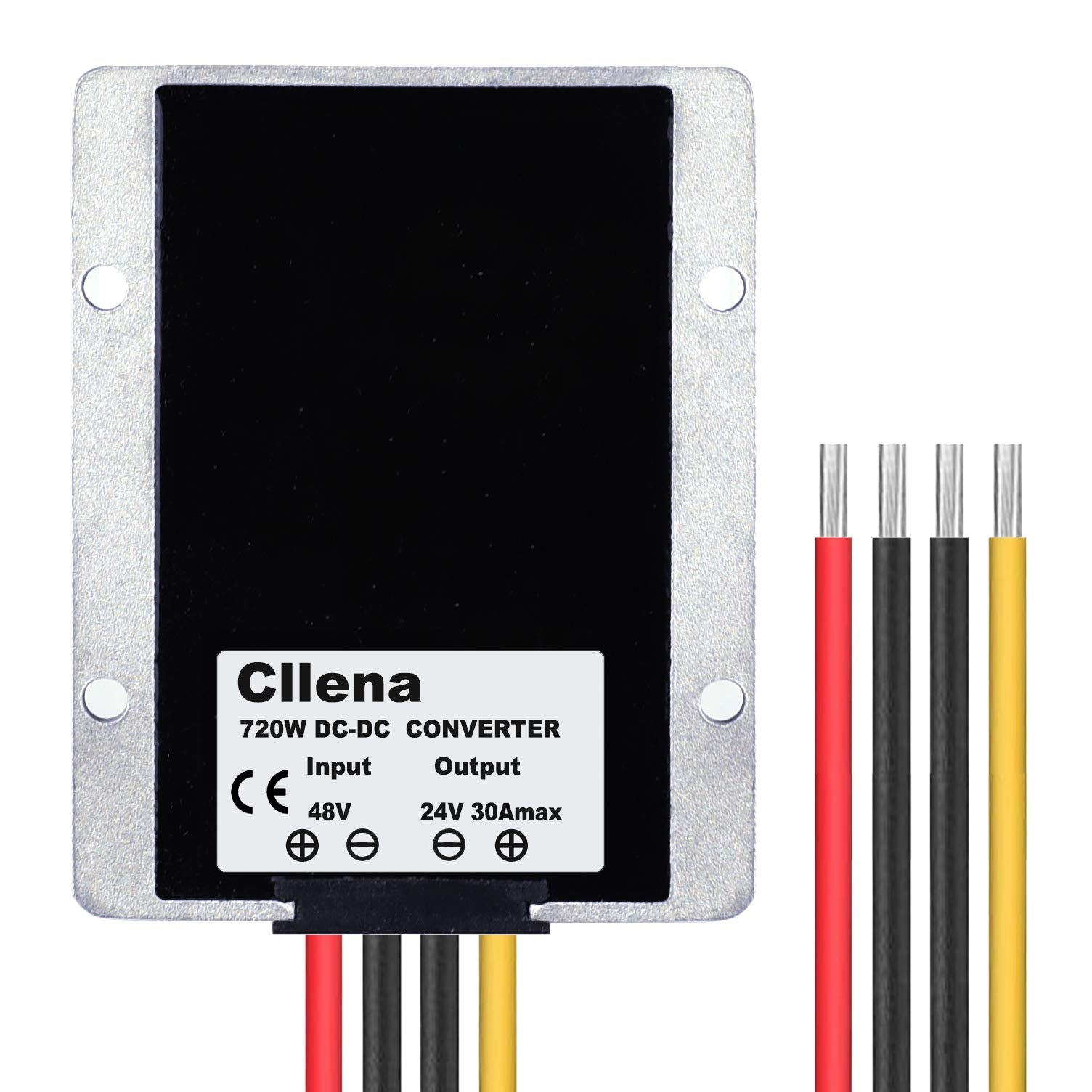

Q: How do I install the Cllena DC converter?A: Connect OUTPUT plus to LOAD plus, OUTPUT minus to LOAD minus, INPUT plus to BAT plus, and INPUT minus to BAT minus.
Q: Is this converter suitable for my solar panel system?A: No, this converter should never be connected to a solar panel.
Q: Can I use this converter to charge a battery?A: No, the Cllena converter is not designed for battery charging.
Q: What types of applications can I use this converter for?A: It is suitable for powering twenty-four volt DC appliances from thirty-six or forty-eight volt DC batteries.
Q: What precautions should I take when using this voltage reducer?A: Ensure good air convection, never reverse polarity, and use appropriately sized cables to avoid voltage drop.
Q: How do I take care of the Cllena DC converter?A: Keep it in a well-ventilated area and protect it from extreme temperatures beyond minus forty to eighty-five degrees Celsius.
Q: What protections does this converter offer?A: It features over-current, over-voltage, over-temperature, overload, and short-circuit protections.
Q: Is this product waterproof?A: Yes, it has an IP68 waterproof rating, making it suitable for outdoor use.
Q: What should I do if my converter arrives damaged?A: Contact the manufacturer for a warranty claim and replacement options if it arrives damaged.
Q: How long is the warranty for the Cllena converter?A: The converter comes with a one-year warranty.
Q: What is the expected lifespan of this product?A: The expected lifespan is up to one hundred thousand hours under normal operating conditions.
