Chengying 75 Inch Multi Touch 10 Points Infrared Touch Frame 75'' Infrared Touch Overlay Ir Touch Panel Usb Interface Hi
$412.35
Regular price
$589.07
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

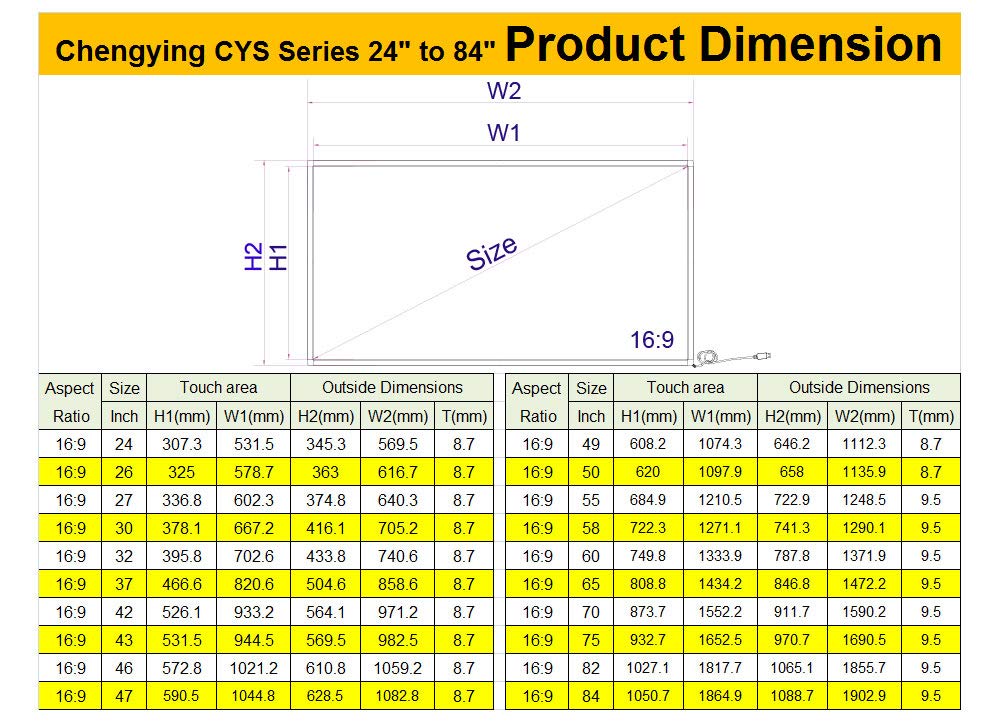

Application This Product Can Be Used In A Variety Of Machines:Education Whiteboard; Conference Machine; Vending Machine; Digital Signage; Kiosk; Exhibitions; Command Center And Boardroom; Touch Tv; Specification Size: 20 To 800 Inch Ratio: 16:9 Dimension: 19Mm Width, 9.5 Thickness (Frame Only, Without Glass, Without Screen) Durabilityresolution: 32768*32768, Supports 2K 4K 8K Monitors Number Of Touch Points: 10 Minimum Touch Object: 5Mm Touch Activation Force: No Minimum Touch Pressure Required Touch Durability: Unlimited Linearity Deviation: 1Mm Fault Tolerance: Workable Even 75% Sensors Are Damaged Frames Per Second: Up To 450 Fps Typical Response Time: 3-10Ms Light Transmission: 100% Without Glass Operating Systems: Driver Free For Windows7, Windows8, Windows10, Native Android. Need To Install The Hid Driver In Mac Os. (Does Not Support Smart Tv System, Raspberry Pi) Protocols: Hid,Tuio,Flash Re-Development Provide: Free Sdk, Support C/C++, C#, Java Etc.&Nbsp; Electrical Power Supply: Single Usb Connection Low Power Consumption: Operating =2W, Stand By = 250Mw Esd: Contact Discharge 8Kv,Air Discharge 15Kv,15Kv On Usb Connector Pins Environment Operating Temperature: -20C~70C Storage Temperature: -40C~85C Operating Humidity: 10%~90%Rh(Non-Condensing) Storage Humidity: 10%~90%Rh&Nbsp; Certification: Fcc,Ce,Rohs Warranty: 1 Year Company Production Chengying Technology Co.,Ltd Is A Professional Manufacturer And Supplier Of Touch Screen Overlay. We Can Provide 15 Inches To 800 Inches Infrared Touch Frame, Include 2, 4, 6, 10, 12, 16, 32, 40 Touch Points Series Product. Please Feel Free To Contact Us For Inquiries About Customized Products
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What types of applications can the Chengying 75 inch Multi-Touch Infrared screen be used for?A: The Chengying 75 inch Multi-Touch Infrared screen is versatile and can be used in various applications such as education whiteboards, conference machines, vending machines, digital signage, kiosks, exhibitions, command centers, boardrooms, and touch TVs.

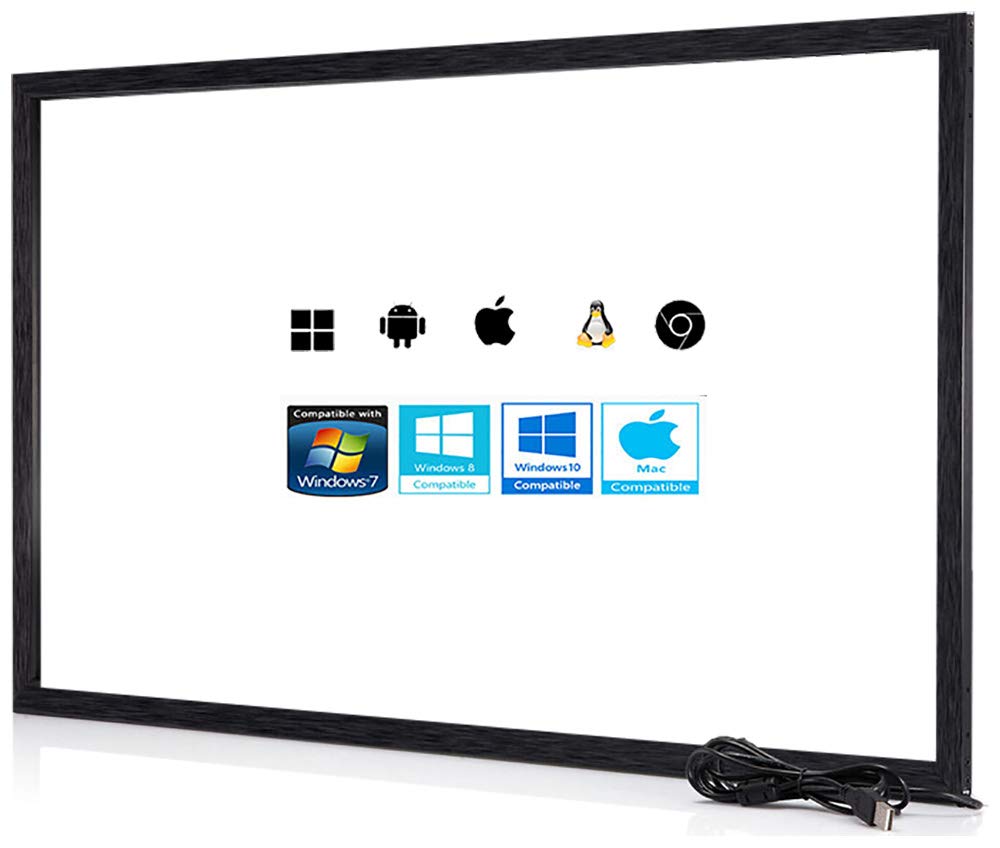

Q: Is the Chengying touch screen compatible with different operating systems?A: Yes, the Chengying touch screen is driver-free for Windows 7, 8, and 10, and it supports Native Android. For Mac OS, an HID driver needs to be installed, but it does not support Smart TV systems or Raspberry Pi.
Q: How many touch points does the Chengying 75 inch touch frame support?A: The Chengying 75 inch touch frame supports up to 10 simultaneous touch points, allowing for multi-user interaction.
Q: What is the power consumption of the Chengying 75 inch Multi-Touch Infrared screen?A: The Chengying touch screen has low power consumption, operating at ≤2W and in standby mode at ≤250mW, making it energy-efficient.
Q: What warranty and certifications does the Chengying touch screen come with?A: The Chengying touch screen comes with a 1-year warranty and is certified by FCC, CE, and ROHS, ensuring its quality and compliance with safety standards.
