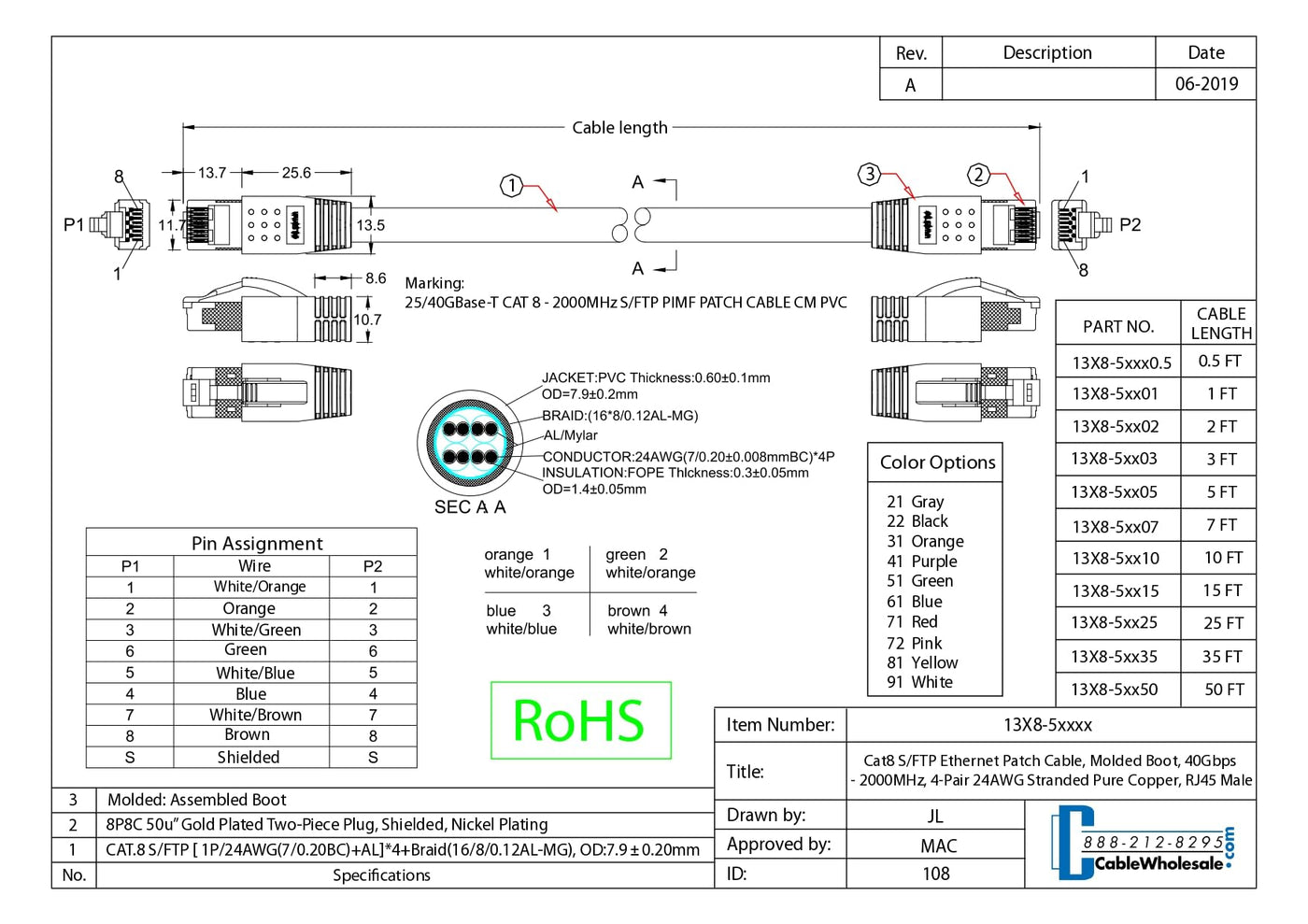

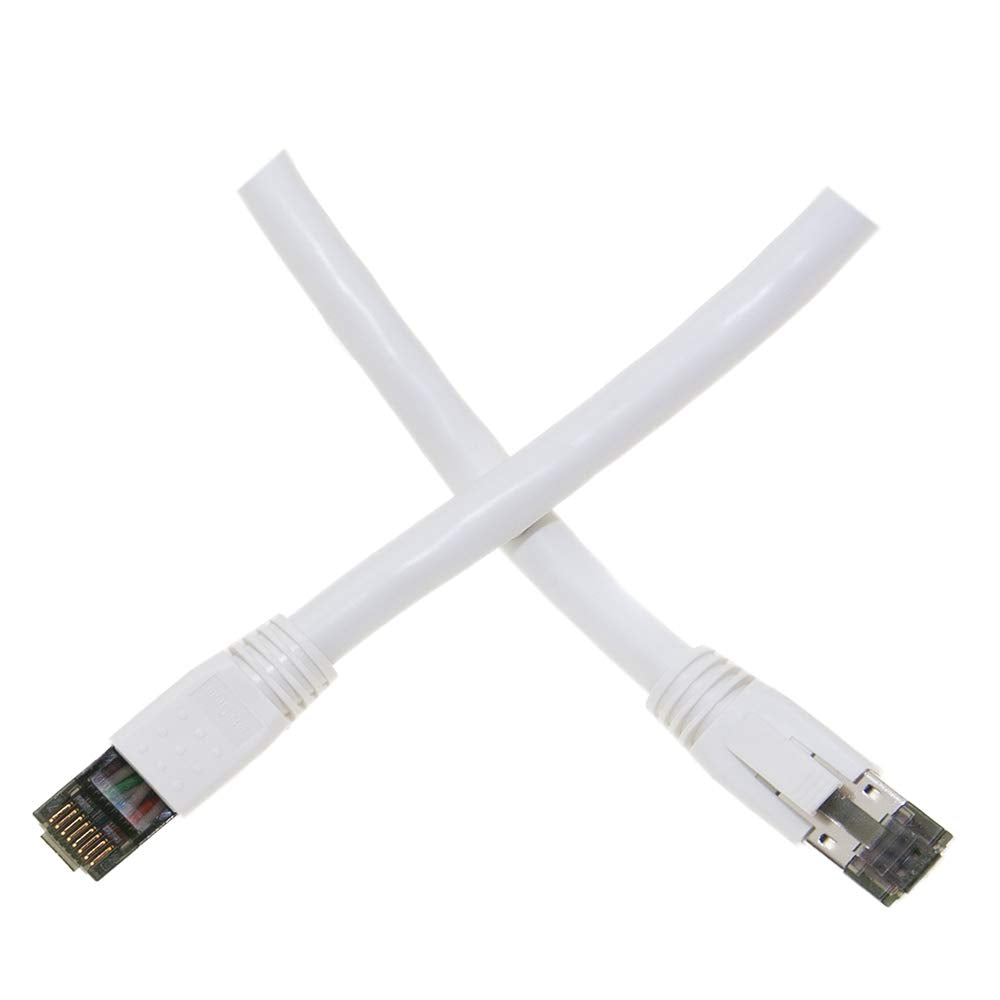

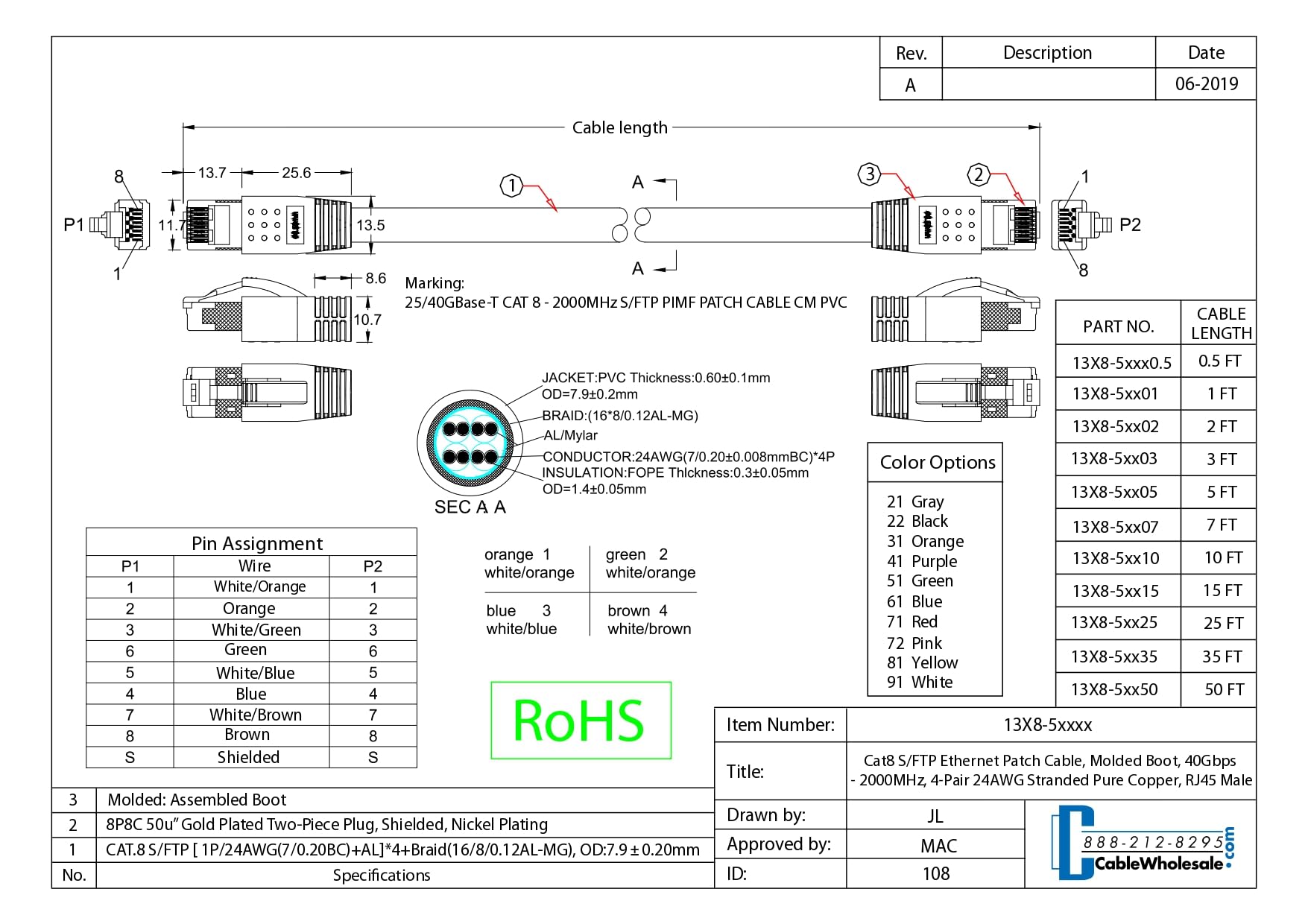

This 6-inch Category 8.1 cable, Class I channel, features a white PVC jacket, braided outer shield, with four individually mylar foil shielded 24 AWG pure copper pairs as defined in ISO/IEC 11801 and ratified in ANSI/TIA 568-C.2-1. Cat8 cabling was designed primarily for high-speed data centers where switches, servers, and other network hardware are located in close proximity. This newest copper communications cable offers greater flexibility both literally and in distances when compared to QSFP+ and Twinax DAC assemblies which typically cost significantly more and are often much more limited in scope. It has the reach to cover Top-of-Rack and End-of-Row or Middle-of-Row network topologies while delivering 10, 25, and 40 Gigabit data rates over BASE-T technology with RJ45 ends making it a drop-in replacement for Cat6a where rates beyond 10Gb will be needed today or in the future. Cat8 has stricter specifications for noise restriction and crosstalk than any of its predecessors. The individual conductors are 24 AWG (American wire gauge) stranded pure copper. Cat8 patch cables are stranded to improve flexibility. Pure copper conductors provide the best signal possible. Each pair of conductors is shielded with an aluminum mylar foil to reduce, if not eliminate, crosstalk. These cables also have a braided shield, which protects from outside electromagnetic interference.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What materials are used in the CableWholesale Cat8 Ethernet cable?A: This cable is made of twenty-four gauge stranded pure copper conductors, which provide optimal signal quality. It also features an aluminum mylar foil shield and a PVC jacket for protection.
Q: What are the dimensions of this Ethernet patch cable?A: The CableWholesale Cat8 Ethernet patch cable measures six inches in length. It has a width of zero point eight inches and a height of zero point seven inches.
Q: What is the maximum data transmission speed of this cable?A: This cable supports data transmission speeds of up to forty gigabits per second. It is designed for high-performance networking applications.
Q: How do I install the CableWholesale Cat8 Ethernet cable?A: To install, simply connect the RJ45 connectors to the desired devices like routers or switches. Ensure the connections are secure for optimal performance.
Q: Is this Ethernet cable suitable for outdoor use?A: No, this cable is not designed for outdoor use. It is intended for indoor applications, particularly in data centers and office environments.
Q: Can I use this cable with my existing network equipment?A: Yes, this cable is compatible with existing network equipment that supports RJ45 connectors. It can be used as a drop-in replacement for Cat6a cables.
Q: How should I clean and maintain this Ethernet cable?A: To clean the cable, wipe it with a damp cloth. Ensure that no moisture enters the connectors to maintain functionality.
Q: Is the CableWholesale Cat8 Ethernet cable safe for use in tight spaces?A: Yes, this cable is designed to be flexible, making it suitable for use in tight spaces. Its stranded construction enhances its flexibility.
Q: How do I store this Ethernet cable when not in use?A: Store the cable in a cool, dry place, preferably coiled to avoid kinks and damage. Avoid exposure to extreme temperatures or moisture.
Q: What is the warranty on the CableWholesale Cat8 Ethernet cable?A: This cable comes with a lifetime warranty. This ensures that you have long-term support and protection for your investment.
Q: What makes Cat8 cables better than previous categories?A: Cat8 cables have stricter specifications for noise restriction and crosstalk compared to previous categories like Cat6a. They support higher speeds and better performance.
Q: Can I use this cable for gaming or streaming?A: Yes, this cable is ideal for gaming and streaming due to its high-speed capabilities and low latency. It supports data rates needed for smooth performance.
Q: Is this Ethernet cable compatible with PoE technology?A: Yes, this cable supports Power over Ethernet (PoE) technology, allowing it to deliver power alongside data to compatible devices.
Q: Does this cable come in different colors?A: Yes, the CableWholesale Cat8 Ethernet patch cable is available in various colors, allowing for easy color coding in networking setups.
Q: What type of shielding does this cable have?A: This cable features both individual mylar foil shielding for each pair of conductors and a braided shield to protect against electromagnetic interference.
