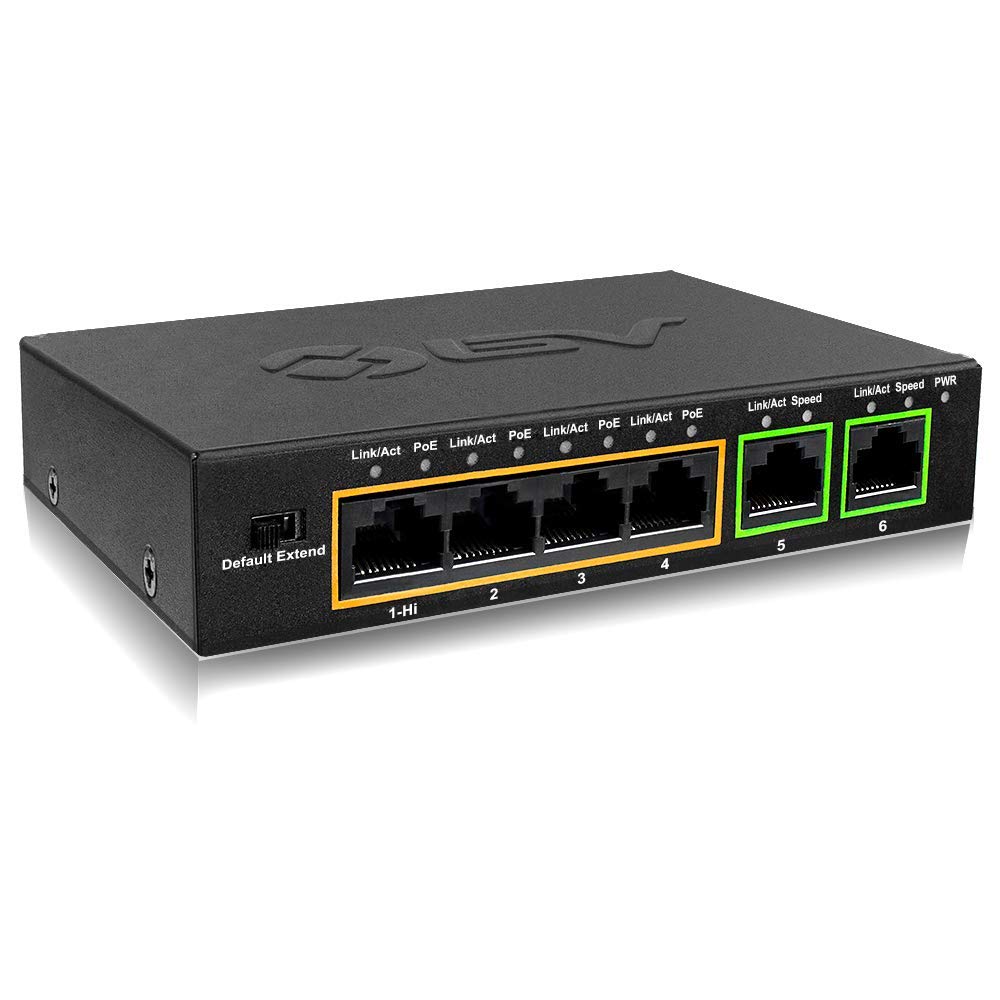

The Poe-Sw502 Is An Unmanaged 6-Port Power Over Ethernet Switch With A Total Of 60 Watts Of Poe Power. All Ports Run At 10/100Mbps And Can Provide Up To 30W Per Port Through The Ieee 802. 3At Standard, As Well As Up To 60W On Port 1 Through Hi-Poe. It Has Two Ethernet Uplink Ports To Allow For Communication Without Sacrificing Any Poe Ports. It Also Features An Extend Switch To Allow For Poe Transmission Of Up To 820Ft (Which Reduces Data Transmission To 10Mbps). Specifications: Ports: 2*10/100Mbps Uplink Ports, 4*10/100 Mbps Poe Ports Poe Power: Port 1 =60W, Port 2-4 =30W, Tota L=60W Poe Protocol: Ieee802. 3Af (Poe), Ieee802. 3At (Poe+), Hi-Poe Switching Capabity: 1. 8G Packet Forwarding Rate: 890Kpps Packet Buffer Memory: 768Kb Mac Table Size: 2K Flow Control: Enabled Humidity: 10 - 90% Power: Dc48-57V Lightning Protection: Common Mode 2Kv; Differential Mode 0. 5Kv Operating Temperature: 14F - 131F (-10C - 55C) Weight: 0. 66Lb (300G) Dimensions (W X D X H): 5. 12In X 3. 35In X 1. 02In (130Mm X 85Mm X 26Mm)All Products Sold By Poe Depot Come With A 100% Satisfaction - We Offer A 30-Day Money-Back , As Well As A 1 Year That Covers Replacement For Free.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the BV-Tech 6 Port PoE+ Switch?A: The dimensions of the BV-Tech 6 Port PoE+ Switch are five point twelve inches wide, three point thirty-five inches deep, and one point zero two inches high.

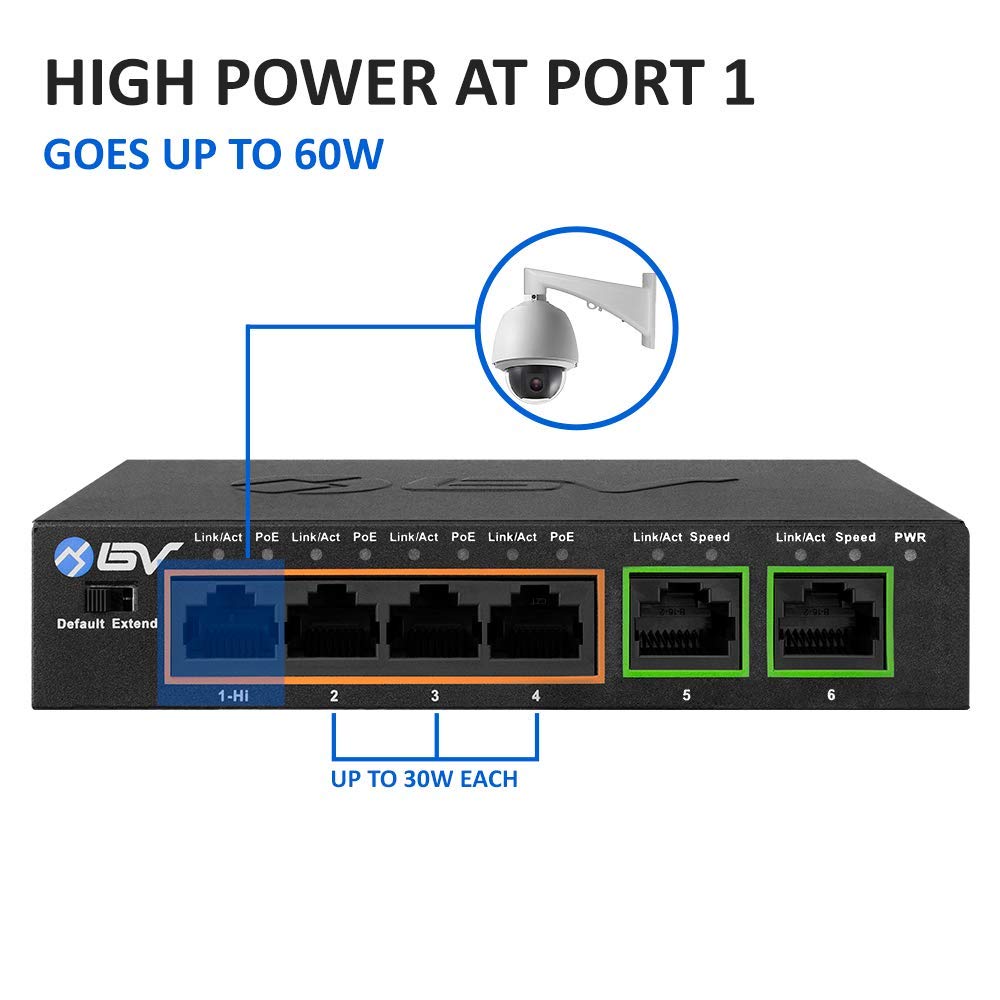

Q: What is the total PoE power of this switch?A: The total PoE power of the switch is sixty watts, with port one providing up to sixty watts and ports two to four up to thirty watts each.

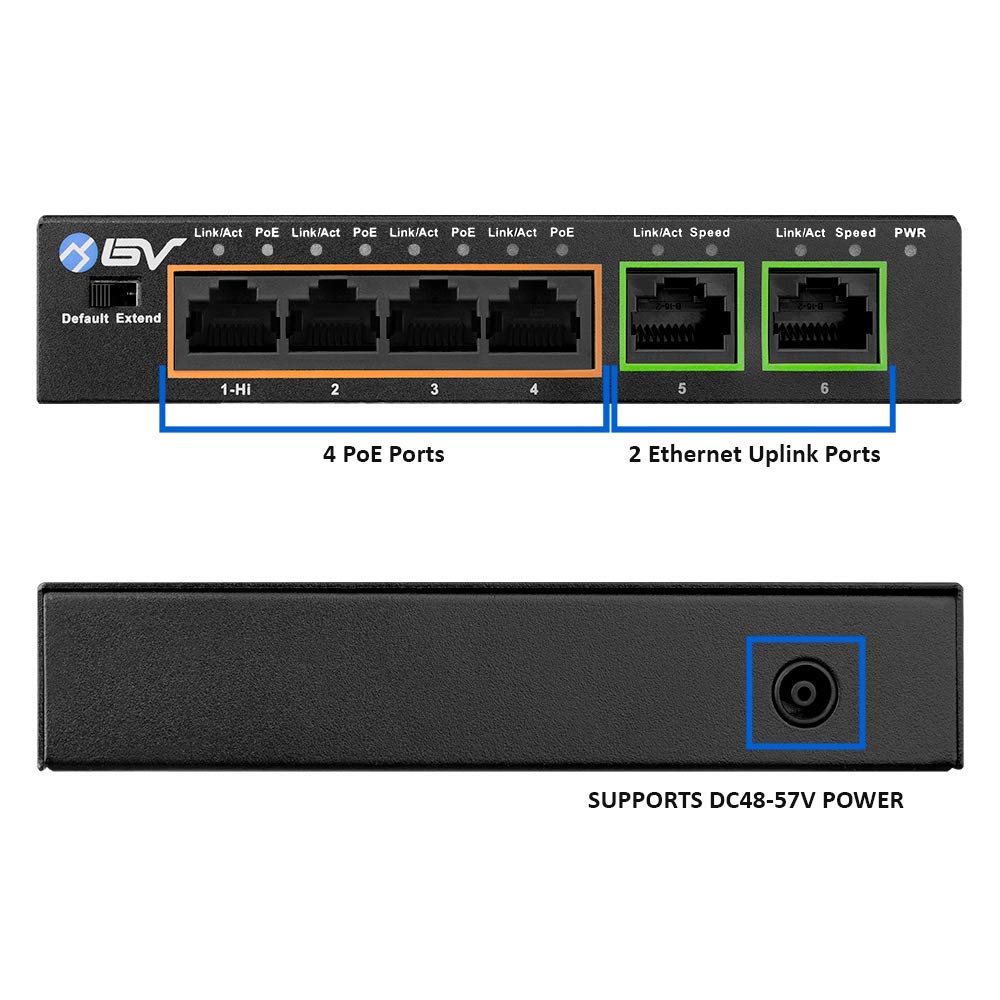

Q: What type of network ports does the switch have?A: The switch has four Power over Ethernet ports and two Ethernet uplink ports, all running at ten over one hundred megabits per second.

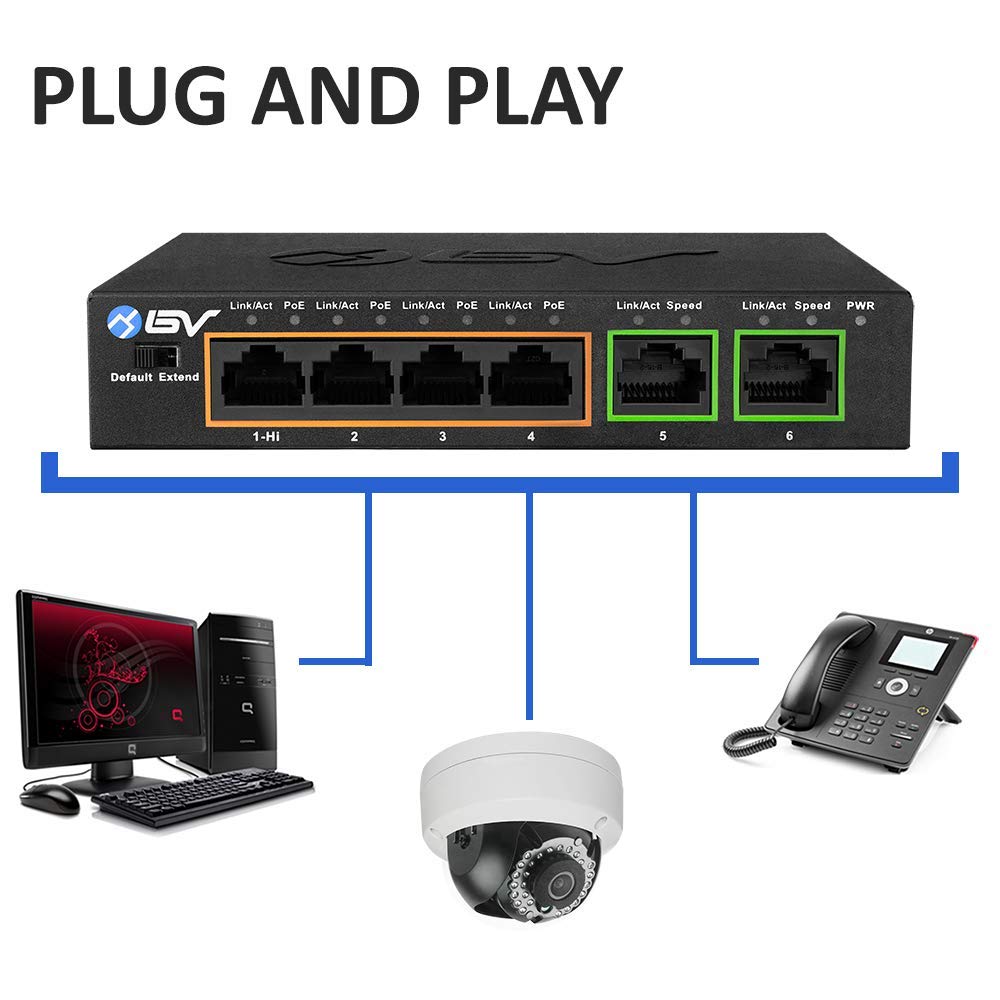

Q: How do I install the BV-Tech 6 Port PoE+ Switch?A: To install the switch, connect your Ethernet cables to the ports and plug it into a power source using the included DC adapter.
Q: Can I use this switch with passive PoE devices?A: No, this switch does not support passive PoE devices; it is compatible only with IEEE standards.
Q: How far can the PoE transmission be extended?A: The PoE transmission can be extended up to two hundred fifty meters using the extend function.
Q: What is the recommended humidity range for operating this switch?A: The recommended humidity range for operating the switch is between ten and ninety percent.
Q: How should I care for the BV-Tech 6 Port PoE+ Switch?A: To care for the switch, keep it dry, avoid exposure to extreme temperatures, and clean it with a soft, dry cloth.
Q: Is there a warranty for this product?A: Yes, the BV-Tech 6 Port PoE+ Switch comes with a one-year warranty that covers replacements at no cost.
Q: What if the switch arrives damaged?A: If the switch arrives damaged, you can return it within thirty days for a full refund or replacement.
Q: What is the maximum packet forwarding rate of this switch?A: The maximum packet forwarding rate of the switch is one point eight gigabits per second.
Q: Does the switch support flow control?A: Yes, the switch supports flow control, which helps manage data transmission effectively.
Q: What is the operating temperature range for this device?A: The operating temperature range for the BV-Tech 6 Port PoE+ Switch is between fourteen degrees Fahrenheit and one hundred thirty-one degrees Fahrenheit.

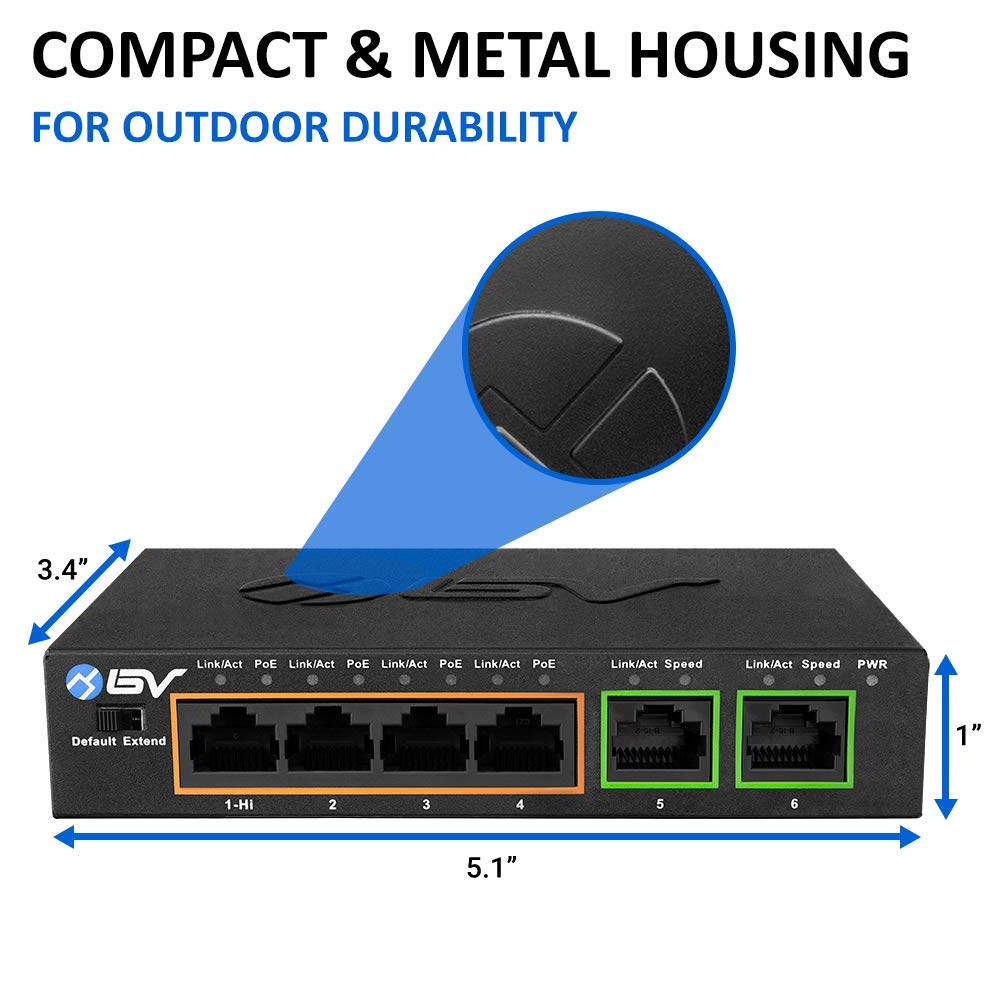

Q: What type of housing material does this switch have?A: The BV-Tech 6 Port PoE+ Switch features a sturdy metal housing designed for durability and heat dissipation.
Q: Is this switch fanless?A: Yes, the BV-Tech 6 Port PoE+ Switch has a fanless design, which helps maintain a quiet operating environment.
