BSIDE ZT-Y True RMS Digital Multimeter 9999 Counts Auto-Range Tester
$49.89
Add to Cart
BSIDE ZT-Y EBTN LCD Multimeter 3-Line Display 9999 Counts True RMS Auto-Ranging Voltmeter Capacitance Temperature Voltage Amp Hz Ohm Duty Cycle Output VFC Tester with Analog Bar
[EBTN LCD Display]: EBTN LCD display greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.
[Large Screen 3 Line Display]: Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.

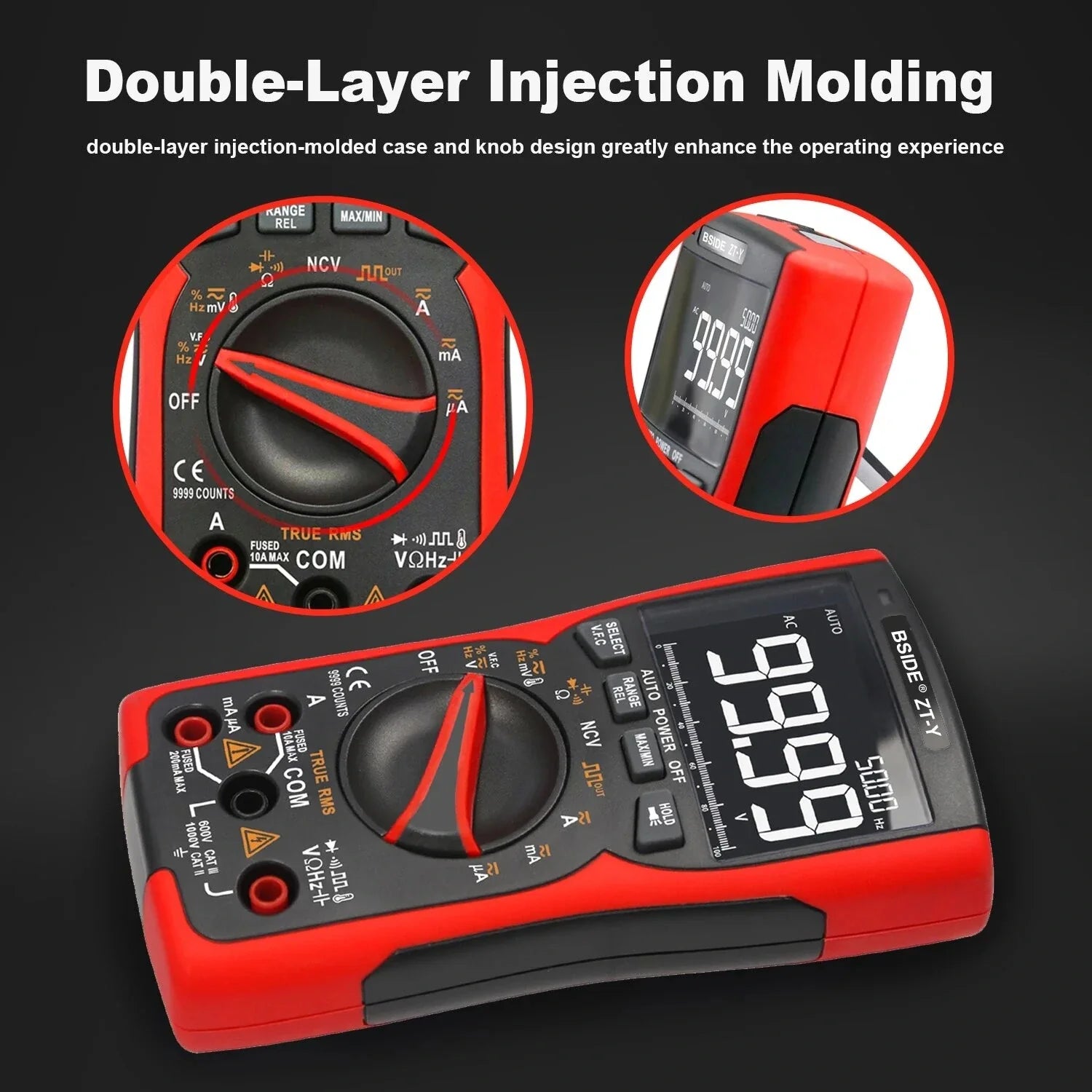

[Double-Layer Injection Molding]: Double-layer injection-molded case and knob design greatly enhance the operating experience, you can switch the knob smoothly.

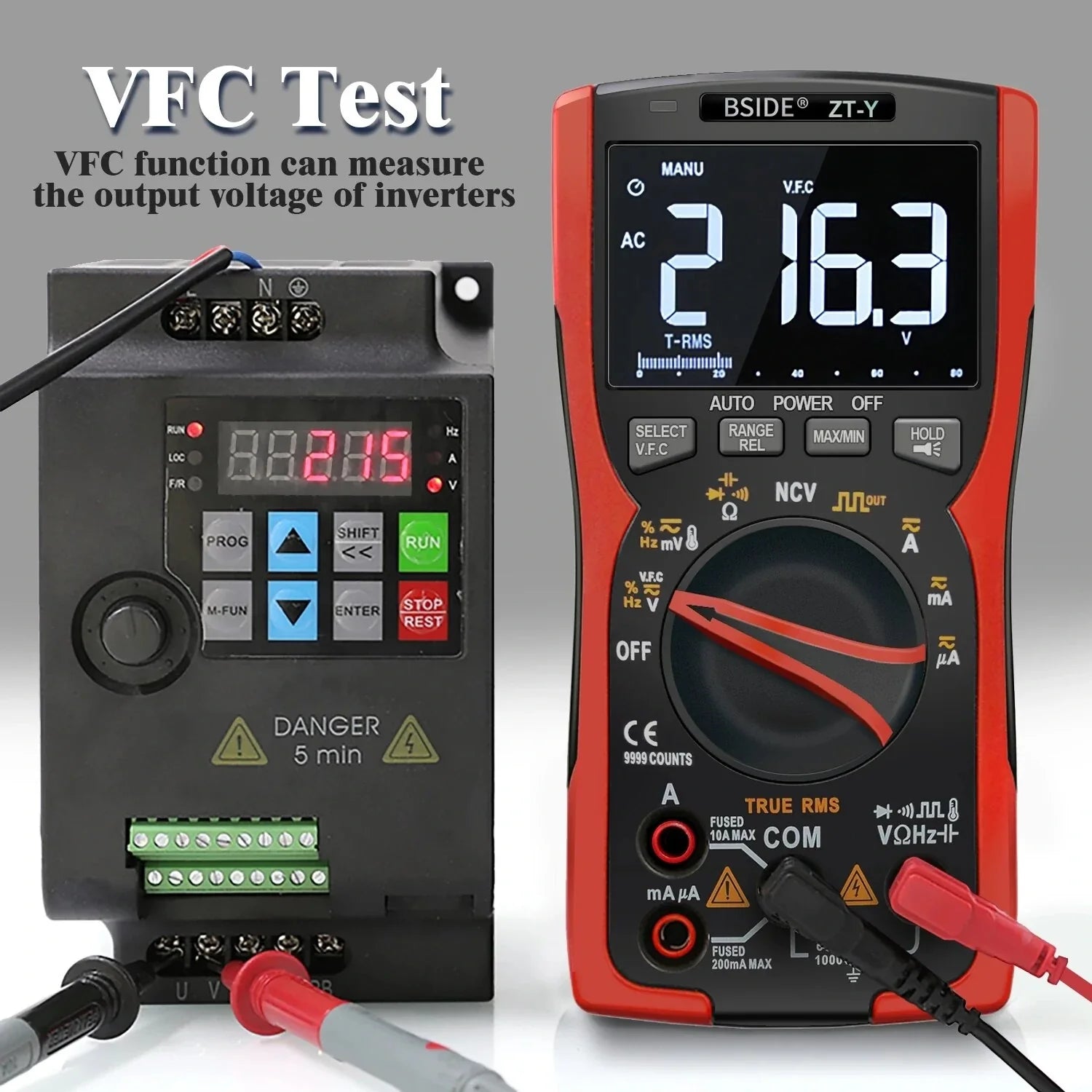

[VFC Function]: VFC function can measure the output voltage of inverters.
Features:
-EBTN LCD display has less eye irritation than other LCD screen
-3-Line display can show 3 test results on the screen
-Double-layer injection-molded case and knob
-VFC test, output test, duty cycle test
-Capacitance, temperature, frequency, NCV and diode test
-AC/DC voltage, AC/DC current, resistance, Hz test and continuity test
Flashlight design
-TRMS, auto-ranging, data hold with low battery indication
Relative value measurement
Specifications:
Display: 9999 counts
DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3)
AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V ±(1.0%+3)
DC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.0%+3)
AC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.2%+3)
Resistance:
99.99Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3);
9.999MΩ ±(1.5%+3); 99.99MΩ ±(3.0%+3)
Capacitance:
9.999nF ±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5);
9.999mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000 MHz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
Diode: show the forward voltage
NCV: alarm beep sounds if detect AC voltage
Continuity: alarm beep sounds if there is a short circuit
Power: 1.5V (AAA) x 3
Size: 147mm * 76mm * 37mm
Weight: 209g

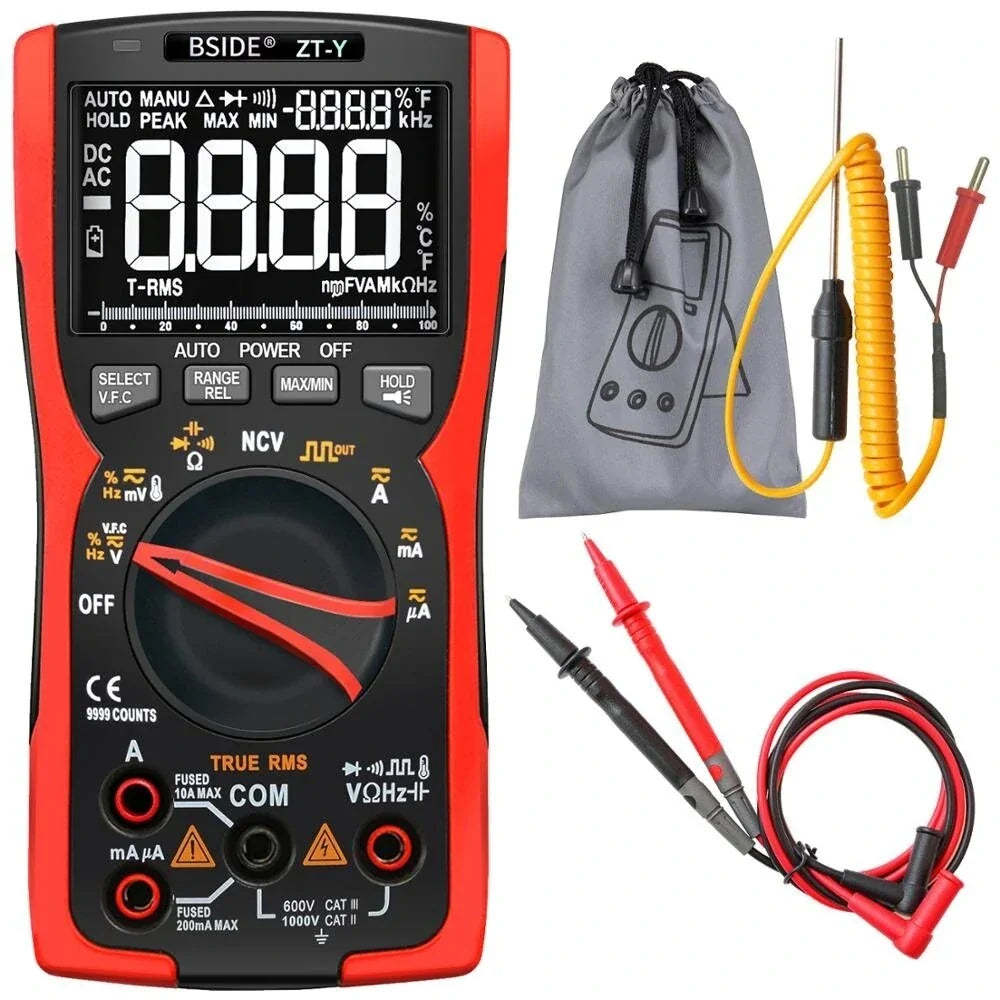

Package Includes:
1 x Digital Multimeter
1 x Test Leads
1 x Thermocouple
1 x Carrying Case
1 x User Manual
