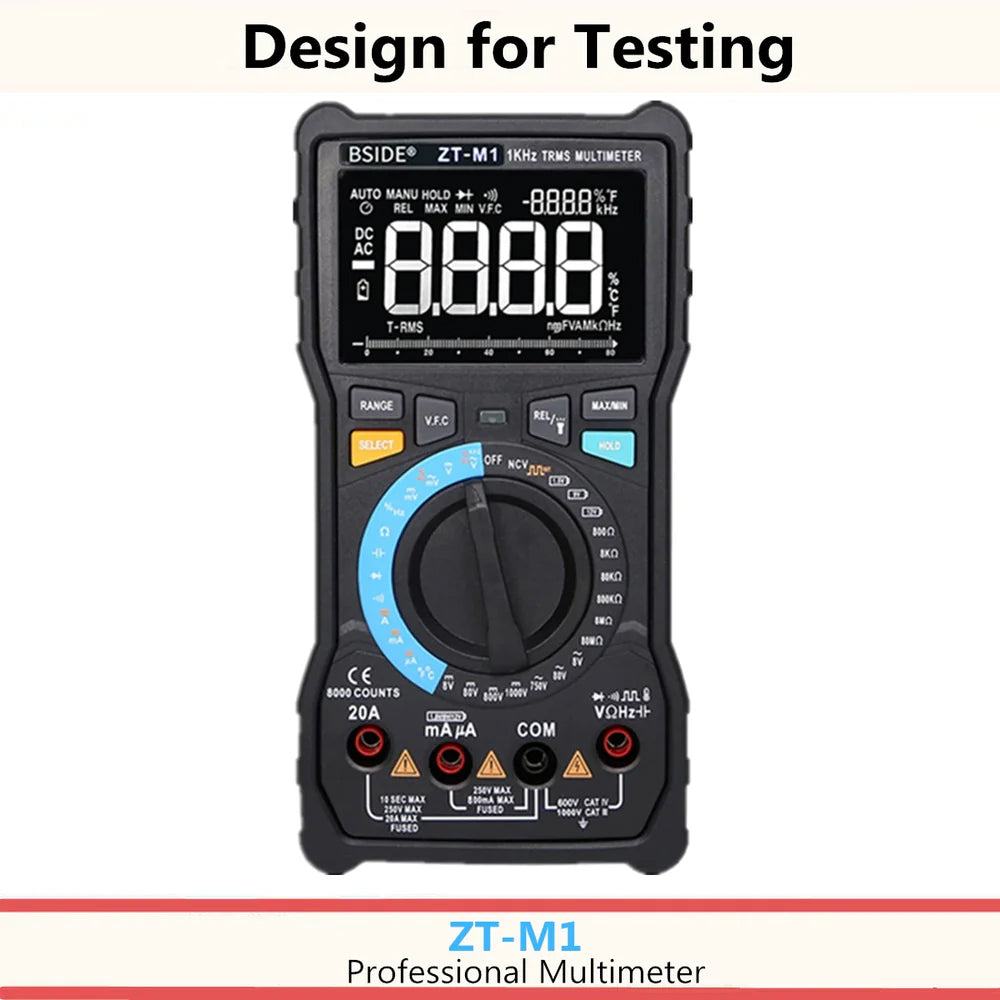

BSIDE ZT-M1 Multimeter with Auto/Manual Mode & Triple Display - ZT-M1
$49.23
Specifications
Operating Mode:Auto Range
Measuring Capacitance Range:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF
Operating Temperature:0 - 40 ℃
DIY Supplies:ELECTRICAL
Measuring Resistance Range:800.0/8.000k/80.00k/800.0k/8.000M ohm
Certification:CE
Model Number:ZT-M1
Measuring Inductance Range:N/A
Brand Name:BSIDE
Dimensions:176*91*47mm
DC Current:8.000A/20.00A
AC Current:8.000A/20.00A
DC Voltage:800.0mV/8.000V/80.00V/800.0V/1000V
Display Type:Digital display
AC Voltage:800.0mV/8.000V/80.00V/800.0V/750V
Frequency Range:9.999Hz/99.99Hz/999.9Hz/9.999kHz
Continuity:YES
60Hz~10MHz:8000 counts
True RMS:Yes
Non contact Voltage tester:Yes
Duty Cycle:1%~99%
Temperature:(-20~1000)C/(-4~1832)F
Diode:Yes
Square wave output:50Hz~5000Hz
Storage temperature:-20~60C
Battery type:1.5V AA battery*3(Not include)
Measurement mode:Manual Mode + Automatic Mode
V.F.C:YES
Update Rate:3times/second
Ture RMS:YES
Data Hold:YES
Backlight:YES
Low Battery Indication:YES
Auto Power Off:YES
Temperature measurement:- 20 ~1000C
Battery Test:YES
BSIDE ZT-M1 Auto/Manual EBTNDigital Multimeter 3-Line Triple Display 8000 Counts Voltage VFC Square Wave Output Capacitance Tester DMM
For Those Who Require Advanced Features: ZT-M1
Specifications:
Display (LCD):8000 counts+Measurement of V.F.C Converter
Ranging Auto/Manual
Material:ABS/PVC
Update Rate:3 times/second
Ture RMS: YES
Data Hold: YES
Backlight : YES
Battery Test: YES
V.F.C: YES
Low Battery Indication: YES
Auto Power Off: YES
Temperature measurement: - 20 ~1000.
Resistance Range: 0.1-80M
Capacitance Range: 0.001nF-100mF

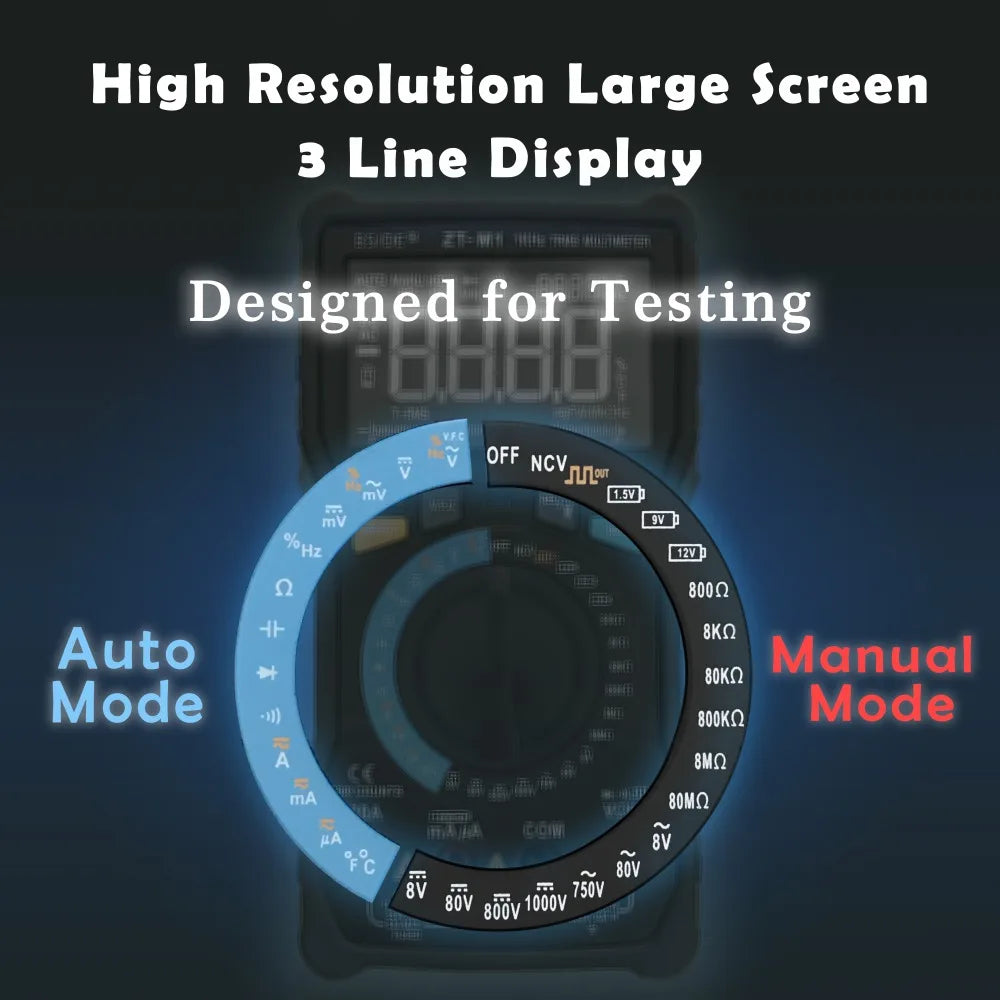

Measurement mode: Manual Mode + Automatic Mode
Functions:
DC Voltage (V)/(mV): 800.0mV/8.000V/80.00V/800.0V/1000V ±(0.5%+3)
AC Voltage (V)/(mV): 800.0mV/8.000V/80.00V/800.0V/750V ±(1.0%+3)
DC Current (A): 8.000A/20.00A ±(1.2%+3)
DC Current (mA): 8.000mA/80.00mA/800.0mA ±(1.2%+3)
DC Current (μA): 800.0μA/8000μA ±(1.2%+3)
AC Current (A): 8.000A/20.00A ±(1.5%+3)
AC Current (mA): 8.000mA/80.00mA/800.0mA ±(1.5%+3)
AC Current (μA) 800.0μA/8000μA ±(1.5%+3)
Resistance: 800.0Ω/8.000kΩ/80.00kΩ/800.0kΩ/8.000MΩ ±(0.5%+3)
80.00Ω ±(1.5%+3)
Capacitance: 9.999nF ±(5.0%+5)
99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5)
9.999mF/99.99mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
Diode：YES
Continuity：YES
Square Wave Output: 50Hz~5000Hz
Package Includes:
1 x Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag
