BSIDE ZT-M0 Manual Multimeter with LCD & Battery Test
$48.89
Specifications
Operating Mode:Manual Mode + Smart Mode
Measuring Capacitance Range:99.99nF/999.9nF/9.999uF/99.99uF/999.9uF
Operating Temperature:0 - 40 ℃
DIY Supplies:ELECTRICAL
Measuring Resistance Range:600.0/6.000k/60.00k/600.0k/6.000M ohm
Certification:CE
Model Number:ZT-M0
Measuring Inductance Range:N/A
Brand Name:BSIDE
Dimensions:176*91*47mm
DC Current:6.000A/20.00A
AC Current:6.000A/20.00A
DC Voltage:600.0mV/6.000V/60.00V/600.0V/1000V
Display Type:Digital Display
AC Voltage:600.0mV/6.000V/60.00V/600.0V/750V
Frequency Range:9.999Hz/99.99Hz/999.9Hz/9.999kHz
Continuity:YES
60Hz~10MHz:6000 counts
True RMS:Yes
Non contact Voltage tester:Yes
Duty Cycle:1%~99%
Temperature:(-20~1000)C/(-4~1832)F
Diode:Yes
Square wave output:50Hz~5000Hz
Update Rate:YES
Ranging:YES
Low Battery Indication:YES
Battery type:1.5V AA battery*3 (Not include)
Measurement Method:Manual Mode + Smart Mode

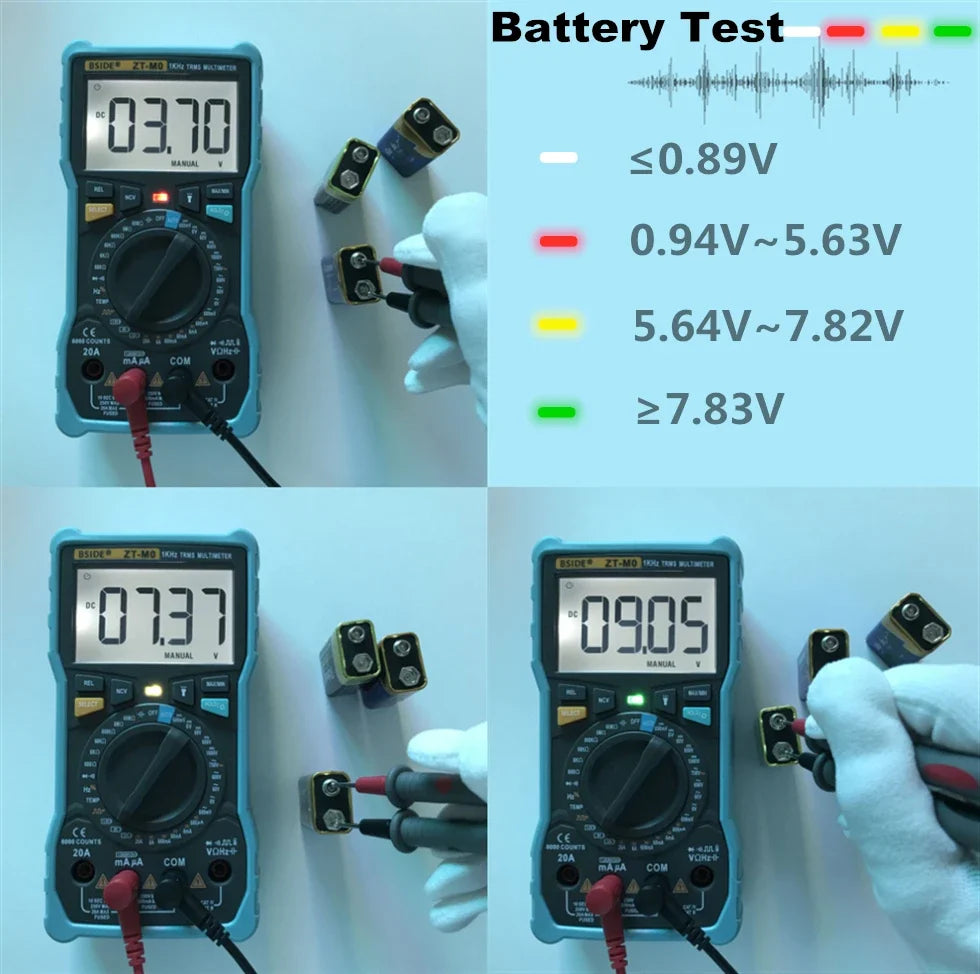

Battery Test:YES
BSIDE ZT-M0 True RMS Digital Multimeter LCD Display 6000 Counts Voltage Square wave output Capacitance ohm Tester DMM
Dear Buyers, BSIDE Official Store sincerely thank you for your support, we give you an additional $7.49 alligator clip banana plug as a gift, as shown on the following photo. It is a limited time offer. Thanks for your order.
Specifications:
Display (LCD):6000 counts
Ranging:Auto/Manual
Material:ABS/PVC
Update Rate:3 times/second
Ture RMS:YES
Data Hold:YES
Backlight:YES
Low Battery Indication:YES
Auto Power Off:YES
Operating temperature:0-40℃
Operating humidity:less then 75%
Storage temperature:-20~60℃
Operating humidity:less then 80%
Battery type :1.5V AA battery*3 (Not include)
Measurement Method: Manual Mode + Intelligent Recognition
Functions：
DC Voltage (V)/(mV): 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+3)
AC Voltage (V)/(mV): 600.0mV/6.000V/60.00V/600.0V/750V ±(1.0%+3)
DC Current (A): 6.000A/20.00A ±(1.2%+3)
DC Current (mA): 6.000mA/60.00mA/600.0mA ±(1.2%+3)
DC Current (μA): 600.0μA ±(1.2%+3)
AC Current (A): 6.000A/20.00A ±(1.5%+3)
AC Current (mA): 6.000mA/60.00mA/600.0mA ±(1.5%+3)
AC Current (μA): 600.0μA ±(1.5%+3)
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ (0.5%+3)
60.00MΩ ±(1.5%+3)
Capacitance: 9.999nF ±(5.0%+20)
99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5)
9.999mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
Diode:YES
Continuity:YES
Square Wave Output: 50Hz~5000Hz

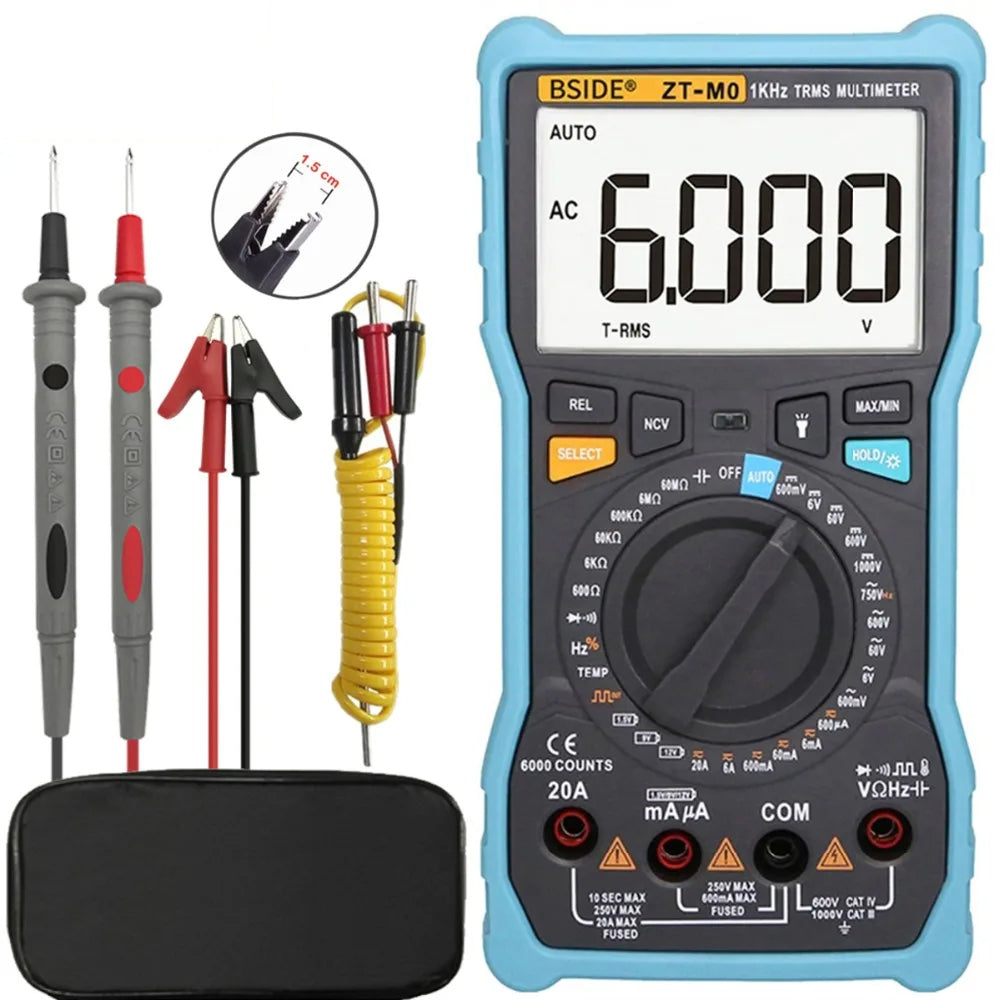

Package Includes:
1 x Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag
1 x Alligator Clip Banana Plug(Gift)
Note:
T h e batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
