BSIDE SH9 Thermal Camera Industrial
Shipping calculated at checkout
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Shipping calculated at checkout
Shipping cost and estimated delivery for this item will be shown at checkout based on your location.
Processing Time: 3–5 business days
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
BSIDE SH9 Thermal Camera Industrial - SH9(Standard)
Model
SH9(Standard)
SH9(Macro Lens)
SH9A(Standard)
SH9A(Macro Lens)

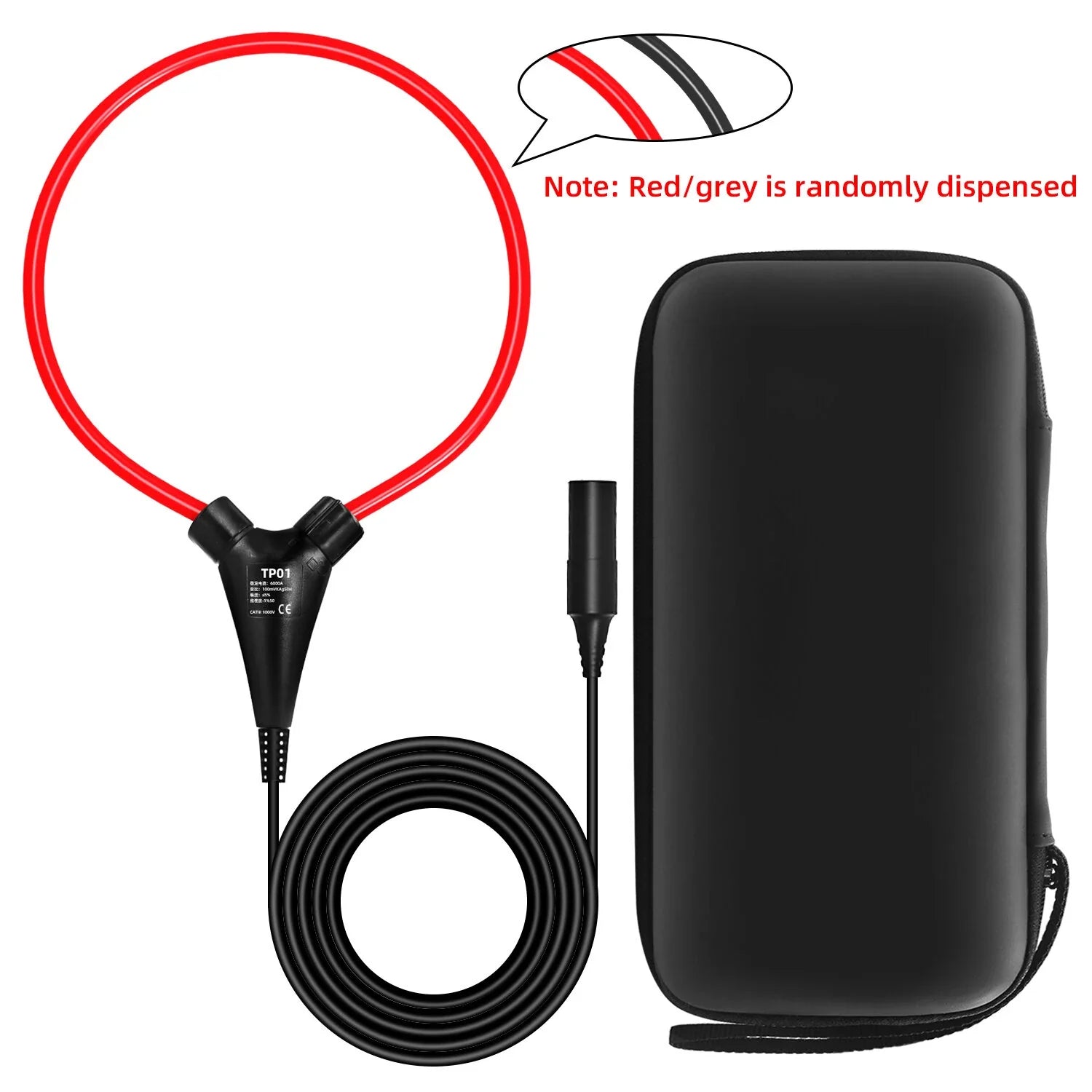

Flexible Current Clamp MAX-6000A
$299.00
Add to Cart
VIDEO
Supported Languages 🇬🇧 English
The SH9A measures currents up to 10A without a flexible coil. SH9A is suitable for low current measurement. The SH9 can measure currents up to 2000A. Smaller currents require the use of a flexible coil. Specifications:
Sensor Type: Vanadium oxide (VOx) microcalorimeter
Response Band: 8–14 µm
Thermal Image Resolution: 320 × 428 Pixels
Noise Equivalent Temperature Difference (NETD): ≤50 mK (@25°C, F#1.0)
Field of View (FOV): 50.0° (H) × 37.2° (V) / 63.6° (D)
Spatial Resolution (IFOV): 8.89 mrad
Lens Focal Length: 3.5 mm
Temperature Measuring Focal Length: 0.3m–3m Adjustable
Temperature Range: -20°C–550°C
Temperature Measurement Accuracy: ±2°C or ±2% of the reading
Temperature Units: Celsius, Fahrenheit, Kelvin
Temperature Resolution: 0.1°C
Emissivity: 0.01–1.00 Adjustable
Display: 3.98-inch TFT Capacitive Touchscreen
Display Resolution: 320 × 480
Temperature Alarm: Screen font color alarm

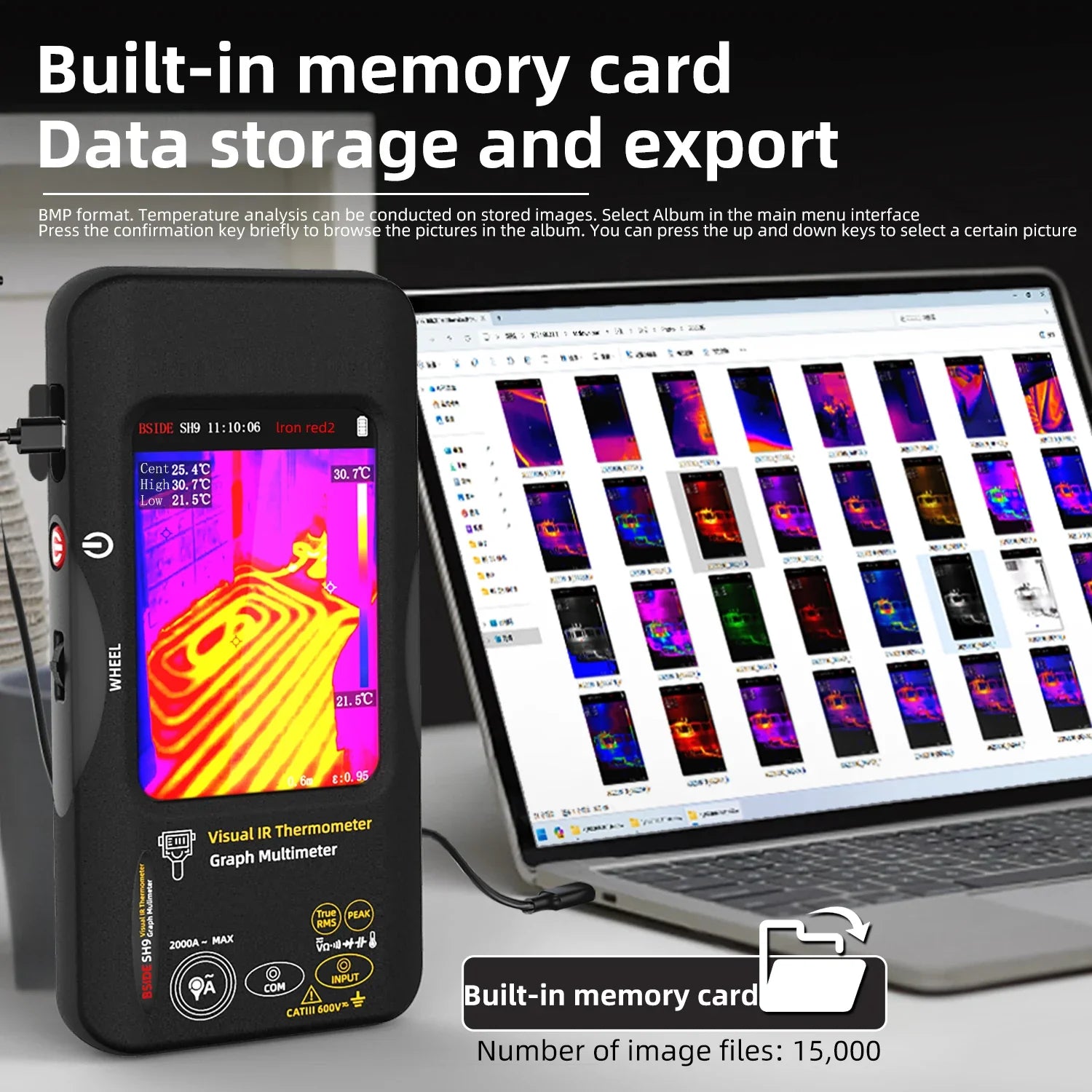

Image Storage: Built-in memory card
Image File Capacity: 15,000 files
Image Format: BMP
Focus Mode: Autofocus
Battery Type: Rechargeable lithium battery (3.7V / 2500mAh)
Operating Hours: Over 5 hours (@25°C)
Charging Time: Less than 3 hours (@25°C)
Charging Voltage/Current: 5V / 2A
Boot Speed: Approximately 3 seconds
Automatic Shutdown: Customizable (default disabled or between 10–60 minutes)
Operating Temperature: -20°C–50°C
Storage Temperature: -40°C–70°C
Storage Humidity: 25–40%RH (Non-condensing)
Working Humidity: ≤85%RH (Non-condensing)

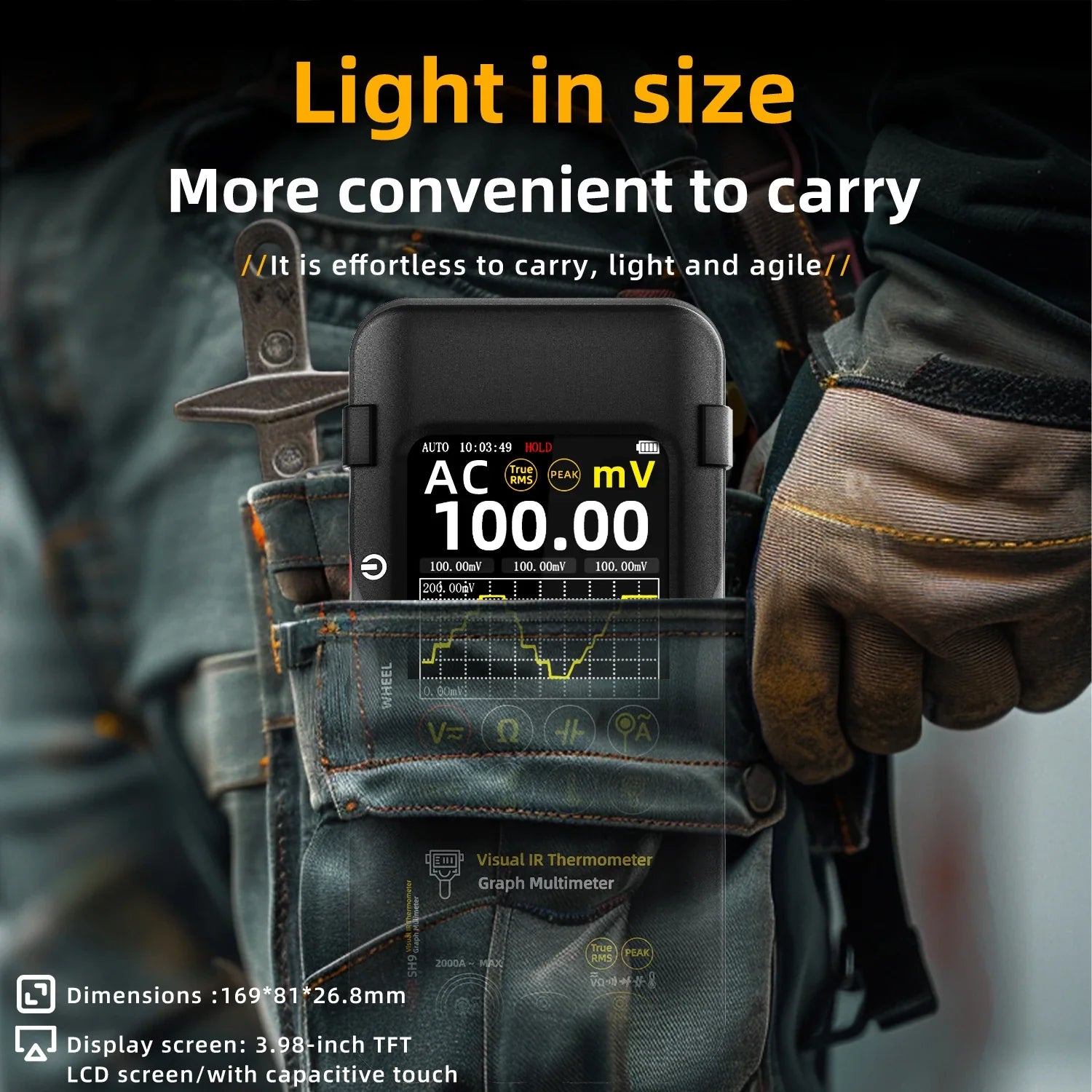

Product Dimensions: 169 × 81 × 26.8 mm
Product Weight: 274.3 g
Features:

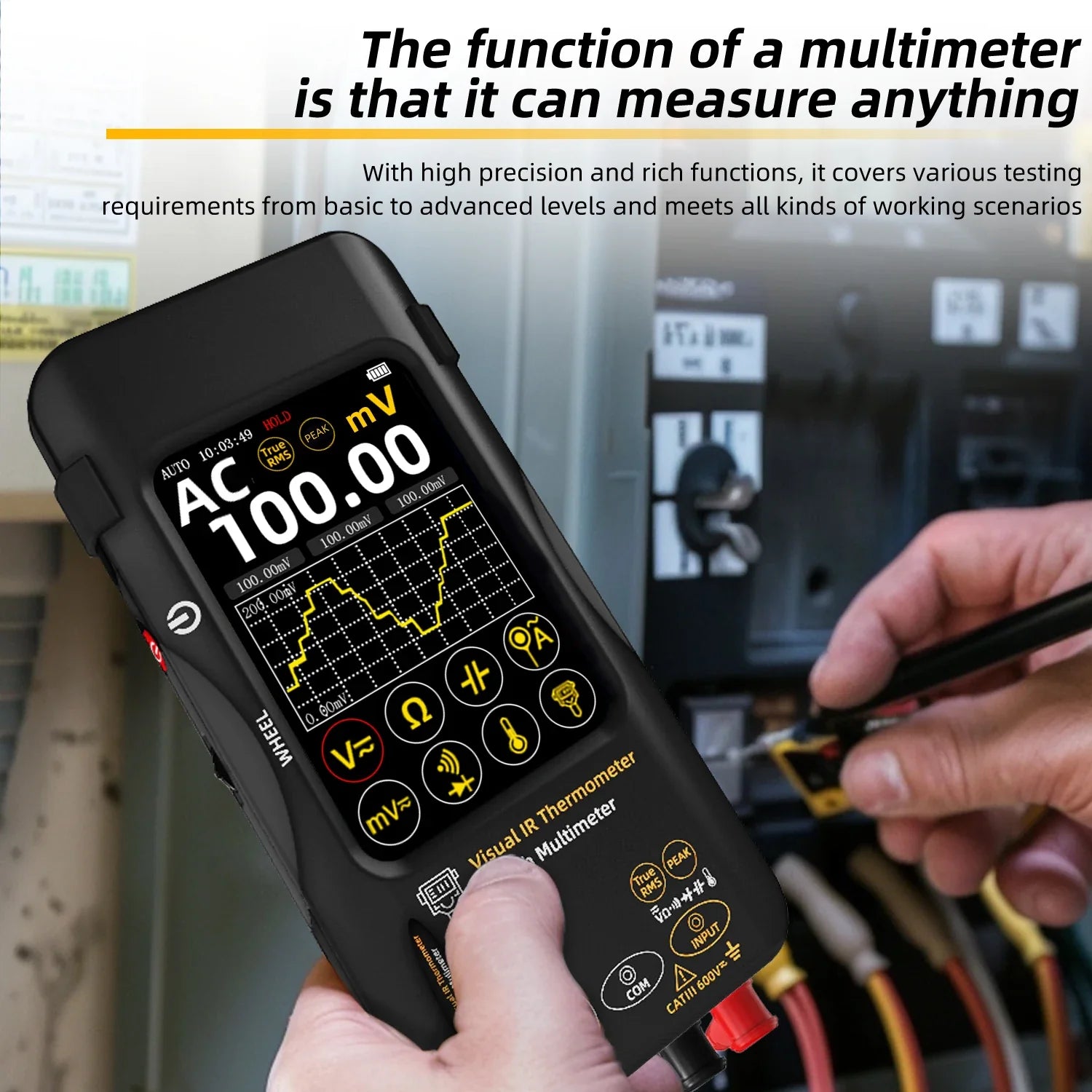

1.Enhanced Dual-Functionality: This device brilliantly combines a thermal imaging camera with a graph multimeter, delivering both accurate temperature measurement and comprehensive electrical diagnostics for field work.

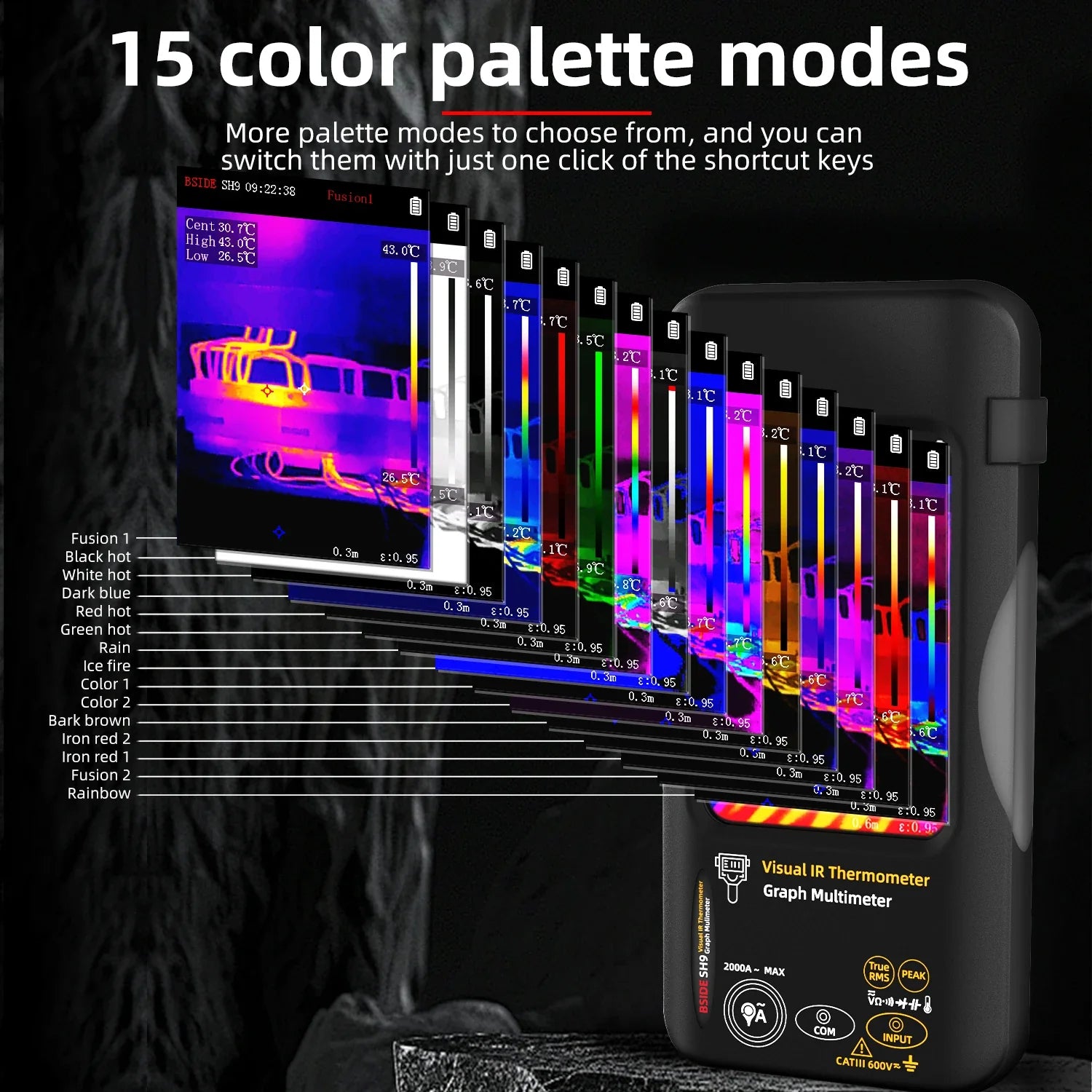

2.Advanced Display Customization: Equipped with 15 adjustable color palettes, the 3.98-inch touchscreen ensures precise visualization of thermal data, as well as real-time selection and optimization for various scenarios.
3.High-Defined Imaging: The thermal resolution of 320 × 428 pixels and NETD ≤50 mK provide crystal-clear thermal visuals, enabling detailed observations from a distance of up to 3 meters.
4.Extended Operating Power: The integrated 2500mAh rechargeable lithium battery delivers up to 5 hours of continuous usage, with fast charging of less than 3 hours—ideal for prolonged field applications.
5.Multi-Measurement Modes: Precise tracking of minimum, maximum, and center temperatures, exacting emissivity adjustments, and alarms for temperature thresholds ensure comprehensive monitoring in dynamic environments.

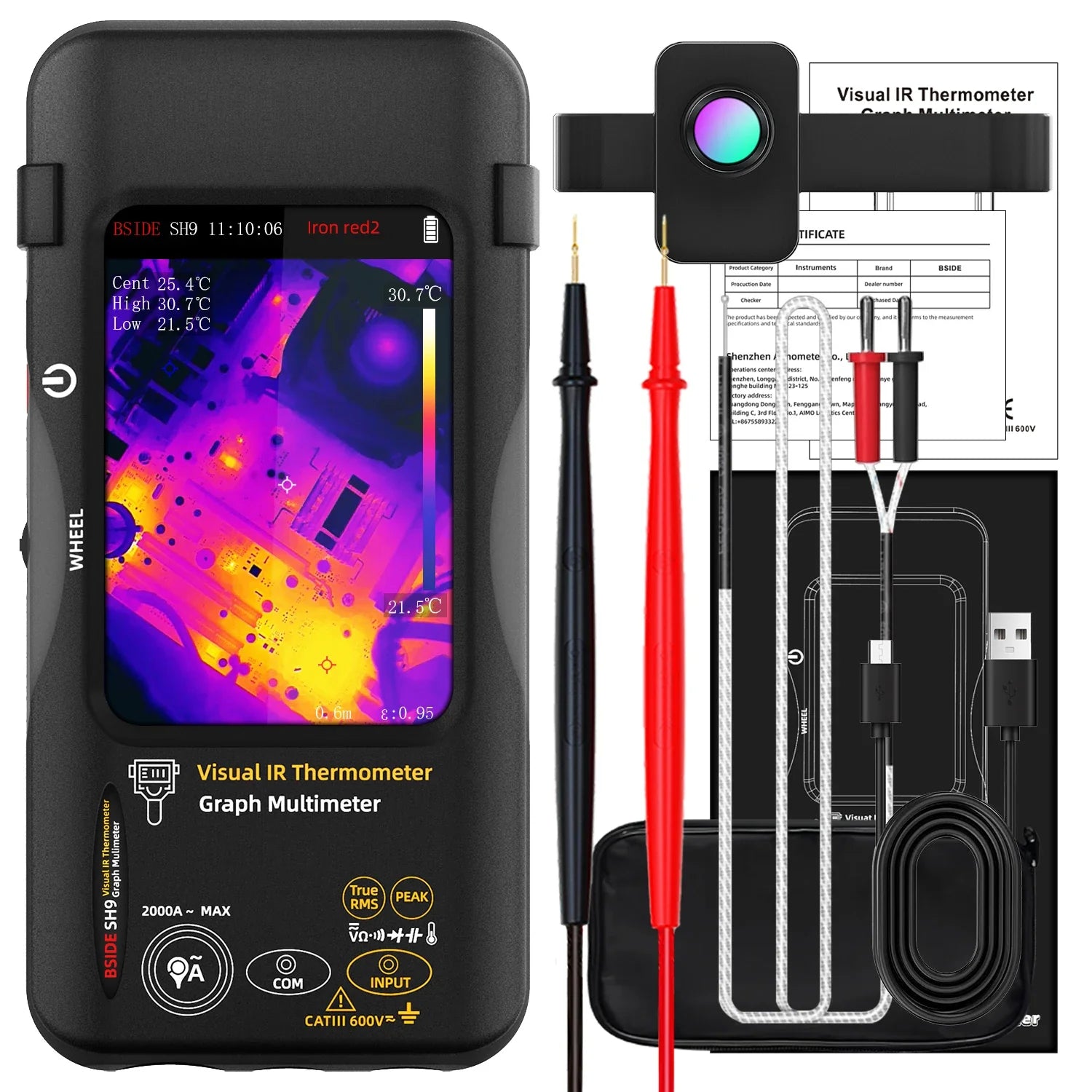

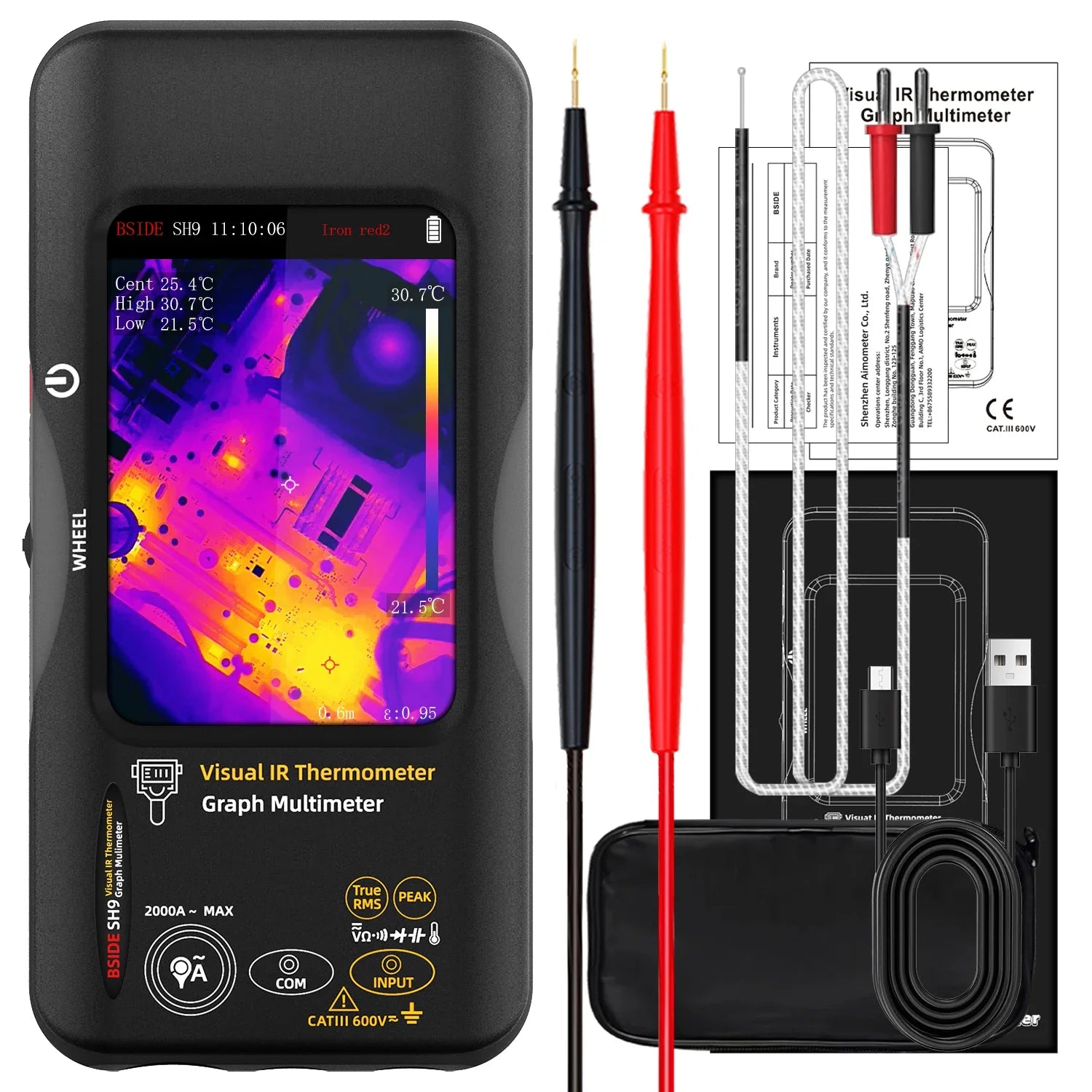

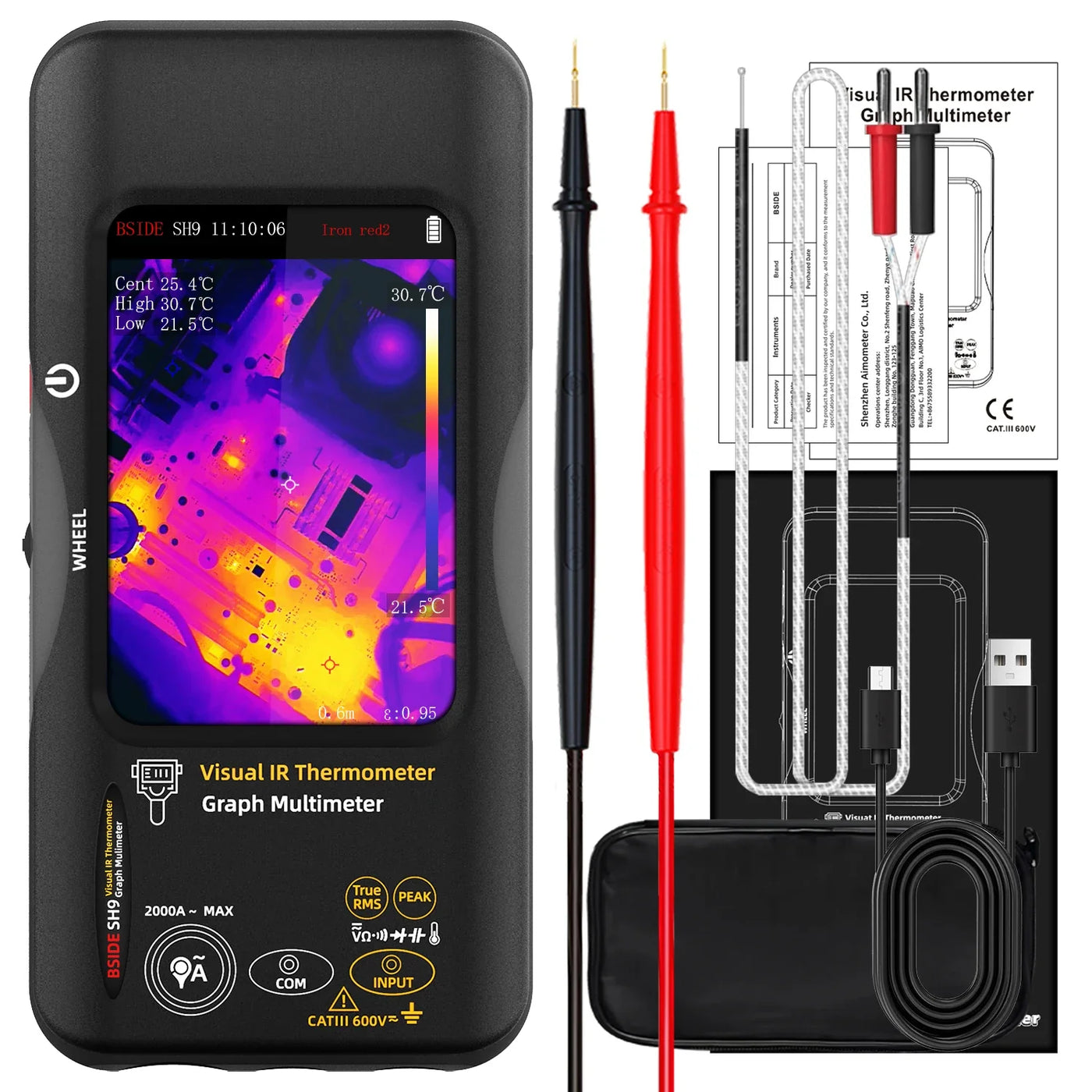

Package Included:
1 x Visual IR Thermometer Graph Multimeter
1 x USB Data Cable
1 x User Manual
1 x Temperature Probe
1 x Storage Bag
1 x Test Pen
1 x Macro Lens
