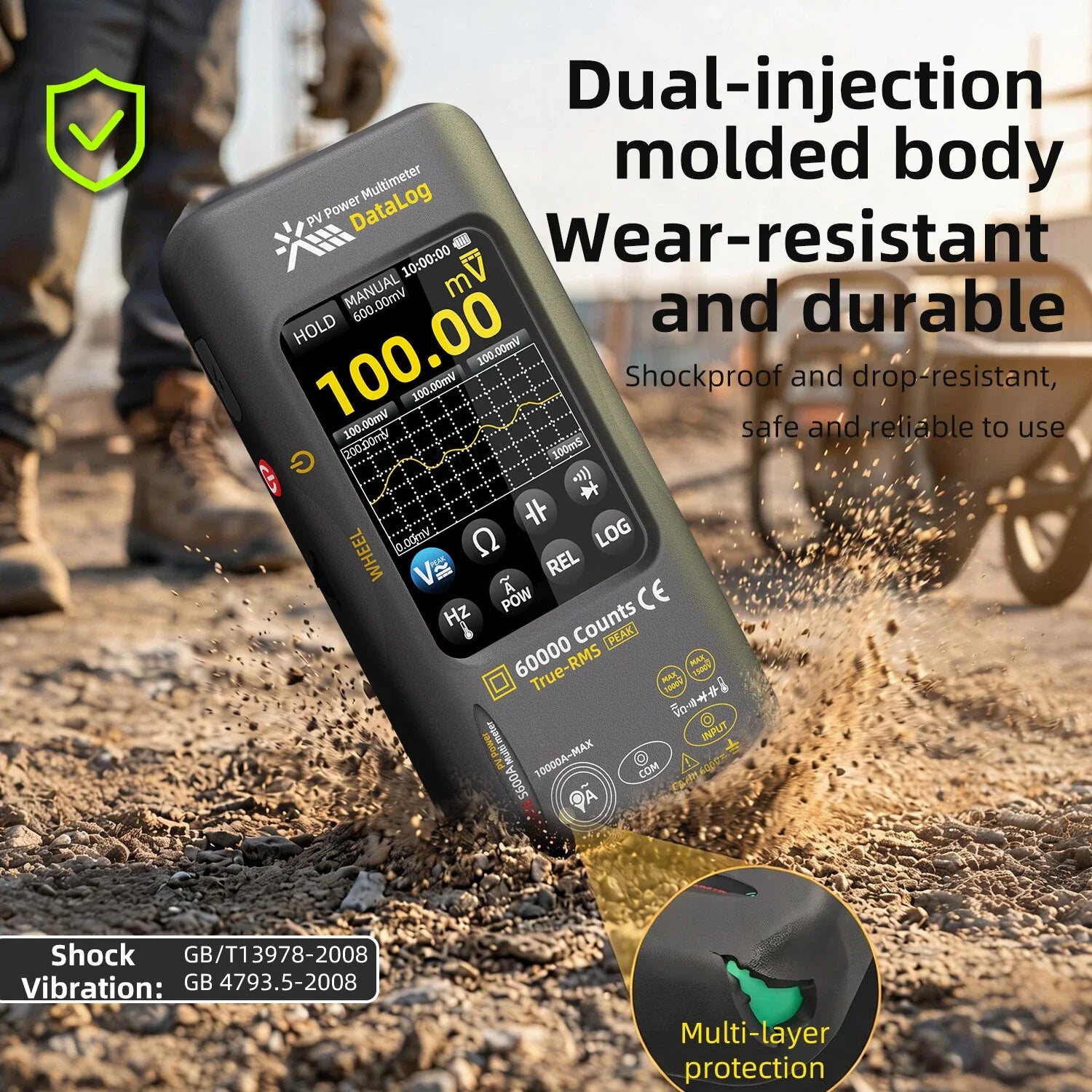

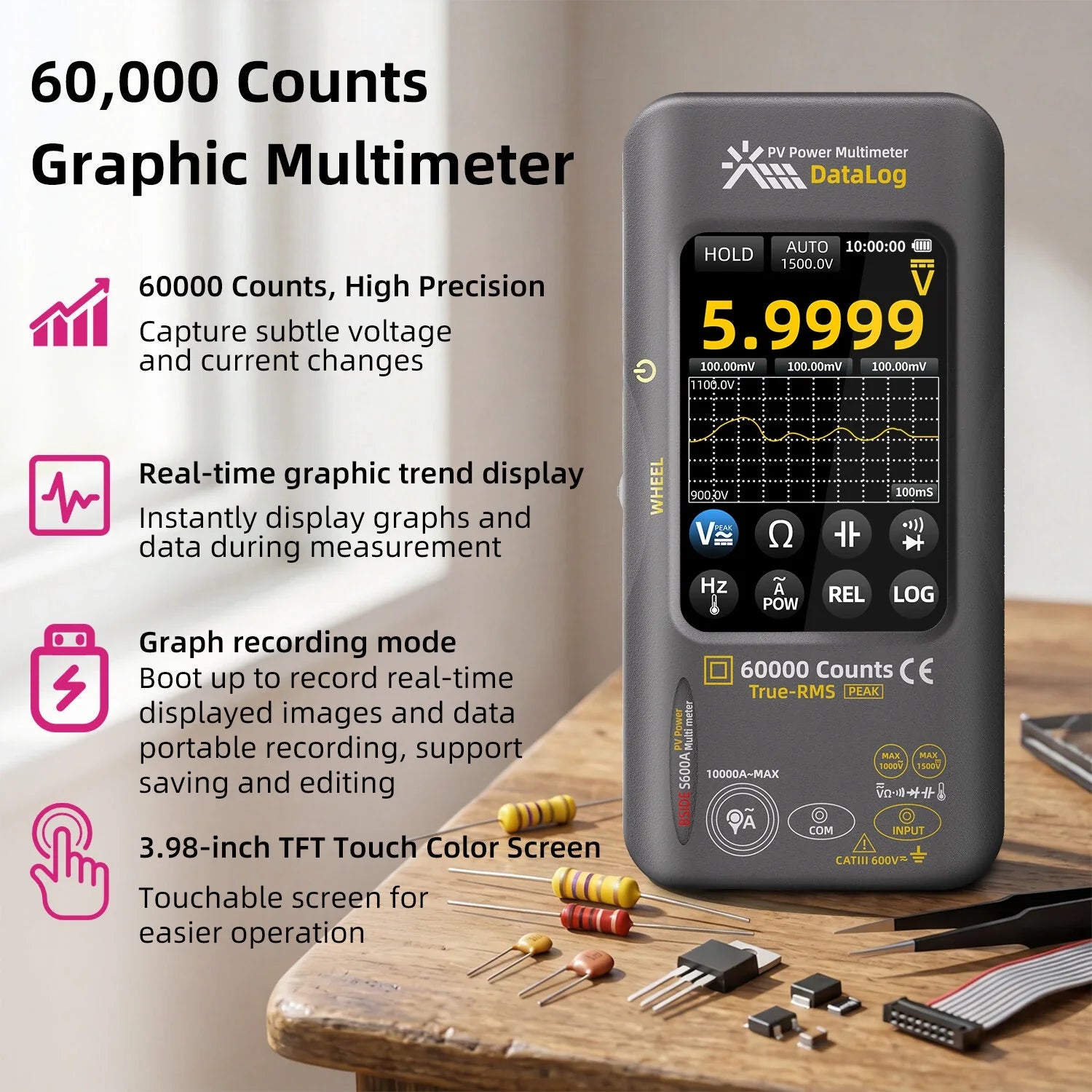

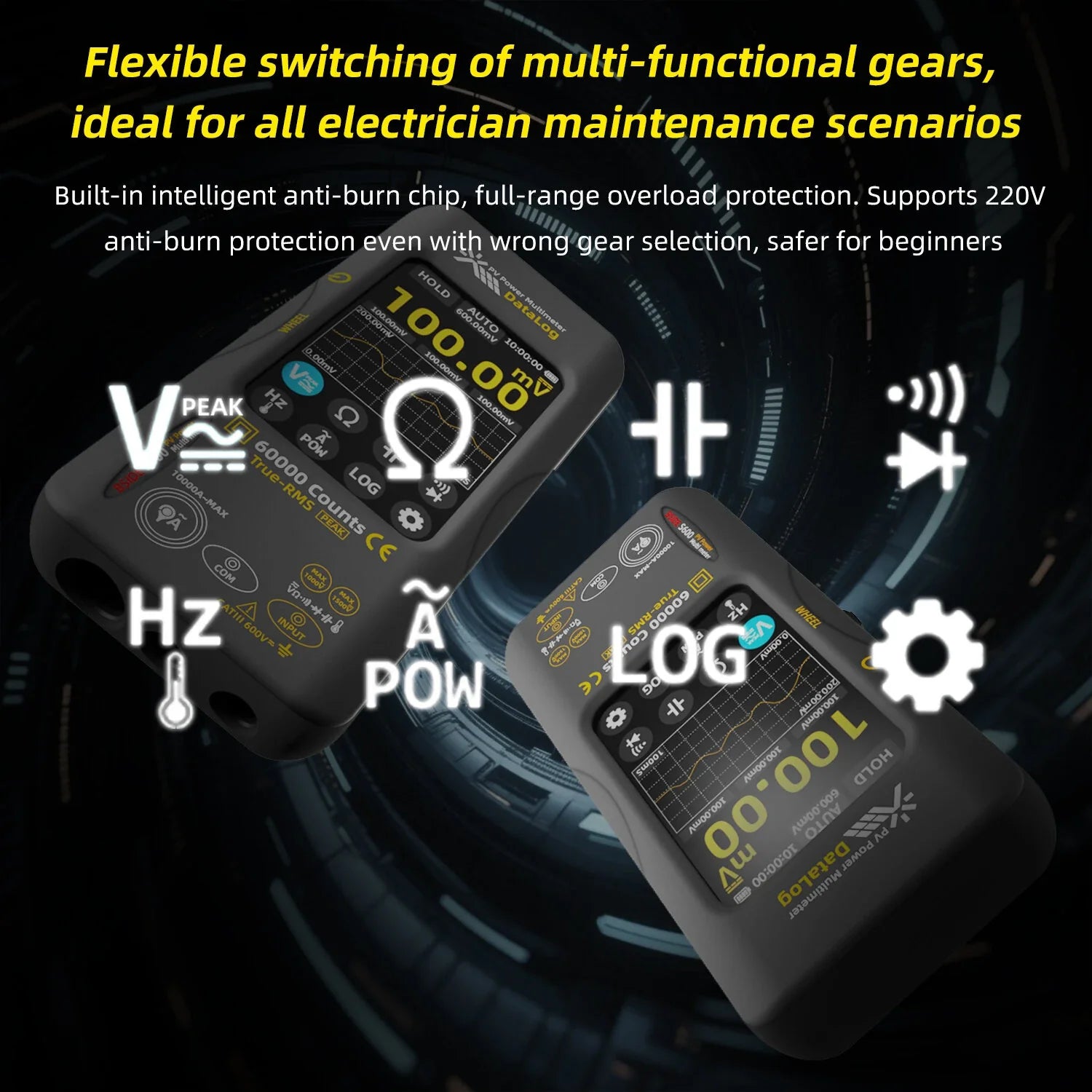

BSIDE S600A Graphic Multimeter 3.98” Touchscreen 60000 Counts Data Logger - S600A
type
S600A
S600A+Flexible Current Clamp
$149.89
Add to Cart
Specifications
Product Name: 60,000 Counts Graphic Multimeter
Model: S600A
Overall Dimensions: 169mm x 81mm x 26.8mm
Net Weight: 260g (With battery)
Display Screen: 3.98TFT color screen
Charging Interface: Type-C Port
Battery Type: 3000mAh (Lithium battery)
Auto Power Off: Support
Data Record Export: Support
Working Environment: Temperature: 0~40°C, Humidity: < 75%
Storage Environment: Temperature: Temperature: -20~60°C, Humidity: < 80%
Operation Mode: Touch screen operation / Jog key operation
Features
1) Features a full touch screen for one-tap control. Slide to adjust parameters and scan waveforms, allowing for efficient one-handed operation.
2) Equipped with a scroll wheel key for instant, fast parameter adjustment. Maximizes efficiency for a smooth, one-handed blind operation.

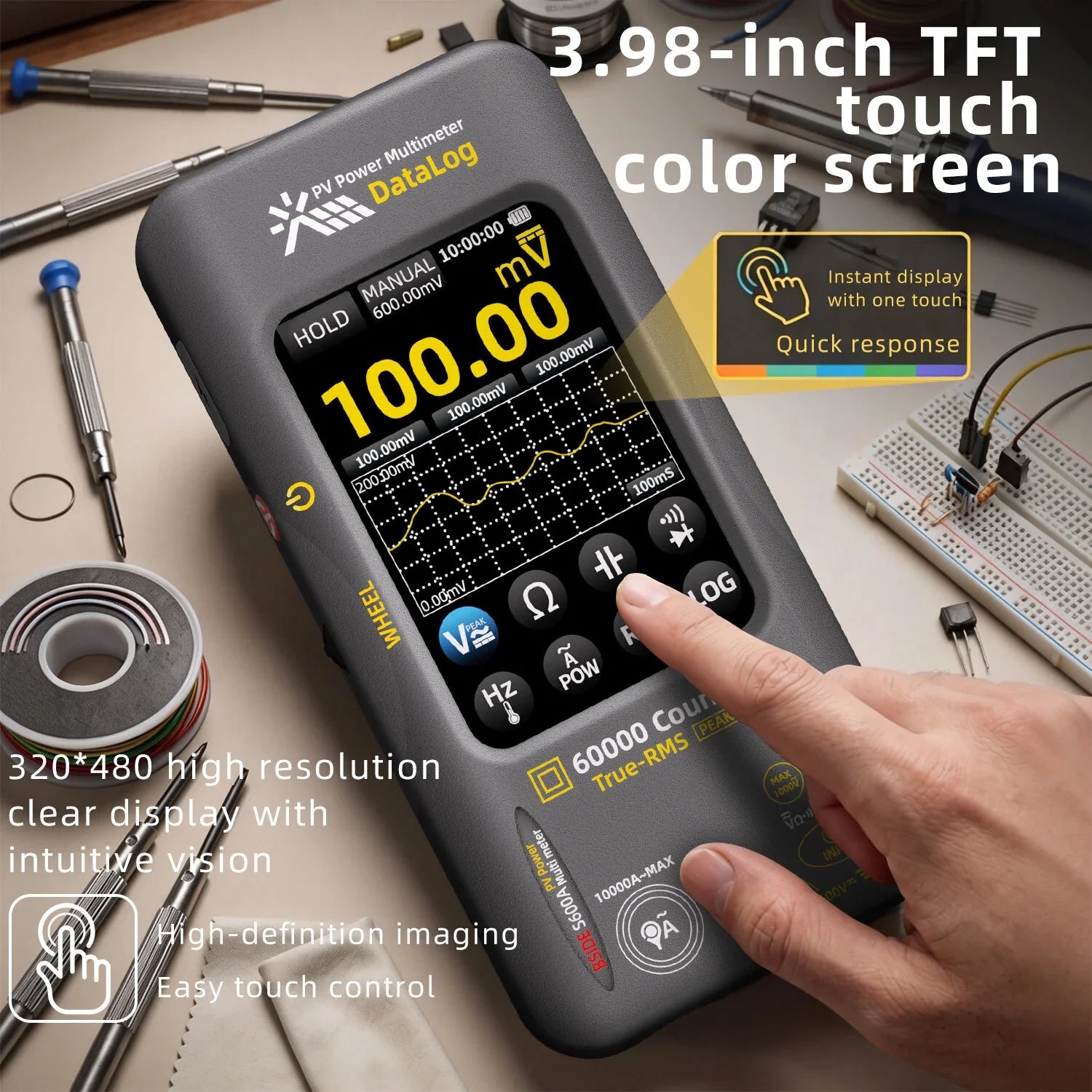

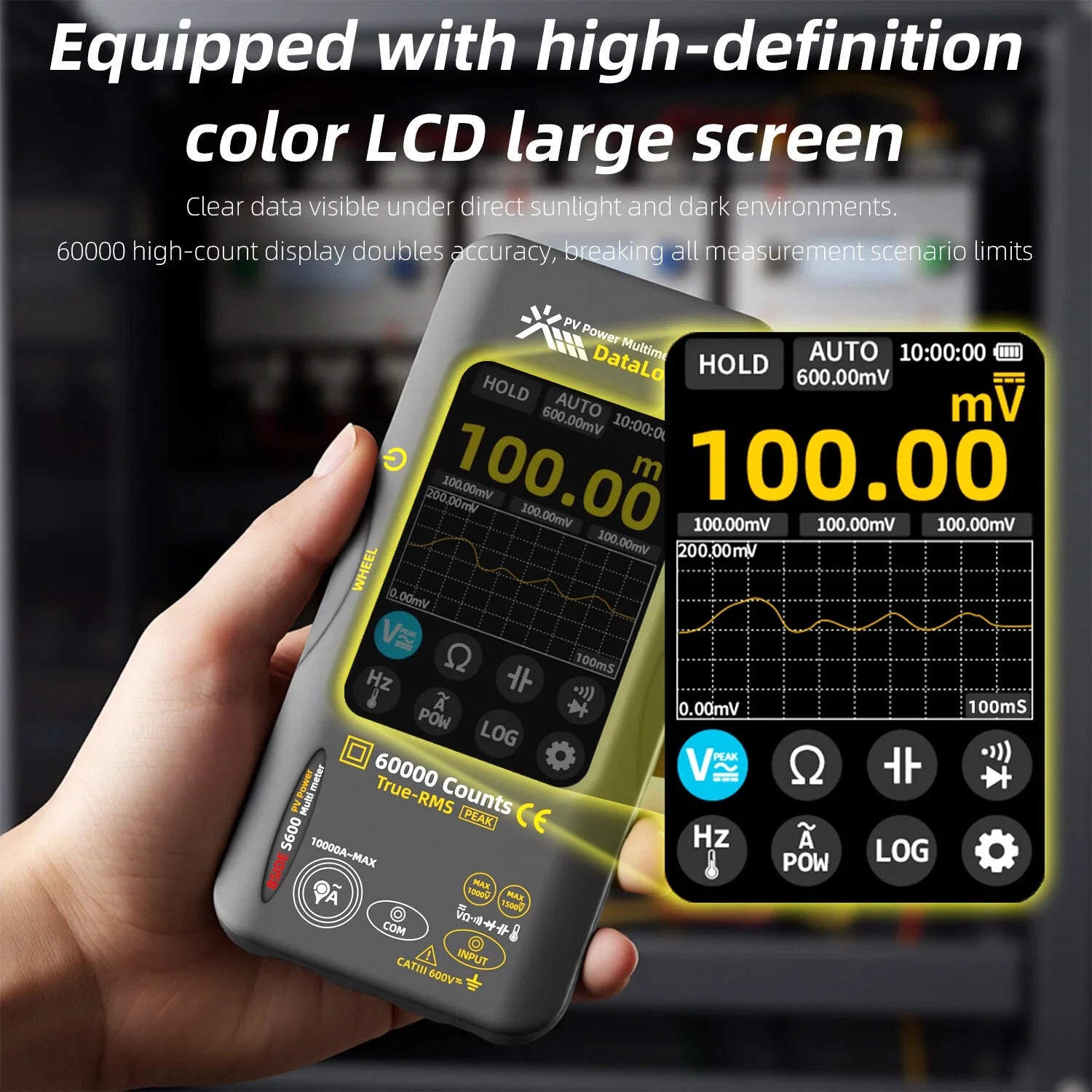

3) High-precision 60000 counts with a 3.98-inch TFT color screen. Clearly displays measurements and graphical waveforms for detailed analysis.

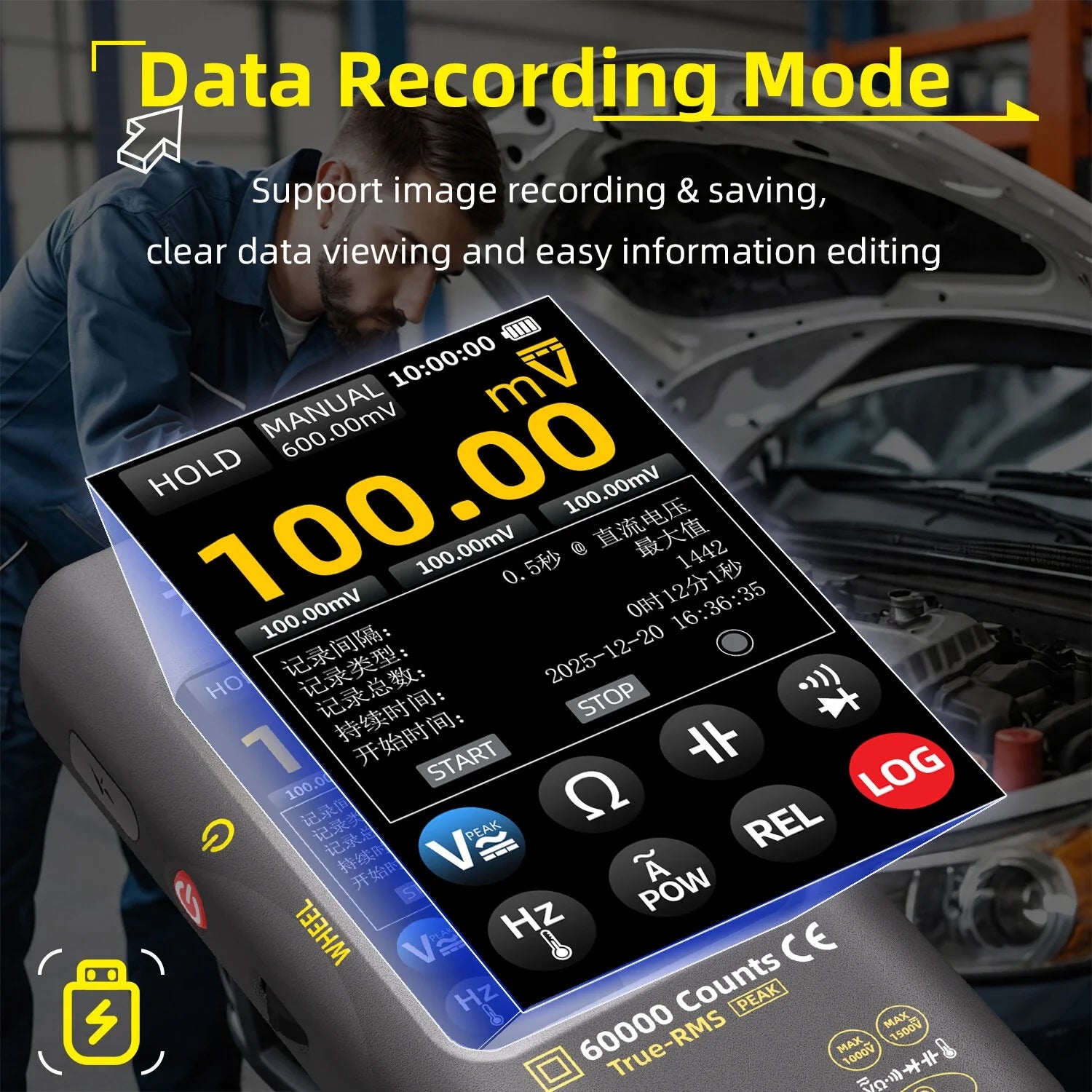

4) Integrated data logging function with export support. Conveniently record measurement data for analysis and reporting.
5) Specifically designed for photovoltaic applications. Measures up to 1500V DC, making it ideal for solar system installation and maintenance.

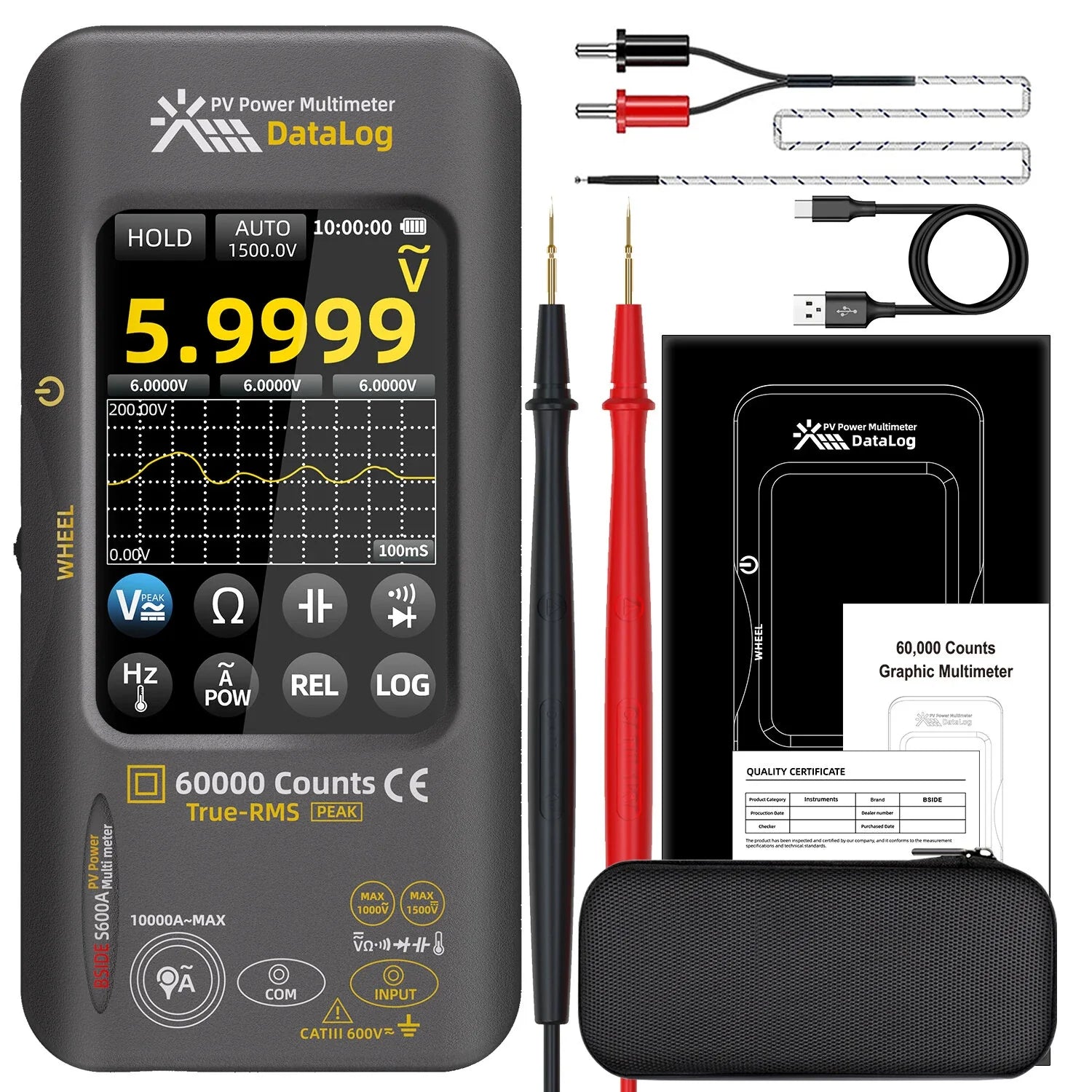

Package included
1 x S600A Multimeter
1 x Pair of Test Leads
1 x K-type Thermocouple
1 x Charging Cable
1 x Carrying Case
1 x User Manual
