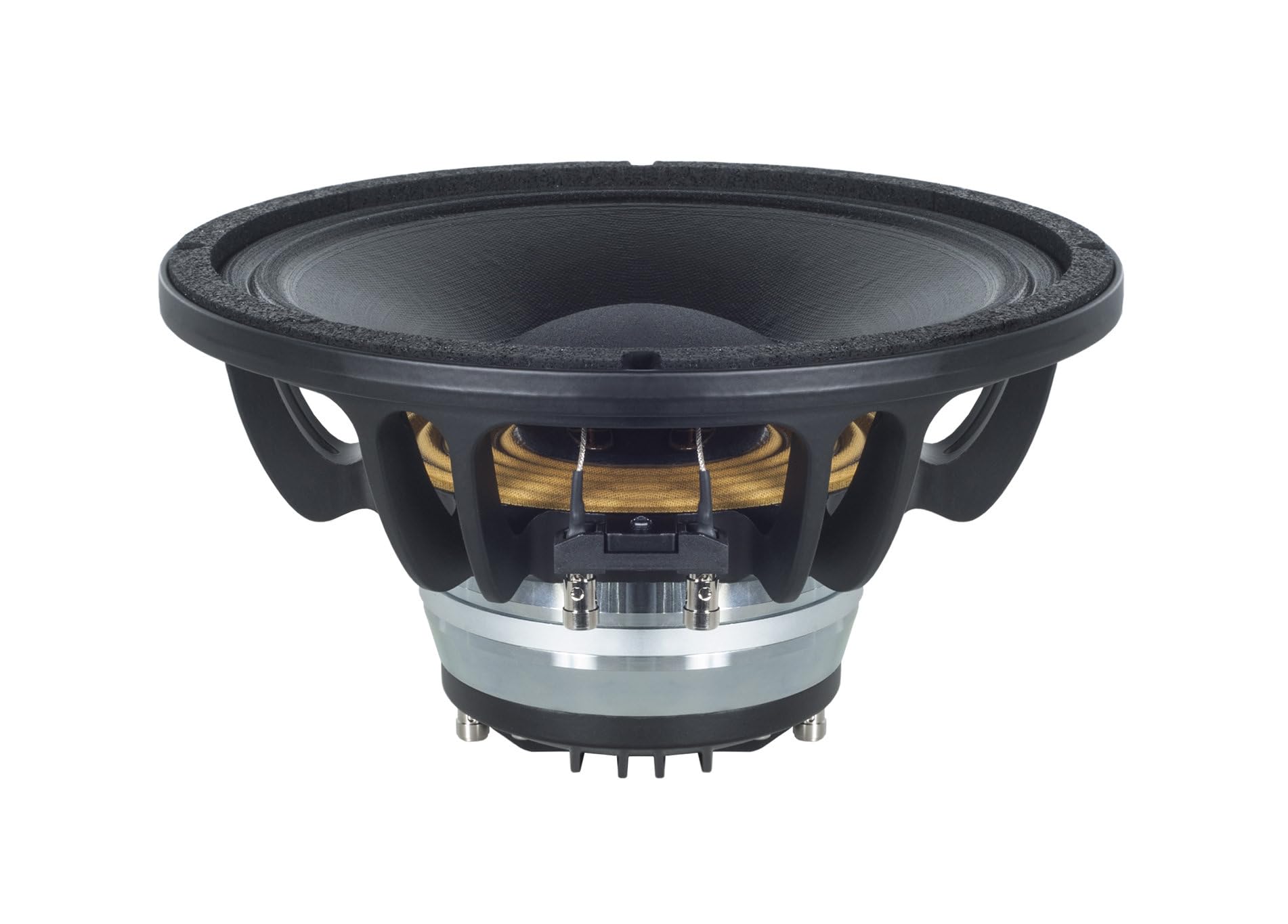

Features || 500 W continuous program power capacity || 70 nominal coverage || 70 - 18000 Hz response || 97 dB sensitivity || Single Neodymium magnet assembly || Aluminium demodulating ring allows a very low distortion figure || General || Nominal Diameter : 250 mm (10 in) || Nominal Impedance : 8 O || Frequency Range : 70 Hz - 18000 Hz || Dispersion Angle : 70 || Min Frequency Range : 70 kHz || Min Frequency Range : 18000 kHz || Specifications LF unit || Nominal Diameter : 250 mm (10 in) || Nominal Impedance : 8 O || Minimum Impedance : 6.7 O || Nominal Power Handling : 250 W || Continuous Power Handling : 500 W || Sensitivity : 97 dB || Voice Coil Diameter : 64 mm (2.5 in) || Winding Material : Copper || Former Material : Kapton || Winding Depth : 15 mm (0.59 in) || Magnetic Gap Depth : 9 mm (0.35 in) || Flux Density : 1.1 T || Woofer Cone Treatment : WP Waterproof Front Side || Specifications HF unit || Nominal Diameter : 250 mm (10 in) || Nominal Impedance : 8 O || Minimum Impedance : 7 O || Nominal Power Handling : 80 W || Continuous Power Handling : 160 W || Sensitivity : 103 dB || Recommended Crossover : 1.2 kHz || Voice Coil Diameter : 65 mm (2.5 in) || Winding Material : CCAW || Inductance : 0.15 mH || Flux Density : 1.75 T || Diaphragm Material : Titanium || Design || Magnet Material : Neodymium Ring || Woofer Cone Treatment : WP Waterproof Front Side || Parameters || Fs : 68 Hz || Re : 5.6 O || Qes : 0.33 || Qms : 5.6 || Qts : 0.31 || Vas : 23 dm (0.81 ft) || Sd : 320 cm (49.6 sq) || ?0 : 2.2 % || Xvar : 5 mm || Mms : 33.5 g || Bl : 15.8 Tm || Le : 1.1 mH || EBP : 206 Hz || Mounting and Shipping Info || Overall Diameter : 261 mm (10.28 in) || Bolt Circle Diameter : 245 mm (9.65 in) || Baffle Cutout Diameter : 233 mm (9.17 in) || Depth : 142 mm (5.59 in) || Flange and Gasket Thickness : 13 mm (0.51 in) || Net Weight : 3.95 kg (8.71 lb) || Shipping Units : 1 pcs || Shipping Weight : 4.85 kg (10.69 lb) || Shipping Box : 360x360x200 mm (14.17x14.17x7.87 in) || Continuing our never-ending quest for higher output, we now offer our popular single neodymium magnet coaxials with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 10CXN64 with 2.5 LF & HF voice coils. Power handling has increased to 500W, while also improving nearly every other parameter (including Xvar) relative to our established 10 coax models.
