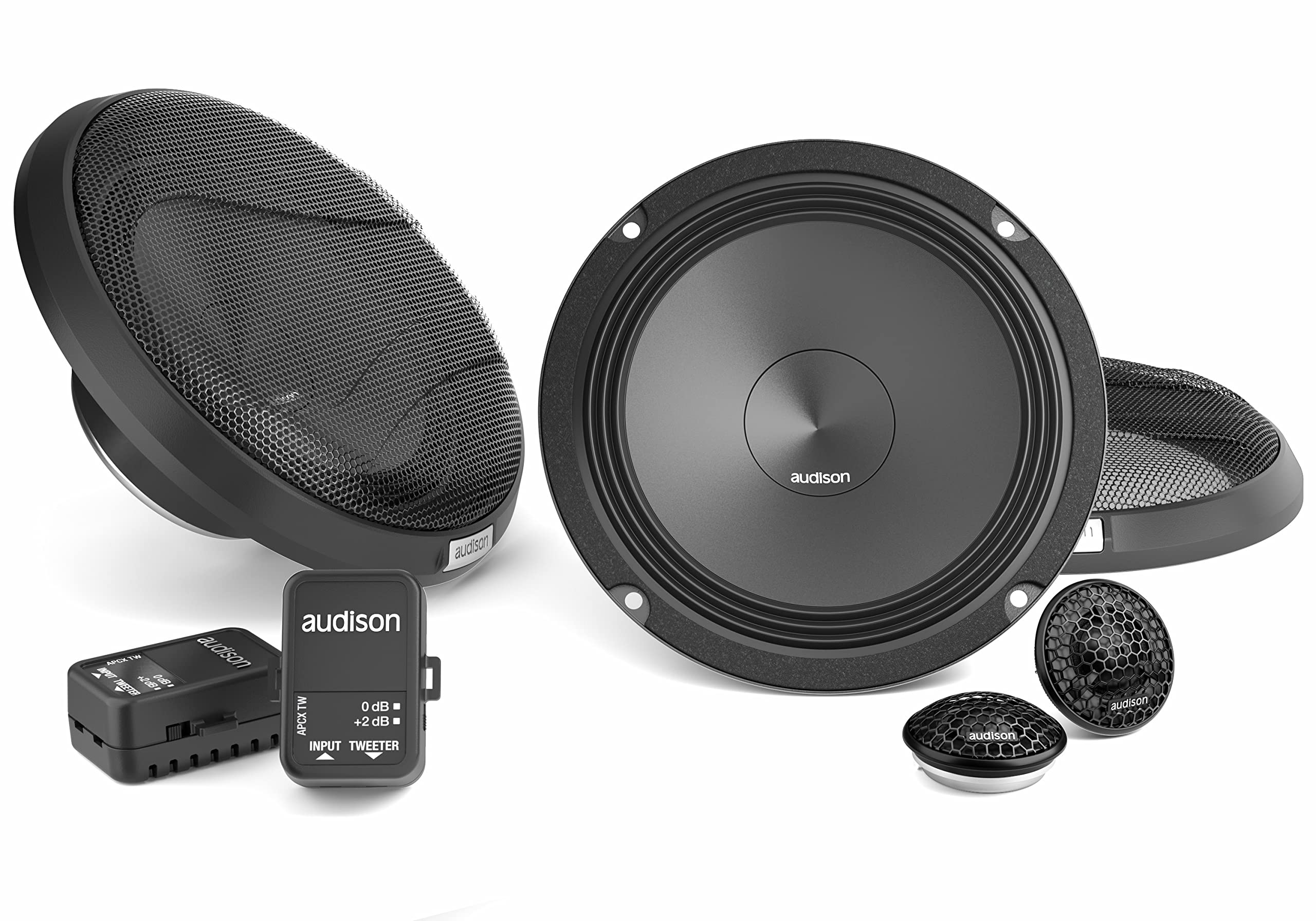

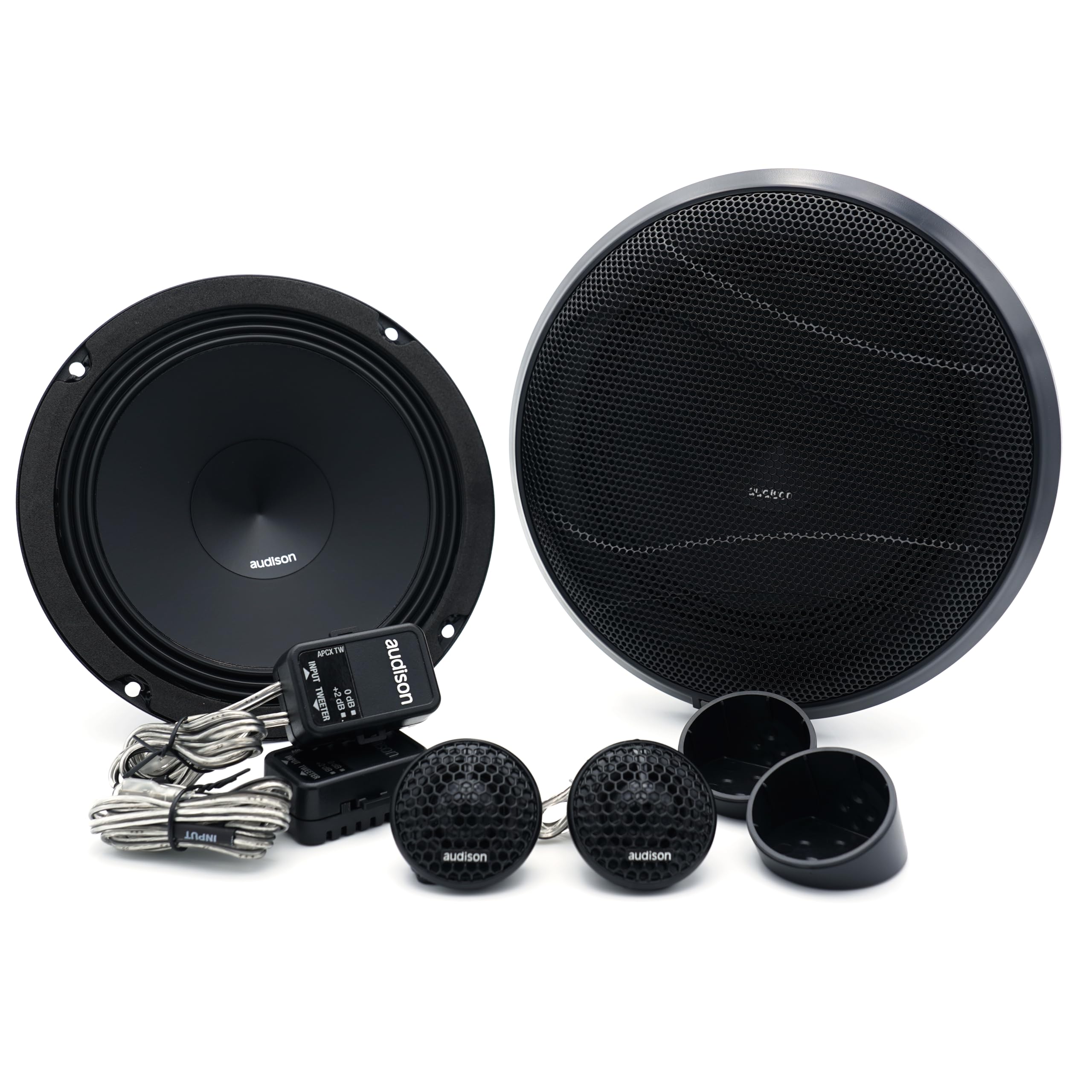

Two Way System Features Ap 1 Tweeter And Ap 6.5 Woofer. Apcx Tw Crossover Features A Two-Position Level Selector Providing The Ability To Adapt Its Response To Its Two Main Applications: +2Db If Installed Behind The Oem Grille, 0Db For An A-Pillar Installation Without Additional Grilles Between The Tweeter And The Listener. To Ease The Installation In Oem Placements The Woofers Are Equipped With High Current Fast-On Terminals With Double Contact On Positive And Negative Poles For High Flexibility And Quick Connection.

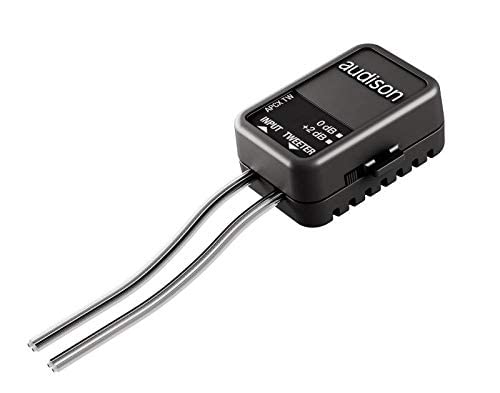

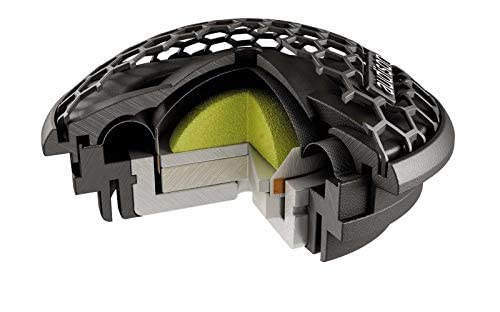

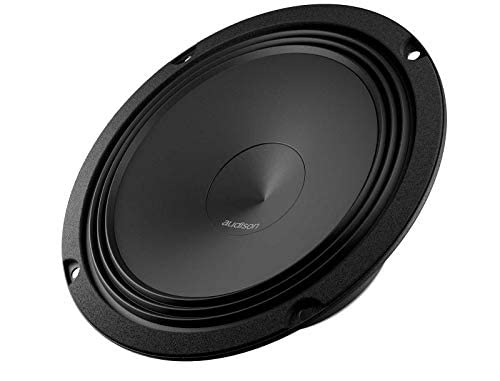

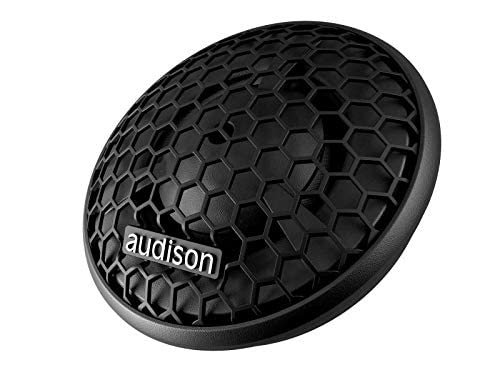

Features - Ap 1 Tweeter With 26 Mm Diameter Diaphragm Combined With A Wide-Roll Surround Provides Maximum Efficiency And Reduced Resonance Frequency. Ap 1 Tweeter With Acoustic Lens Designed To Compensate For And Fine Tune The In-Car Frequency Response Anomalies In The 10Khz - 13Khz Bandwidth Caused By Restrictive Oem Grilles In Critical Oem Placements. Apcx Tw Very Compact Tweeter Passive Crossover Optimised For Oem Integration Featuring An Attenuation Switch (0 Db, +2Db) To Tune The In-Car Response According To Different Installation Conditions. Passive Crossovers Are Supplied With �Oem Integration Compliant� Fast-On Connectors. The Ends, Different In Each Of The Two Poles, Eliminate Any Possible Connection Errors And Speed Up The Required Installation Time. Ap 6.5 Woofer With 32 Mm Pure Copper Voice Coil, For High Power Handling And Outstanding Low Frequency Control. Ap 6.5 Woofer With Water-Repellent Treated Paper Cone, Featuring A Profile Developed With Fem (Finite Element Method) Simulation Technology And Optimized With The Klippel R&D Scan Vibrometer. Ap 6.5 Woofer With Reduced Mounting Depth, Providing Ease Of Installation In Oem Placements. Ap 6.5 Woofer With Tpu (Thermoplastic Polyurethane) Surround, Featuring The Exclusive Shallow �Triple Wave� Profile, For Maximum Excursion Linearity.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Audison Prima Apk 165 speakers?A: The dimensions are sixteen point five four inches in length, nine point seven six inches in width, and five point two eight inches in height.
Q: What is the power handling capacity of the Audison Prima Apk 165?A: The continuous power handling is one hundred watts, while the peak power handling is three hundred watts.
Q: What is the frequency response range of the Audison Prima Apk 165?A: The frequency response range is from sixty hertz to twenty thousand hertz.
Q: What is the impedance of the Audison Prima Apk 165 speakers?A: The impedance is four ohms, making it compatible with a variety of audio systems.
Q: How do I install the Audison Prima Apk 165 speakers?A: Installation involves connecting the woofers to high current fast-on terminals for quick connection, and using the compact tweeter passive crossover for optimal integration.
Q: Are the Audison Prima Apk 165 speakers suitable for OEM placements?A: Yes, these speakers are designed for OEM placements with reduced mounting depth for ease of installation.
Q: How do I clean and maintain the Audison Prima Apk 165 speakers?A: To maintain them, gently wipe the exterior with a soft cloth and avoid using harsh chemicals that could damage the components.
Q: What safety precautions should I take when using the Audison Prima Apk 165 speakers?A: Ensure the speakers are properly installed and avoid exposure to moisture to prevent damage.
Q: Can I use the Audison Prima Apk 165 speakers in a vehicle with OEM grilles?A: Yes, the design includes an acoustic lens to compensate for frequency response anomalies caused by restrictive OEM grilles.
Q: How do I handle issues if the Audison Prima Apk 165 speakers arrive damaged?A: If the speakers arrive damaged, contact customer support immediately to initiate a return or exchange.
Q: What if I need to return the Audison Prima Apk 165 speakers?A: You can return the speakers within the specified return period, following the return policy provided at the time of purchase.
Q: Are the Audison Prima Apk 165 speakers suitable for beginners?A: Yes, they are user-friendly and designed for easy integration, making them suitable for both beginners and experienced users.
Q: How do the Audison Prima Apk 165 speakers compare to other brands?A: The Audison Prima Apk 165 offers high power handling and excellent frequency response, making it a competitive choice in its category.
Q: What is the sensitivity rating of the Audison Prima Apk 165 speakers?A: The sensitivity rating is ninety-three decibels, indicating efficient sound output.
Q: What materials are used in the construction of the Audison Prima Apk 165?A: The speakers feature a water-repellent treated paper cone and a pure copper voice coil for durability and performance.
