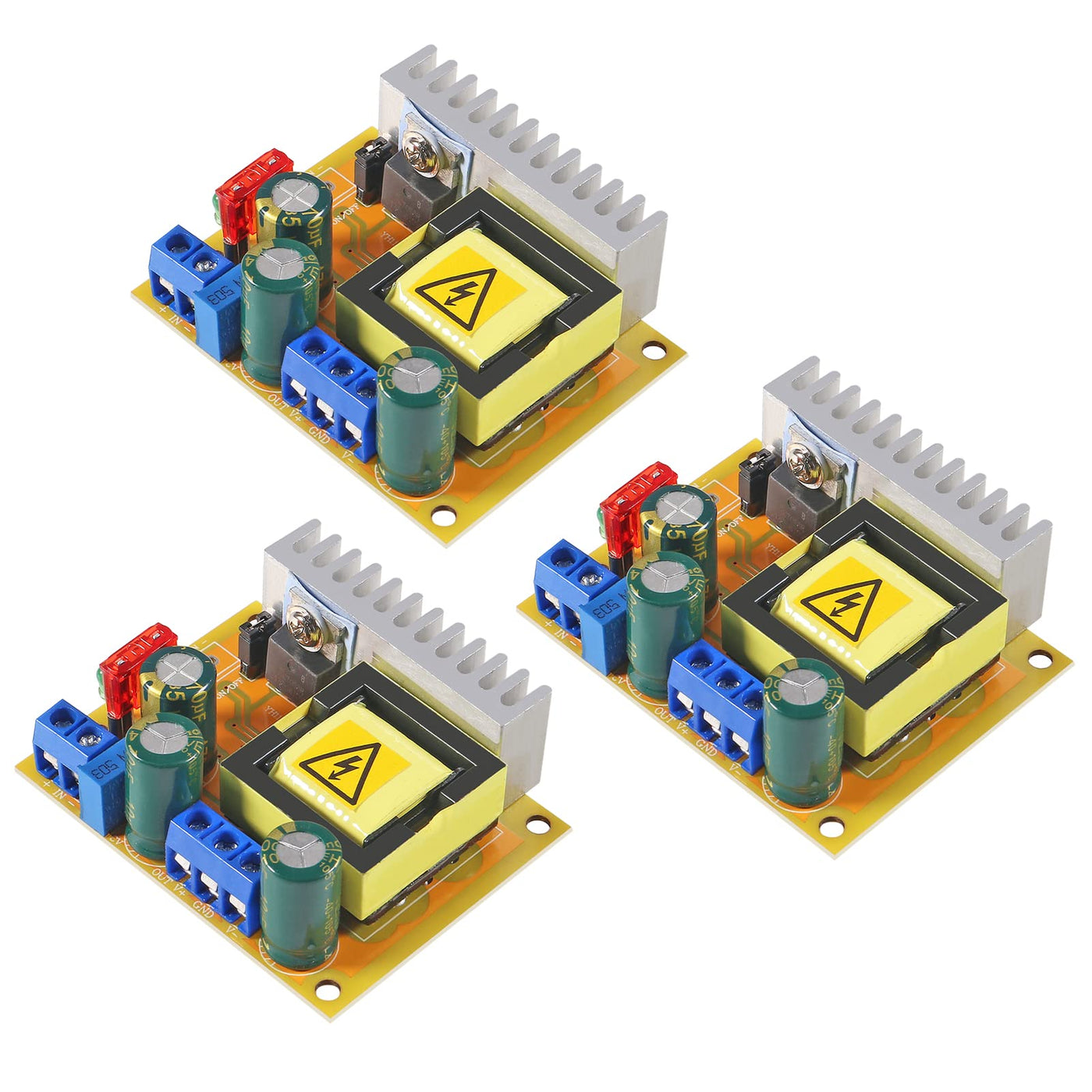

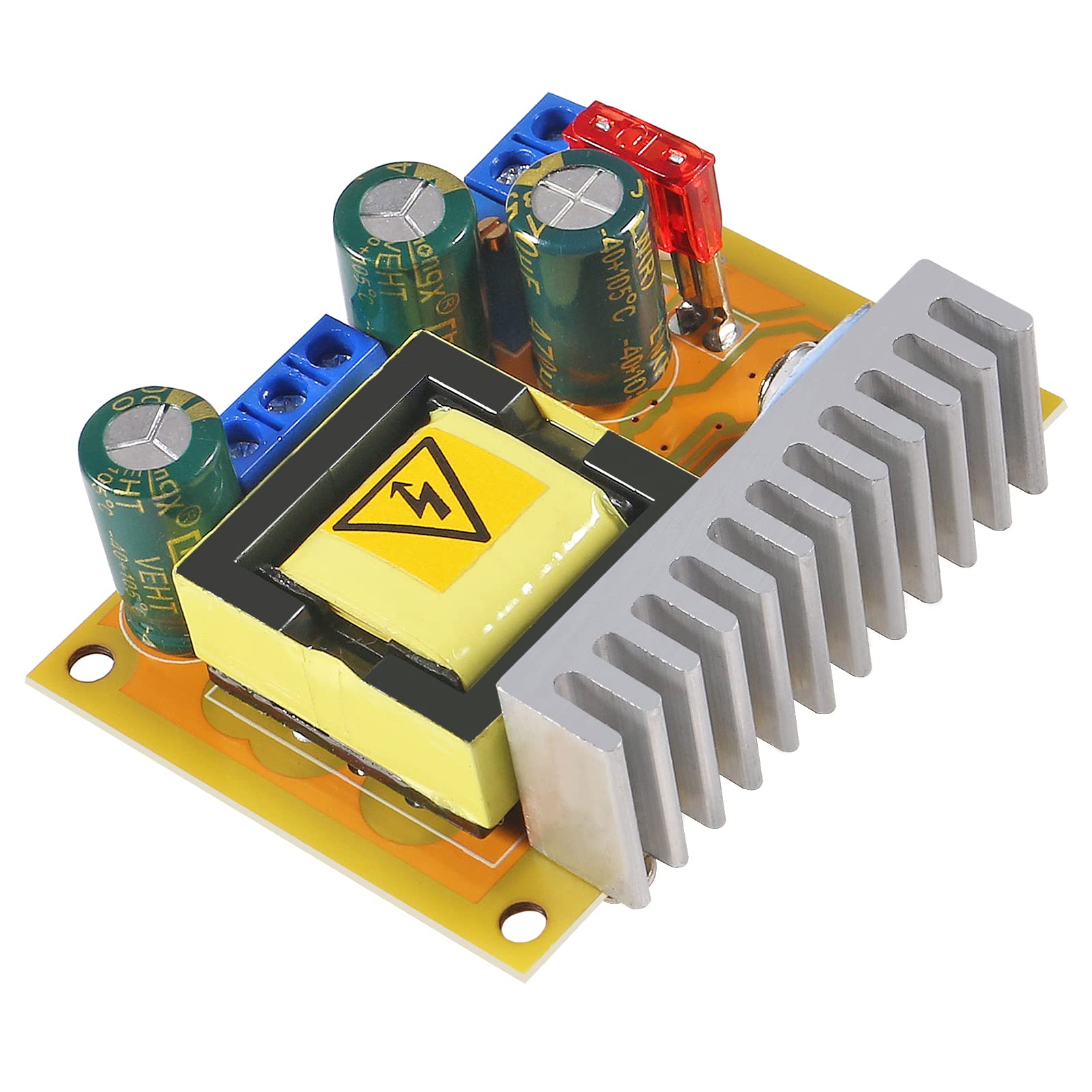

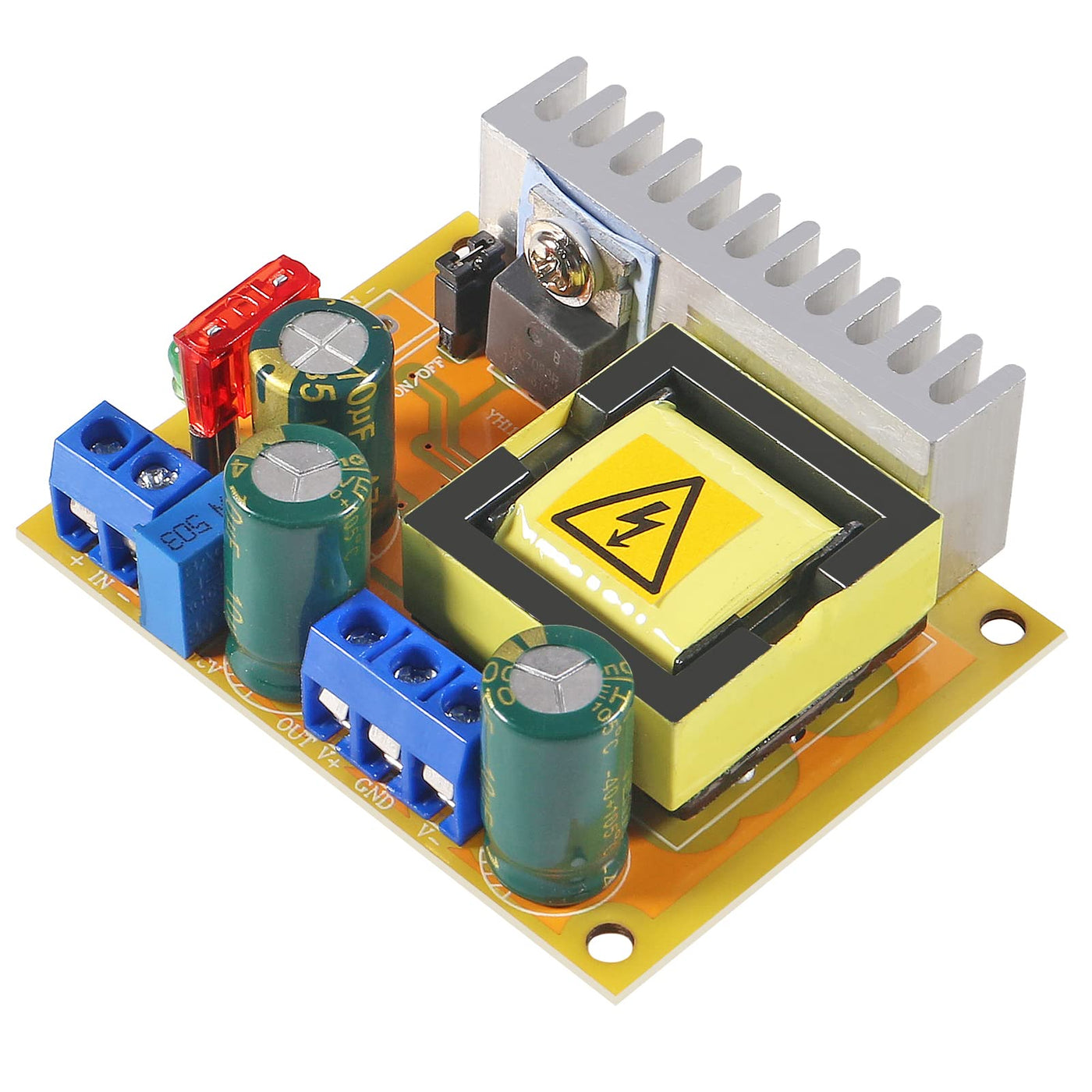

3Pcs Dc-Dc High Voltage Boost Converter 8V-32V To 45V-390V Zvs Step-Up Booster Module Capacitor Charging Power Supply Module Specifications: Modular Nature: Non-Isolated Boost Module Input Voltage: 8~32V Input(The Default Is 10~32V Input.) Input Current: 5A (Max) Output Voltage: +45~390V Continuously Adjustable (Default Output 50V) Output Current: 0.2A Max(With Input, Output Pressure Related,The Higher The Output Voltage, Output Current Is Smaller) Output Power: 40W (Peak 70W) Working Temperature: -40 ~ + 85 Degrees (Ambient Temperature Is Too High, Please Enhance Heat Dissipation) Operating Frequency: 75 Khz Conversion Efficiency: Up To 88% (Efficiency And Input And Output Voltage, Current, Pressure-Related) Quiescent Current: 15Ma (12V Liter 50V, The Output Voltage, The Higher The Current Will Increase Too Quiet) Short Circuit Protection: Yes.(Input 10A Fuse, Please Do Not Directly Short Circuit And Pull Arc! Because It May Damage The Rectifier Device, If You Want To Do This, Please Connect The Series Power Resistor To Limit Current) Over Current Protection: Yes. (Input Current Exceeds 4.5A, Reducing The Output Voltage) Over Voltage Protection: Yes. (Output Voltage Exceeds 410V, Lowering The Output Voltage) Input Reverse Polarity Protection: Yes (Not Self-Recovery, Reverse Will Burn The Fuse, Try Not To Reverse.) Installation: Four 3 Mm Screws Wiring Method: Terminal-Free Welding Output Size: 60 X 50 X 20Mm Note: The Module Output Is High Voltage, On People, Animals Have Life-Threatening, The Course Please Pay Attention To Safety Precautions. Manual Measurement, With Small Error. Please Check Size In Detail Before Purchase. Real Colors May Slightly Differ From The Pictures, As It Depends On Specific Monitor Settings And Light Brightness. Package Includes: 3 X Booster Module
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Aobao Boost Converter?A: The Aobao Boost Converter measures sixty millimeters by fifty millimeters by twenty millimeters. This compact size makes it suitable for various applications.
Q: What input voltage range does the Aobao Boost Converter accept?A: The input voltage range for the Aobao Boost Converter is eight volts to thirty-two volts. This flexibility allows it to accommodate different power sources.
Q: What is the output voltage capability of this boost converter?A: The output voltage can be continuously adjusted from plus forty-five volts to three hundred ninety volts. This wide range is ideal for various applications requiring high voltage.
Q: How do I install the Aobao Boost Converter?A: To install the Aobao Boost Converter, use four three millimeter screws for mounting. Ensure secure connections to the input and output terminals for proper functionality.
Q: Can I use this boost converter for capacitor charging?A: Yes, the Aobao Boost Converter is suitable for capacitor charging applications. Its adjustable output voltage makes it ideal for charging different capacitor types.
Q: Is the Aobao Boost Converter suitable for beginners?A: Yes, the Aobao Boost Converter can be used by beginners with basic electronics knowledge. However, caution is advised due to its high voltage output.
Q: How do I ensure the safety of the Aobao Boost Converter?A: To ensure safety, avoid short circuits and always use the correct input voltage. The module has built-in protections for overcurrent and overvoltage.
Q: What should I do if the Aobao Boost Converter gets too hot?A: If the converter gets too hot, enhance heat dissipation by improving airflow or using a heatsink. Operating temperatures range from minus forty degrees to plus eighty-five degrees Celsius.
Q: How do I clean the Aobao Boost Converter?A: To clean the Aobao Boost Converter, use a dry cloth to remove dust. Avoid using liquids that could damage the electronic components.
Q: Is the Aobao Boost Converter suitable for outdoor use?A: No, the Aobao Boost Converter is not designed for outdoor use. It should be operated in a dry and well-ventilated indoor environment.
Q: How do I store the Aobao Boost Converter when not in use?A: Store the Aobao Boost Converter in a cool, dry place away from direct sunlight. This helps prevent damage and maintains its performance.
Q: What if my Aobao Boost Converter arrives damaged?A: If the Aobao Boost Converter arrives damaged, contact customer support for assistance. They will guide you through the return or replacement process.
Q: How long is the warranty on the Aobao Boost Converter?A: The Aobao Boost Converter typically comes with a one-year warranty. Check with the retailer for specific warranty details.
Q: Can I use the Aobao Boost Converter for high voltage tests?A: Yes, the Aobao Boost Converter is suitable for high voltage testing applications. Its adjustable output voltage makes it versatile for such tasks.
Q: What precautions should I take when using the Aobao Boost Converter?A: Always follow safety precautions when using the Aobao Boost Converter, including wearing protective gear and ensuring proper connections to prevent accidents.
