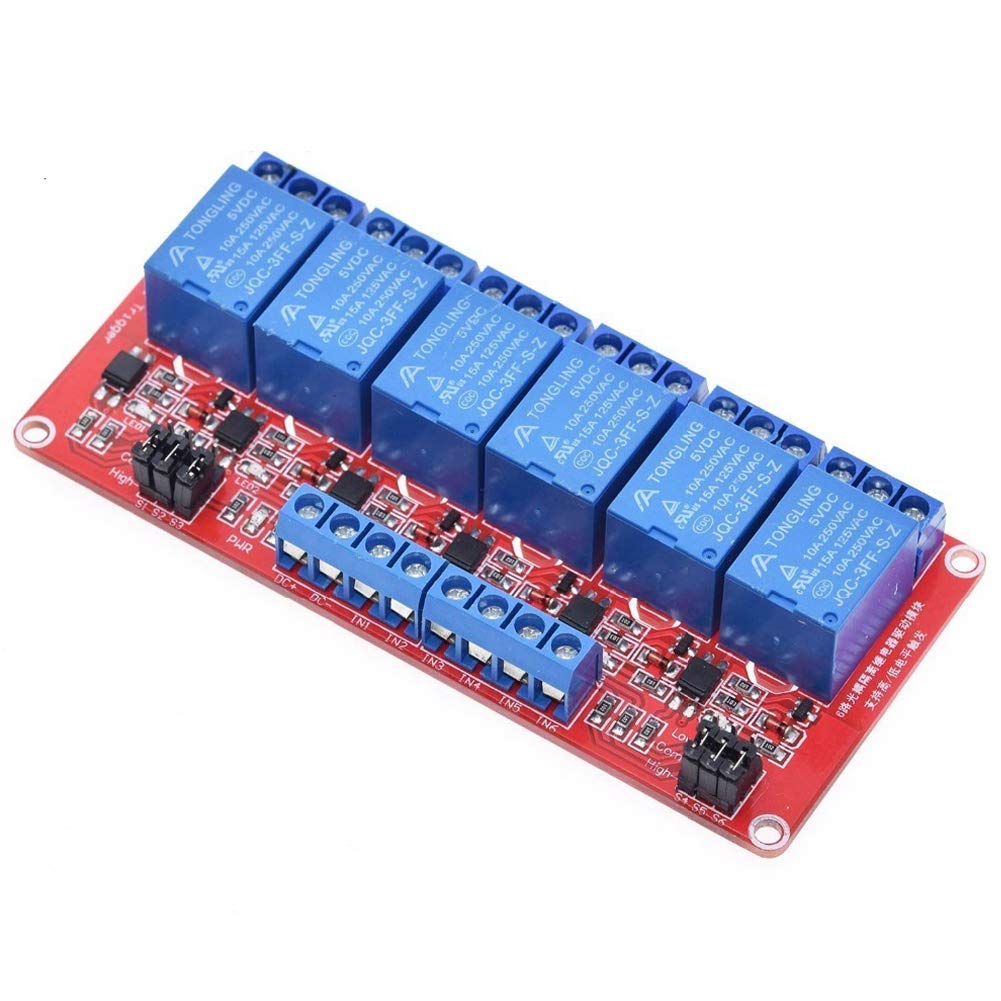

Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (5, 5V Relay 6 Channel)
$13.57
Regular price
$19.39
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

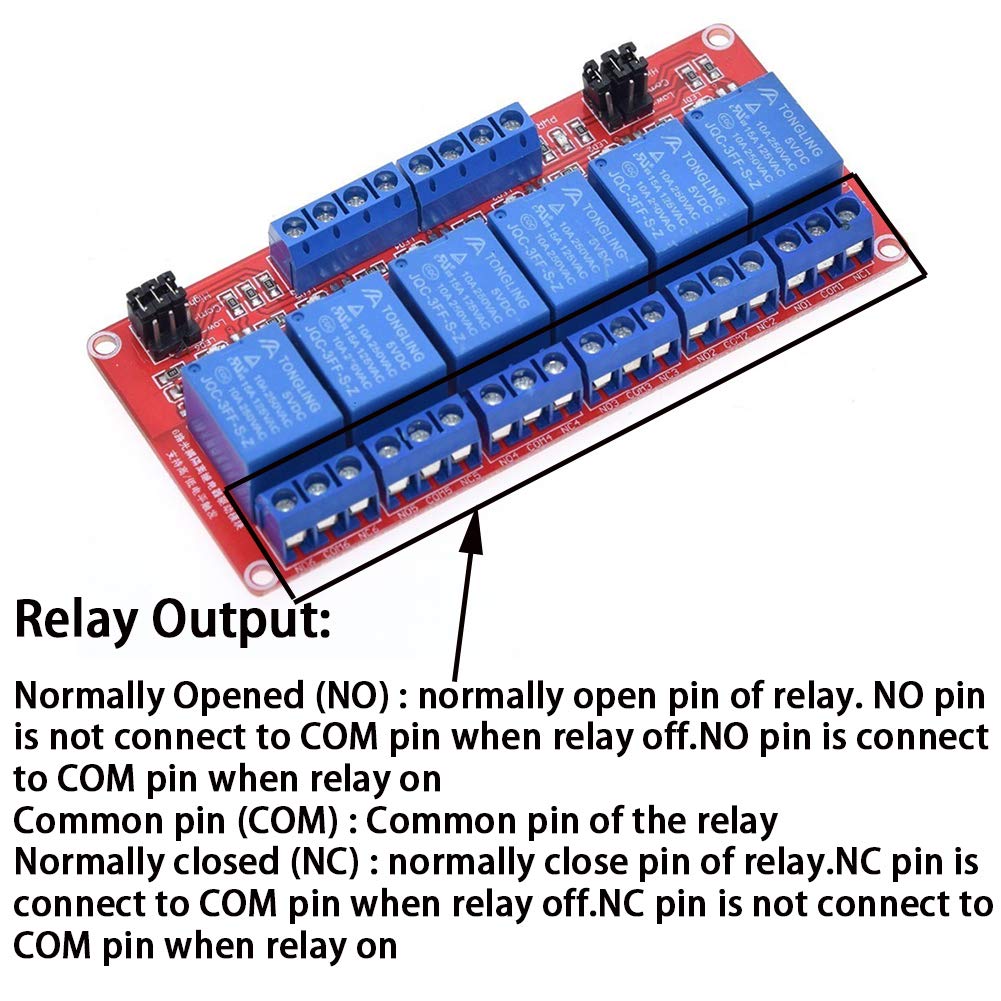

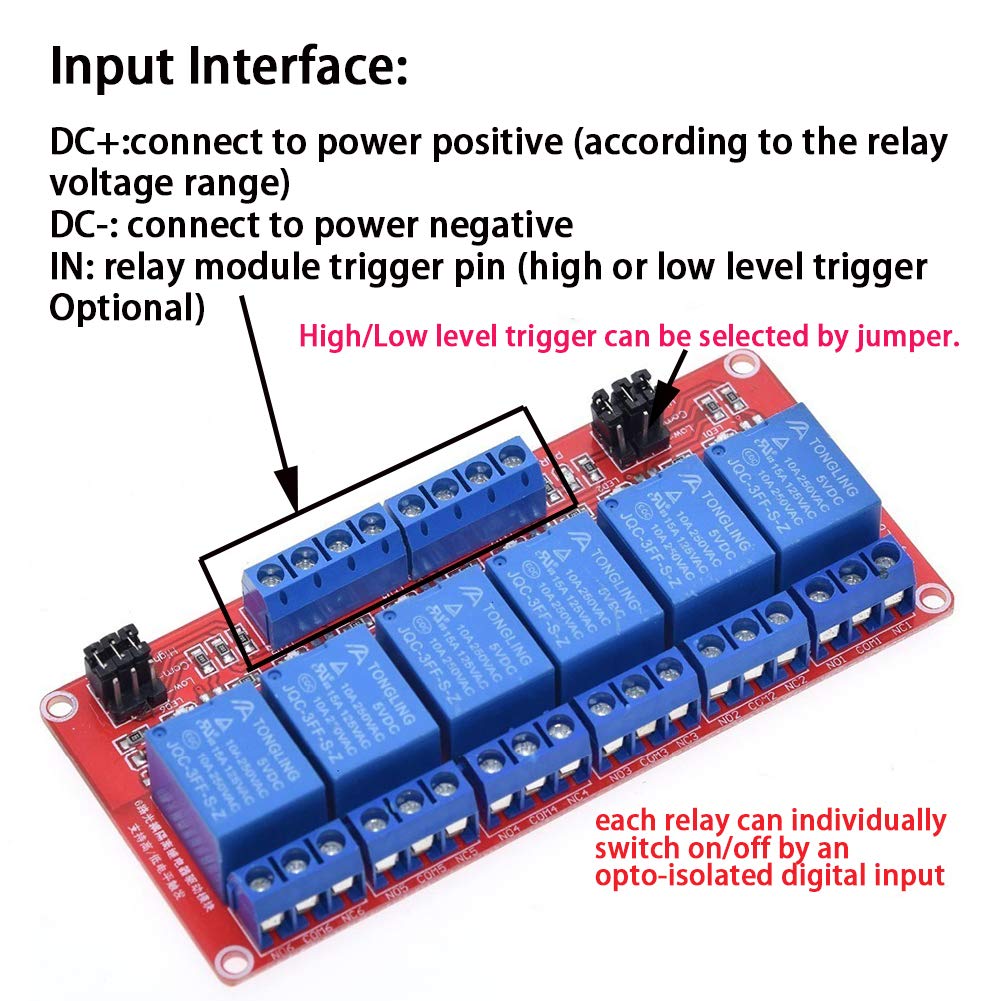

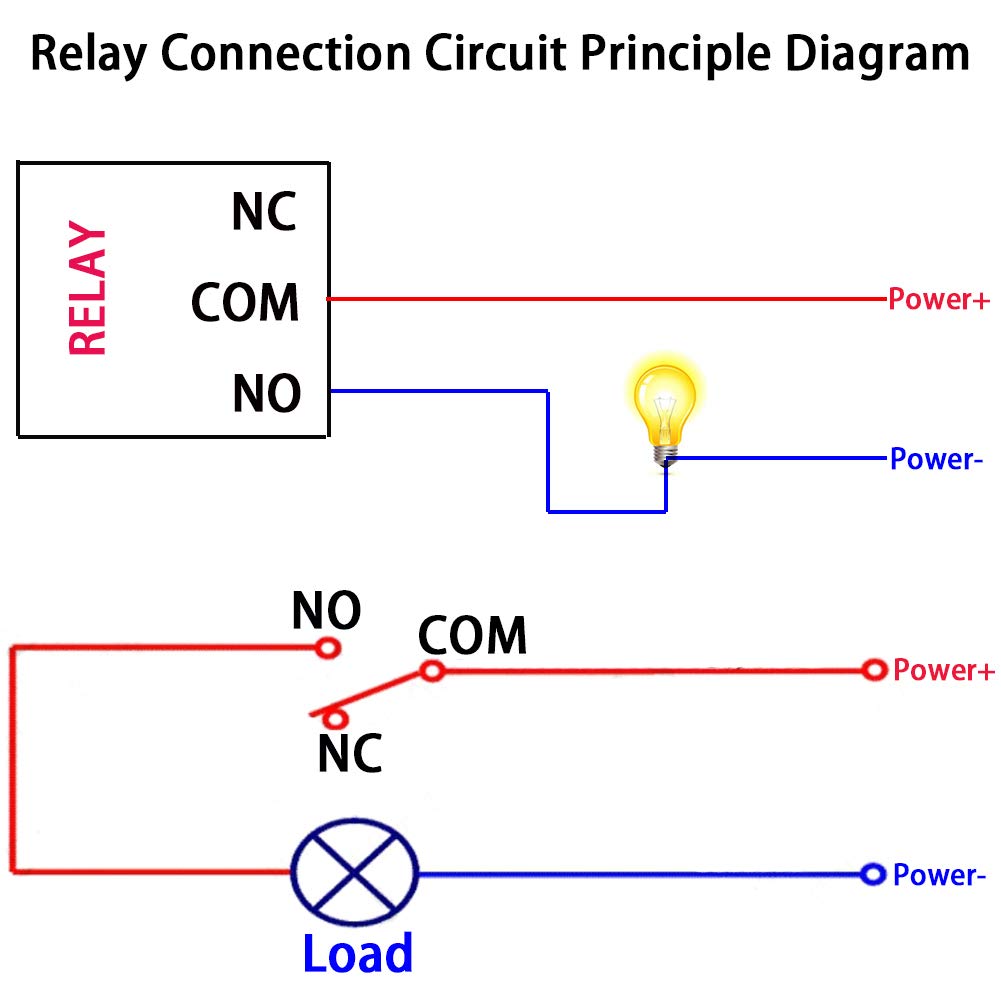

The Relay Comes With 6(Single) Channel 5V Activation Relay, Ready To Control 250Vac At 10A. Extra Isolation With Opto-Coupler At The Front End Of Control, And The Activation Logic For Relay Is Configureable Via A Mini Jumper. Technical Specifications: Channel: 6 Channel Working Voltage: Dc 5V Normally Opened Compatible Load: 10A 250Vac / 15A 125Vac / 10A 30Vdc Quiescent Current: 5Ma Maximum Current: 190Ma Trigger Current: 2 - 5Ma Trigger Voltage(Low): 0 - 1.5V Trigger Voltage(High): 2.5 - 5V Insulation Resistance: 100Mo (500Vdc) Action Time (Under Rated Voltage): Less Than 10Ms Release Time (Under Rated Voltage): Less Than 5Ms Power Indicator (Green), Relay Status Indicator (Red) User Friendly Interface Design. All Interfaces Can Be Connected Directly Via Terminal Wiring Leads. Module Size: 103Mmx50Mmx18.5Mm /4.06X1.97X0.73Inch(L*W*H) Input Interface: Dc+:Connect To Power Positive (According To The Relay Voltage Range) Dc-: Connect To Power Negative In: Relay Module Trigger Pin (High Or Low Level Trigger Optional) Relay Output: Normally Opened (No) : Normally Open Pin Of Relay. No Pin Is Not Connect To Com Pin When Relay Off.No Pin Is Connect To Com Pin When Relay On; Common Pin (Com) : Common Pin Of The Relay; Normally Closed (Nc) : Normally Close Pin Of Relay.Nc Pin Is Connect To Com Pin When Relay Off.Nc Pin Is Not Connect To Com Pin When Relay On; High/Low Level Trigger: 1. Low Level Trigger When Jumper And L Short Circuit; 2. High Level Trigger When Jumper And H Short Circuit. Package Includes: 1 X Six Channel 5V Relay Module With Optocoupler Module
Related products
Frequently Asked Questions
Q: What is the maximum load capacity of the ANMBEST Relay Module?A: The ANMBEST Relay Module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC.
Q: How does the high/low level trigger work on this relay module?A: The relay module supports both high and low level triggering. When the jumper is shorted to 'L', it operates in low level trigger mode; when shorted to 'H', it operates in high level trigger mode.

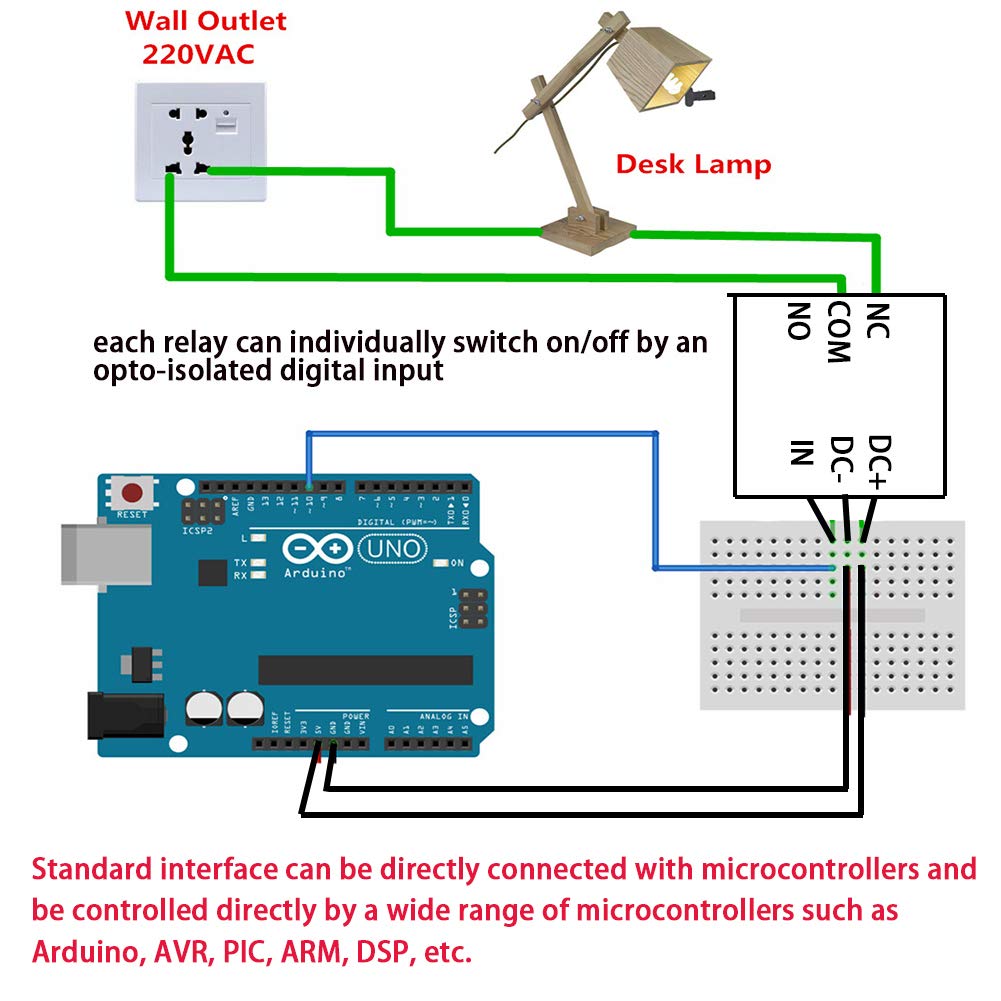

Q: Is this relay module compatible with Arduino?A: Yes, the ANMBEST Relay Module is designed to be compatible with Arduino and can also be connected to other microcontrollers like AVR, PIC, ARM, and DSP.
Q: What safety features does the ANMBEST Relay Module include?A: The relay module features an optical isolation design to enhance reliability and stability, as well as a fault-tolerant design that ensures the relay remains inactive even if the control line is broken.
Q: How can I install the ANMBEST Relay Module?A: The module is easy to install, equipped with a screwed terminal plate and fixed bolt holes (3.1 mm diameter) on both sides for secure attachment.
