Introducing the ANMBEST DC DC Buck Converter - Your Ultimate Power Solution
The ANMBEST Buck Converter is a high-performance power supply solution designed to meet a variety of voltage regulation needs. With a wide input voltage range of DC 6V to 40V, this versatile power converter is ideal for applications requiring adjustable output voltage and current. Whether you are converting 24V to 12V or powering various devices, this buck converter is engineered to deliver reliable performance.
Technical Specifications:
Input Voltage: 6V to 40V DC (10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A (max.), 15A (suggested)
Efficiency: 95% (measured at 24V to 12V, 20A)
Output Ripple: Less than 50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery (cannot short circuit for long time)
Size: 60×53×27mm / 2.36×2.08×1.06 inch (L * W * H)

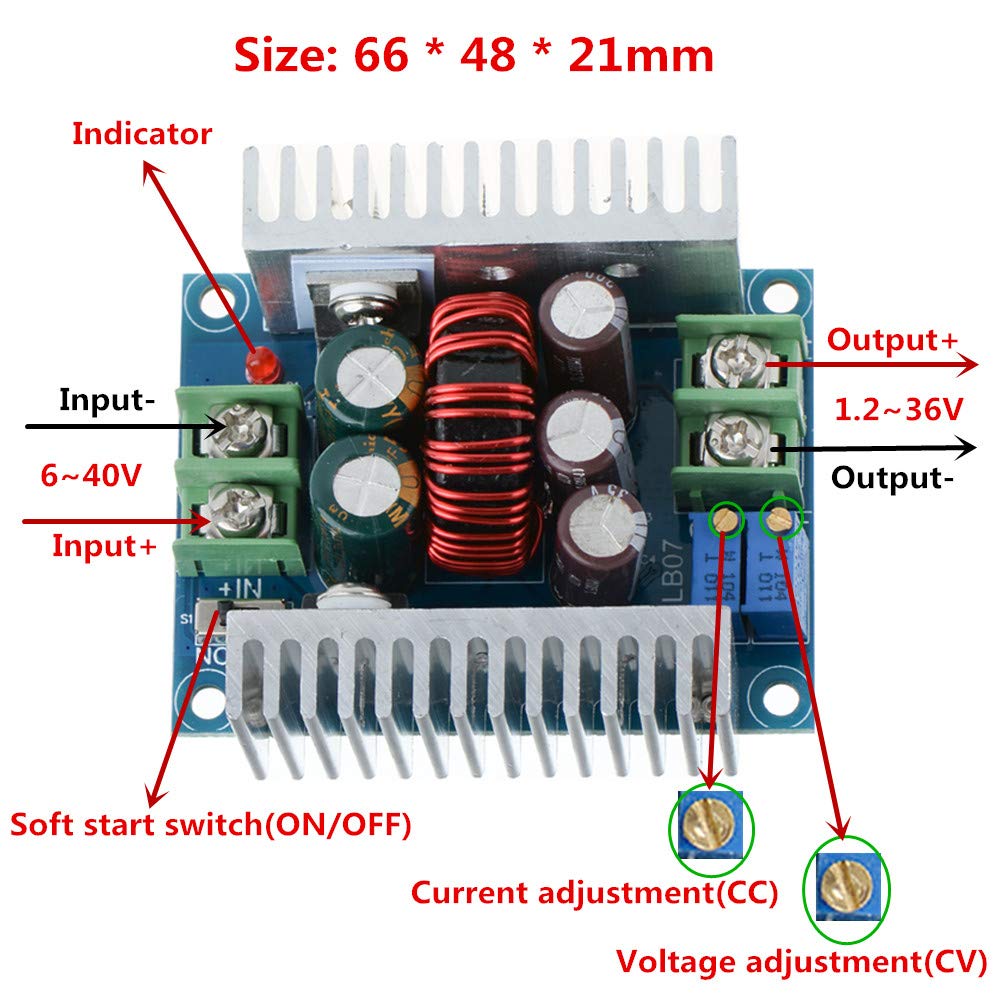

Pins Description:
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment

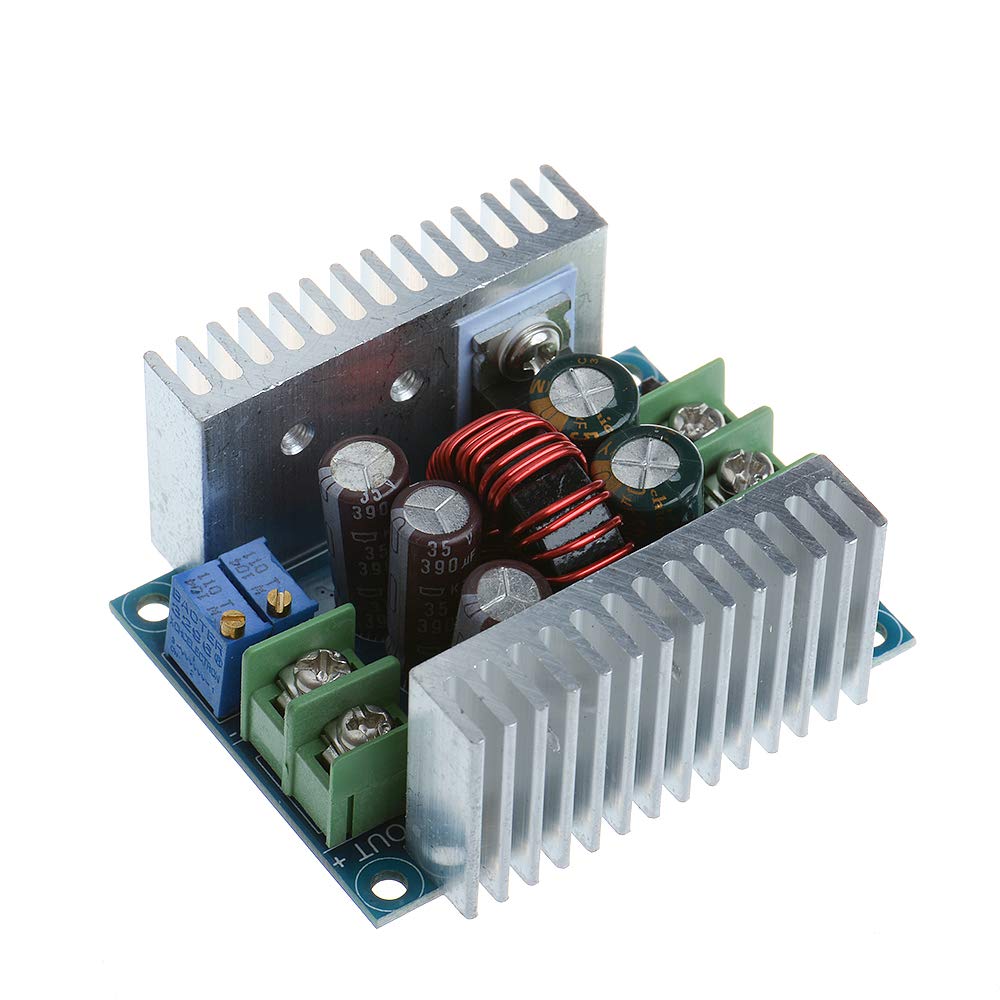

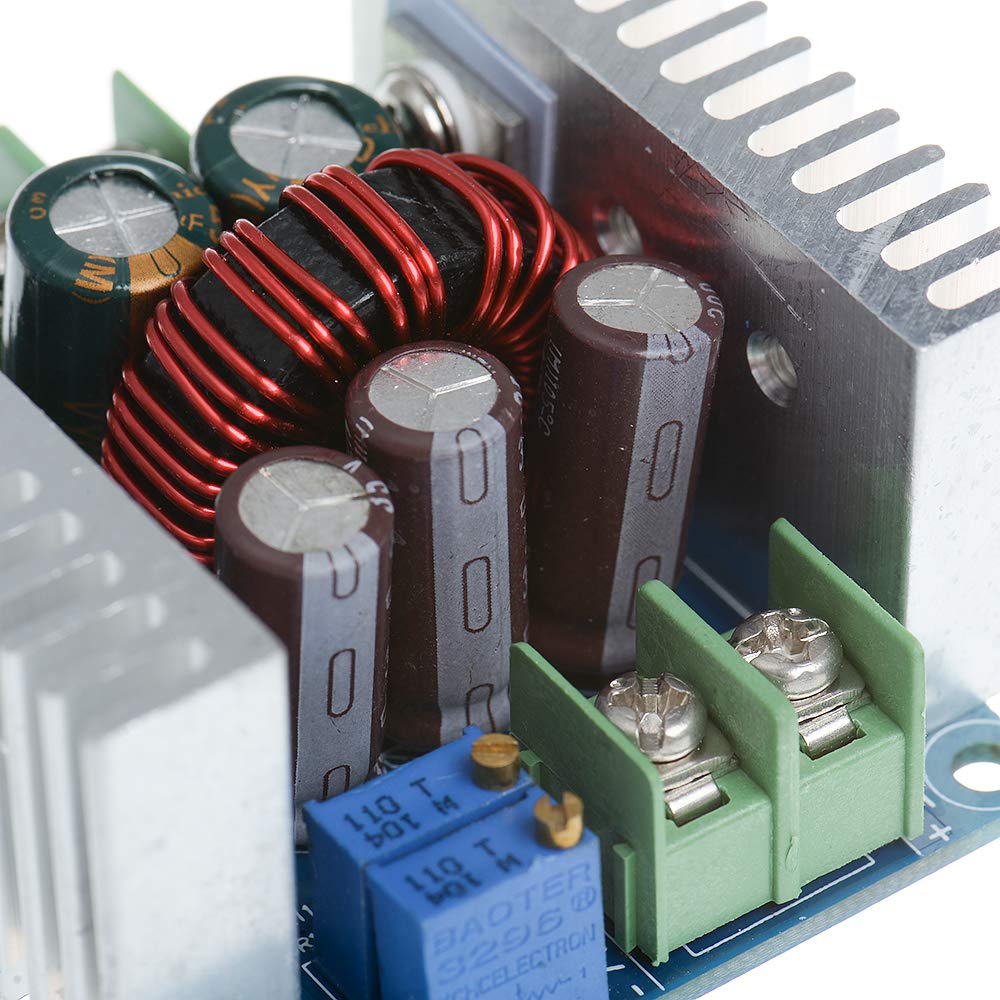

The ANMBEST DC DC Buck Converter is equipped with advanced features to enhance usability and efficiency. It is built with a large current dual MOS tube rated at 75V/80A, ensuring stable and low-ripple output. The high-frequency low-resistance electrolytic capacitors contribute to the overall performance, providing a consistent energy supply to your devices. The wiring method is straightforward, thanks to large current 30A screw terminals that facilitate easy connections.
Key Features:
Adjustable output voltage range from 1.2V to 36V, accommodating diverse applications.
High efficiency of up to 95%, ensuring minimal energy loss.

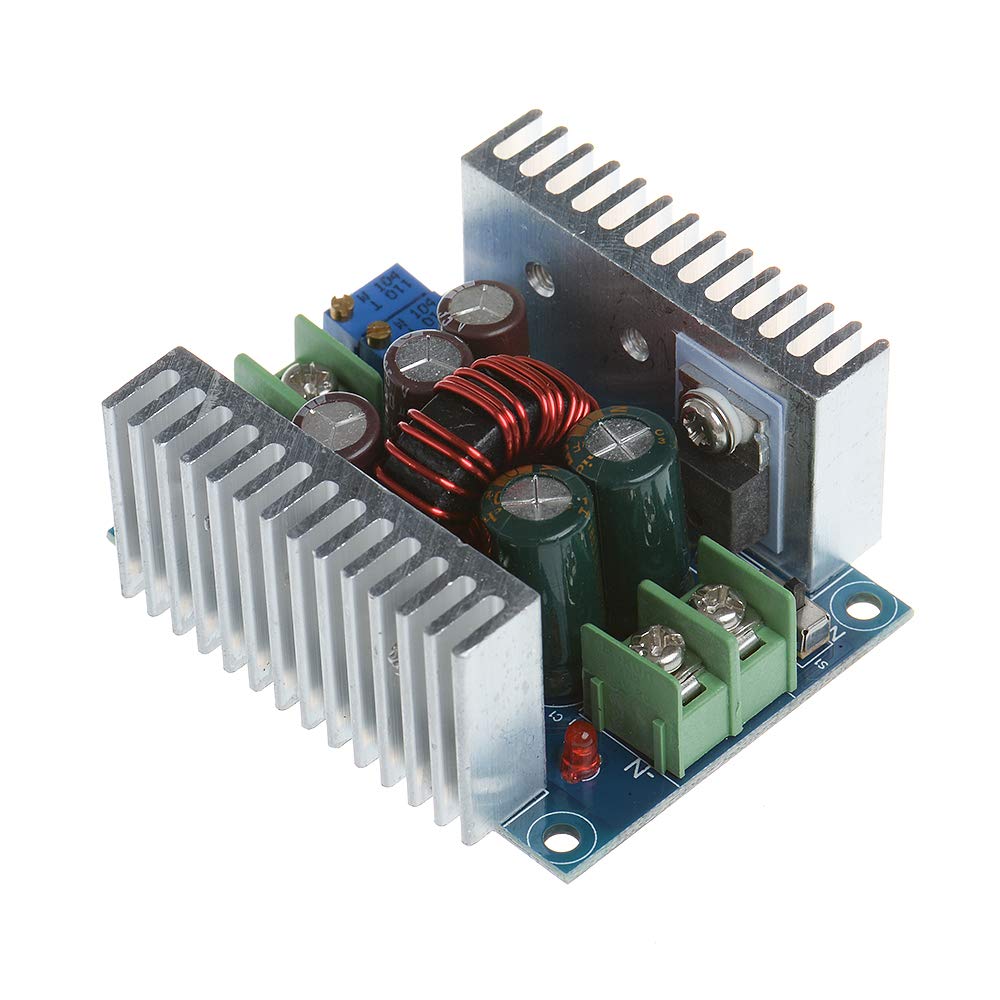

Designed with dual heat sinks for optimal heat dissipation during operation.
Perfect for a variety of applications including motors, audio systems, LED lights, and industrial equipment.
This ANMBEST Buck Converter is more than just a voltage regulator; it is a reliable partner for your energy needs. Its versatility makes it suitable for solar energy systems, air conditioners, DVD players, and much more. Invest in the ANMBEST DC DC Buck Converter today to ensure your devices receive the optimal power supply they deserve.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Anmbest buck converter?A: The dimensions of the Anmbest buck converter are sixty millimeters by fifty-three millimeters by twenty-seven millimeters.
Q: What is the input voltage range for this power supply module?A: The input voltage range for the Anmbest buck converter is six volts to forty volts DC.
Q: What is the maximum output current of this converter?A: The maximum output current of this converter is twenty amperes.
Q: How efficient is the Anmbest buck converter?A: The efficiency of the Anmbest buck converter can reach up to ninety-five percent.
Q: Is the output voltage adjustable?A: Yes, the output voltage is adjustable and ranges from one point two volts to thirty-six volts DC.

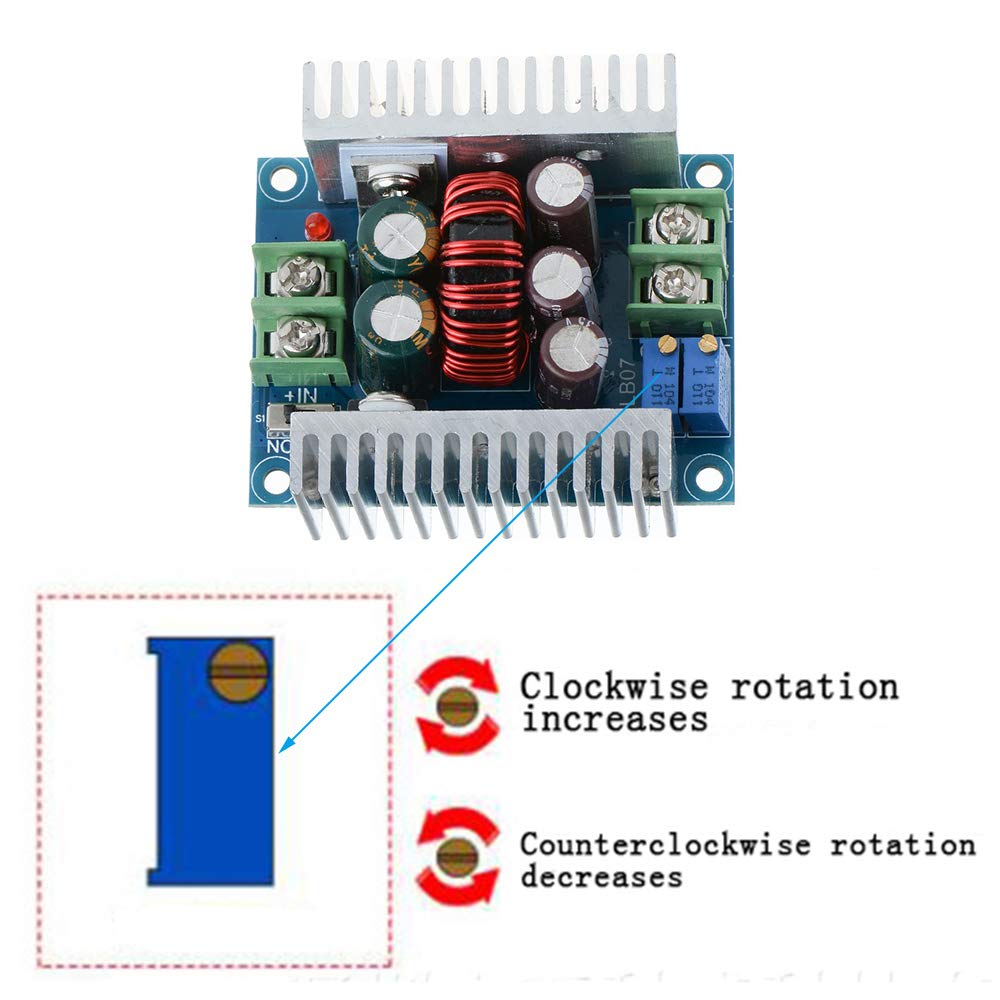

Q: How do I set the output voltage on this converter?A: You can set the output voltage using the CV adjustment pin on the module.
Q: Can this converter be used with solar panels?A: Yes, this converter can be used in applications such as solar energy systems.
Q: What types of devices can I power with this module?A: You can power devices like motors, LED lights, and industrial equipment with this module.
Q: How do I wire the Anmbest buck converter?A: Wiring is done using terminal connections for input and output positive and negative terminals.
Q: Does this buck converter have short circuit protection?A: Yes, it features self-recovery short circuit protection.
Q: What is the recommended input voltage range for optimal performance?A: The suggested input voltage range for optimal performance is ten volts to forty volts.
Q: How can I ensure safe operation of this converter?A: To ensure safe operation, avoid exceeding the maximum output current of twenty amperes.
Q: Can I use this converter for high power applications?A: Yes, it is capable of handling applications with a maximum output power of three hundred watts.
Q: How should I dissipate heat from this module?A: The module includes two heat sinks to enhance heat dissipation.
Q: What should I do if the converter arrives damaged?A: If the converter arrives damaged, contact customer support for assistance with returns or exchanges.
