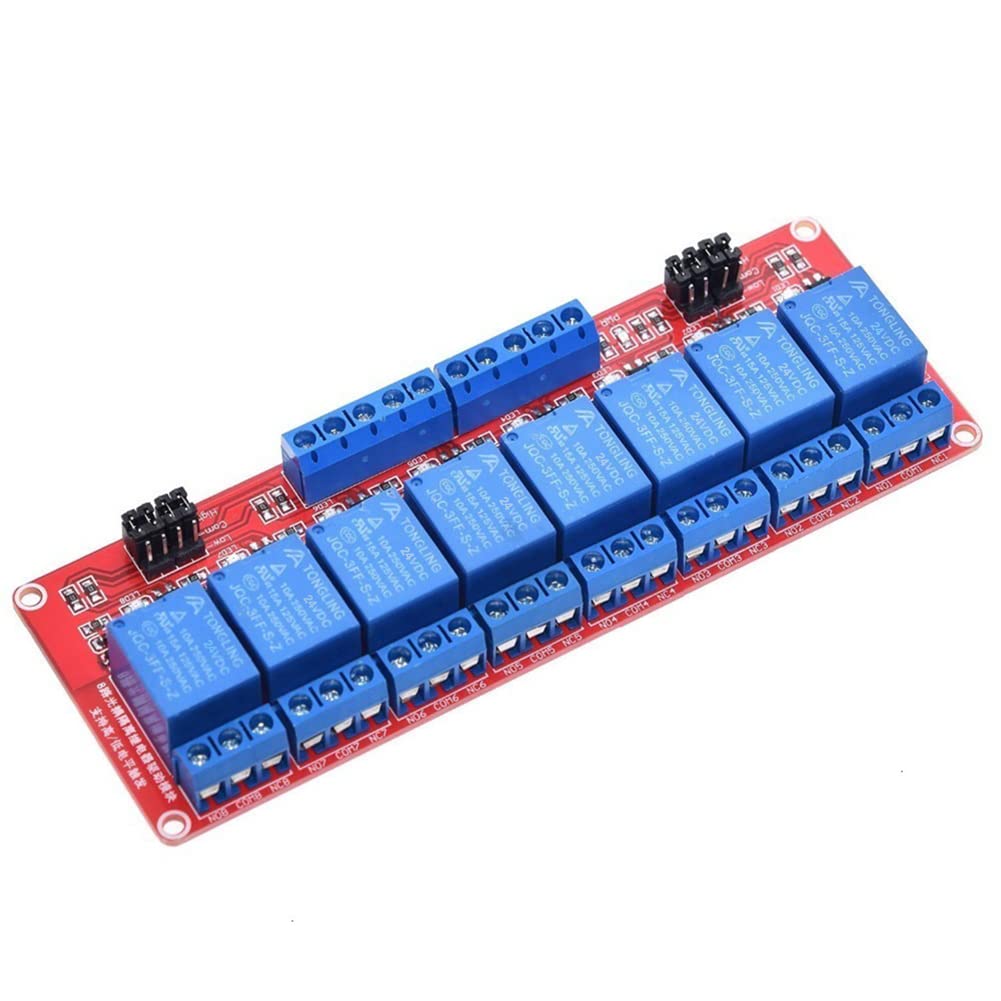

Anmbest 8 Channel 24V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino
$13.57
Regular price
$19.39
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

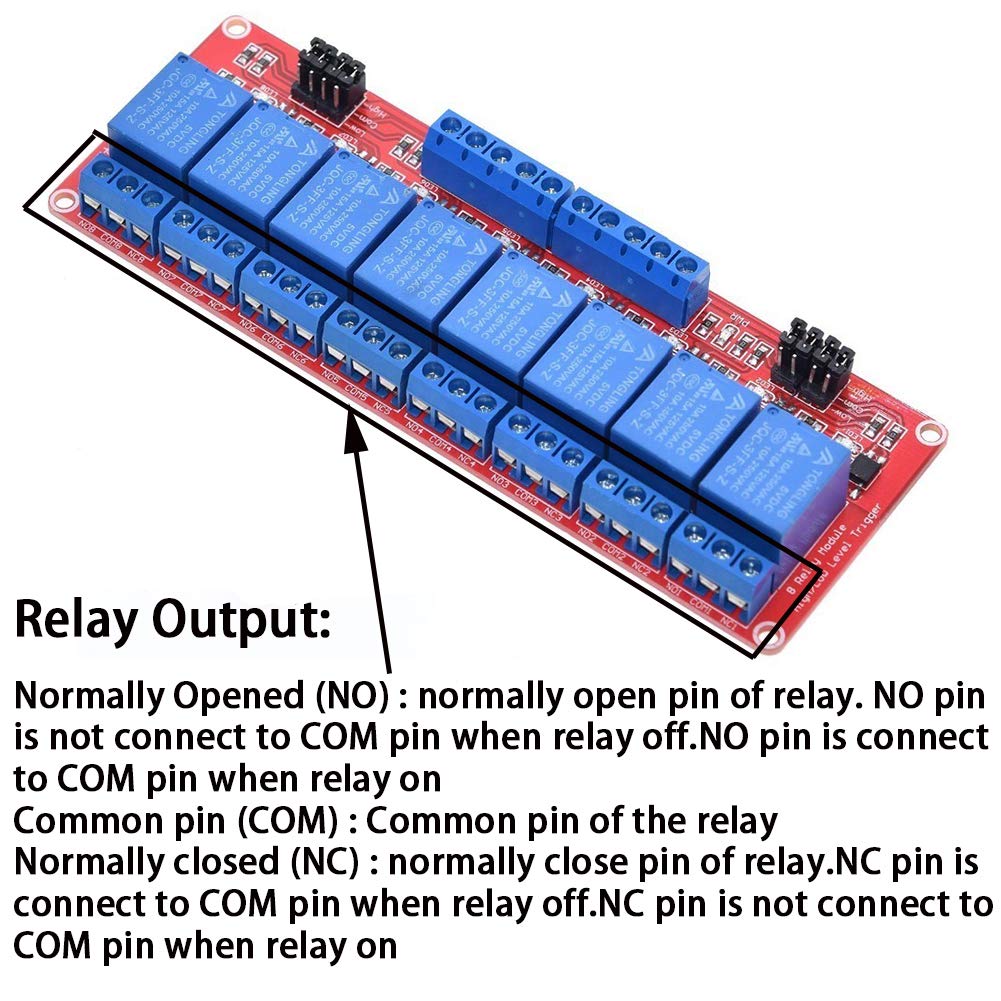

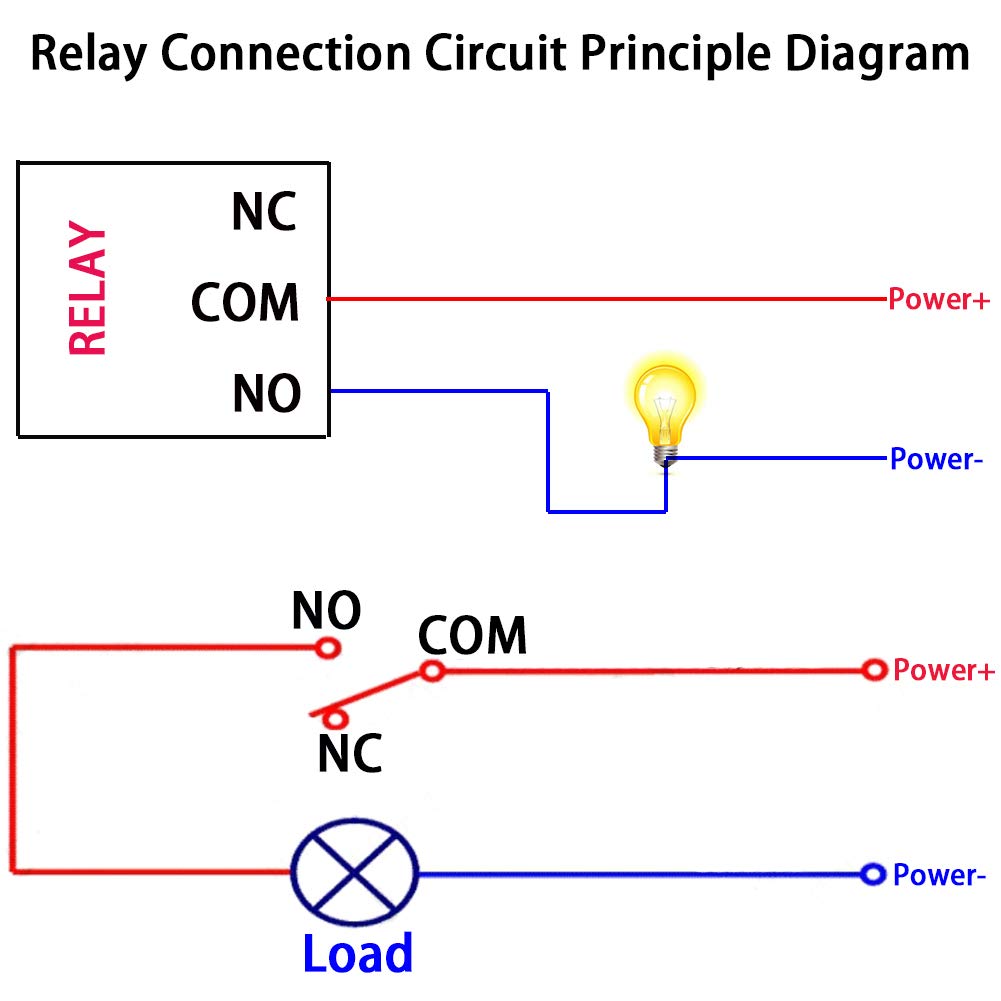

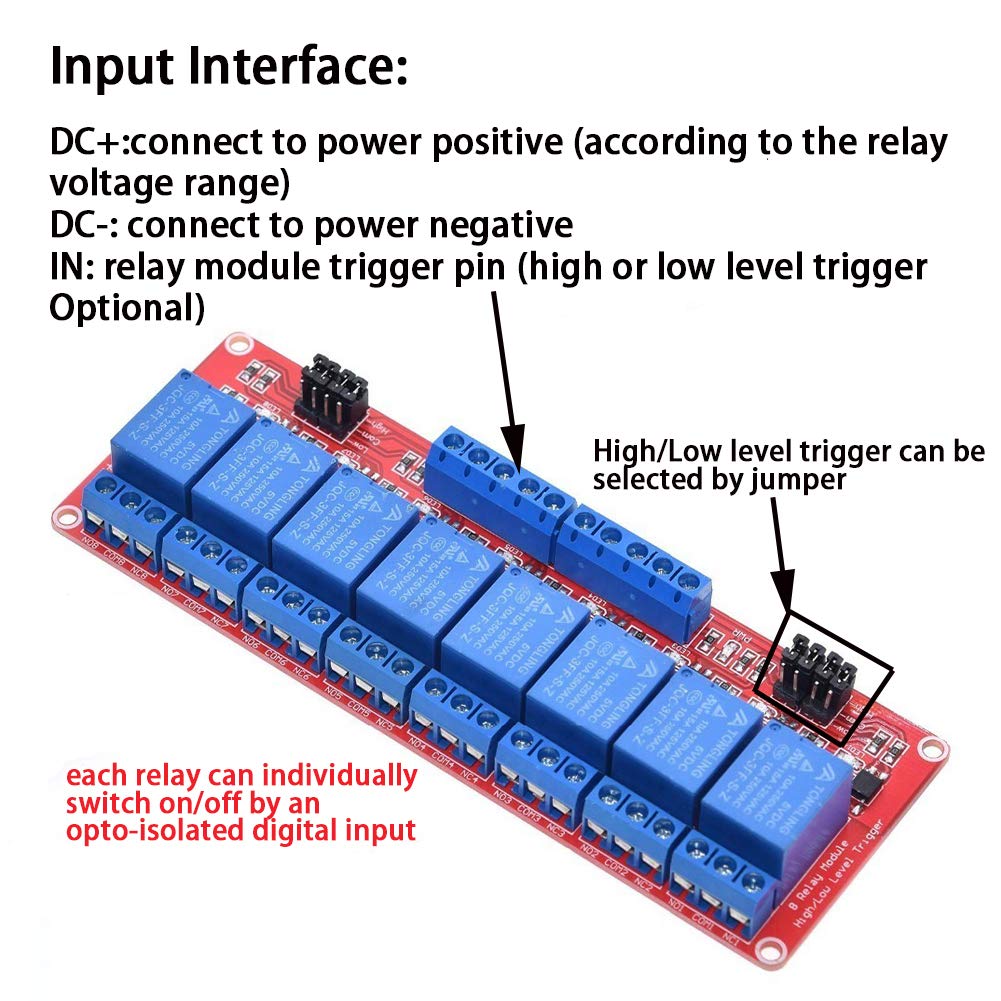

The Relay Comes With 8(Single) Channel 24V Activation Relay, Ready To Control 250Vac At 10A. Extra Isolation With Opto-Coupler At The Front End Of Control, And The Activation Logic For Relay Is Configureable Via A Mini Jumper. Technical Specifications: Channel: 8 Channel Working Voltage: Dc 24V Normally Opened Compatible Load: 10A 250Vac / 15A 125Vac / 10A 30Vdc Quiescent Current: 5Ma Maximum Current: 80Ma Trigger Current: 2 - 5Ma Trigger Voltage(Low): 0 - 8V Trigger Voltage(High): 8.5 - 24V Insulation Resistance: 100Mo (500Vdc) Action Time (Under Rated Voltage): Less Than 10Ms Release Time (Under Rated Voltage): Less Than 5Ms Power Indicator (Green), Relay Status Indicator (Red) User Friendly Interface Design. All Interfaces Can Be Connected Directly Via Terminal Wiring Leads. Module Size: 141.5Mmx50Mmx18.5Mm /5.57X1.97X0.73Inch(L*W*H) Input Interface: Dc+:Connect To Power Positive (According To The Relay Voltage Range) Dc-: Connect To Power Negative In: Relay Module Trigger Pin (High Or Low Level Trigger Optional) Relay Output: Normally Opened (No) : Normally Open Pin Of Relay. No Pin Is Not Connect To Com Pin When Relay Off.No Pin Is Connect To Com Pin When Relay On; Common Pin (Com) : Common Pin Of The Relay; Normally Closed (Nc) : Normally Close Pin Of Relay.Nc Pin Is Connect To Com Pin When Relay Off.Nc Pin Is Not Connect To Com Pin When Relay On; High/Low Level Trigger: 1. Low Level Trigger When Jumper And L Short Circuit; 2. High Level Trigger When Jumper And H Short Circuit. Package Includes: 1 X Eight Channel 24V Relay Module With Optocoupler Module
Related products
Frequently Asked Questions
Q: What is the maximum load capacity of the ANMBEST 8 Channel Relay Module?A: The ANMBEST 8 Channel Relay Module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC.
Q: Can this relay module be used with Raspberry Pi and Arduino?A: Yes, the relay module is designed to be compatible with various microcontrollers, including Raspberry Pi and Arduino, allowing for easy integration and control.
Q: How do I select between high and low-level triggering for the relay?A: You can select between high and low-level triggering by using a jumper on the relay module; short-circuiting the jumper to 'L' sets it to low-level trigger, while short-circuiting it to 'H' sets it to high-level trigger.
Q: What safety features does this relay module offer?A: The relay module features optical coupling isolation for reliable triggering and a fault-tolerant design, ensuring that the relay will not activate if the control line is broken.

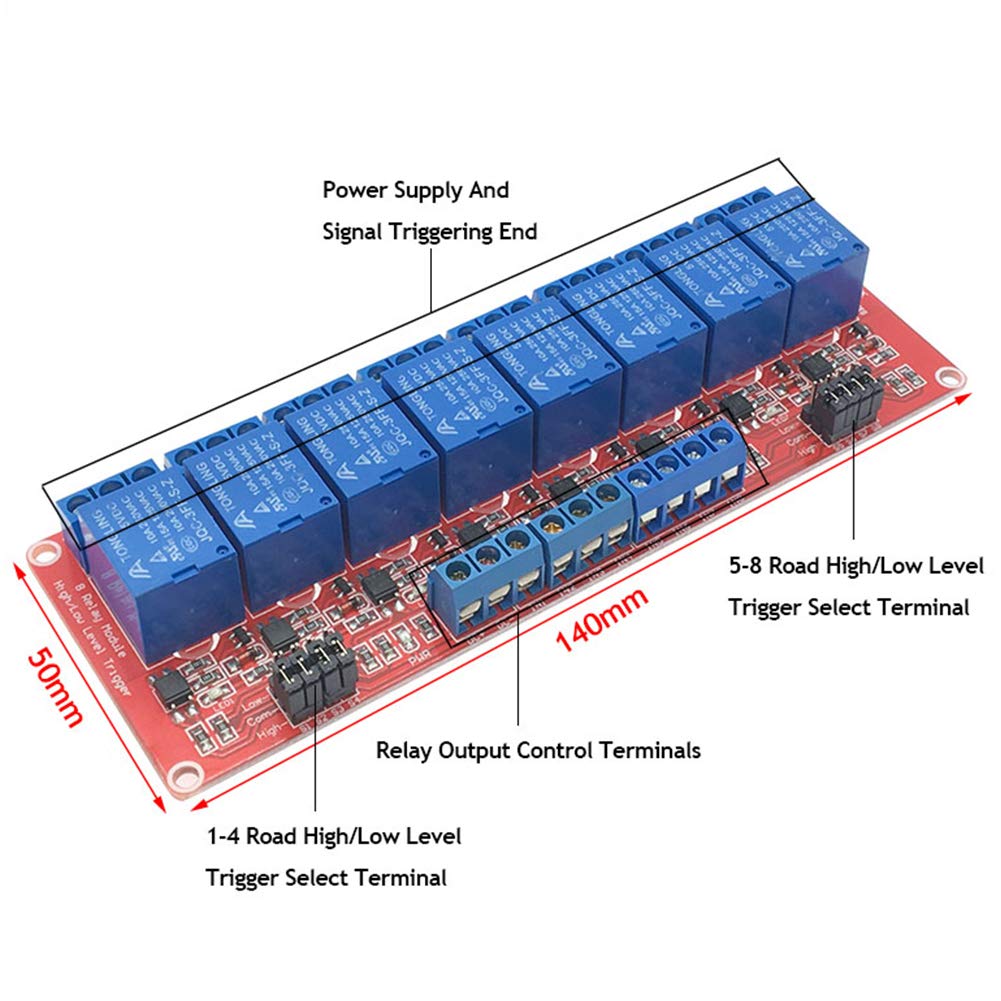

Q: What is the size of the ANMBEST 8 Channel Relay Module?A: The module dimensions are 141.5mm x 50mm x 18.5mm (5.57 x 1.97 x 0.73 inches), making it compact for various applications.
