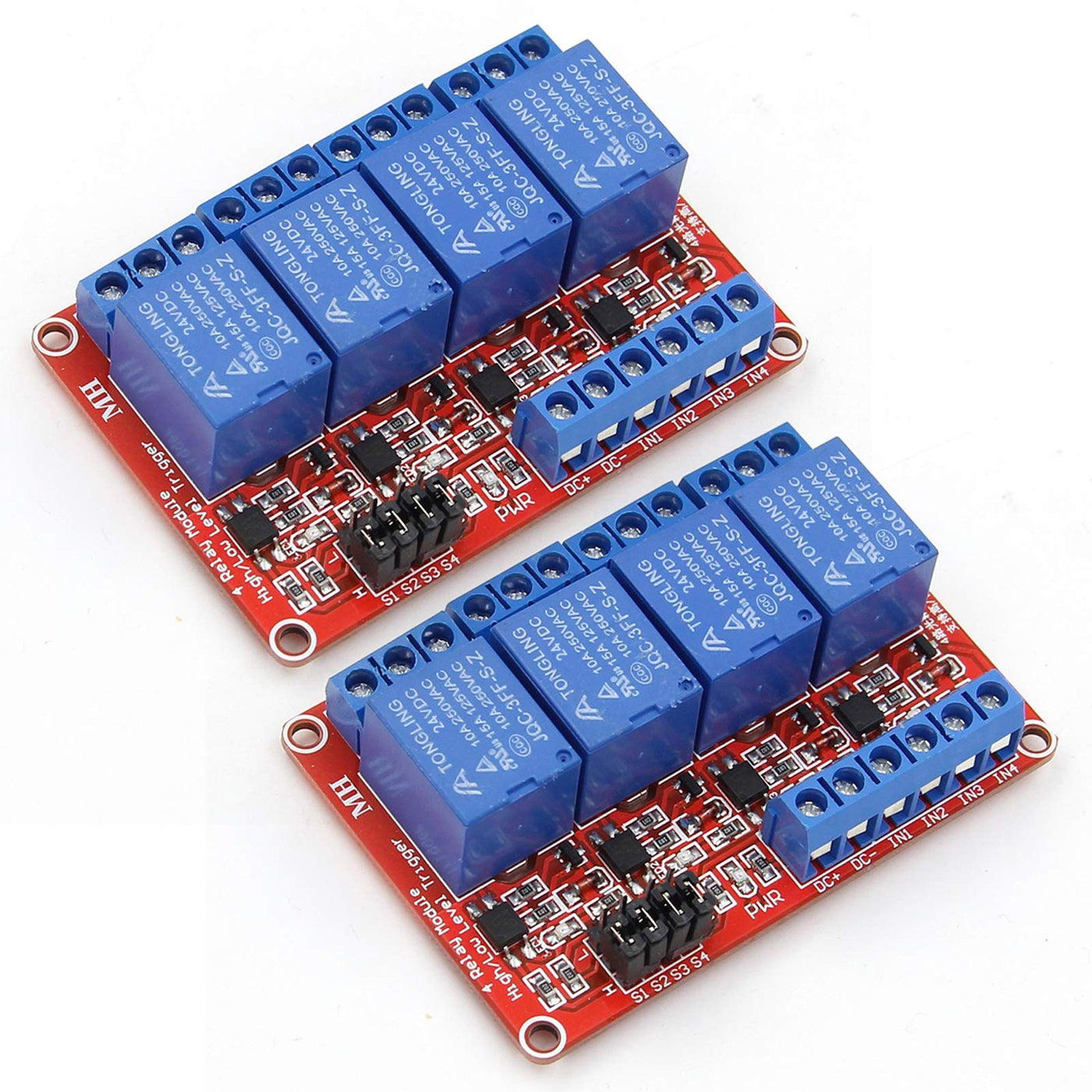

Anmbest 2Pcs 4 Channel 24V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino
Couldn't load pickup availability
⭐
Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
- Processing Time: Orders are processed within 1-3 business days
- Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page.
For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Vendor: Anmbest
Type: Single Board Computers
Sku: WBEEAB09284NB9H
Available: Available
Guarantee safe checkout
Anmbest 2Pcs 4 Channel 24V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino
$17.27
Frequently Asked Questions

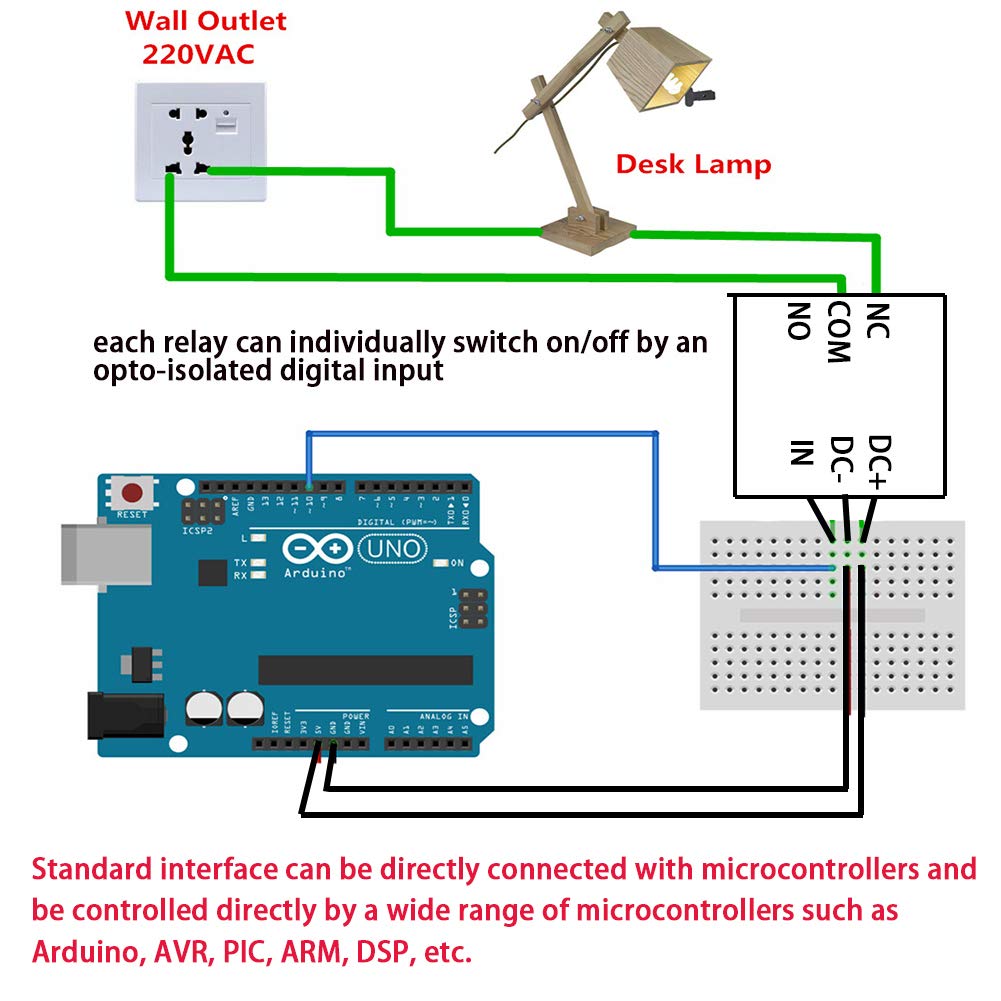

- Q: What types of devices can I control with the ANMBEST 4 Channel Relay Module? A: The ANMBEST 4 Channel Relay Module is compatible with a variety of microcontrollers, including Arduino, AVR, PIC, ARM, and DSP. This versatility allows you to control devices such as lights, motors, and other electrical appliances safely and effectively.

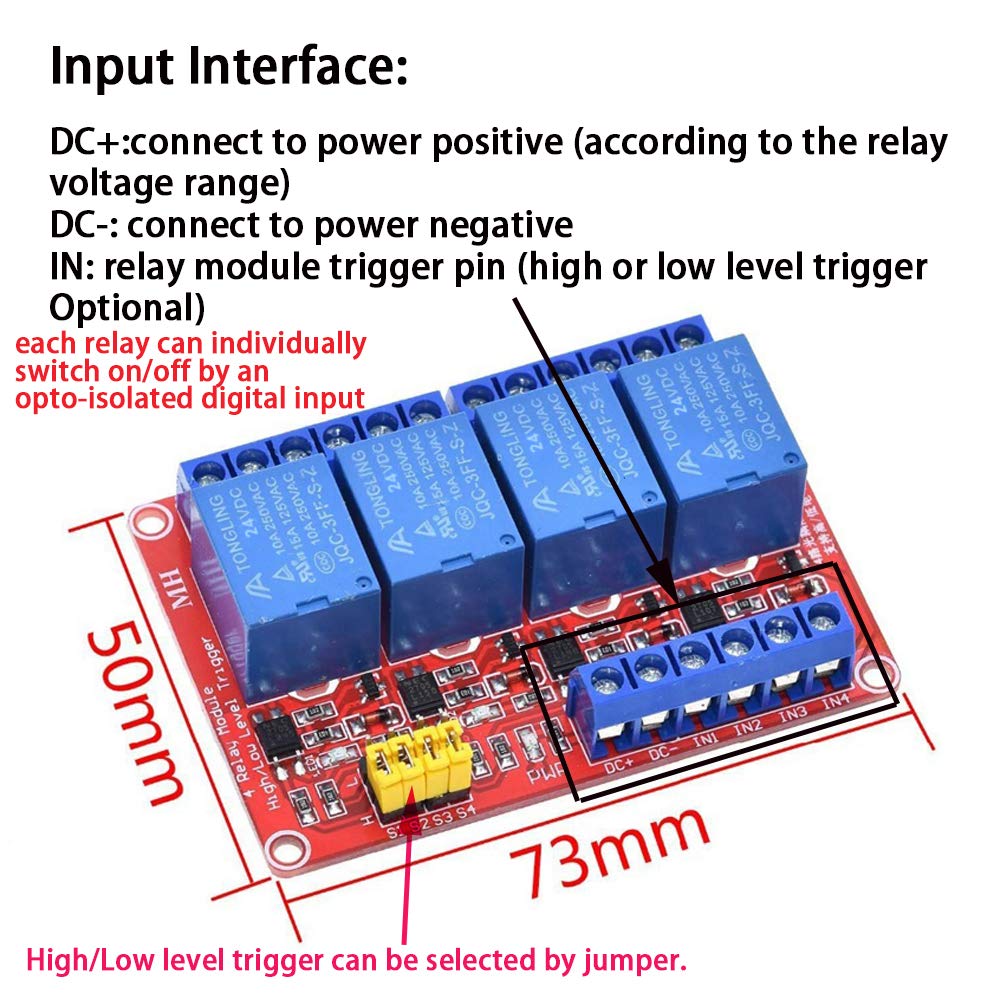

- Q: How does the high/low level trigger work on this relay module? A: The relay module allows you to select between high and low level triggering via a jumper. When the jumper is shorted to 'L', it operates on low level trigger, and when shorted to 'H', it operates on high level trigger, giving you flexibility in how you want to activate the relay.
- Q: What is the maximum load capacity of this relay module? A: This relay module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC. This makes it suitable for controlling high-power devices while ensuring reliable performance.
- Q: Is the ANMBEST Relay Module safe to use with higher voltages? A: Yes, the ANMBEST Relay Module features optical coupling isolation and a fault-tolerant design, which ensures safe operation even if the control line fails. It also has a high insulation resistance of 100MΩ at 500VDC, enhancing its safety for higher voltage applications.
- Q: What is included in the package when I purchase this relay module? A: The package includes two 4 Channel 24V Relay Modules with Optocouplers, providing you with multiple units for your projects. This is particularly useful for applications that require controlling multiple devices simultaneously.
