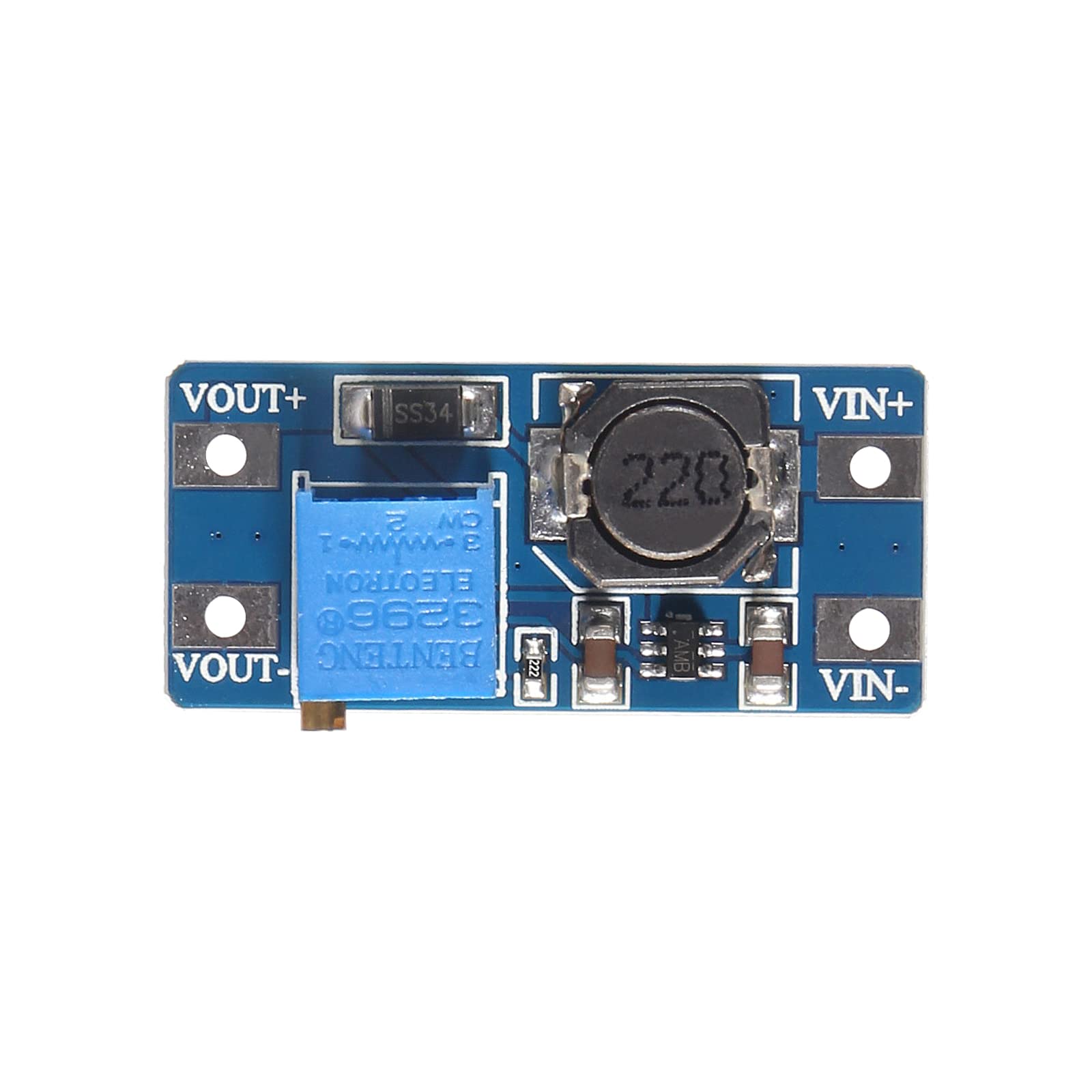

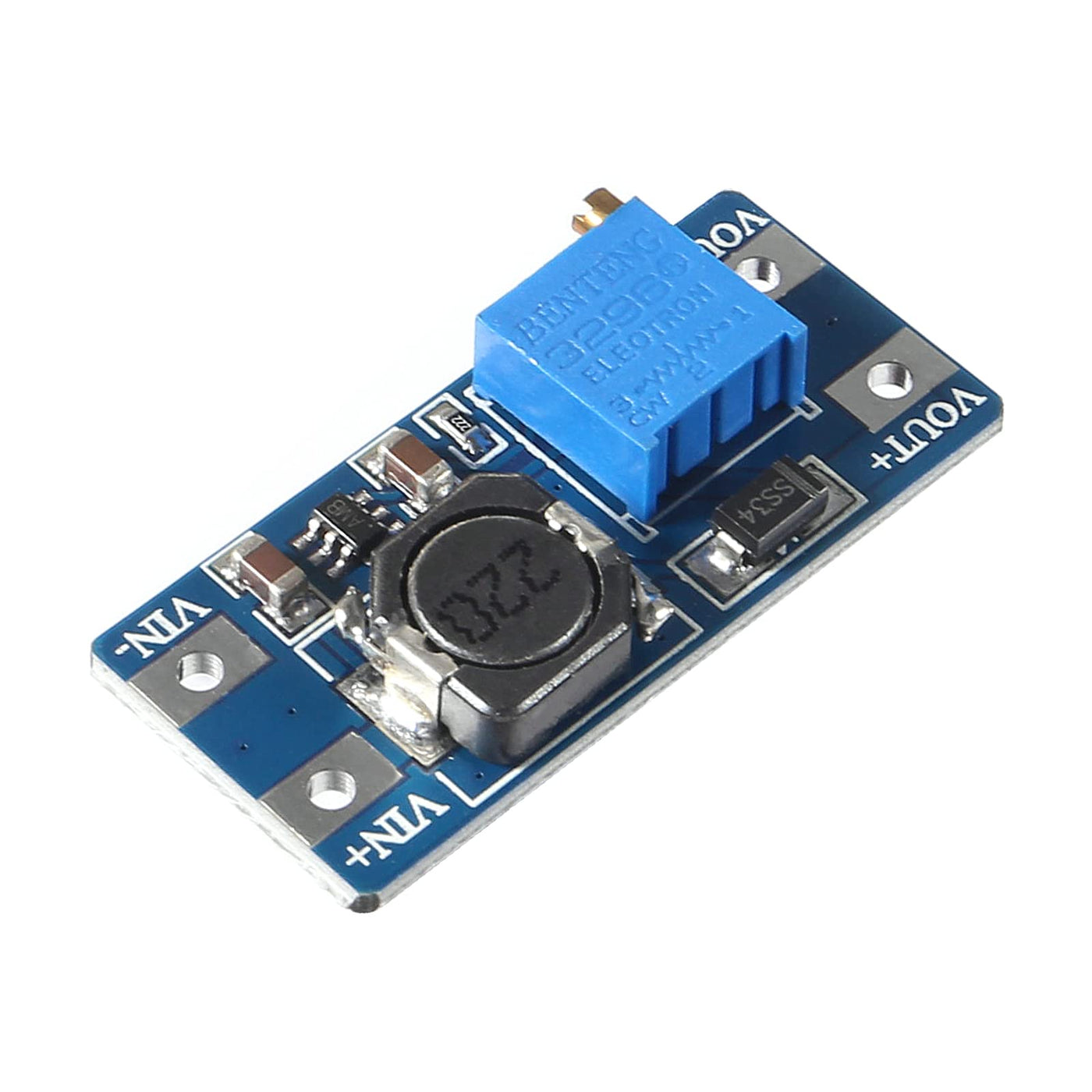

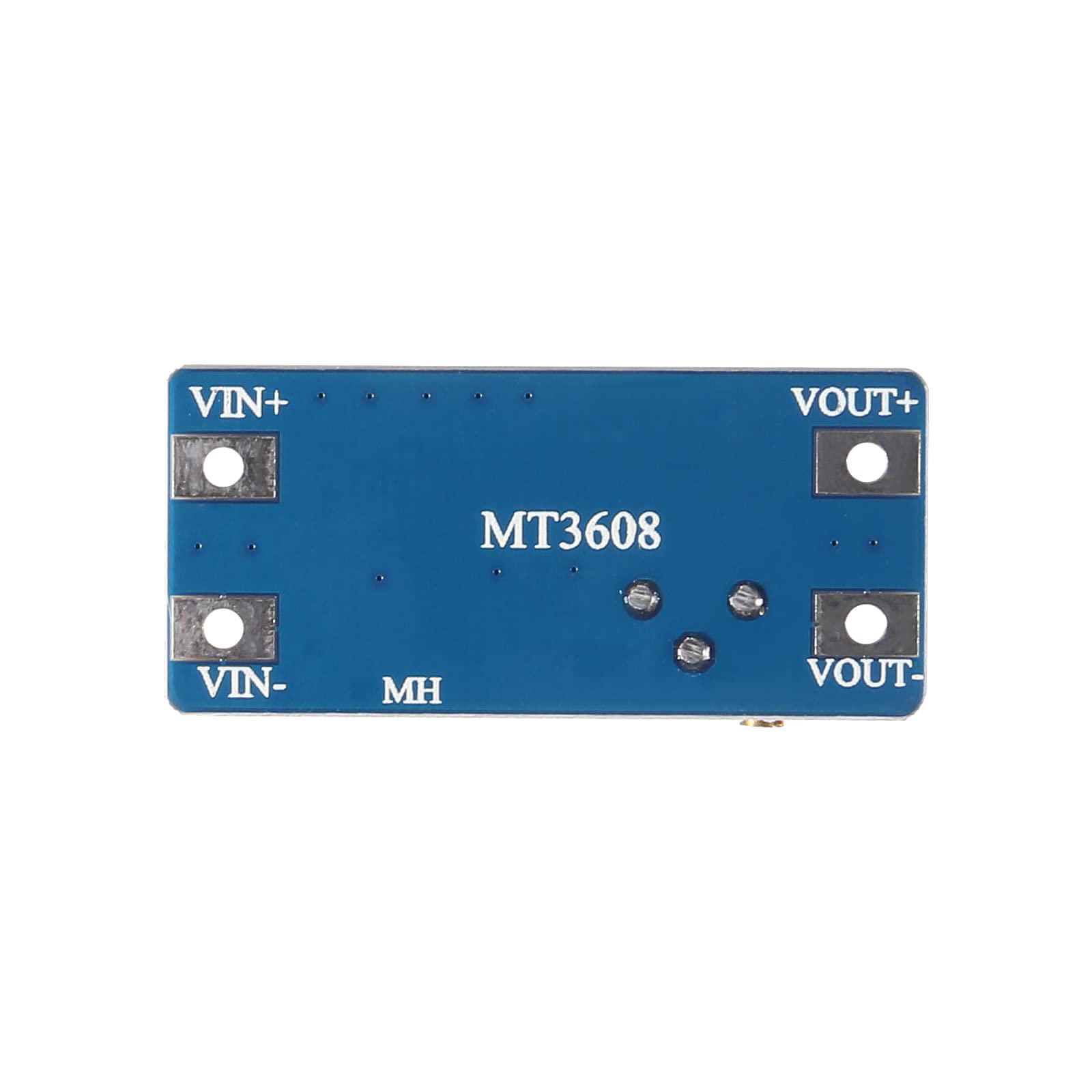

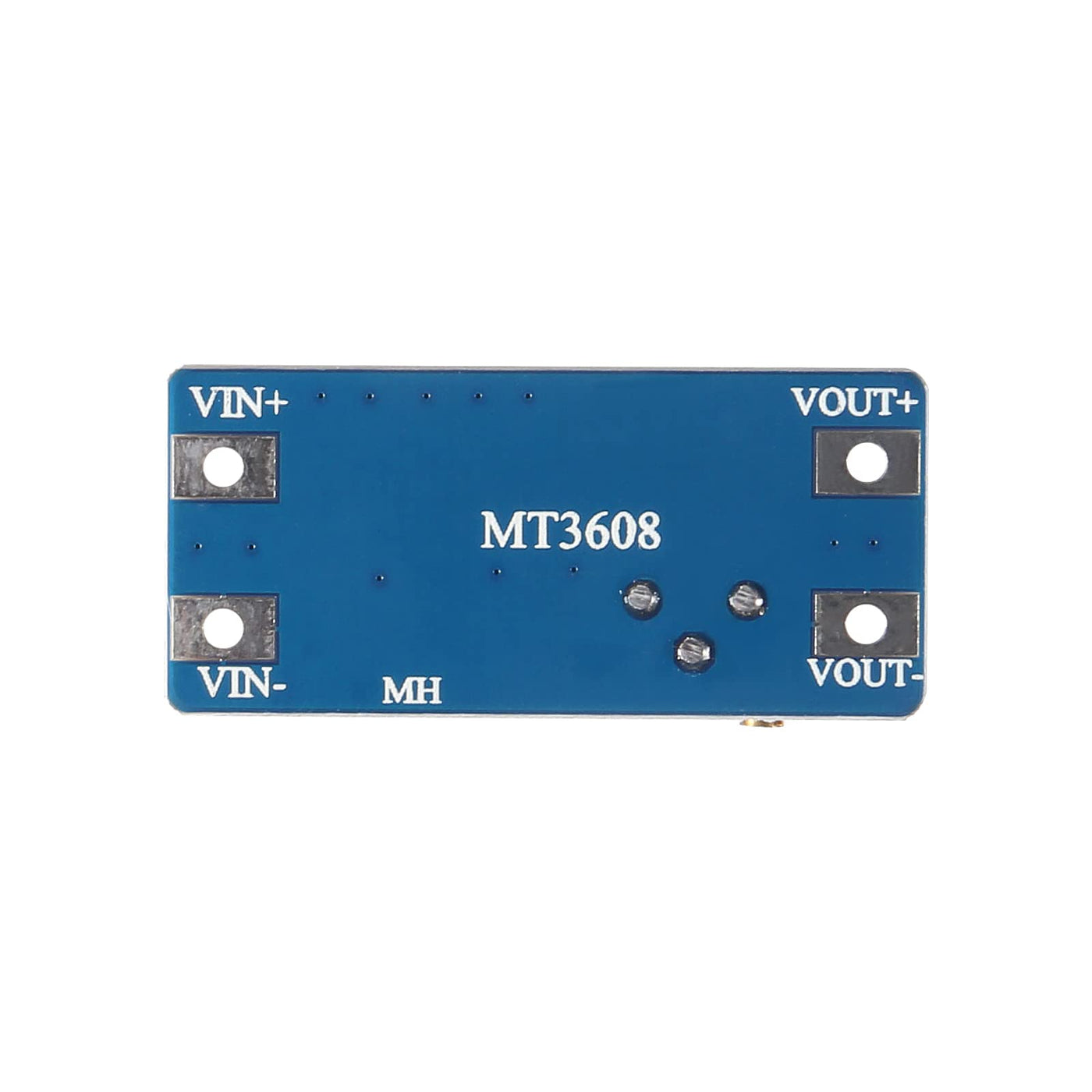

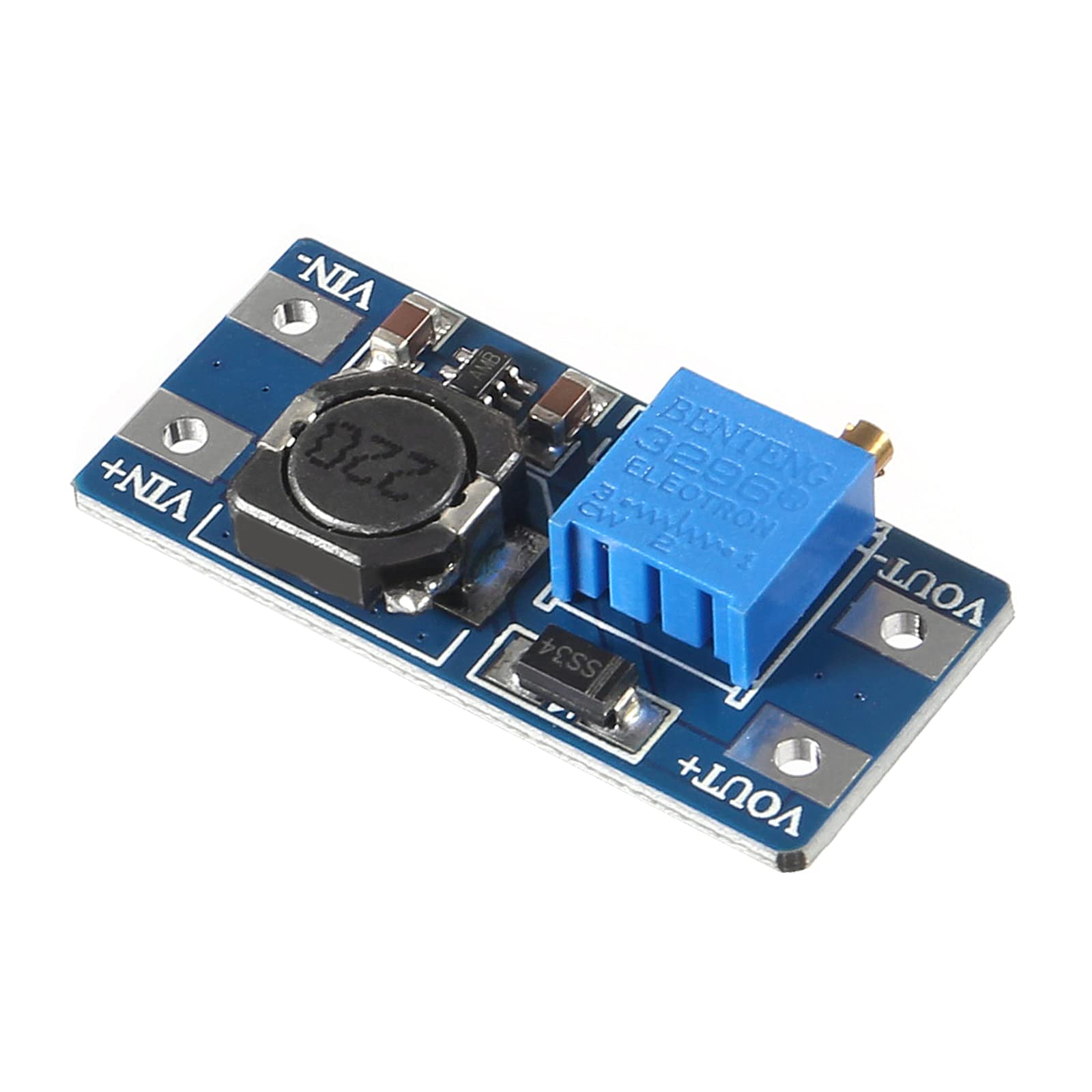

The MT3608 DC-DC Step-Up Power Module is a versatile and efficient solution designed for a wide range of applications, including DIY projects, adjustable power supplies, and more. With its compact size and high efficiency, this module can elevate your electronic projects to new heights.
Specifications:
Maximum Output Current: 2A (1A recommended for continuous use)
Input Voltage: 2V - 24V
Maximum Output Voltage: 28V
Efficiency: Up to 93%
Product Dimensions: Approx. 36 x 17 x 14 mm (1.42 x 0.67 x 0.55 inch)
Method of Use: Connect the IN+ and IN- terminals to a voltage source within the specified range. Adjust the output voltage using the potentiometer. Note that the output voltage must be greater than the input voltage.
Applications: The MT3608 module is ideal for fixing emergency lamps, creating adjustable mobile power supplies, and boosting charger circuits. Its adaptability makes it suitable for various electronic devices and DIY projects.
Key Features:
Reliably Steps Up Voltage: Achieve desired output voltage with a maximum output of 2A, ensuring a stable and efficient power supply.
High Safety Standards: Built-in under-voltage lockout, current limiting, and thermal overload protection to safeguard against damage during output overloads.
Easy to DIY: Simple connection and adjustment make the MT3608 an excellent choice for both beginners and experienced users. Perfect for creating regulated power supplies for batteries and various devices.
Portable and Convenient: Each module comes tested and sealed in anti-static packaging, making it easy to handle and transport.
Satisfaction Guaranteed: Customer support is readily available to address any issues you may encounter, ensuring a hassle-free experience.
Notes: Do not exceed the maximum input voltage. The peak output current should not exceed 2A. If the output voltage cannot be adjusted, turn the potentiometer counterclockwise for more than 10 turns to reset it.
Enhance your projects with the MT3608 DC-DC Step-Up Power Module. With its exceptional performance and reliability, this module is a must-have for any electronics enthusiast.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Alinan DC-DC Boost Converter?A: The dimensions are approximately one point four two inches long, zero point six seven inches wide, and zero point five five inches high.
Q: What is the maximum output current of this voltage regulator?A: The maximum output current is two amps, with one amp recommended for continuous use.
Q: What input voltage range does this module support?A: The input voltage range is two volts to twenty-four volts, allowing for versatile applications.
Q: How do I adjust the output voltage on this converter?A: To adjust the output voltage, you turn the potentiometer after connecting the input voltage between two volts and twenty-four volts.
Q: Is this module suitable for DIY projects?A: Yes, this module is excellent for DIY projects, including adjustable power supplies and emergency lamps.
Q: Can this device handle an output voltage of twenty-eight volts?A: Yes, the maximum output voltage can reach twenty-eight volts when properly configured.
Q: Does this module come with safety features?A: Yes, it includes under-voltage lockout, current limiting, and thermal overload protection for safety.
Q: What should I do if the output voltage cannot be adjusted?A: If the output voltage cannot be adjusted, turn the potentiometer counterclockwise for more than ten turns and then try again.
Q: How should I store the Alinan Boost Converter?A: Store the converter in a dry place, preferably in its anti-static packaging to prevent damage.
Q: Can I use this module for charging batteries?A: Yes, it is suitable for charging batteries and other electronic devices within the specified voltage range.
Q: What is the efficiency of the Alinan Boost Converter?A: The efficiency can reach up to ninety-three percent under maximum load conditions.
Q: Is this product safe for beginners to use?A: Yes, it is designed to be user-friendly and is suitable for beginners in electronics.
Q: What happens if the input voltage exceeds twenty-four volts?A: Exceeding the maximum input voltage can damage the module, so it should be avoided.
Q: Can I use this module in industrial applications?A: Yes, it can be used in industrial applications, providing adjustable voltage solutions.

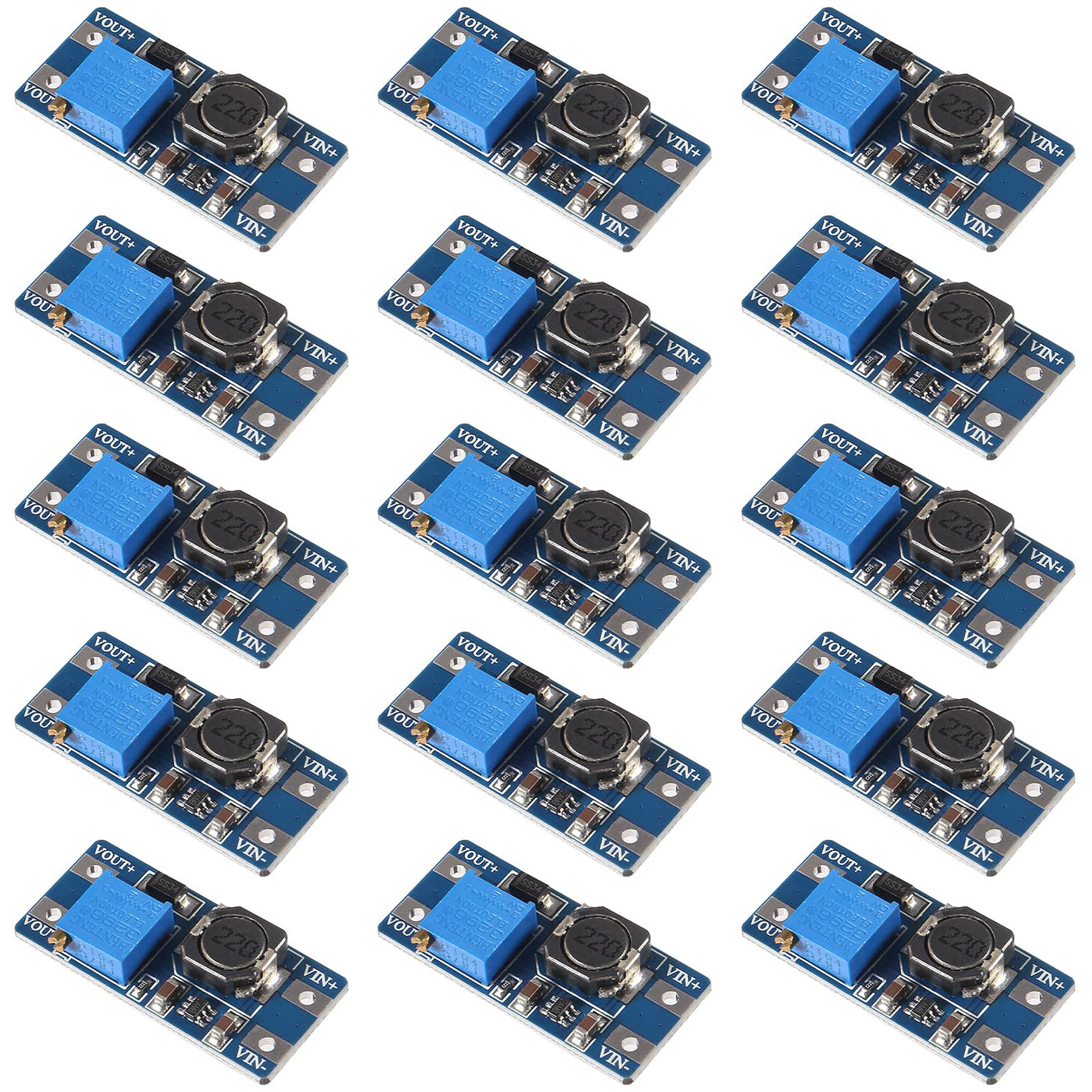

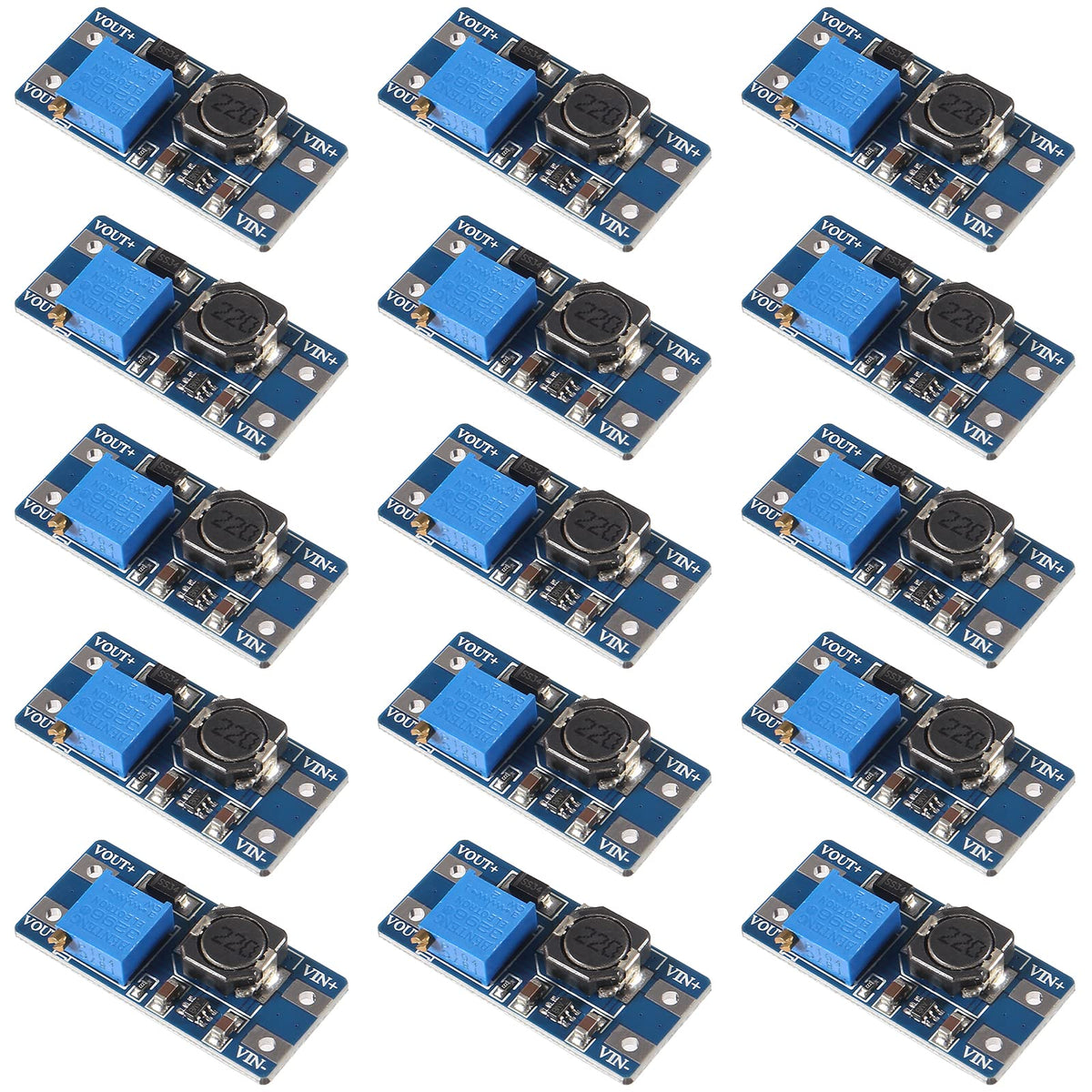

Q: What is included in the package?A: The package includes fifteen MT3608 DC-DC step-up power supply modules.
