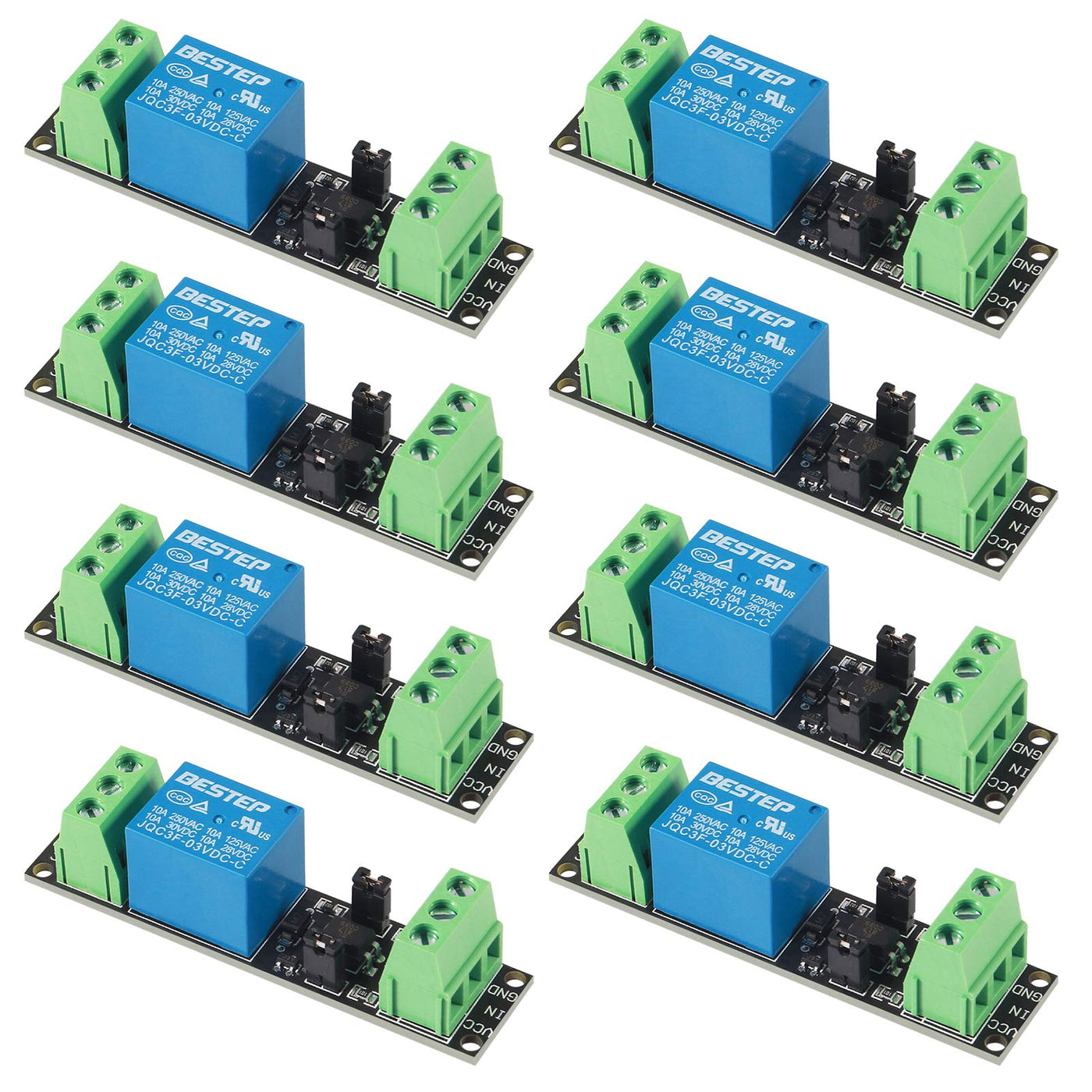

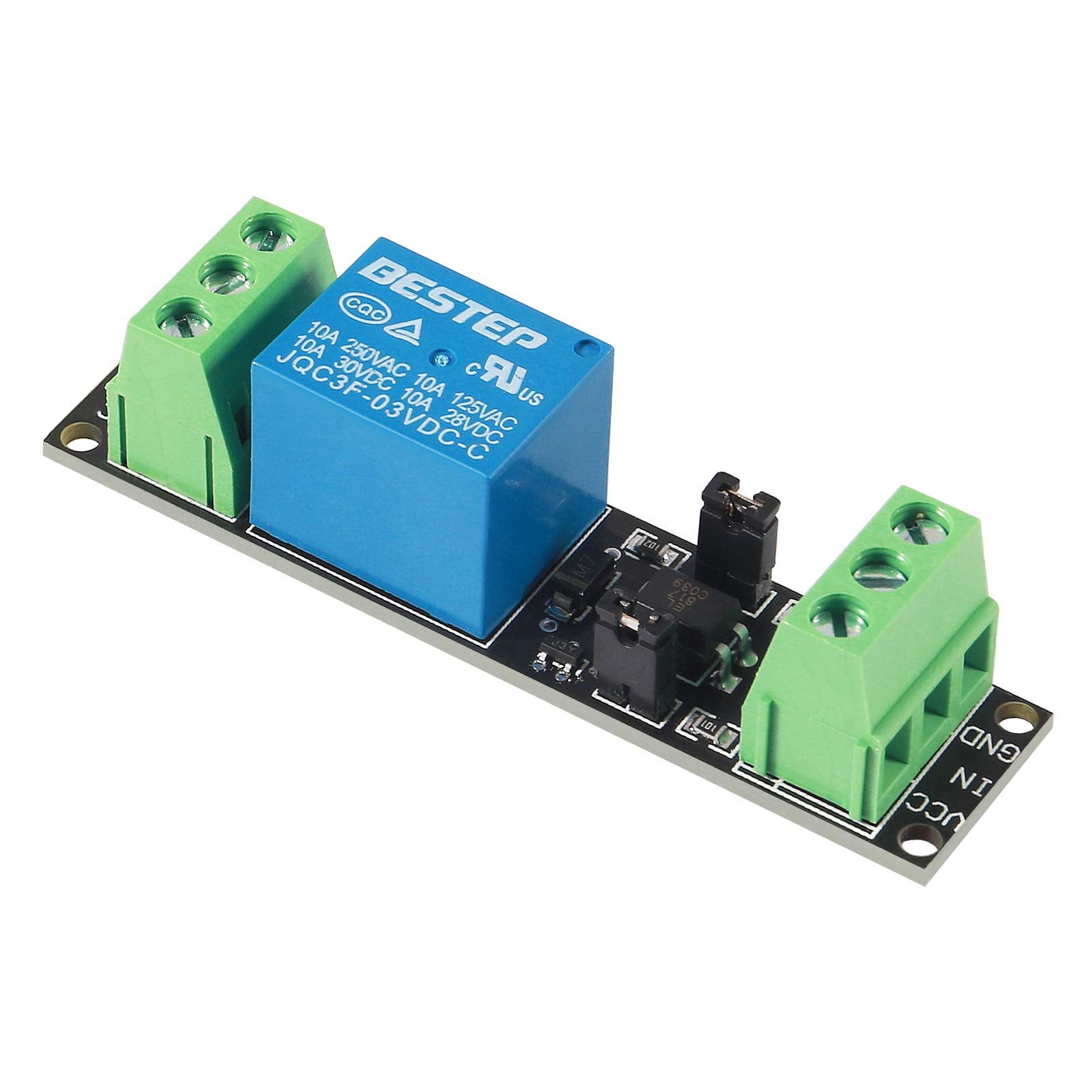

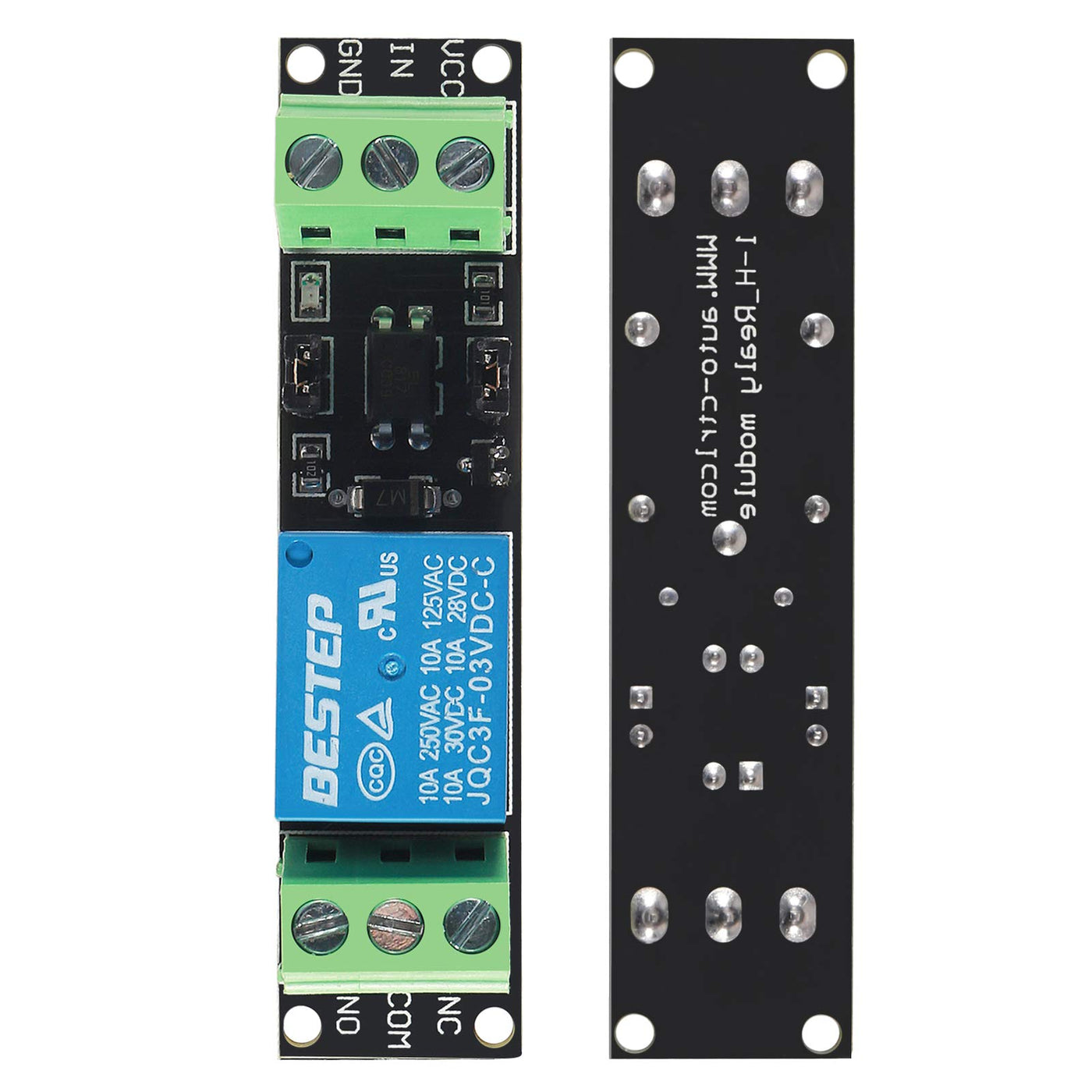

Aitrip 8 Pack 3V 1 Channel Relay Power Switch Module With Optocoupler Opto Isolation High Level Trigger For Iot Esp8266 Development Board
Vendor: Aitrip
Type: Single Board Computers
Sku: WBEEAB08W3XDNGK
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Processing time : 1-3 days
US Orders Ships in : 3-5 days
International Orders Ships in : 8-12 days
15-days return on defective items
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
- Processing Time: Orders are processed within 1-3 business days
- Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page.
For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Aitrip 8 Pack 3V 1 Channel Relay Power Switch Module With Optocoupler Opto Isolation High Level Trigger For Iot Esp8266 Development Board
$18.51
Frequently Asked Questions
- Q: What is the voltage rating for the AITRIP Relay Module? A: The voltage rating is three volts to three point three volts. This allows compatibility with various microcontroller systems.
- Q: What are the dimensions of the relay module? A: The relay module measures seventy millimeters by seventeen millimeters by twenty millimeters. This compact size makes it suitable for various applications.
- Q: What is the maximum load capacity of this relay? A: The relay can handle a maximum load of ten amps at two hundred fifty volts AC and ten amps at thirty volts DC. This ensures it can control a variety of devices.

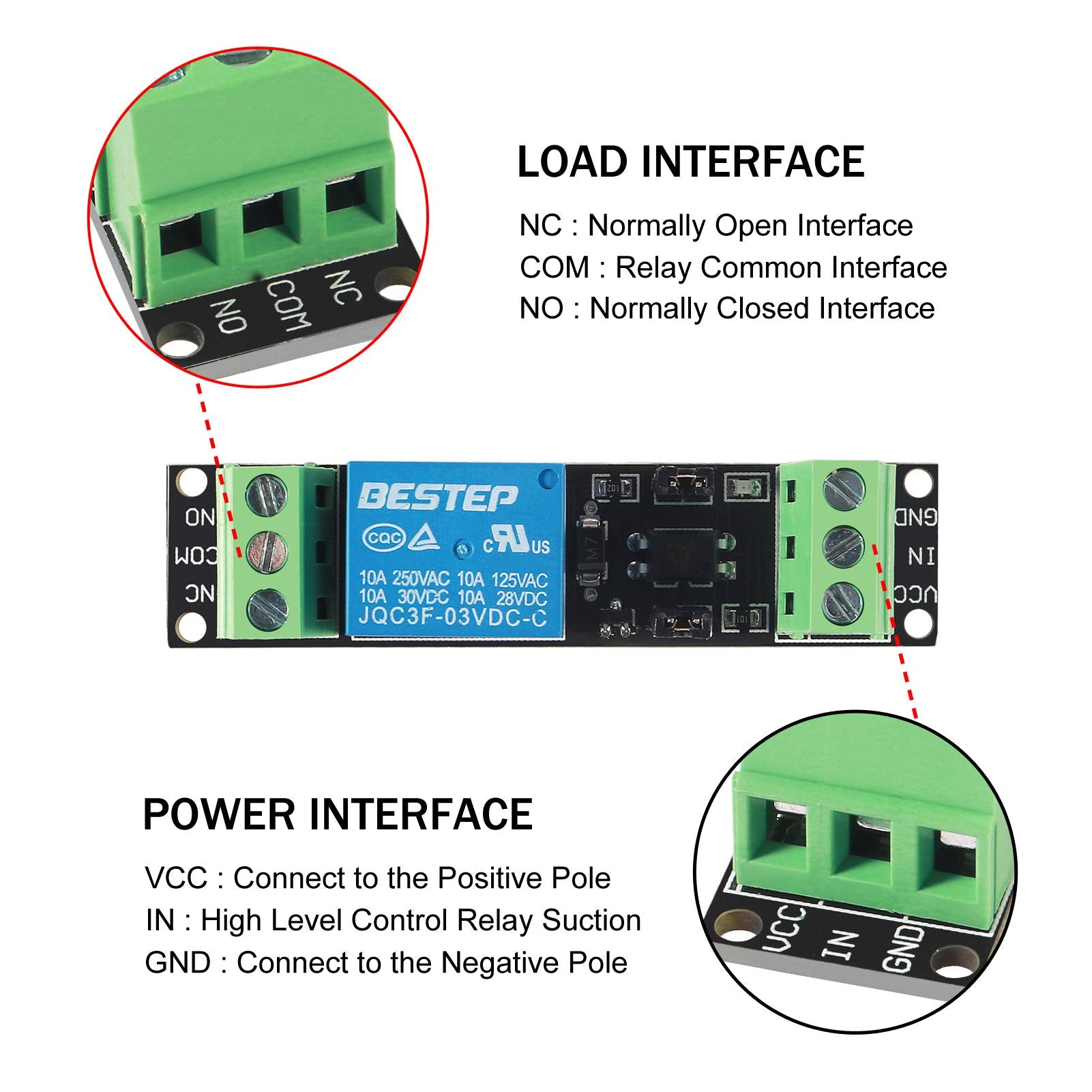

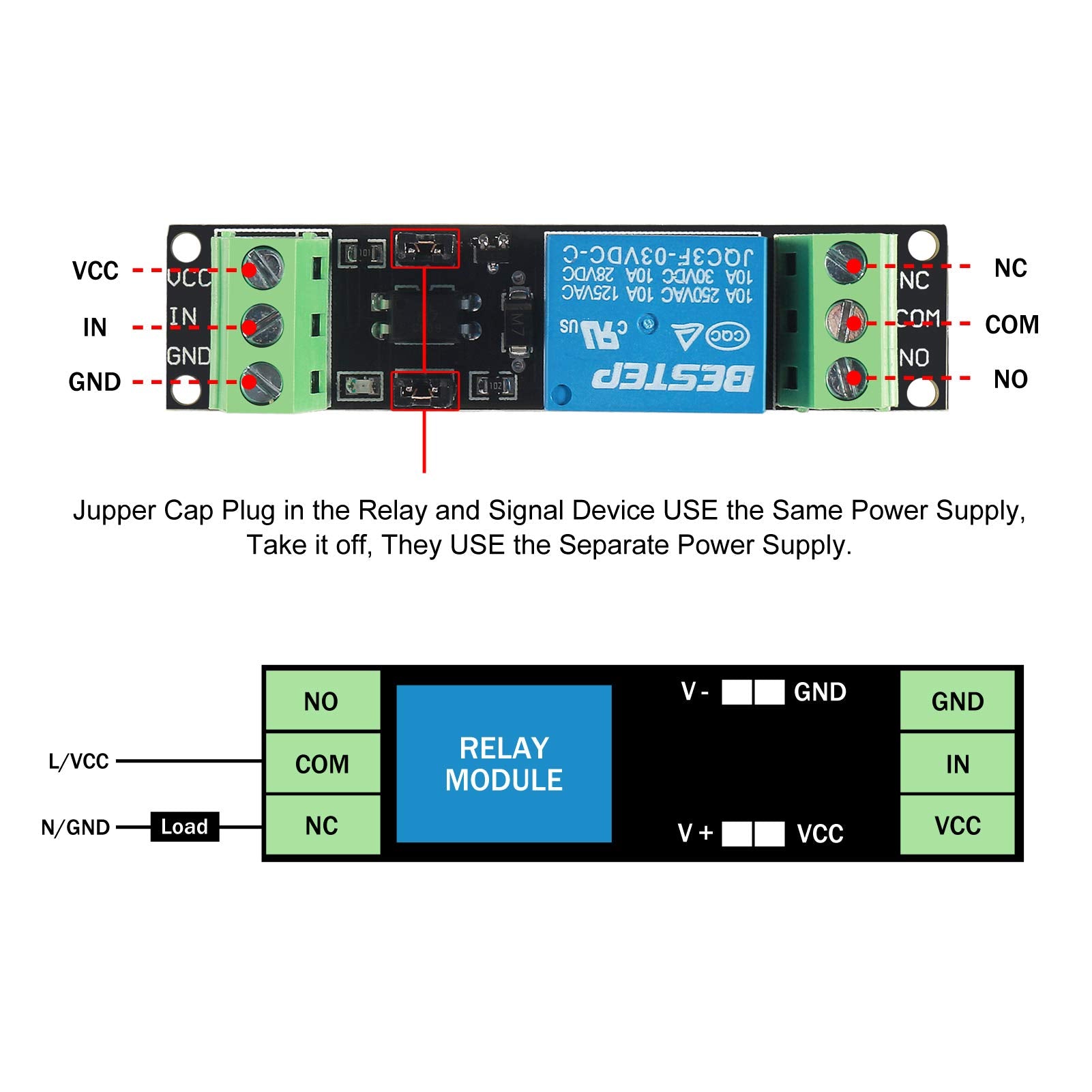

- Q: How do I install the AITRIP Relay Module? A: To install, connect the VCC to the positive power supply, GND to the negative, and IN to your control signal. Make sure to follow the wiring diagram provided.
- Q: Can I use this relay with an Arduino? A: Yes, this relay is compatible with Arduino and other microcontrollers. The high-level trigger allows it to be easily controlled by digital outputs.
- Q: What type of applications is this relay module suitable for? A: This relay module is suitable for various applications such as IoT projects, home automation, and controlling appliances. It works well with devices like ESP8266 and Raspberry Pi.
- Q: How should I maintain the AITRIP Relay Module? A: To maintain the relay, ensure it is kept dry and free from debris. Regularly check connections for wear or corrosion to ensure optimal performance.
- Q: Is this relay module safe to use? A: Yes, this relay module includes optocoupler isolation for safety. It protects your microcontroller from high voltage spikes.
- Q: What is the expected lifespan of the relay? A: The relay has a lifespan of up to one hundred thousand cycles. This durability is enhanced by the included diode freewheel protection.
- Q: What should I do if the relay does not activate? A: If the relay does not activate, check your connections and ensure the control signal is high enough. Verify the power supply voltage is correct.
- Q: Can I return the relay module if it is defective? A: Yes, you can return the relay module if it is defective. Please refer to the return policy for specific instructions.
- Q: What is the trigger signal level for the relay? A: The relay requires a high-level trigger signal of at least one point three volts. This allows it to be activated by most microcontroller outputs.
- Q: Does this relay module come with a warranty? A: Yes, the AITRIP Relay Module typically comes with a manufacturer warranty. Check the packaging or product details for warranty specifics.
- Q: Is the relay module suitable for outdoor use? A: No, the relay module is not designed for outdoor use. It should be kept in a dry, indoor environment to avoid damage.
- Q: Can I use multiple relay modules together? A: Yes, you can connect multiple relay modules. Ensure each module is properly powered and controlled from your microcontroller.
