Aitrip 20Pcs 1.5A Multi Function Mini Boost Module Step Up Board 3.7V To 5V 8V 9V 12V Step Up Board With Led Indicato For Diy El

Frequently Asked Questions

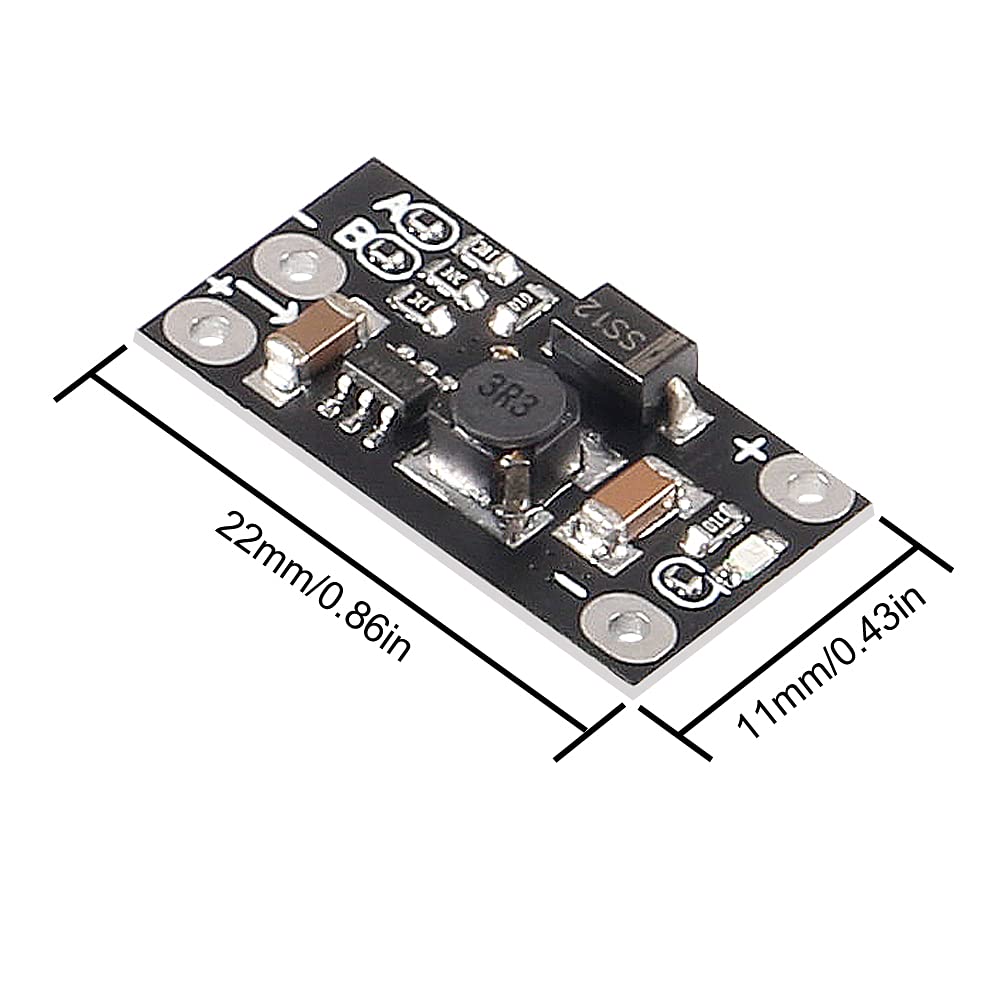

• Q: What are the dimensions of the AITRIP Mini Boost Module? A: The AITRIP Mini Boost Module measures twenty-two millimeters by eleven millimeters by three point six millimeters. It's compact and ideal for various DIY electronic projects.
• Q: What output voltages can the Mini Boost Module provide? A: The module can output voltages of five volts, eight volts, nine volts, and twelve volts. The default output is twelve volts, adjustable via soldering.
• Q: What is the maximum output current of the module? A: The maximum output current of the AITRIP Mini Boost Module is one point five amps. This allows for efficient power conversion for various applications.

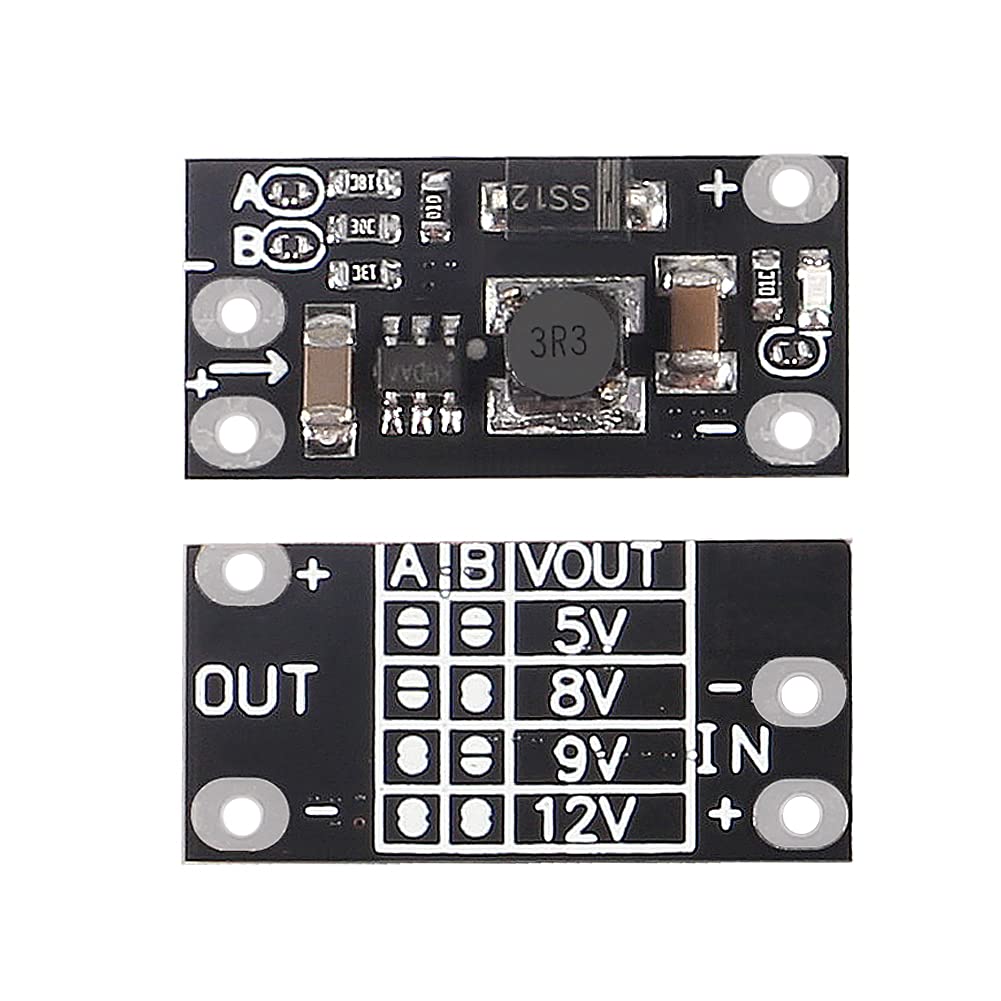

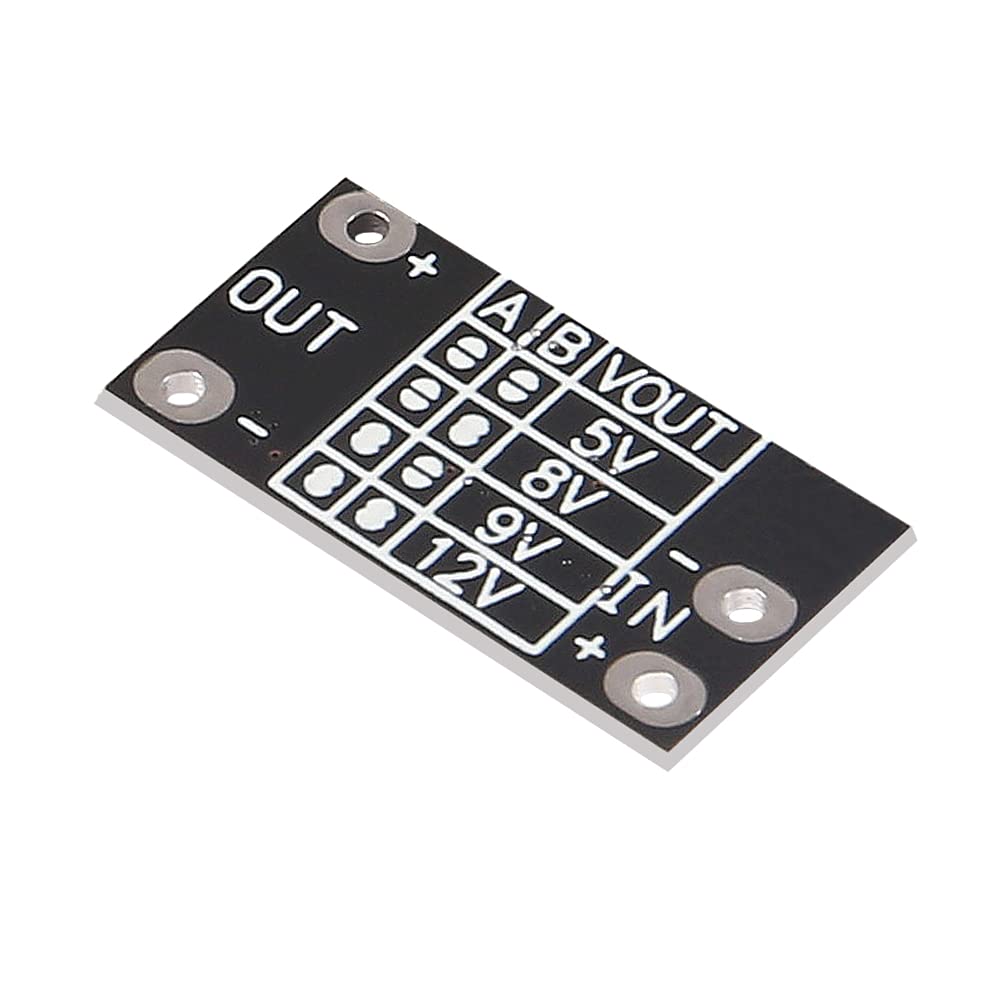

• Q: How do I adjust the output voltage on the Mini Boost Module? A: You can adjust the output voltage by soldering the pads labeled A and B on the PCB. Changing the connections will set the desired output voltage.
• Q: Can I use this module with a lithium battery? A: Yes, the Mini Boost Module is designed to work with a three point seven-volt lithium battery. It efficiently boosts the voltage to higher levels.
• Q: Is the AITRIP Mini Boost Module suitable for beginners? A: Yes, it is suitable for beginners who are interested in electronics. The module is straightforward to use with basic soldering skills.
• Q: How do I install the AITRIP Mini Boost Module? A: To install, connect your lithium battery to the input terminals, then adjust the output voltage as needed. Follow the soldering instructions provided.
• Q: What is the input voltage range for this module? A: The input voltage range for the AITRIP Mini Boost Module is two point five volts to VOUT minus zero point five volts. This flexibility allows for various power sources.
• Q: How should I store the Mini Boost Module? A: Store the module in a dry place, free from moisture and extreme temperatures. Keep it in its original packaging or an anti-static bag to prevent damage.
• Q: What is the LED indicator's power consumption? A: When the output is set to twelve volts, the LED indicator consumes about six milliamps. If the LED is off, the input current drops below one milliamp.
• Q: Can I use the Mini Boost Module for high current applications? A: No, the module's output current should not exceed one point five amps. Ensure your application stays within this limit to prevent damage.
• Q: What if I encounter issues with the Mini Boost Module? A: If you experience issues, check your connections and ensure the input voltage is within the specified range. Consult the manual for troubleshooting tips.
• Q: Does the module come with a warranty? A: The warranty details may vary by retailer. It's best to check with the seller for specific warranty information regarding the AITRIP Mini Boost Module.

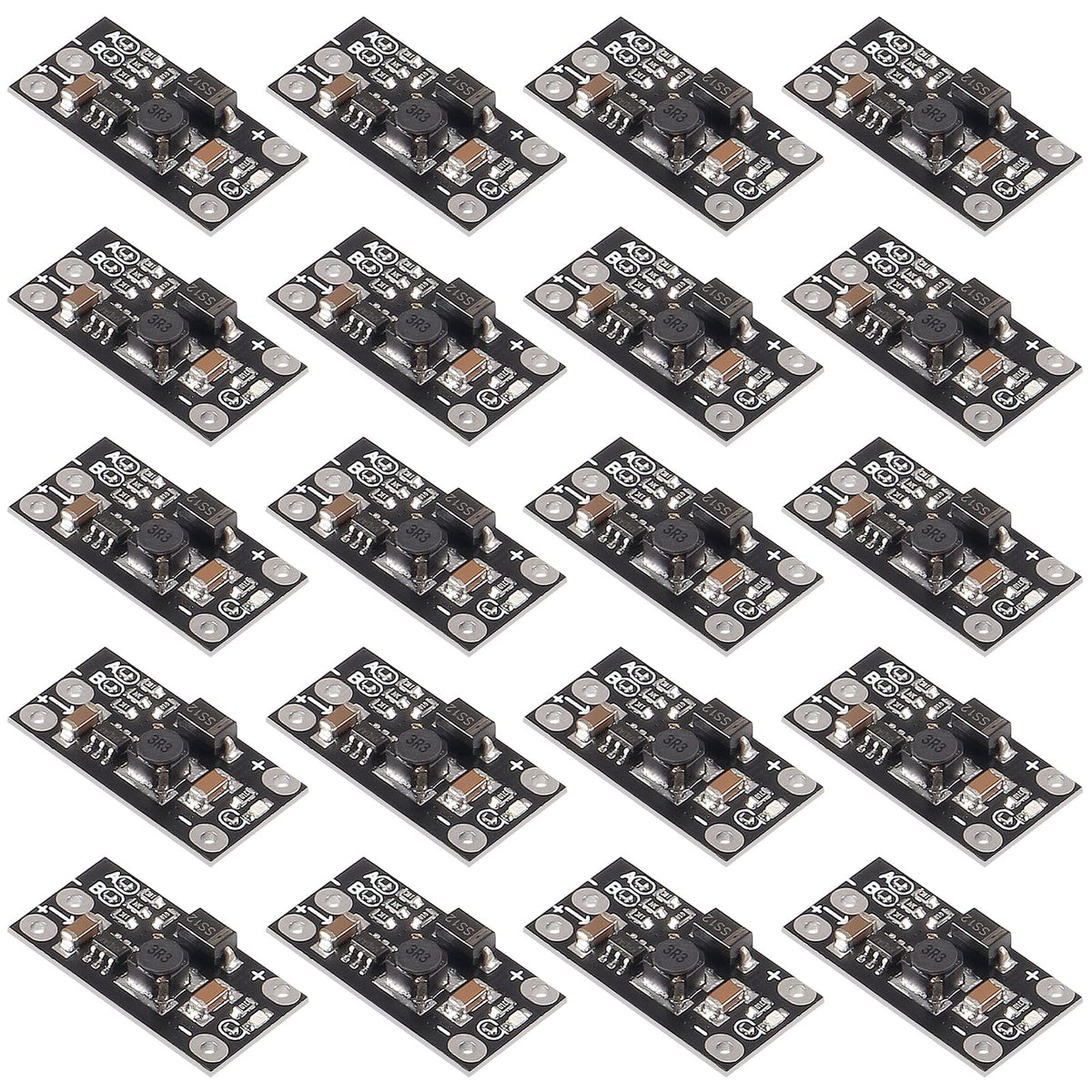

• Q: How many Mini Boost Modules are included in the package? A: The package includes twenty Mini Boost Modules. This is ideal for DIY enthusiasts or for projects requiring multiple modules.
• Q: Is the AITRIP Mini Boost Module safe to use? A: Yes, when used within the specified electrical limits, the module is safe. Always follow the instructions to ensure proper usage and safety.
