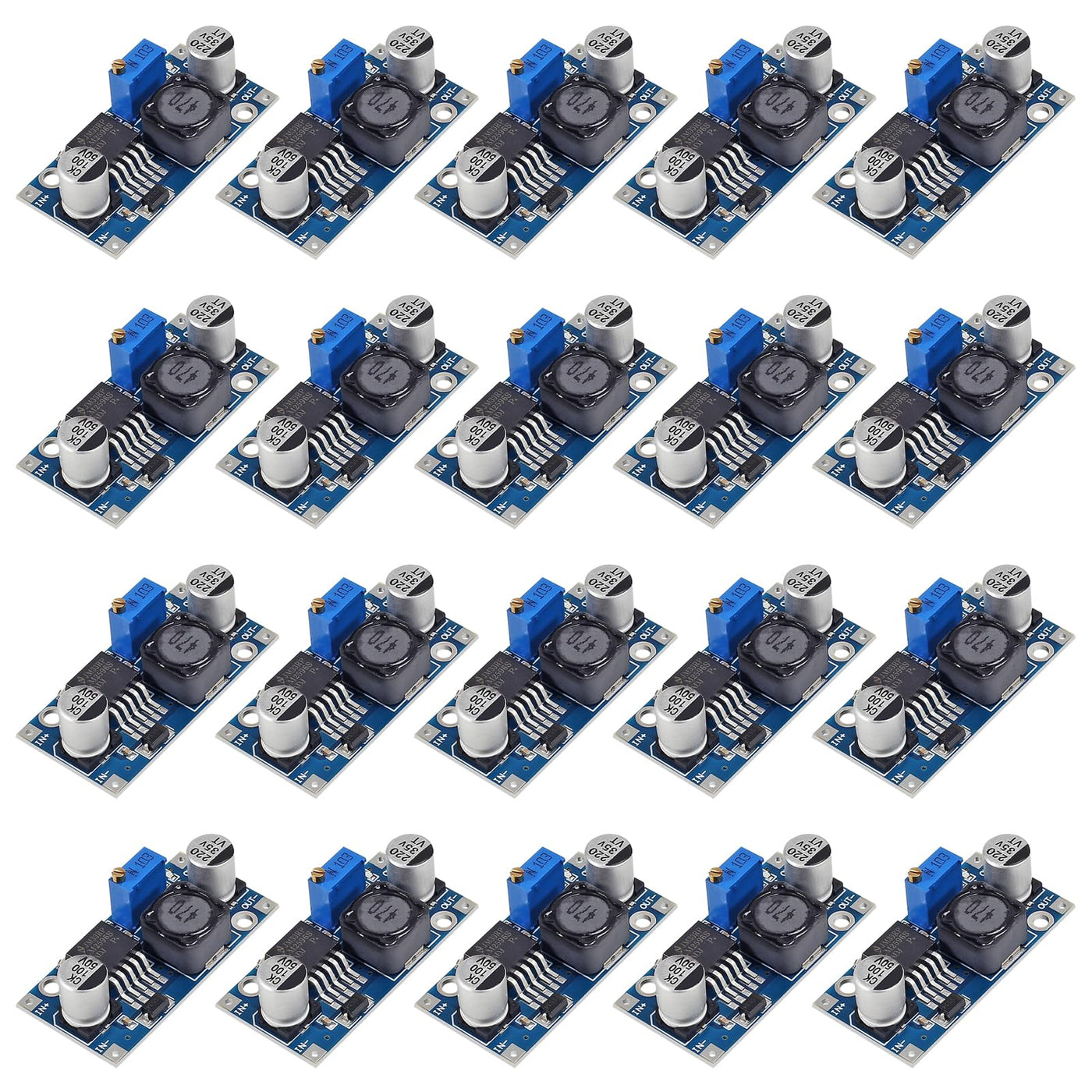

Lm2596 Lm2596S Dc-Dc Step Down Variable Volt Regulator Input 3.0-40V Output 1.5-35V Adjustable Buck Converter Electronic Voltage Stabilizer Power Supply Module Kindly Note: 1. Input Voltage Must Be 1.5 V Higher Than The Output Voltage, No Boost 2. Could You Please Dont Reverse The Input And Output Interface 3. Keep Output Under 2.5A And Use A Heat Sink When For A Long Time Working Specifications: Model: Lm2596 Input Voltage: Dc 3V - 40V Output Voltage: Dc 1.5V - 35V (Adjustable) Output Current: 3A (Max) Conversion Efficiency: 92% (Max) Switching Frequency : 65Khz Rectification: Non-Synchronous Rectification Module Property: Non-Isolated Buck Module Operating Temperature: -45? To +85? Load Regulation: 0.5% Voltage Regulation: 2.5% Package List: 20 X Lm2596 Dc-Dc Buck Converter Module.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the input voltage specifications for the LM2596 Buck Converter?A: The input voltage range is three to forty volts. It is essential to ensure that the input voltage is at least one point five volts higher than the output voltage.
Q: What is the maximum output current for the LM2596 module?A: The maximum output current is three amps. This allows for efficient power regulation while maintaining performance.
Q: What is the efficiency rating of the LM2596 Buck Converter?A: The conversion efficiency is up to ninety-two percent. This high efficiency ensures minimal energy loss during voltage regulation.

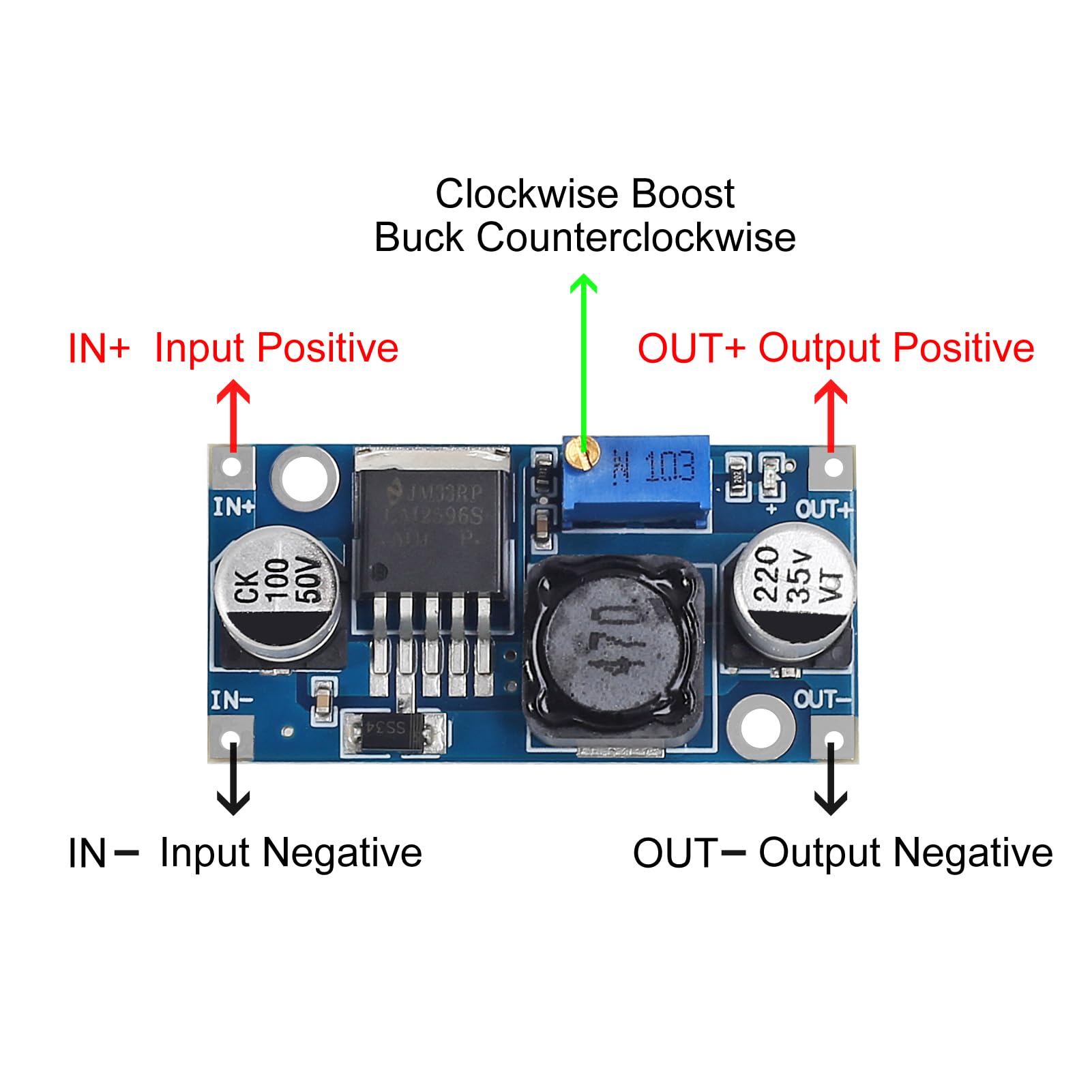

Q: How do I adjust the output voltage on the LM2596 module?A: You can adjust the output voltage between one point five volts and thirty-five volts. Use a small screwdriver to turn the onboard potentiometer for fine-tuning.
Q: Is the LM2596 suitable for long-term use?A: Yes, it is suitable for long-term use. However, it is recommended to use a heat sink if the output exceeds two point five amps during extended operation.
Q: Can the LM2596 Buck Converter be used to boost voltage?A: No, this module cannot boost voltage. It is designed solely for stepping down voltage from a higher level to a lower one.
Q: What is the operating temperature range of the LM2596 module?A: The operating temperature range is from negative forty-five degrees Celsius to eighty-five degrees Celsius. This wide range makes it adaptable for various environments.
Q: How should I install the LM2596 Buck Converter?A: Connect the input voltage to the appropriate terminals and adjust the output voltage as needed. Ensure that the input voltage is always higher than the output.
Q: What precautions should I take when using the LM2596 module?A: Avoid reversing the input and output connections. Ensure the input voltage is within the specified range to prevent damage.
Q: How do I store the LM2596 Buck Converter when not in use?A: Store the module in a cool, dry place. Avoid exposure to moisture or extreme temperatures to maintain its performance.

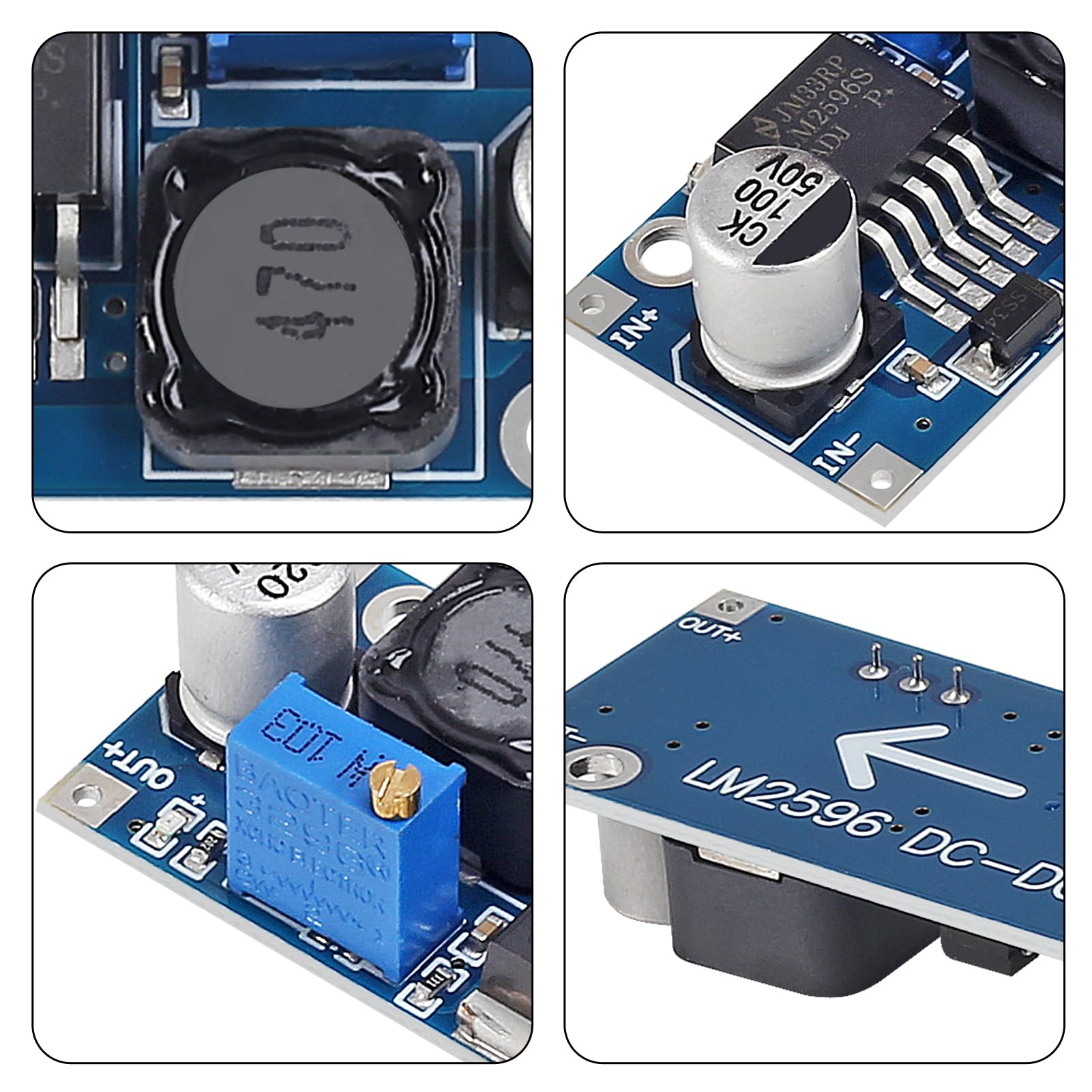

Q: What materials are used in the LM2596 module?A: The LM2596 module features solid capacitors from SANYO and high-Q inductors. These materials enhance reliability and efficiency.
Q: Is the LM2596 safe to use for DIY projects?A: Yes, it is safe for DIY projects as long as you adhere to the specifications and guidelines. Follow the instructions carefully to avoid mishaps.
Q: What should I do if the LM2596 module doesn't work?A: First, check all connections and ensure the input voltage is correct. If the issue persists, consult troubleshooting guides or contact customer support.
Q: How can I ensure the LM2596 Buck Converter lasts long?A: To ensure longevity, avoid exceeding the maximum output current and use a heat sink for better heat dissipation during operation.
Q: Can I use the LM2596 for different applications?A: Yes, the LM2596 is versatile and can be used for various applications requiring voltage regulation. It's suitable for powering microcontrollers, sensors, and more.
