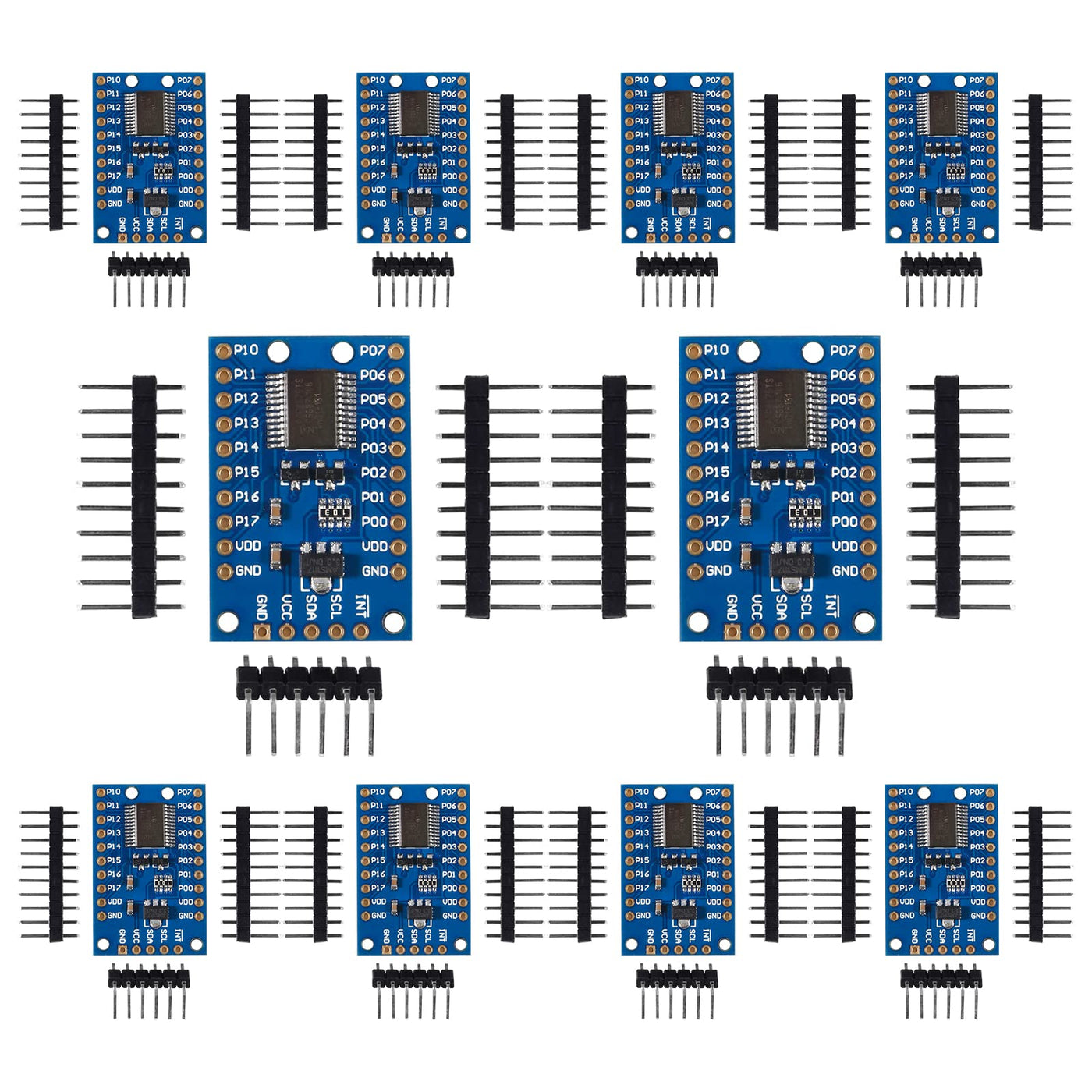

Aitiao 10Pcs Pcf8575 Io Expander Board Module I2C To 16 Io Extension Module I2C Communication Control 16 Bit Smbus I/O Ports
Couldn't load pickup availability
⭐
Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
- Processing Time: Orders are processed within 1-3 business days
- Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page.
For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Vendor: Aitiao
Type: Single Board Computers
Sku: WBEEAB0B82R7R17
Availability: In Stock
Guarantee safe checkout
Aitiao 10Pcs Pcf8575 Io Expander Board Module I2C To 16 Io Extension Module I2C Communication Control 16 Bit Smbus I/O Ports
$23.44
Frequently Asked Questions
- Q: What is the working voltage range for the AITIAO PCF8575 IO Expander Board? A: The AITIAO PCF8575 IO Expander Board operates within a working voltage range of 2.5 to 5.5V DC, making it versatile for various microcontroller applications.

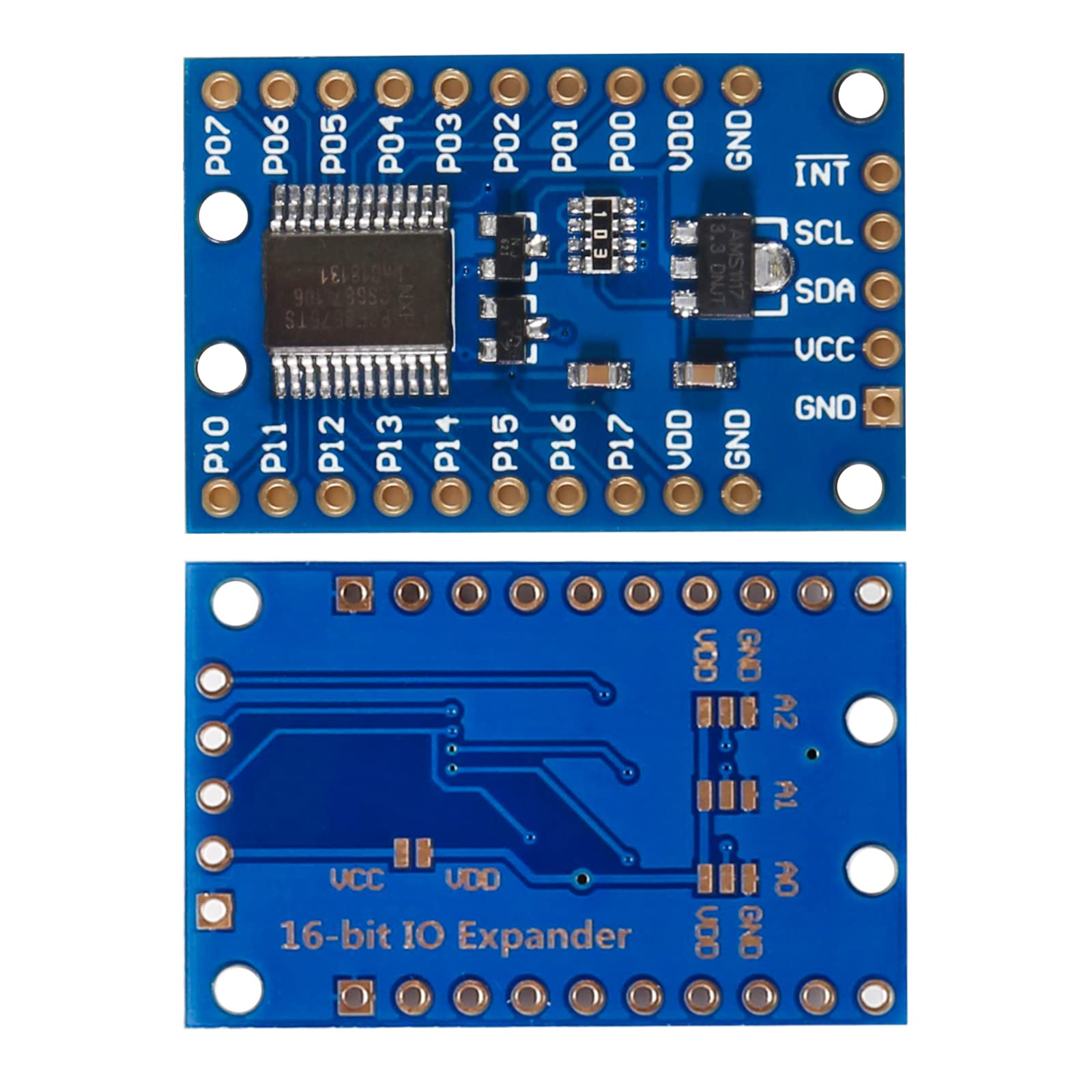

- Q: How can I modify the I2C address on the PCF8575 module? A: The default I2C address for the PCF8575 module is 0x20. You can modify it by installing jumpers A1 and A2 on the board to set a different address as needed.
- Q: What are the main features of the PCF8575 IO Expander Board? A: The PCF8575 IO Expander Board features 16 individually addressable pins, each configurable for input or output. It also includes an open-drain interrupt output pin for detecting input changes and is compatible with libraries for PCF8575.
- Q: Can the AITIAO PCF8575 module be used with Arduino boards? A: Yes, the AITIAO PCF8575 IO Expander Board is compatible with Arduino and other microcontroller platforms, making it great for controlling devices like relays, buzzers, buttons, and LEDs.
- Q: Is there any special setup required for using the PCF8575 with 3.3V logic? A: Yes, the PCF8575 module has an onboard 3.3V level converter circuit. If you do not solder the VCC-VDD pad, the module will operate at 3.3V. Soldering this pad allows the logic level to match the VCC voltage.
