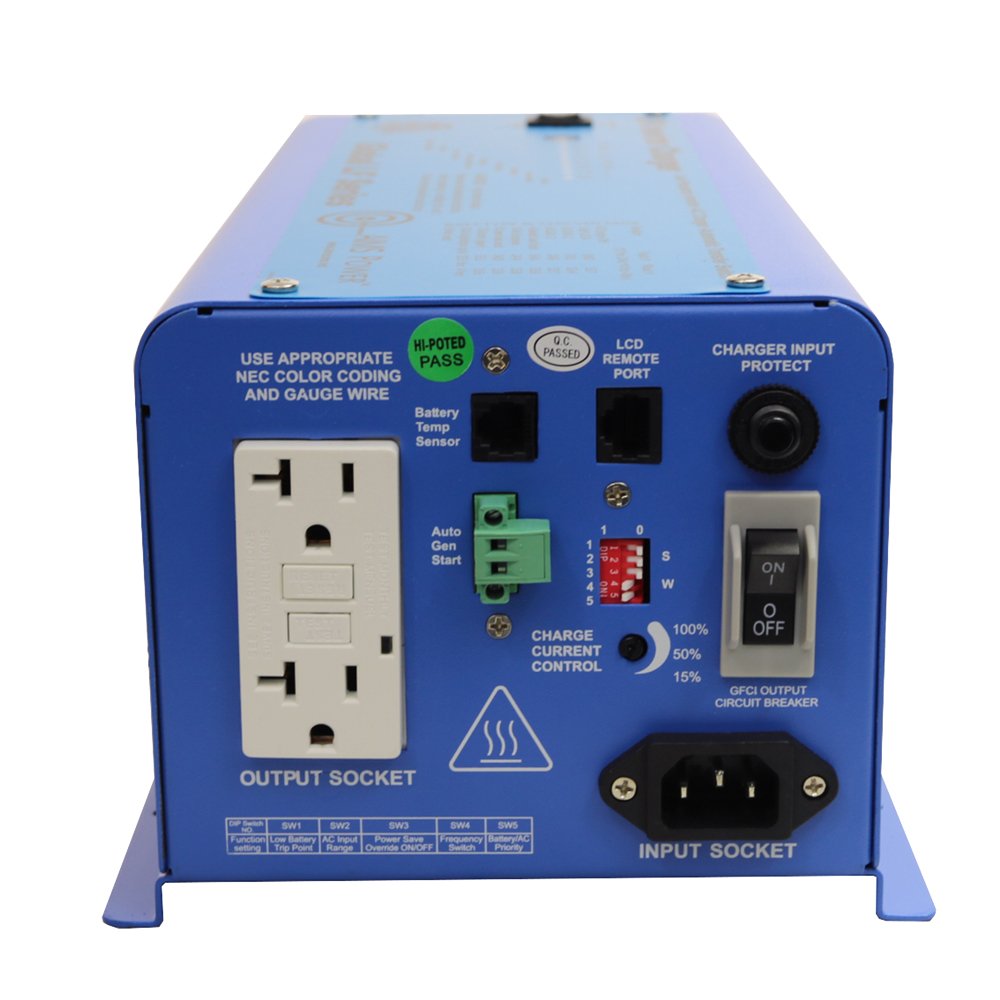

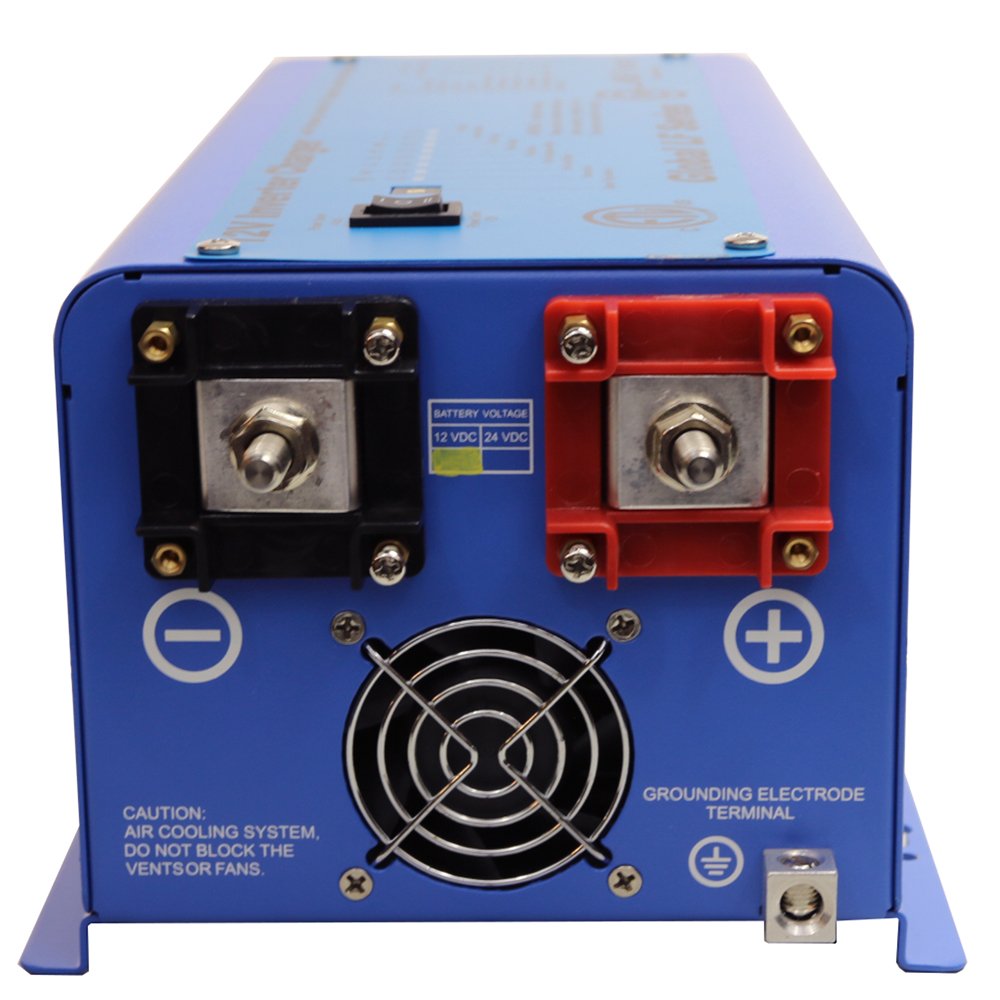

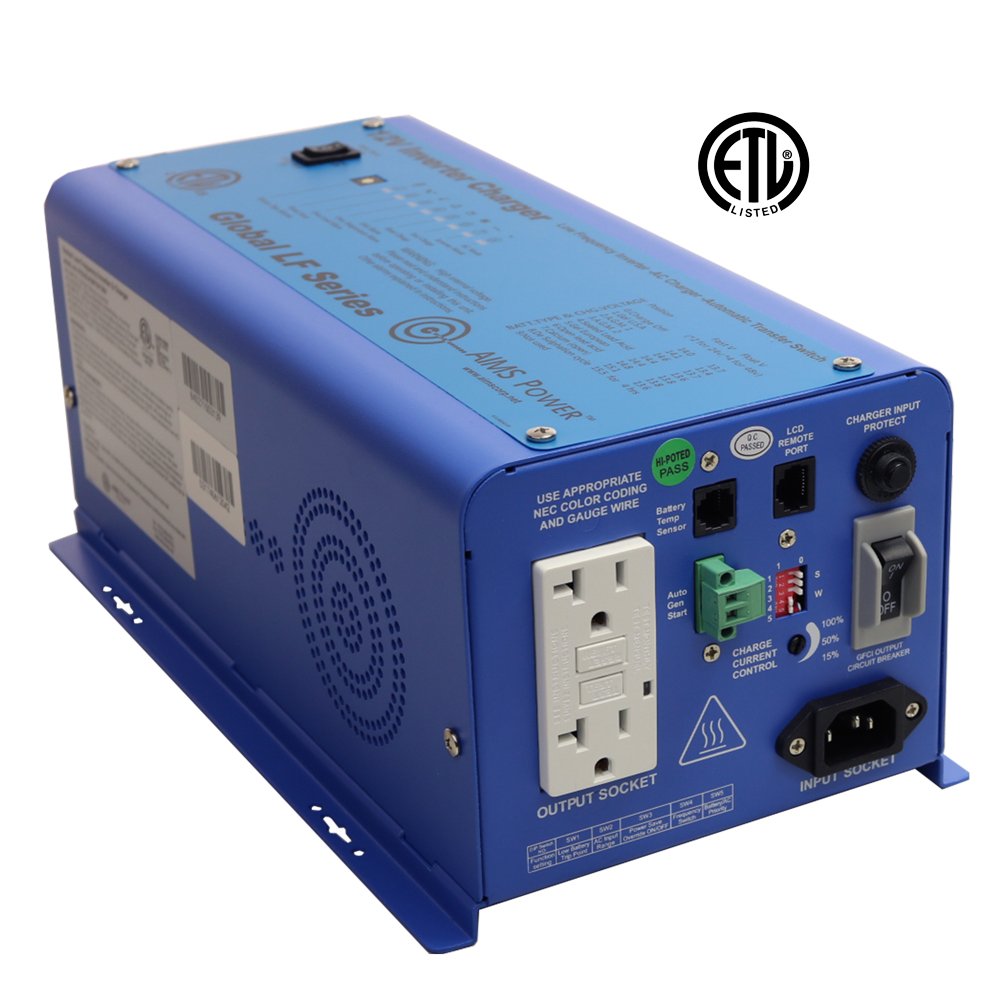

Aims Power Picoglf6W12V120Vetl Pure Sine Inverter Charger, 600W Low Frequency Inverter, 1800W Surge, 12V, Ac Input Cable, Gfci Outlet, Auto Frequency Detect From Ac Input, 7 Battery Type Settingsthis 600 Watt Pure Sine Inverter Charger Etl Listed And Conforms To Ul 458 Standards, Is A Combination Of An Inverter, Battery Charger And Ac Auto-Transfer Switch Into One Complete System With A Peak Dc And Ac Conversion Efficiency Of 80%. It Is Packed With Unique Features And It Is One Of The Most Advanced Inverter Chargers In The Market Today. It Features Power Factor Corrected, Sophisticated Multi-Stage Charging And Pure Sine Wave Output With Unprecedentedly High Surge Capability To Meet Demanding Power Needs Of Inductive Loads Without Endangering The Equipment.Key Features 600 Watt Low Frequency Inverter - Etl Listed To Ul 458 Standards 1800 Watt Surge For 20 Seconds 300% Surge Capability Ac Input Cable; Gfci Outlet; Conformal Coated For Marine Applications Multi Stage Smart Charger 20 Amp Auto Frequency Detect From Ac Input Less Than 10Msec Typical Transfer Time Selectable 25W Power Save Mode (Hibernation) 7 Battery Type Settings For Chargerspecifications Continuous Output Power: 600 Watts Surge Rating: 1800 Watts (20 Seconds) Output Waveform: Pure Sine/Same As Input (Bypass Mode) Output Voltage: 120Vac Nominal Efficiency: 80% (Peak) Output Frequency: 50Hz 0.3Hz / 60Hz 0.3Hz Typical Transfer Time: 10Ms (Max) Nominal Input Voltage: 12.0Vdc Low Battery Alarm: 10.5Vdc-11.0Vdc High Voltage Alarm: 16.0Vdc Low Battery Voltage Restart: 15.5Vdc Four Stage Smart Charger Max Input Ac Voltage: 150 Weight: 18 Lbs Size (Lxwxh): 14.7 X 7 X 5.5
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the AIMS Power PICOGLF6W12V120VETL inverter charger?A: The dimensions are fourteen point seven five inches long, seven inches wide, and five point five inches high.
Q: What is the continuous output power of this inverter charger?A: The continuous output power is six hundred watts, making it suitable for various applications.
Q: What is the surge rating of the AIMS Power PICOGLF6W12V120VETL?A: The surge rating is one thousand eight hundred watts for a duration of twenty seconds.
Q: How do I install the AIMS Power inverter charger?A: To install, connect the AC input cable and set the dip switches according to your battery type and priorities.
Q: Is this inverter charger suitable for marine applications?A: Yes, it is conformally coated, making it ideal for marine environments.
Q: How many battery types can the AIMS inverter charger support?A: It supports seven different battery types, including Lead, Gel, AGM, and LiFePO4.
Q: How should I clean and maintain my inverter charger?A: To maintain it, keep the unit dry and free of dust. Avoid using harsh chemicals when cleaning.
Q: What safety features does the AIMS Power inverter charger have?A: It has overload, over temperature, high and low voltage protections, along with a cooling fan and isolated ground neutral.
Q: What is the typical transfer time for this inverter charger?A: The typical transfer time is less than ten milliseconds, ensuring a smooth power transition.
Q: Can I use this inverter charger for off-grid applications?A: Yes, it is designed for off-grid and back-up power applications, making it versatile for various uses.
Q: What should I do if the inverter charger arrives damaged?A: If it arrives damaged, contact customer support for a return or replacement according to the warranty policy.
Q: Is there a warranty on the AIMS Power inverter charger?A: Yes, it comes with a two-year warranty for added peace of mind.
Q: What is the maximum input AC voltage for this inverter charger?A: The maximum input AC voltage is one hundred fifty volts.
Q: How do I know if my battery is compatible with this inverter?A: Refer to the seven battery type settings and ensure your battery matches one of them for compatibility.
Q: Is the AIMS Power inverter charger energy efficient?A: Yes, it has a nominal efficiency of eighty percent at peak performance.
Q: Can I connect this inverter charger directly to my AC devices?A: Yes, it includes a GFCI outlet and AC direct connect terminal block for safe electrical connections.
