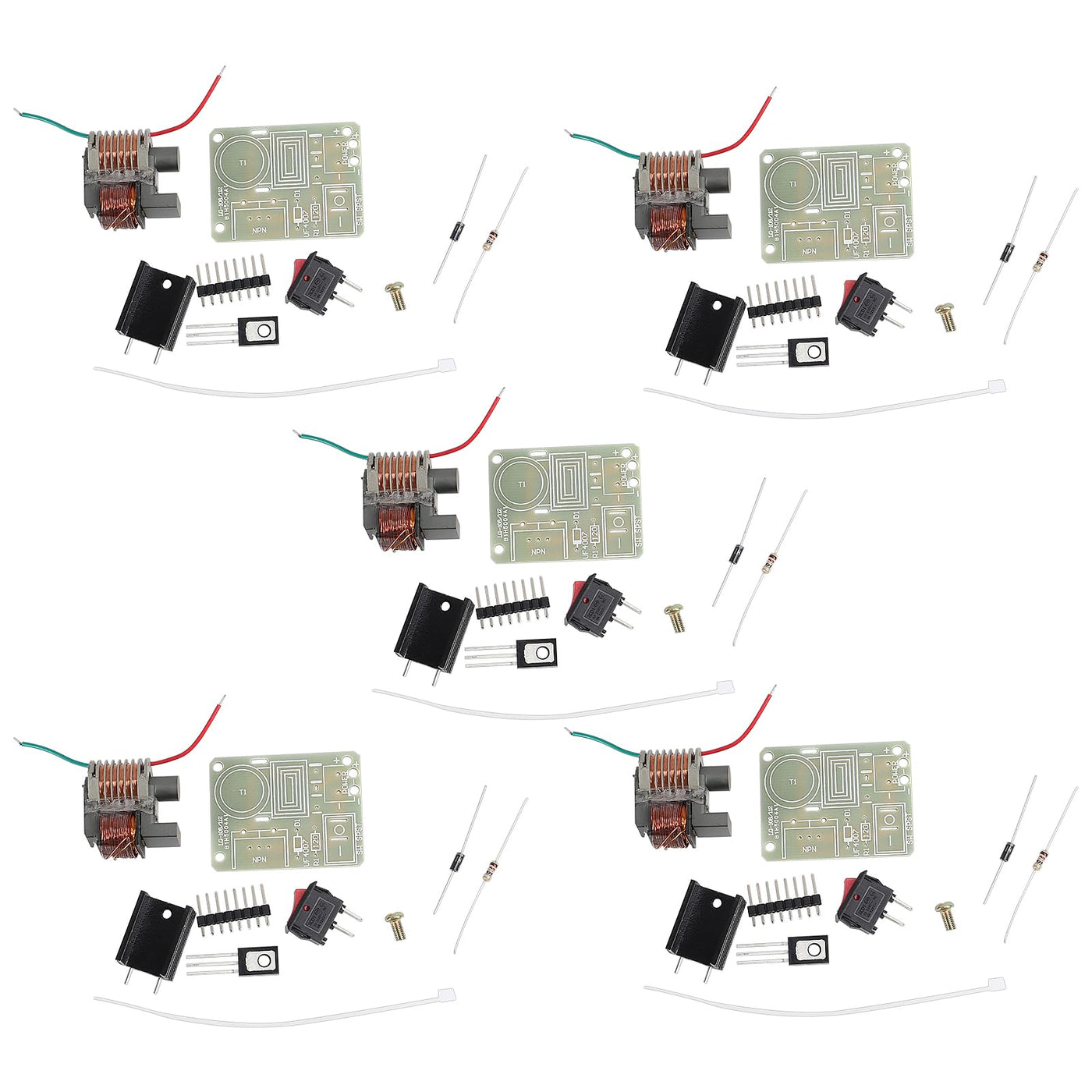

Aediko 5 Sets High Voltage Generator 15Kv High Voltage Generator Inverter Arc Igniter Coil Module Disassembled Parts (5 Sets)

Frequently Asked Questions

• Q: What is the output voltage of the AEDIKO High Voltage Generator? A: The output voltage is fifteen thousand volts AC. This high voltage is crucial for applications such as igniting combustibles.
• Q: What input voltage does the AEDIKO High Voltage Generator require? A: It requires an input voltage of three point seven to four point two volts DC. This makes it suitable for various electronic setups.

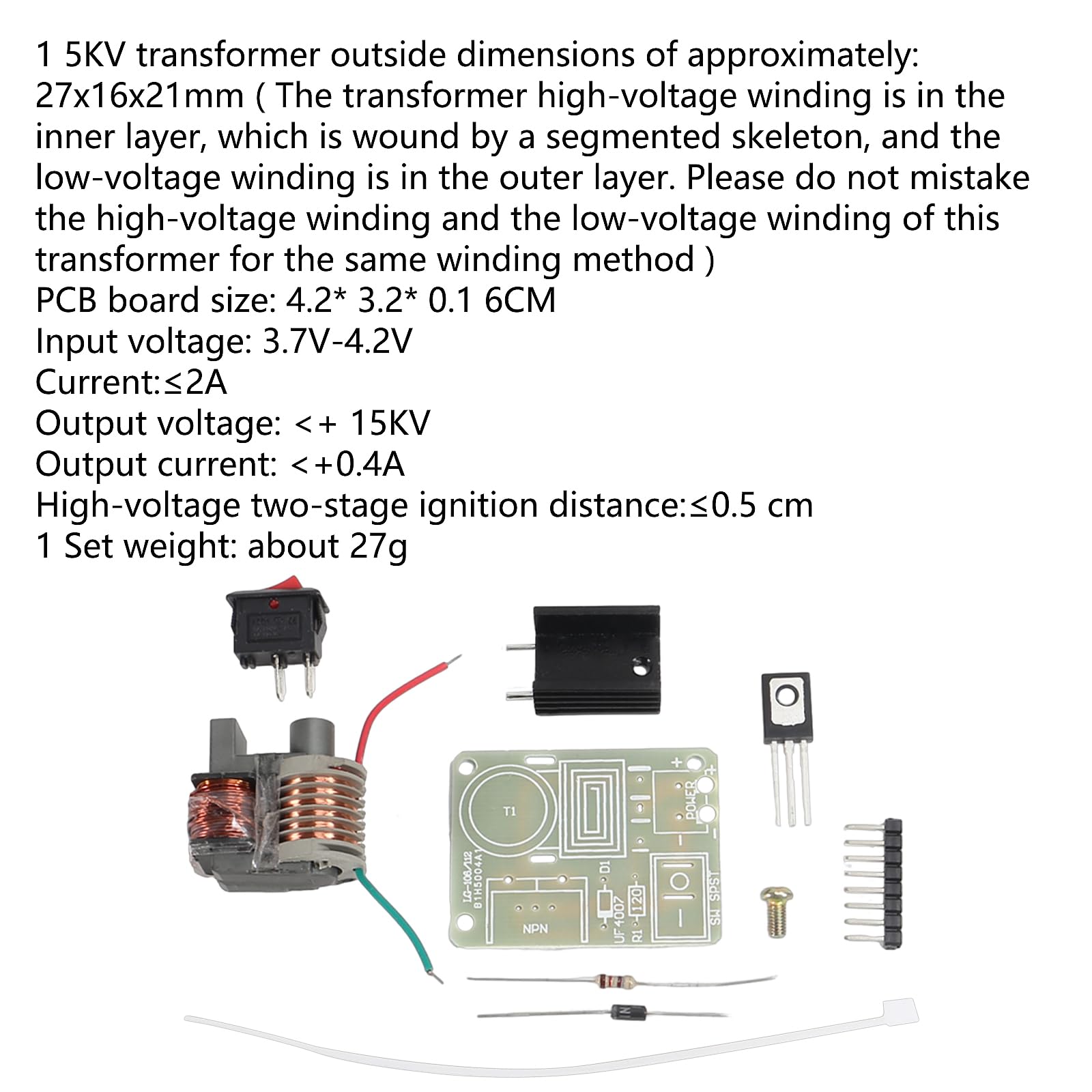

• Q: What components are included in the AEDIKO High Voltage Generator kit? A: The kit includes a printed circuit board, a one hundred twenty ohm resistor, an ultra-fast recovery diode, a transistor, heat sink, screws, a boat switch, and an eight pin header. These components are essential for the assembly of the generator.

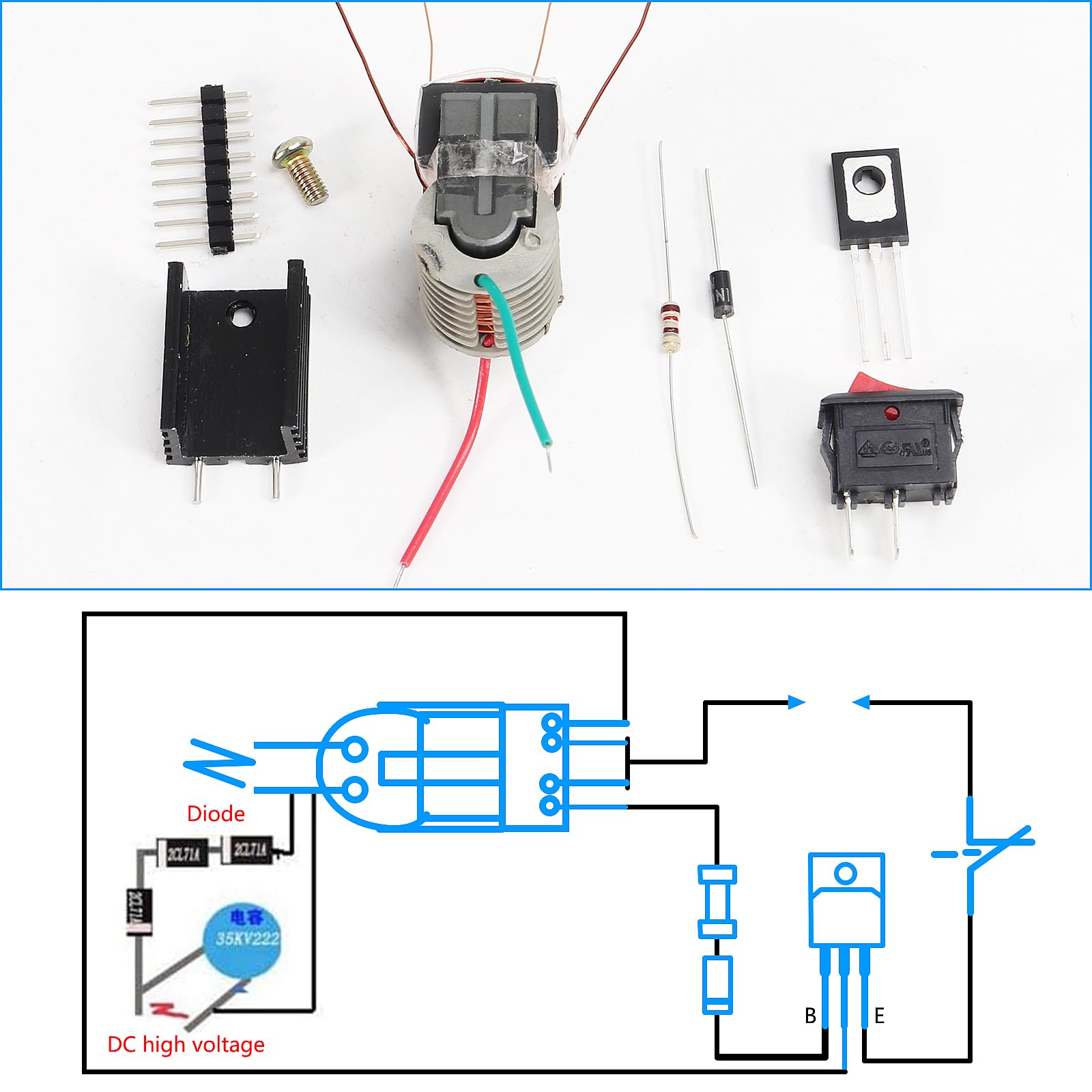

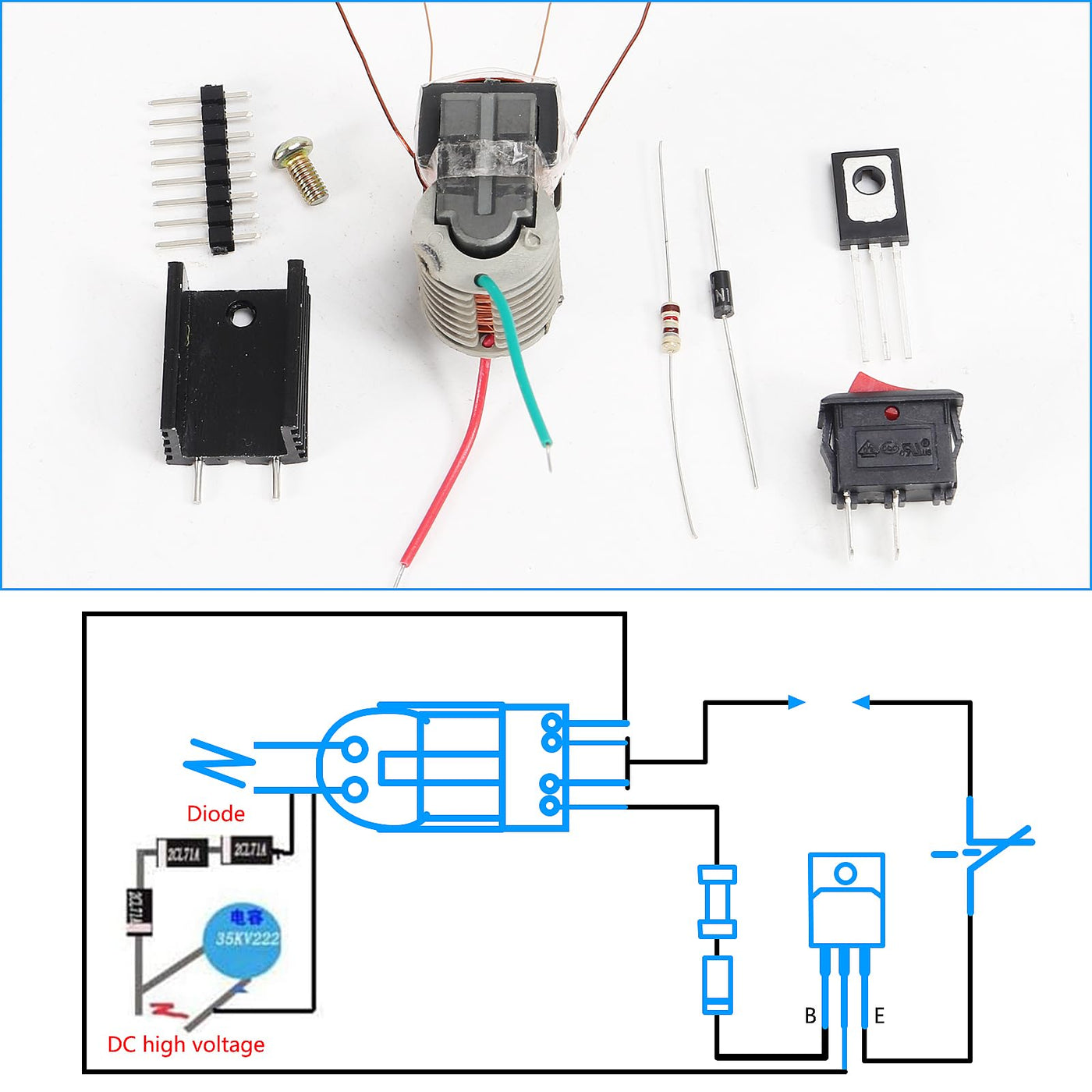

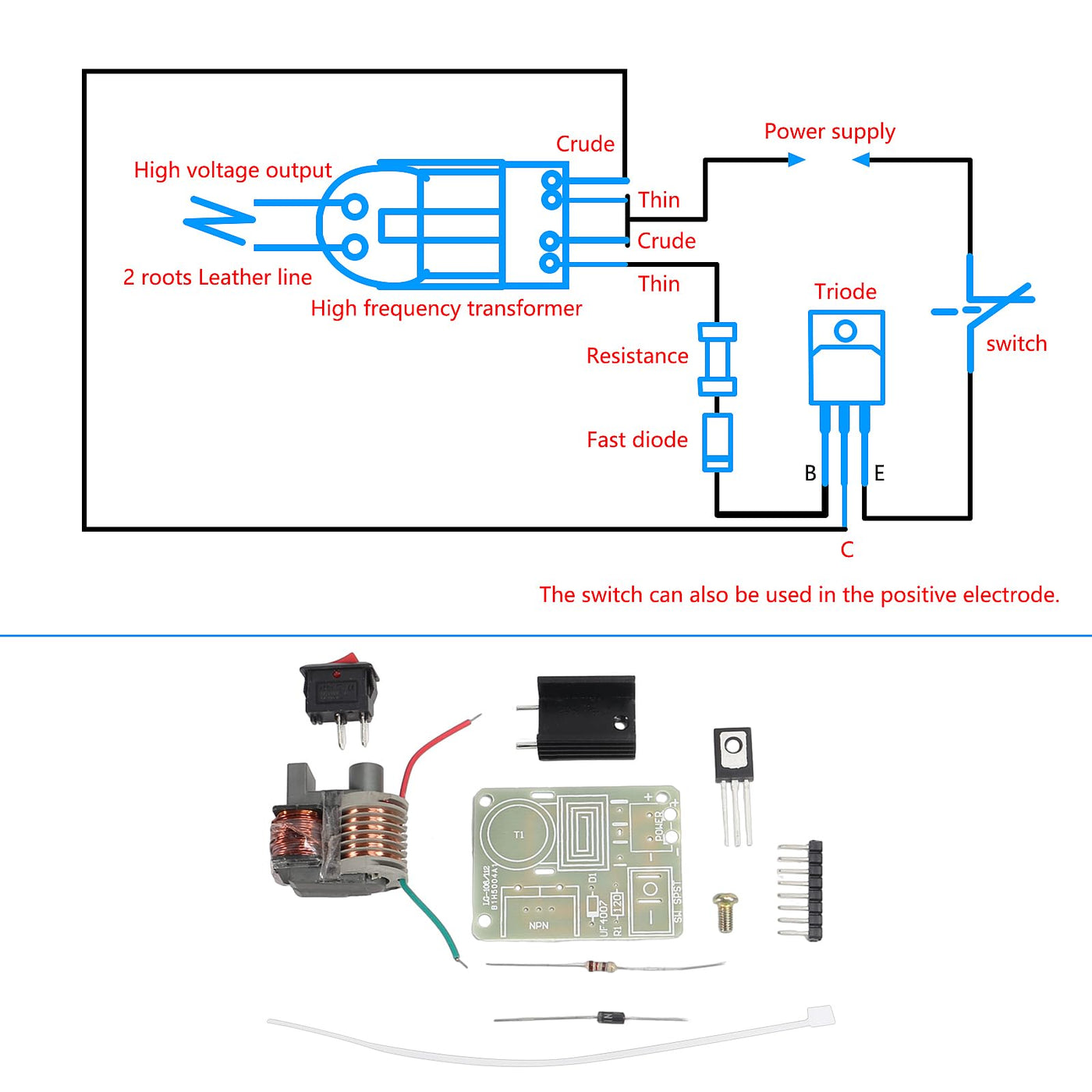

• Q: How do you assemble the AEDIKO High Voltage Generator? A: To assemble, follow the provided professional circuit diagram carefully. Ensure all connections are secure and that the transformer is potted with epoxy after production for longevity.
• Q: What is the maximum output current of the AEDIKO High Voltage Generator? A: The maximum output current is less than zero point four amps. This specification ensures safety while achieving the desired high voltage.
• Q: What types of experiments can the AEDIKO High Voltage Generator be used for? A: It is widely used for experiments in electronic instruments, negative ion generators, and scientific small production. Its ability to create a stable high-frequency arc makes it ideal for various applications.

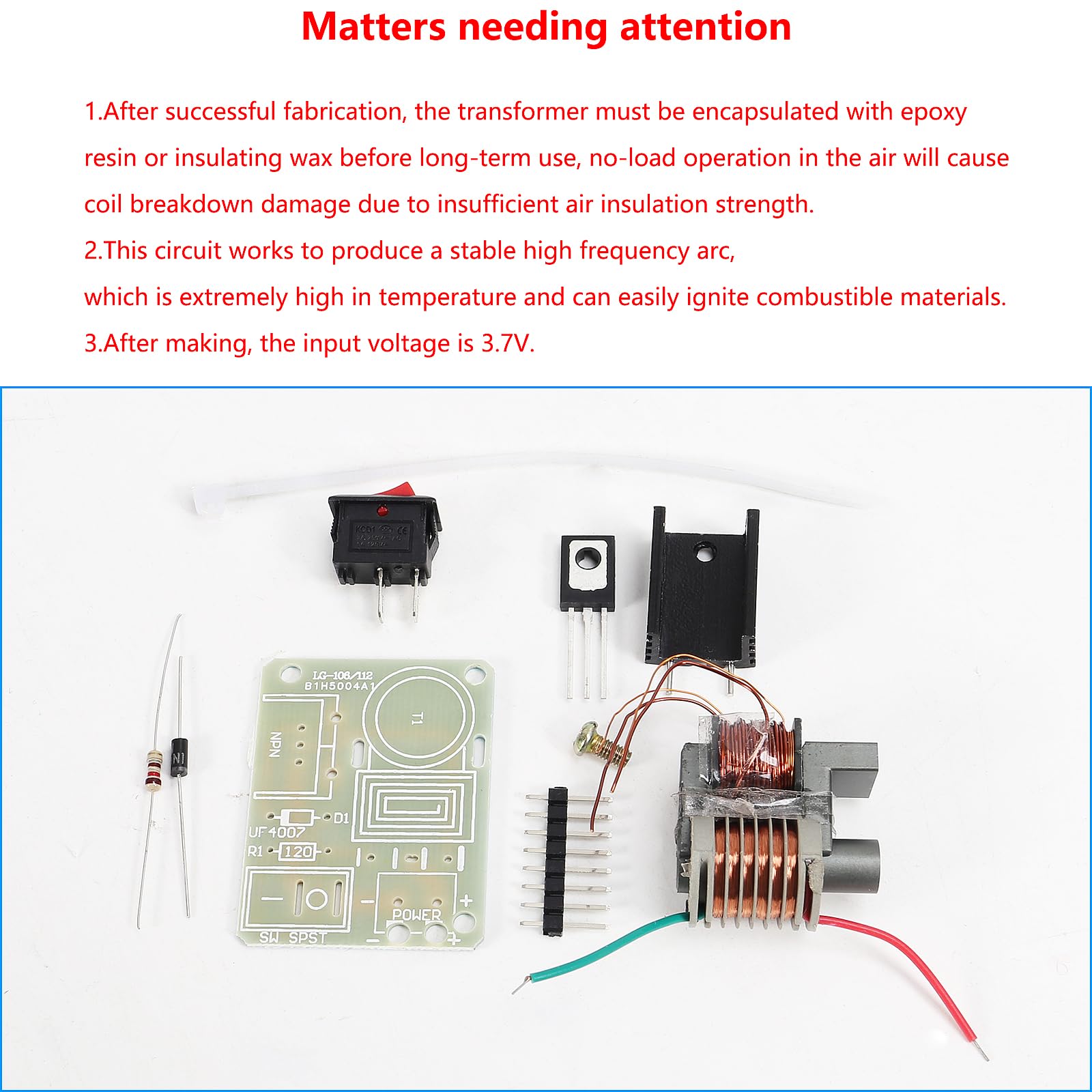

• Q: How should you maintain the AEDIKO High Voltage Generator? A: Keep it stored in a dry place and pot the transformer with epoxy or insulating wax after use. This protects the components and ensures safe operation.
• Q: Is the AEDIKO High Voltage Generator suitable for beginners? A: Yes, but it is recommended for electronics enthusiasts who are comfortable with circuit assembly. Proper understanding of high voltage safety is essential.
• Q: What precautions should be taken when using the AEDIKO High Voltage Generator? A: Always scrape off the coating from the welded portion before soldering. This ensures a good connection and prevents damage to the transformer.
• Q: Can the AEDIKO High Voltage Generator ignite combustibles? A: Yes, it can easily ignite combustibles due to the extremely high temperature of the arc produced. This feature is why it is referred to as a plasma lighter.
• Q: What is the transformer structure in the AEDIKO High Voltage Generator? A: The transformer contains two primary windings, feedback windings, and high voltage secondary outputs. This structure is designed for large output capabilities.
• Q: How do you ensure the AEDIKO High Voltage Generator operates safely? A: Ensure that the output voltage does not exceed fifteen thousand volts, as higher outputs may damage the transformer. Always follow the safety instructions provided.
• Q: What is the brand and model of this High Voltage Generator? A: The brand is AEDIKO and the model number is fourteen thousand nine hundred sixty-nine. This model is specifically designed for high voltage applications.
• Q: What materials are used in the AEDIKO High Voltage Generator? A: The main materials include electronic components such as resistors, diodes, and transistors, which are common in high voltage circuits. The PCB board is also a critical component.
• Q: Is there a warranty on the AEDIKO High Voltage Generator? A: Warranty details may vary, so it is best to check with the manufacturer or retailer. Typically, electronics come with a limited warranty for defects.
