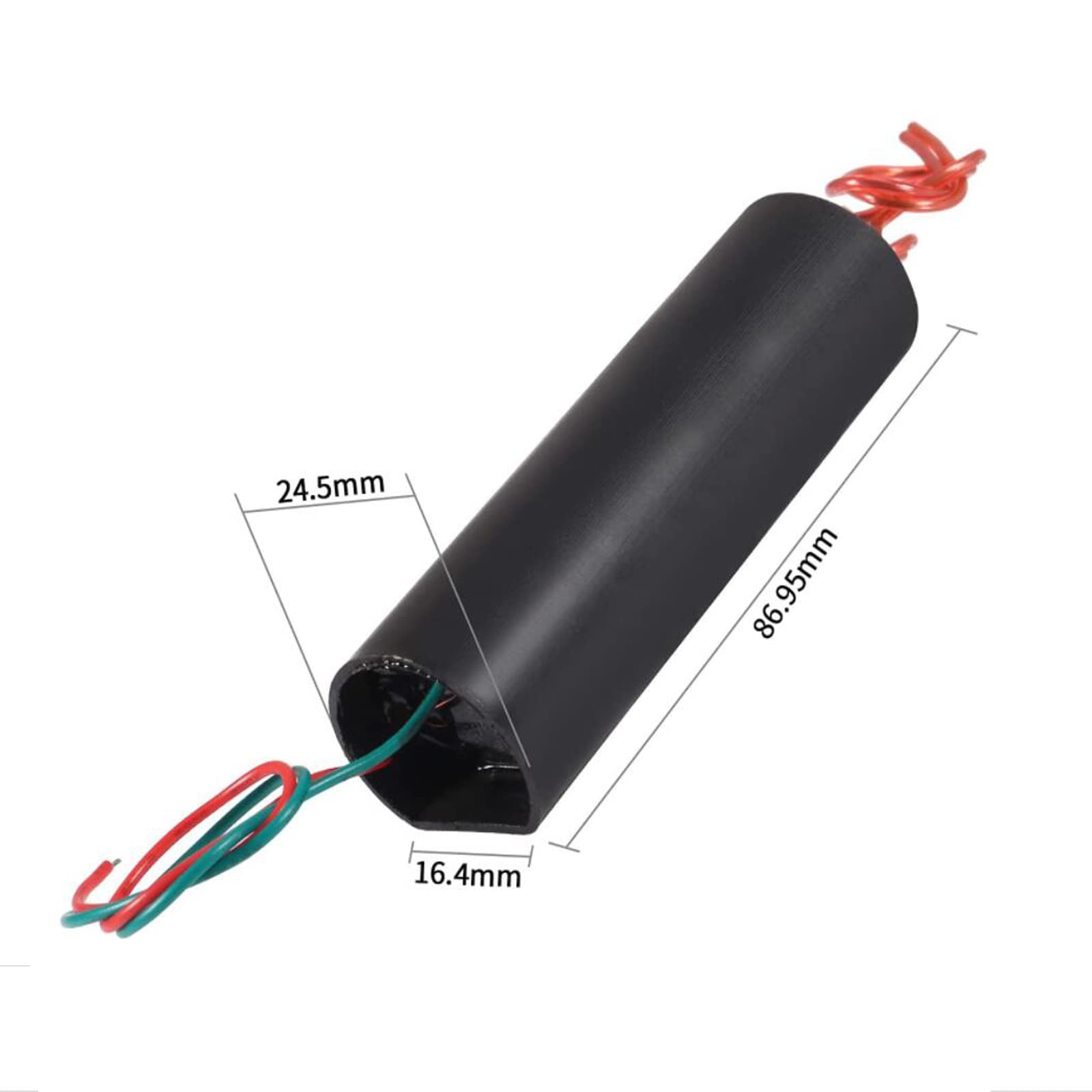

Specification: Input Voltage: 6V~12V Dc Input Current: 0.5A~2A (Related To Voltage) Output Current: 0.5A High Voltage Type: Dc Type Output Voltage: About 80Kv(Pay Attention To Safety When Working) Input Cable Length: About 80Mm(Red Is Positive,Green Is Negative) Output Cable Length: About 80Mm High Voltage Generator Size: 65*24*22Mm/2.6*0.9*0.8Inch High Voltage Poles Ignition Distance: =1.5Cm(Maximum Distance:1.5Cm, Best Distance:1Cm) Package Contents: 5X High Voltage Generator Note: 1. Output Cable Should Be Adjusted Properly Before Power On, And The Arc Distance Depends On The Voltage And Capacity Of Battery 2. The Arc Distance Should From Short To Long, Do Not Produce A Longest Arc At First,Otherwise The Module Might Be Damaged 3. The Way To Judge A Battery Capacity Is Enough To Output Maximum Power Is To Measure The Battery Voltage When Producing Arc. If The Measured Voltage Is About 6V, Then It Can Produce Maximum Power. Recommended Battery Capacity Is Above 2000Ma Or Above 4000Ma If Possible. 4.Adjust The Output Spacing Before Use, The Use Spacing Should Be Within 1.5Cm (Test A Small Distance At The First Use, Such As 1Cm And Increase Slowly), The Output Does Not Short-Circuit And Does Not Exceed The Maximum Arc Distance, Intermittent Work, It Is Best To Power On Within 5 Seconds Each Time
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the AEDIKO High Voltage Generator?A: The dimensions are two point six inches in length, zero point nine inches in width, and zero point eight inches in height.
Q: What is the input voltage range for this generator?A: The input voltage range is six volts to twelve volts DC.
Q: What is the output voltage of the AEDIKO generator?A: The output voltage is about eighty thousand volts.
Q: How long are the input and output cables?A: Both the input and output cables are approximately three point one inches long.
Q: What is the maximum output current for this product?A: The maximum output current is zero point five amps.
Q: Can this generator be used for science experiments?A: Yes, it is suitable for student science experiments and various electronic applications.
Q: How do I connect the AEDIKO High Voltage Generator?A: Simply connect the input cable to a switch and battery, and the output cable is ready for use.
Q: Is there a recommended battery capacity for optimal performance?A: Yes, a battery capacity of at least two thousand milliamp hours is recommended for maximum power.
Q: What safety precautions should I take while using this generator?A: Always adjust the output spacing and start with a short arc distance to prevent damage.
Q: How should I store the AEDIKO generator?A: Store in a dry, cool place away from direct sunlight and moisture.
Q: Is it safe for beginners to use this generator?A: Yes, but beginners should follow all safety guidelines and start with shorter arc distances.
Q: What if the generator arrives damaged?A: If the generator arrives damaged, contact customer support for assistance with returns or exchanges.
Q: Does the generator come with a warranty?A: Yes, it typically comes with a manufacturer's warranty; check the packaging for details.
Q: How do I troubleshoot if the generator does not work?A: Check the connections and ensure the battery voltage is sufficient; if problems persist, consult the manual.
Q: What materials are used in the AEDIKO generator?A: The generator is made using high-voltage transformer technology and electronic components.
