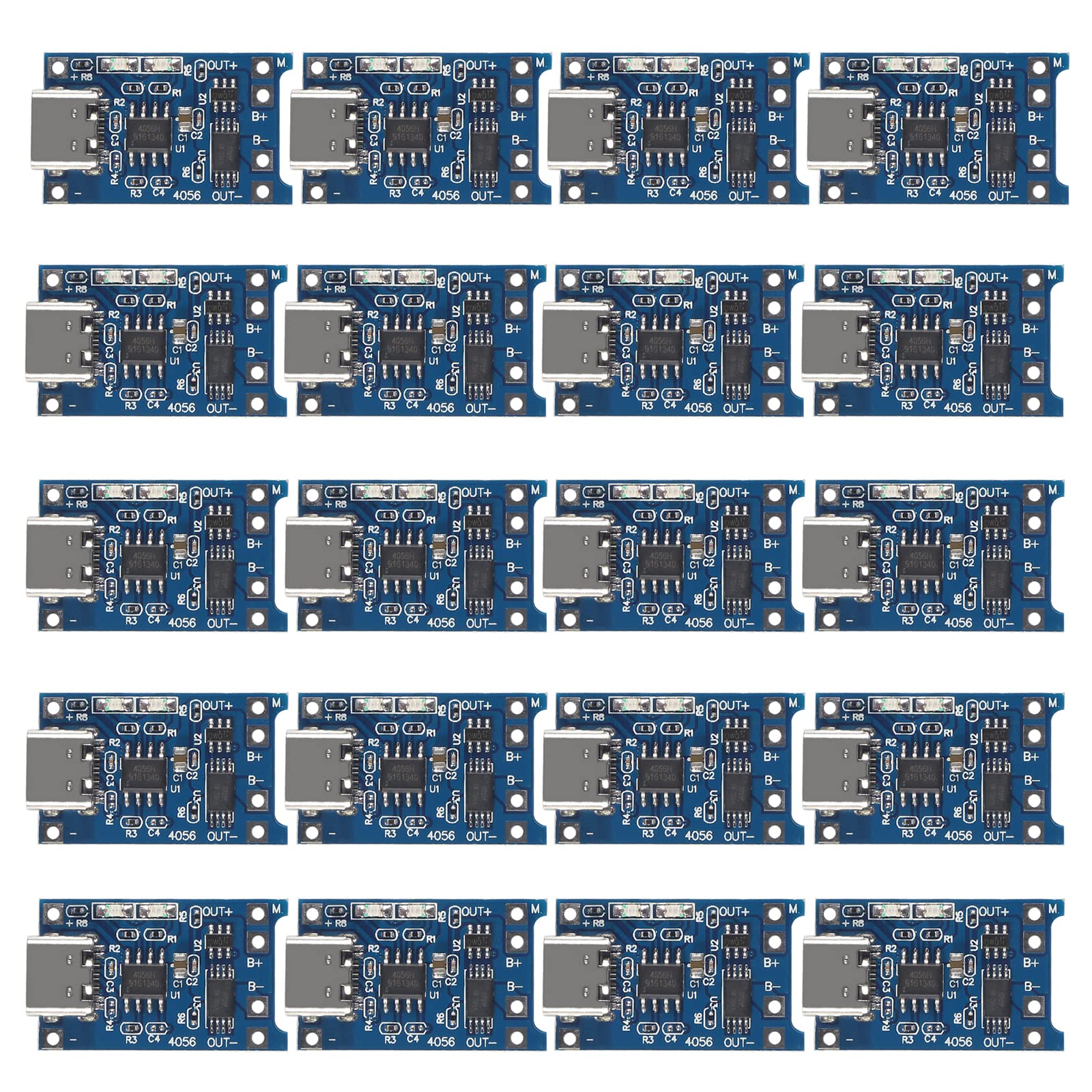

Aediko 20Pcs Tp4056 Type C Usb 5V 1A 18650 Lithium Battery Charger Module Li Ion Charging Board Tc4056A With Dual Protection Fun

Frequently Asked Questions

• Q: What are the dimensions of the AEDIKO TP4056 charger module? A: The AEDIKO TP4056 charger module measures one point zero two inches in length, zero point six five inches in width, and zero point two inches in height.
• Q: What type of input does the charger module use? A: The charger module uses a Type-C USB input interface, which allows for convenient connection and charging.
• Q: What is the maximum charging current output of the charger? A: The maximum charging current output is one thousand milliamps, ensuring efficient charging for your lithium batteries.
• Q: What voltage range does the charger support? A: The charger operates within an input voltage range of four point three five to six volts, with a recommended voltage of five volts.
• Q: How does the dual protection function work? A: The dual protection function includes overcharge and discharge protection, safeguarding your lithium batteries from damage.
• Q: How do I activate the charger for the first time? A: To activate the charger, connect it to a five volt power source if there is no output voltage when a battery is connected.
• Q: Can I use a mobile phone charger with this module? A: Yes, you can use a mobile phone charger, but ensure it has an output of one ampere or above for optimal performance.
• Q: How should I store the charger module? A: Store the charger module in a cool, dry place away from direct sunlight to maintain its longevity and functionality.
• Q: What is the overcharge protection voltage? A: The overcharge protection voltage is set at four point two eight volts, preventing battery overcharging.
• Q: What should I do if the charger arrives damaged? A: If the charger arrives damaged, contact customer support for assistance with returns or exchanges.
• Q: How do I ensure safe use of the charger? A: To ensure safe use, always adhere to the recommended voltage and current specifications, and check for any visible damage before use.
• Q: Is the charger suitable for DIY projects? A: Yes, the charger is designed with solder joints for input voltage wiring, making it convenient for DIY projects.
• Q: What happens if the output light does not turn on? A: If the output light does not turn on, it may indicate a lack of battery activation; try connecting a five volt charger to activate.
• Q: How can I tell when the battery is fully charged? A: The charger features a green light indicator that shows when the battery is fully charged, while a red light indicates recharging.
• Q: What is the discharge protection voltage of the module? A: The battery discharge protection voltage is three volts, which helps prevent battery damage from excessive discharge.
