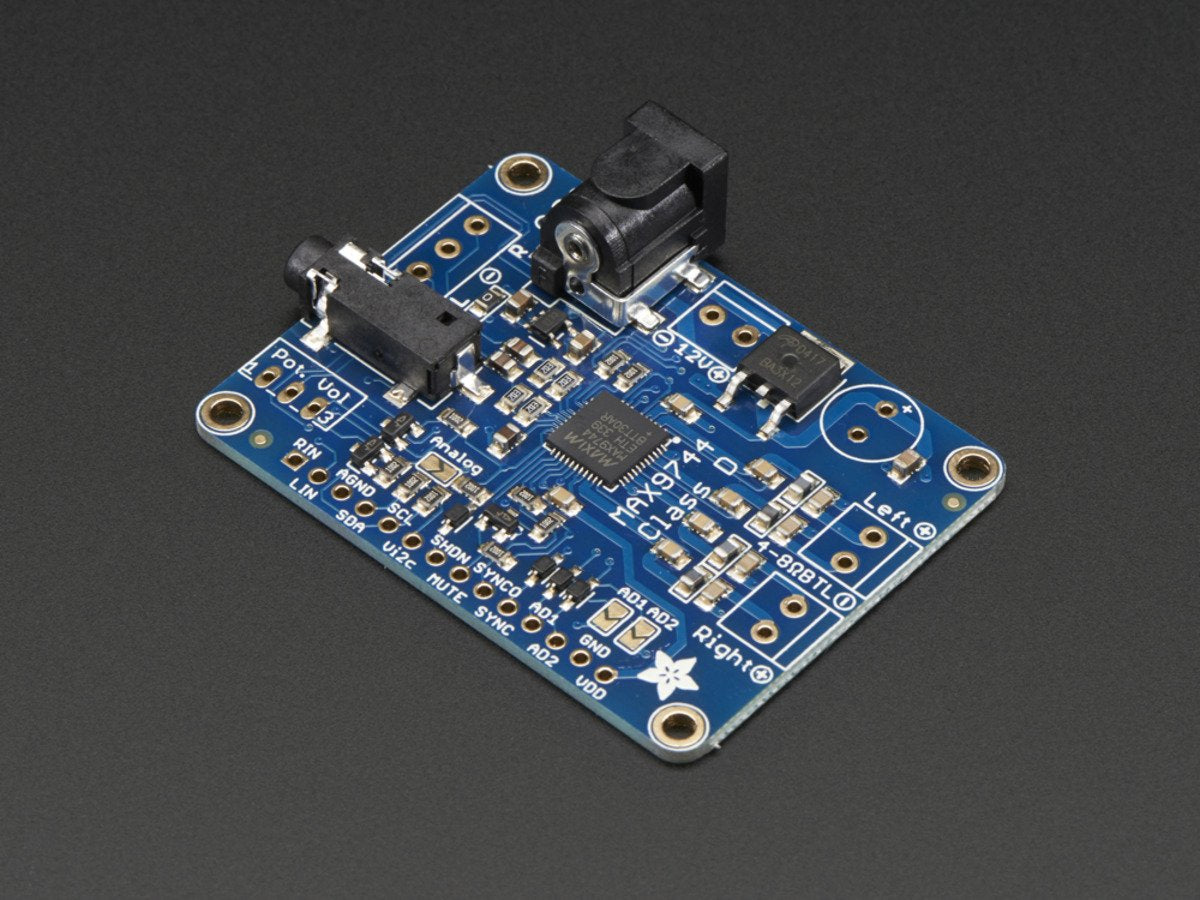

Adafruit Stereo 20W Class D Audio Amplifier - Max9744

Frequently Asked Questions

• Q: What are the dimensions of the Adafruit 1752 development board? A: The dimensions are one point six one inches in length, two point one three inches in width, and zero point zero eight inches in height.
• Q: What type of amplifier is the Adafruit 1752? A: This is a class D amplifier, which is known for its high efficiency and low heat generation.
• Q: What is the weight of the Adafruit 1752 development board? A: The board weighs eleven grams, making it lightweight and suitable for portable applications.
• Q: How do I power the Adafruit 1752 amplifier? A: You can power it with a direct current voltage between five and twelve volts using the onboard DC power jack.

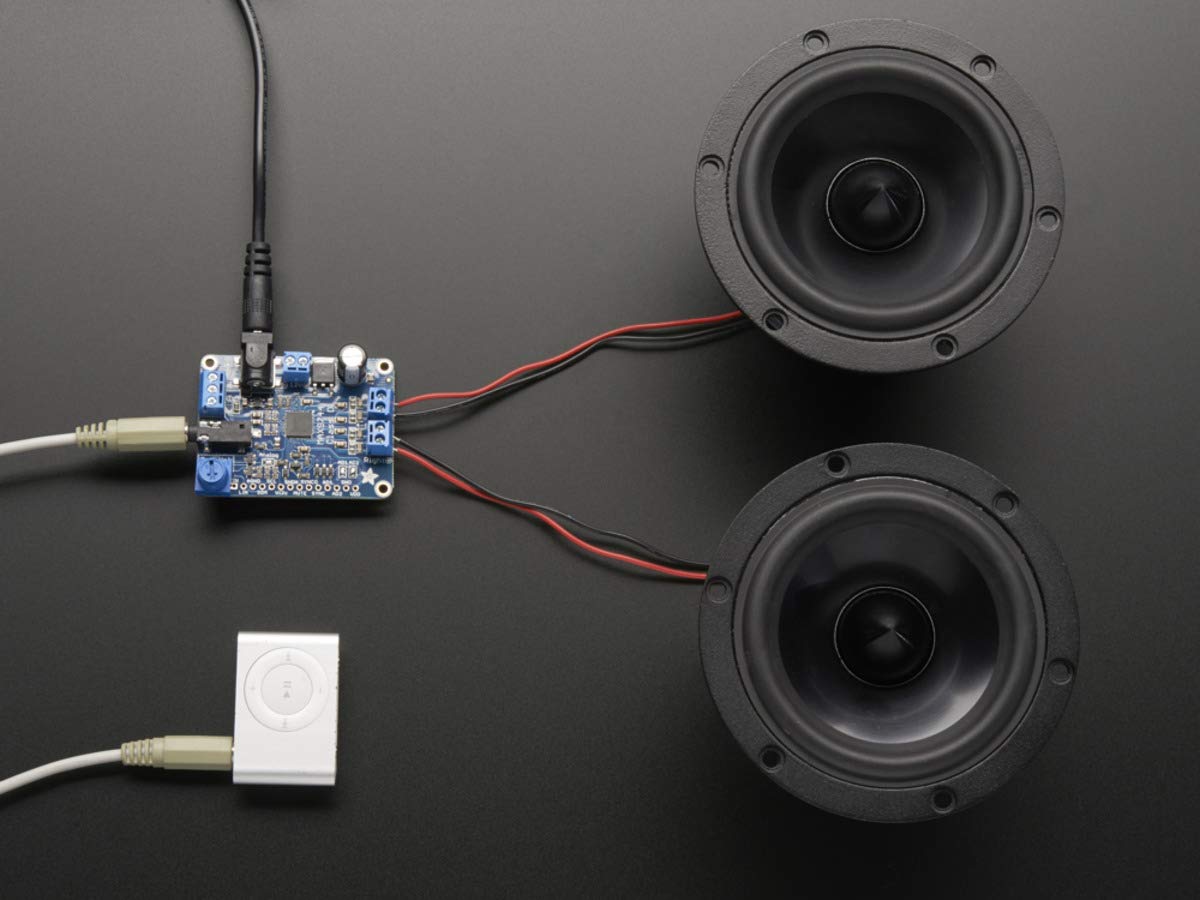

• Q: Can I connect different types of speakers to the Adafruit 1752? A: Yes, it can drive two channels of speakers with an impedance of four to eight ohms at twenty watts each.
• Q: What is the maximum gain of the Adafruit 1752 amplifier? A: The maximum gain is up to twenty-nine point five decibels, allowing for significant amplification of audio signals.
• Q: How do I use the Adafruit 1752 amplifier? A: You need to connect your audio source to the three point five millimeter stereo headphone jack and power the board appropriately.

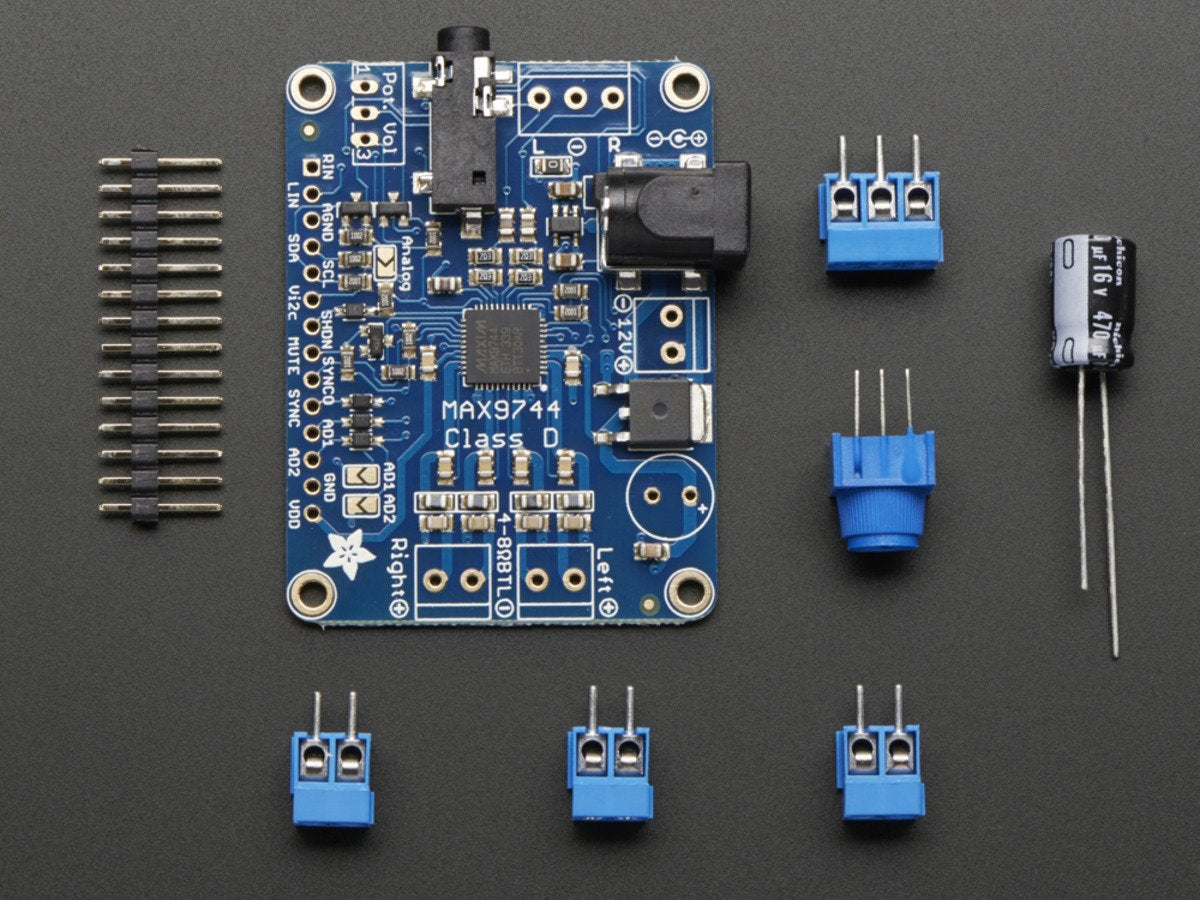

• Q: Is the Adafruit 1752 suitable for beginners? A: Yes, it is designed to be user-friendly, but some soldering is required to attach terminal blocks and components.

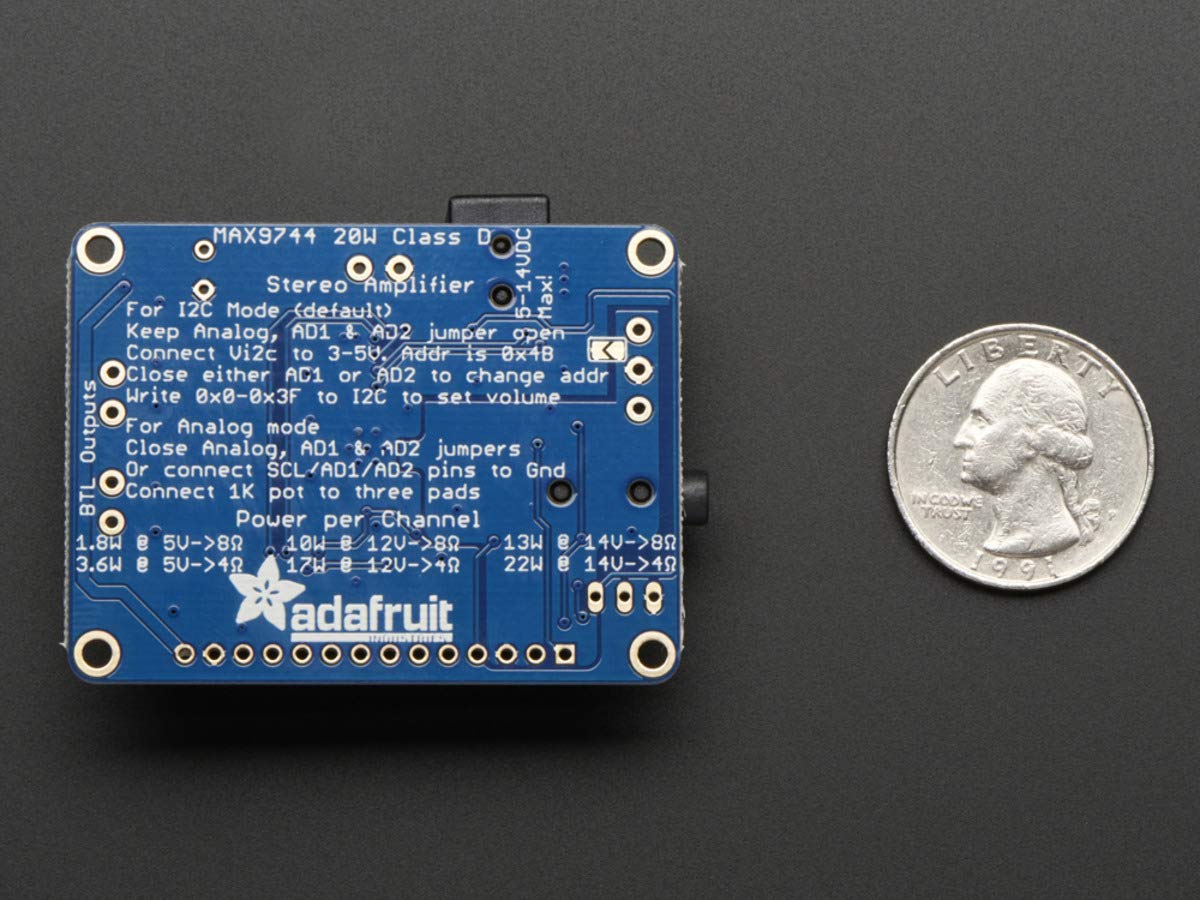

• Q: Can I control the volume digitally on the Adafruit 1752? A: Yes, the amplifier allows for both analog and digital volume control using I2C commands for precise adjustments.
• Q: What kind of speakers can I use with the Adafruit 1752? A: You can use speakers with an impedance of four to eight ohms, which are common for most audio applications.
• Q: Does the Adafruit 1752 have any safety features? A: Yes, it includes short-circuit and thermal-overload protection to ensure safe operation during use.
• Q: How should I store the Adafruit 1752 amplifier? A: Store it in a dry, cool environment and ensure it is disconnected from power sources to prevent damage.
• Q: What should I do if my Adafruit 1752 arrives damaged? A: Contact the supplier for support and initiate a return or exchange process if the product is damaged upon arrival.
• Q: Can I use the Adafruit 1752 for battery-powered applications? A: Yes, its high efficiency makes it ideal for use in portable or battery-powered setups.
• Q: Is soldering required for the Adafruit 1752? A: Yes, a little soldering is necessary to attach terminal blocks and other components, which should take less than fifteen minutes.
• Q: What is the current consumption of the Adafruit 1752? A: The amplifier has a quiescent current of twenty milliamps, or one microamp if put into shutdown mode.
