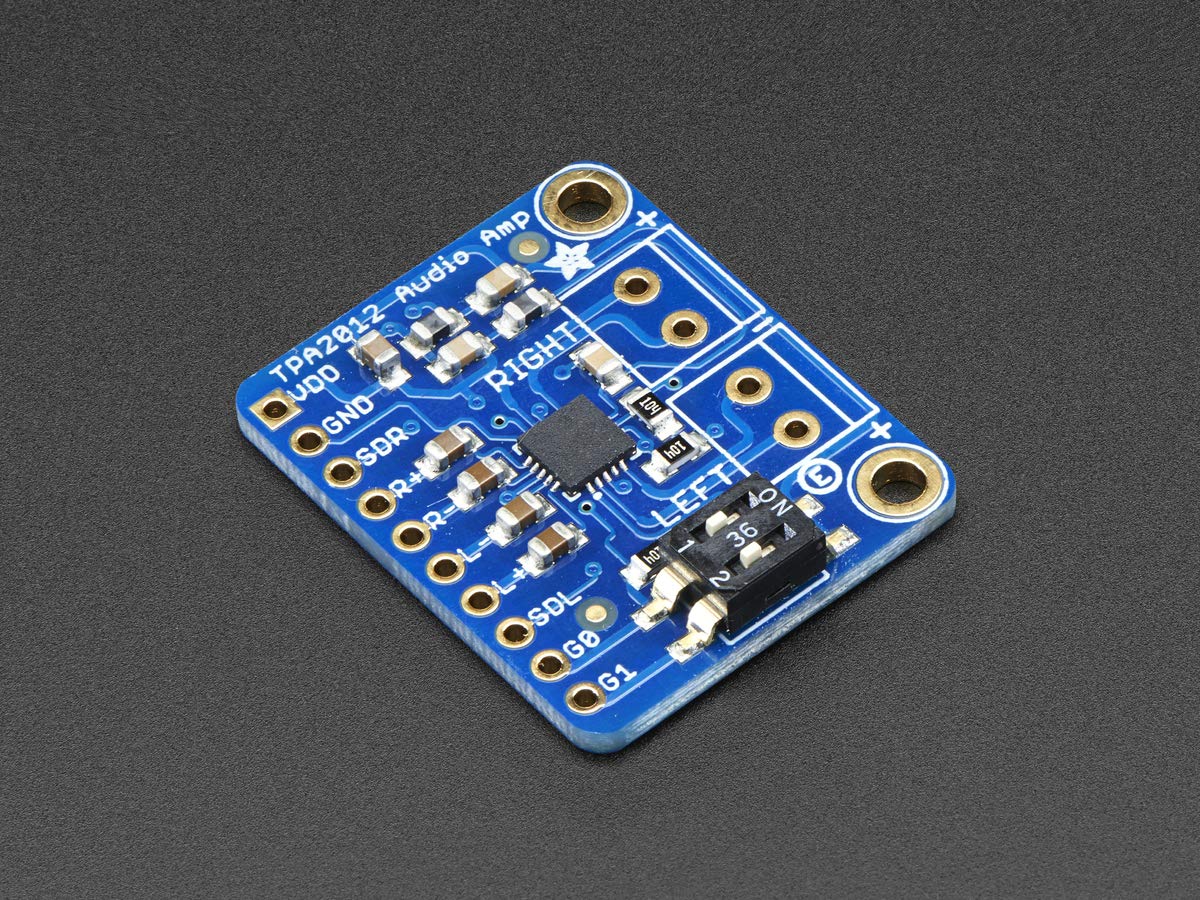

Adafruit Stereo 2.1W Class D Audio Amplifier Tpa2012

Frequently Asked Questions

• Q: What are the dimensions of the Adafruit Stereo 2.1W Class D Audio Amplifier? A: The amplifier measures three inches long, two inches wide, and one inch high. This compact size makes it ideal for portable projects.
• Q: What is the output power of this audio amplifier? A: The amplifier delivers two point one watts at four ohms with ten percent total harmonic distortion. It also provides one point four watts at eight ohms under the same conditions.

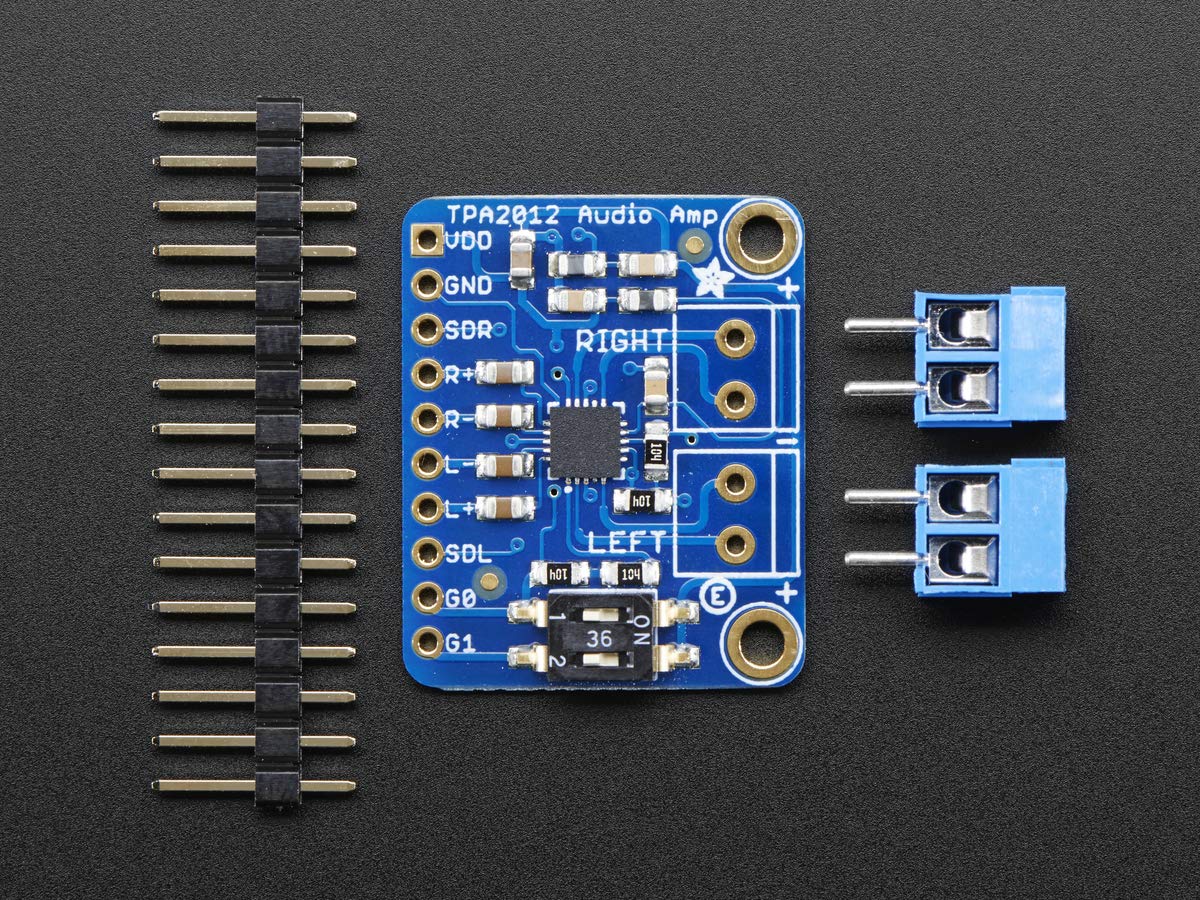

• Q: What type of components are included with the amplifier? A: The product comes fully assembled with one microfarad input capacitors and a dual mini DIP switch for gain adjustments. It also includes three point five millimeter screw-terminal blocks for easy speaker connections.

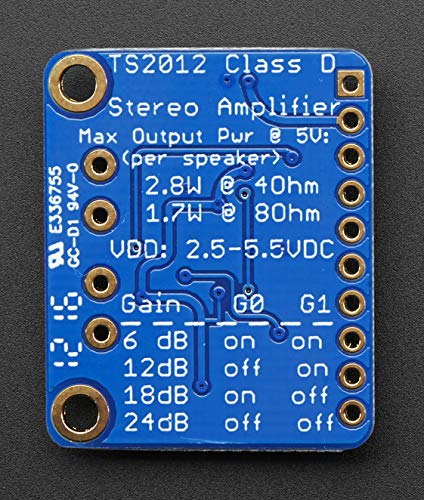

• Q: How do I set the gain on the Adafruit amplifier? A: You can set the gain using the onboard switches or by configuring the G0 and G1 breakout pins. The amplifier offers selectable gains of six decibels, twelve decibels, eighteen decibels, and twenty-four decibels.
• Q: Can I use this amplifier with any speaker? A: Yes, you can use the amplifier with any four ohm or eight ohm impedance speakers. However, ensure the speakers are compatible to avoid damage.

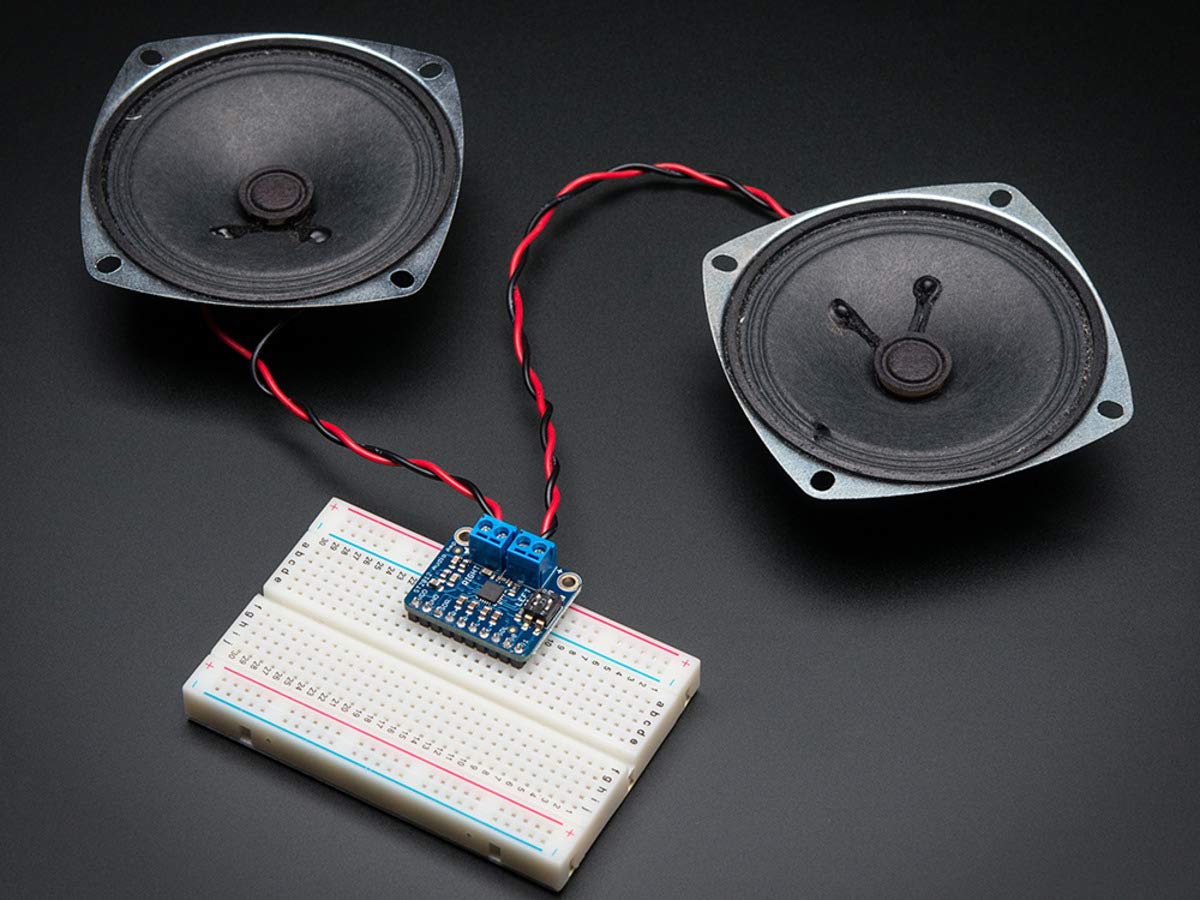

• Q: How do I connect the amplifier to my speakers? A: You can connect your speakers using the included three point five millimeter screw-terminal blocks. This allows for easy attachment and detachment of your speakers.
• Q: What is the recommended voltage for this amplifier? A: The amplifier is designed to operate within a voltage range of two point seven volts to five point five volts DC. This versatility makes it suitable for battery-powered projects.
• Q: How do I ensure the amplifier stays cool during operation? A: The amplifier features built-in thermal shutdown protection. This ensures it does not overheat during use, even in demanding conditions.
• Q: Is there any risk of damaging the amplifier by connecting it to another amplifier? A: Yes, you should not connect this amplifier's output to another amplifier. The output is designed to drive speakers directly without any additional amplification.
• Q: What should I do if the amplifier doesn't power on? A: Check your power supply to ensure it falls within the two point seven volts to five point five volts range. If the issue persists, examine your connections for any loose wires.
• Q: Does the amplifier have any protection features? A: Yes, it includes thermal shutdown protection and independent channel shutdown. These features help safeguard the amplifier from potential damage.
• Q: What type of applications is this amplifier suitable for? A: This amplifier is perfect for portable and battery-powered audio projects. It can be used in small devices where space and power efficiency are important.
• Q: How efficient is the Adafruit amplifier? A: The amplifier boasts an efficiency rating of eighty-nine percent when driving an eight ohm speaker at one point five watts. This high efficiency is key for battery-operated devices.
• Q: Can I use this amplifier without an output filter? A: Yes, it is designed for use without an output filter, provided the wires are kept short, ideally under two to four inches. This design minimizes complexity in setup.
• Q: What is the typical current draw of this amplifier? A: The amplifier typically draws six milliamps when idle and only one point five microamps in shutdown mode. This low current draw enhances its suitability for battery-operated devices.
