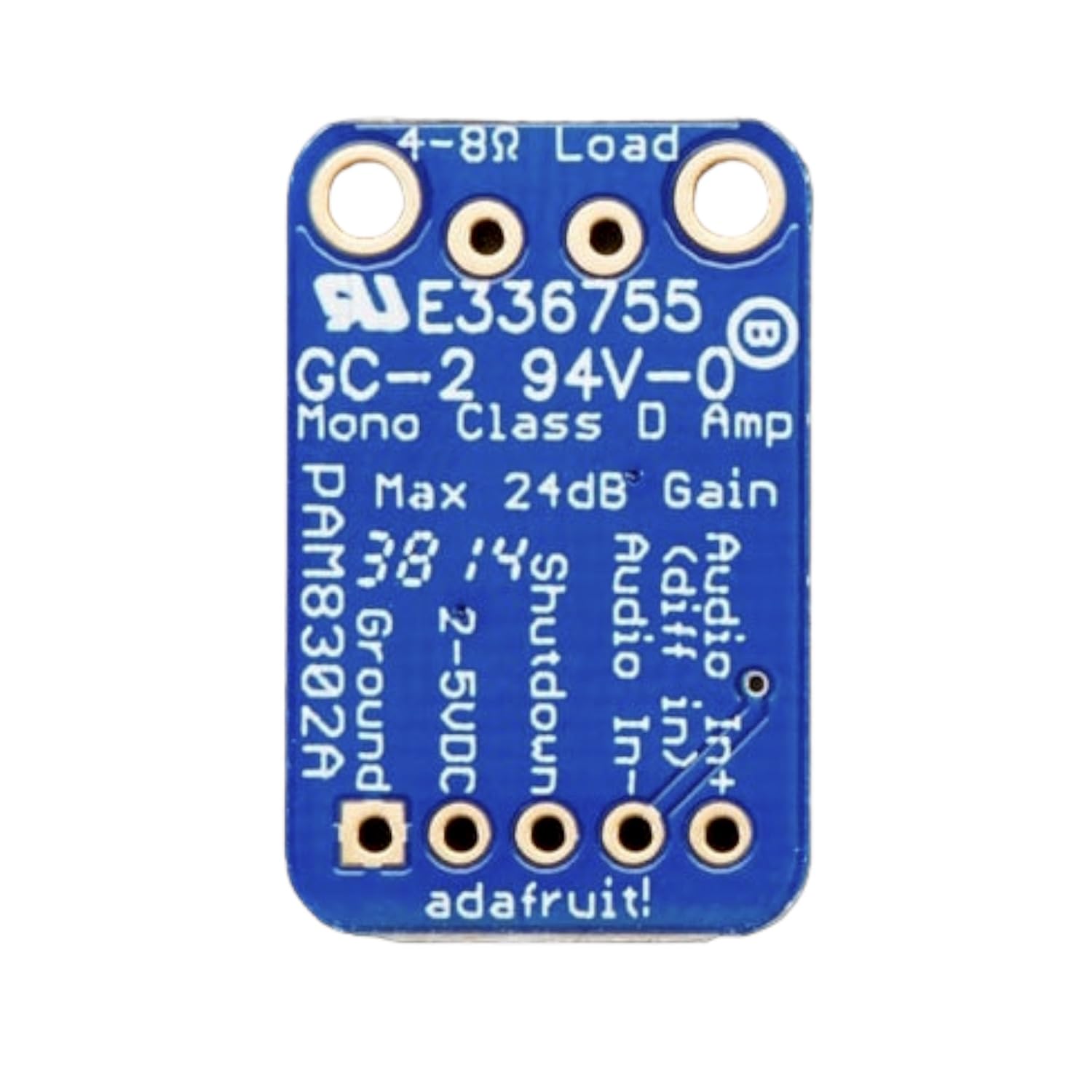

Adafruit Mono 2.5W Class D Audio Amplifier - Pam8302 [Ada2130]

Frequently Asked Questions

• Q: What are the dimensions of the Adafruit Mono 2.5W Class D Audio Amplifier? A: The amplifier measures three point five four inches in length, two point three six inches in width, and zero point three nine inches in height. Its compact size makes it ideal for projects with limited space.
• Q: What is the voltage range for the Adafruit Mono amplifier? A: The amplifier operates within a voltage range of two point zero volts to five point five volts DC. This wide range allows for versatile use in various battery-powered applications.
• Q: What type of audio amplifier is the Adafruit Mono? A: The Adafruit Mono is a Class D audio amplifier. This type is known for its high efficiency, delivering over ninety percent efficiency when driving an eight ohm speaker.

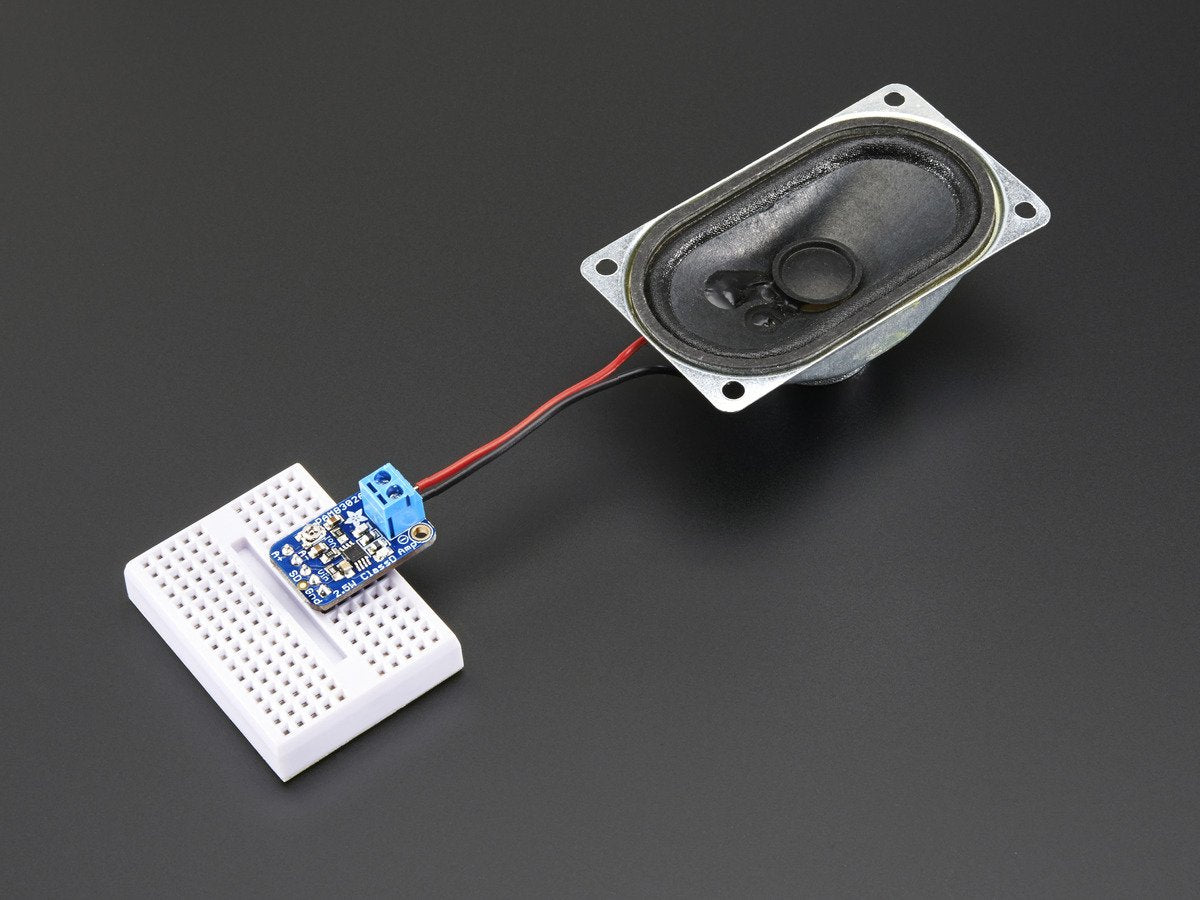

• Q: How do I connect speakers to the Adafruit amplifier? A: You can connect speakers using a three point five millimeter screw-terminal block provided with the amplifier. Ensure that the speaker impedance is four ohms or greater for optimal performance.
• Q: Can I adjust the volume of the Adafruit Mono amplifier? A: Yes, the amplifier features a volume trim pot that allows you to adjust the volume down from the default twenty-four decibels gain. This feature is handy for fine-tuning audio levels.
• Q: Is the Adafruit amplifier suitable for portable use? A: Yes, this amplifier is perfect for portable and battery-powered projects. Its high efficiency ensures long battery life while delivering good audio performance.
• Q: How should I care for the Adafruit Mono amplifier? A: To keep your amplifier in good condition, avoid exposure to moisture and extreme temperatures. Store it in a dry, cool place when not in use to prolong its lifespan.
• Q: Does the amplifier have any built-in protections? A: Yes, the Adafruit Mono amplifier has built-in thermal and over-current protection. These features help prevent damage to the amplifier during operation.
• Q: Can I use this amplifier with non-differential outputs? A: Yes, if you do not have differential outputs, you can tie the audio negative pin to ground. This allows the amplifier to function correctly with standard outputs.
• Q: What if my Adafruit amplifier arrives damaged? A: If your amplifier arrives damaged, you should contact the seller for support and replacement options. Most sellers offer a warranty and return policy for such issues.
• Q: Is assembly required for the Adafruit Mono amplifier? A: No, the amplifier comes fully assembled and tested. You can start using it right away, making it convenient for beginners and experienced users alike.
• Q: What type of projects is the Adafruit amplifier best suited for? A: This amplifier is best suited for portable audio projects, DIY electronics, and any application where space and efficiency are critical. It's an excellent upgrade from basic amplifiers like the LM386.
• Q: What is the output frequency of the Adafruit Mono amplifier? A: The output frequency of the amplifier is a high-frequency two hundred fifty kilohertz square wave PWM. This frequency is averaged out by the speaker coil, resulting in clear sound.
• Q: Can I connect multiple amplifiers together? A: No, the output of the Adafruit amplifier is designed to drive speakers directly and should not be connected to another amplifier. This ensures optimal performance and sound quality.
• Q: What type of speakers can I use with this amplifier? A: You can use any speakers with an impedance of four ohms or greater. The amplifier is capable of delivering up to two point five watts to these speakers.
• Q: Is the Adafruit Mono amplifier easy to set up? A: Yes, the amplifier is designed for quick setup. With the included header for breadboard connection, you can be ready to rock in just fifteen minutes.
