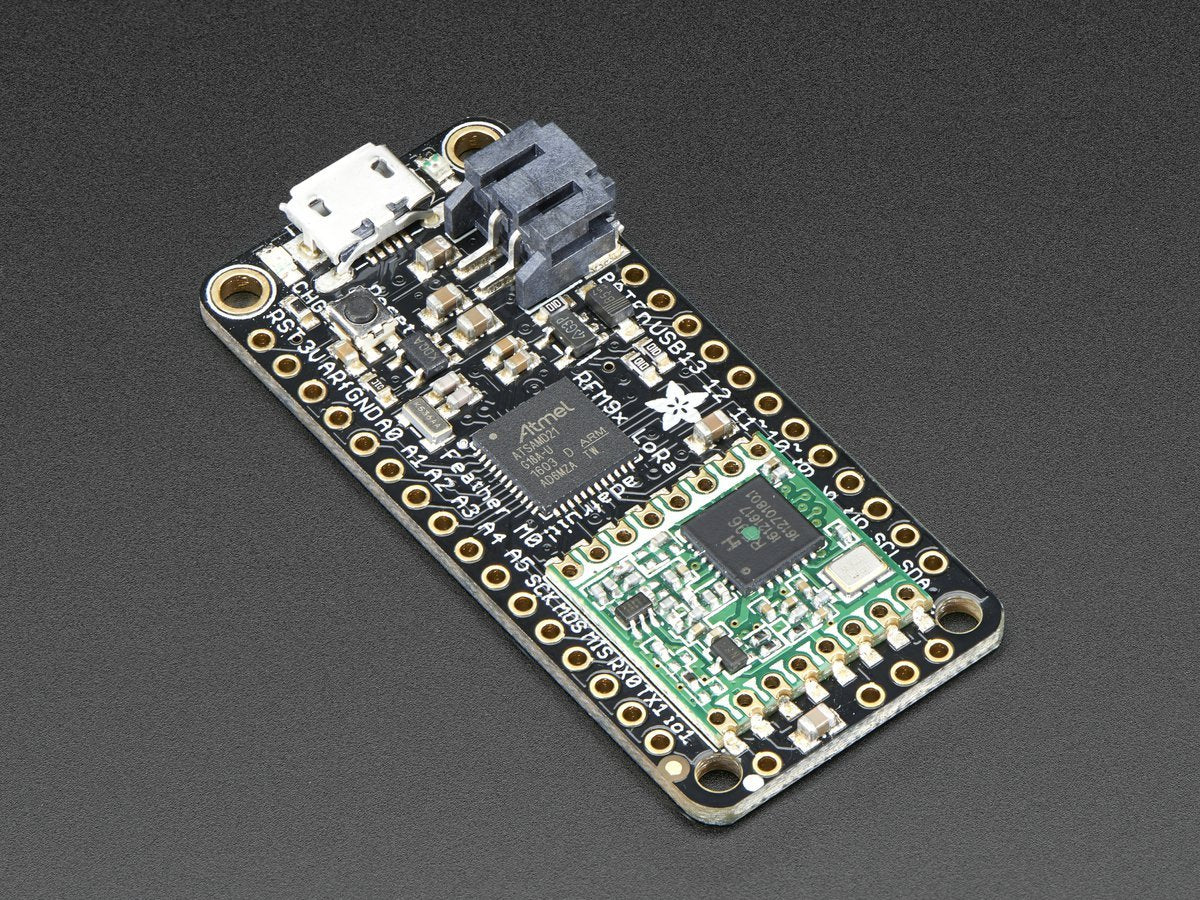

Feather Is The New Development Board From Adafruit, And Like Its Namesake It Is Thin, Light, And Lets You Fly! We Designed Feather To Be A New Standard For Portable Microcontroller Cores.This Is The Adafruit Feather M0 Rfm95 Lora Radio (900Mhz) - Our Take On An Microcontroller With A Long Range (Lora) Packet Radio Transceiver With Built In Usb And Battery Charging. Its An Adafruit Feather M0 With A 900Mhz Radio Module Cooked In! Great For Making Wireless Networks That Are More Flexible Than Bluetooth Le And Without The High Power Requirements Of Wifi. We Have Other Boards In The Feather Family, Checkem Out Here.This Is The 900 Mhz Radio Version, Which Can Be Used For Either 868Mhz Or 915Mhz Transmission/Reception - The Exact Radio Frequency Is Determined When You Load The Software Since It Can Be Tuned Around Dynamically. We Also Sell A 433Mhz Version Of The Same Radio Chipset!At The Feather M0S Heart Is An Atsamd21G18 Arm Cortex M0 Processor, Clocked At 48 Mhz And At 3.3V Logic, The Same One Used In The New Arduino Zero. This Chip Has A Whopping 256K Of Flash (8X More Than The Atmega328 Or 32U4) And 32K Of Ram (16X As Much)! This Chip Comes With Built In Usb So It Has Usb-To-Serial Program & Debug Capability Built In With No Need For An Ftdi-Like Chip.To Make It Easy To Use For Portable Projects, We Added A Connector For Any Of Our 3.7V Lithium Polymer Batteries And Built In Battery Charging. You Dont Need A Battery, It Will Run Just Fine Straight From The Micro Usb Connector. But, If You Do Have A Battery, You Can Take It On The Go, Then Plug In The Usb To Recharge. The Feather Will Automatically Switch Over To Usb Power When Its Available. We Also Tied The Battery Thru A Divider To An Analog Pin, So You Can Measure And Monitor The Battery Voltage To Detect When You Need A Recharge.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Adafruit Feather M0 Single Board Computer?A: The dimensions are two point zero one inches in length, zero point nine one inches in width, and zero point three one inches in height.
Q: What type of material is used for the Adafruit Feather M0?A: The specific material is not detailed, but it is designed for electronics applications.
Q: What is the model number of this product?A: The model number is one hundred sixty-five.
Q: How do I use the Adafruit Feather M0 Board?A: You can use it by programming it with Arduino libraries for various applications, including radio communications.
Q: Is the Adafruit Feather M0 suitable for beginners?A: Yes, it is suitable for beginners as it comes with ready-to-go Arduino libraries and examples.
Q: Can I connect antennas to the Adafruit Feather M0?A: Yes, it has a simple wire antenna option or a spot for a uFL connector.
Q: How should I care for the Adafruit Feather M0?A: Keep it in a dry environment and avoid exposure to extreme temperatures to ensure longevity.
Q: What is the power output capability of this board?A: It has selectable power output capability ranging from five to twenty dBm, up to one hundred milliwatts.
Q: Is there a warranty for the Adafruit Feather M0?A: Yes, it typically comes with a limited warranty from the manufacturer, Adafruit.
Q: What should I do if the Adafruit Feather M0 arrives damaged?A: Contact the retailer for return or exchange options if it arrives damaged.
Q: Is the Adafruit Feather M0 compatible with existing Arduino projects?A: Yes, it is compatible as it uses Arduino libraries and SPI interfaces.
Q: Can I use the Adafruit Feather M0 for outdoor projects?A: Yes, it is suitable for outdoor projects, especially with its LoRa radio capabilities.
Q: What frequency does the RFM95 LoRa radio operate on?A: The RFM95 LoRa radio operates on nine hundred megahertz frequency.
Q: Can I use different antennas with this board?A: Yes, you can use a simple wire antenna or connect a uFL antenna.
Q: What kind of applications can I build with the Adafruit Feather M0?A: You can build various applications including packet radio and IoT projects using its LoRa capabilities.
