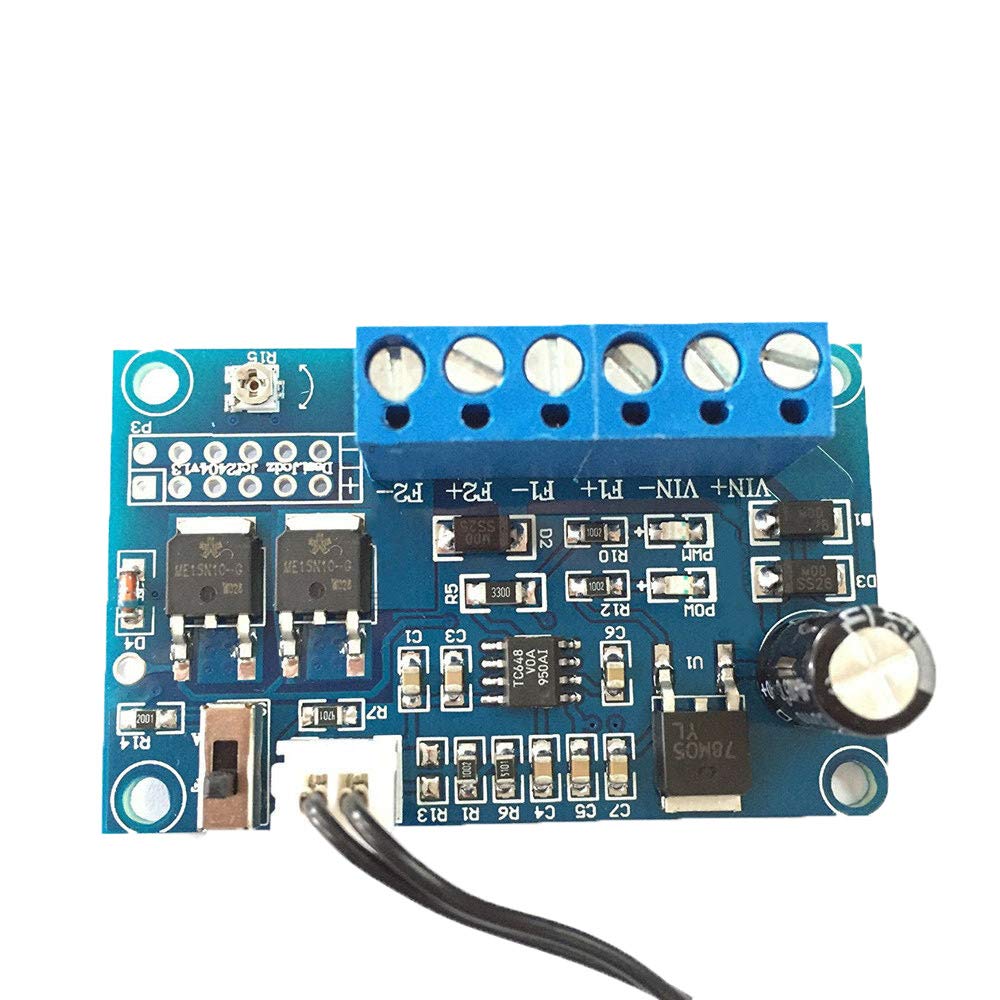

Acxico 1Pcs Dc 12V/24V 4A 2 Way Automatic Pc Cpu Fan Temperature Control Board Pwm Temperature Speed Controller Module
$13.57
Regular price
$19.39
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

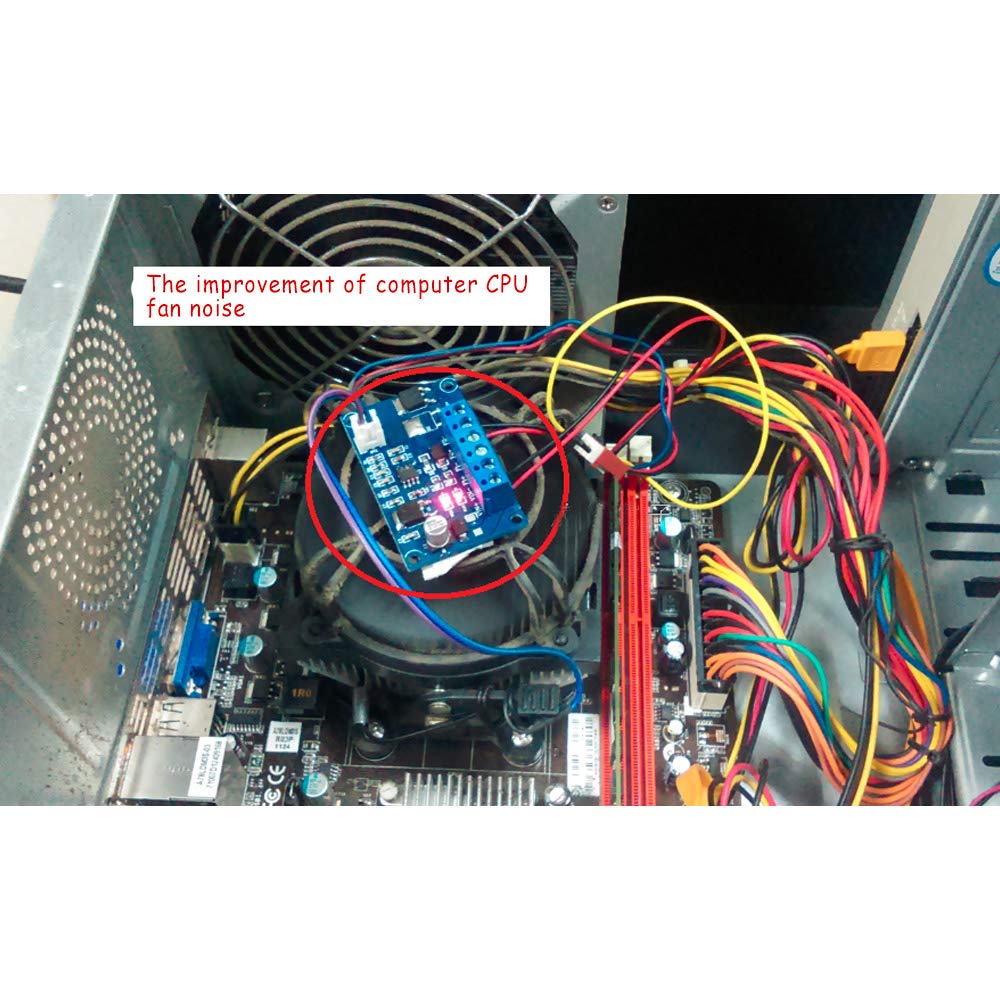

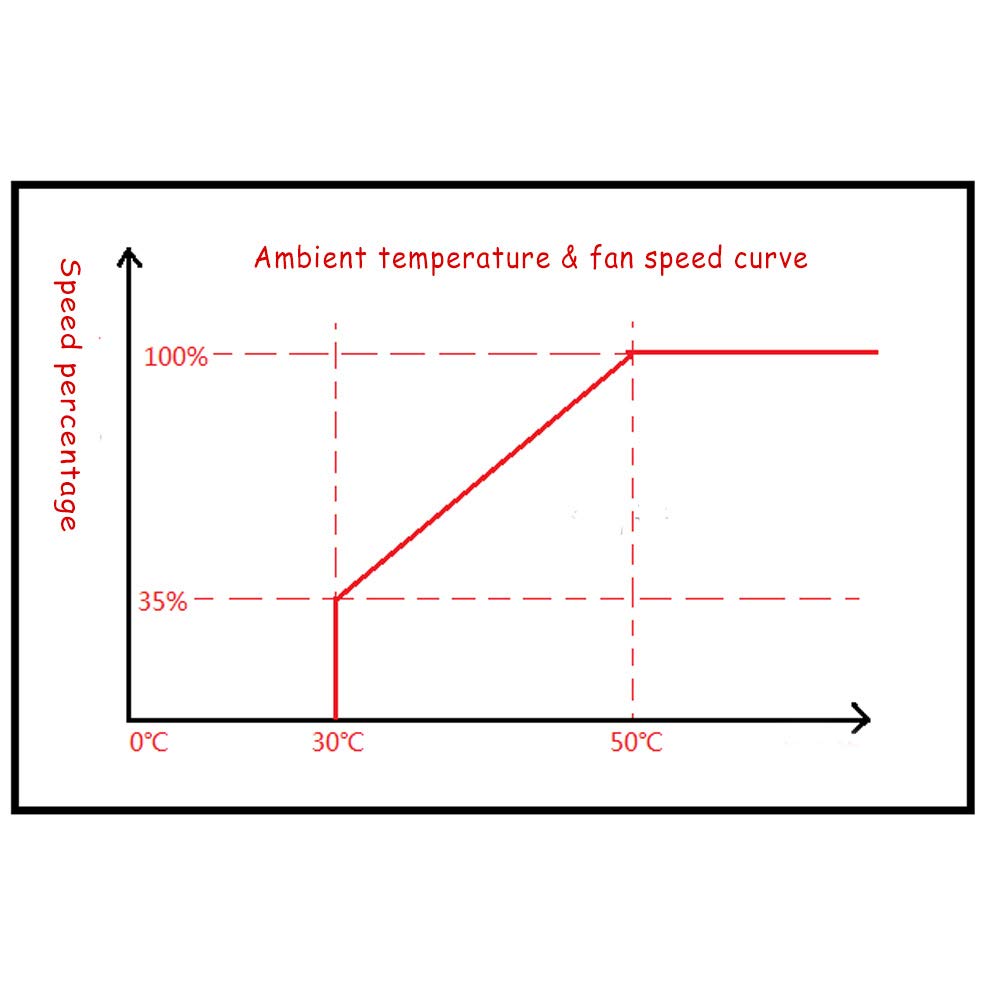

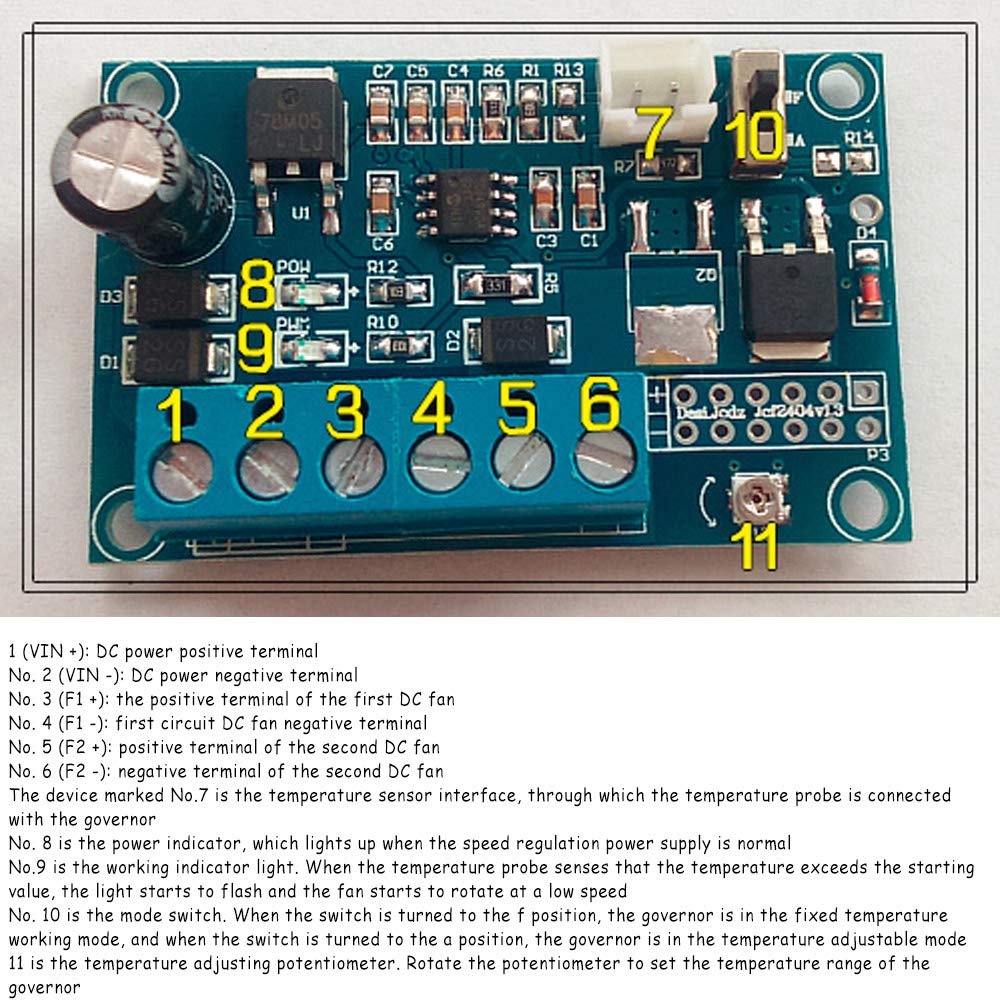

Specifications: Dynamic Led Indicator Light, Intuitive Understanding Of The Real Work Of The State Governor. The Device Is Mostly Used Smd Package, Stable Performance, Small Size, Saving Space. Product Dimensions: 56 * 35 * 20Mm (Mounting M3) Sensor Cable Length: 30Cm Applications:The Outdoor Enclosure, Saving Cabinet Fan Noise,Saving Room Fan Noise,Other Thermostat Fan Speed Applications. Instructions: Follow The Interface Instructions To Connect The Power And Fan Cables. Plug The Temperature Probe Into The Governor And Fix The Metal Part Of The Probe To The Heated Area. Turn The Power On And The Governor Adjusts The Fan Speed Based On The Temperature Detected By The Temperature Probe. About The Use Of Fixed Mode And Adjustable Mode: Fixed Mode, The No. 10 Switch To The F Position, The Governor Temperature Range Is Fixed To 30 Low-Speed Start Fan, 50-Degree Fan Full-Speed, Then Adjust No. 11 Potentiometer Useless. Adjustable Mode, Start No. 10 To A Position, When The Governor Temperature Range By The No. 11 Potentiometer Settings. At The Factory, The Potentiometer No. 11 Is In The Middle Position (The Corresponding Starting Temperature Is 20 Degrees).No. 11 Potentiometer Clockwise Slow Rotation, The Governor Temperaturethe Range Will Slowly Increase And The Temperature Of The Governor Will Change To The Highest Range (50 To 70 Degrees) After One Revolution.Counterclockwise Rotation Is The Opposite, The Temperature Of The Governor Will Change To 10 Degrees After One Revolution. Number Of Fans Connected = Current Of Governor Divided By Current Of Single Fan (For Example, Current Of Governor Is 4A, If Current Of Fan Connected Is 0.5A, Number Of Fans Connected = 4A / 0.5 = 8)
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the maximum fan compatibility for the Acxico Temperature Control Board?A: The Acxico Temperature Control Board can support fans with a voltage of up to 24V and a current of less than 4A, making it compatible with a variety of 2-wire, 3-wire, or 4-wire fans, whether PWM or brushless.
Q: How does the temperature control feature work on this fan controller?A: The fan controller uses PWM modulation technology to adjust fan speed based on ambient temperature. As the temperature rises, the fan speed increases, and when the temperature falls below the set start temperature, the fan stops running.
Q: Can I adjust the temperature settings on the Acxico fan controller?A: Yes, the Acxico fan controller has both a fixed mode and an adjustable mode. In adjustable mode, you can set the startup temperature between 10 to 50 degrees Celsius and control the full-speed range from 30 to 70 degrees Celsius.
Q: What is the size and design of the Acxico Temperature Control Board?A: The Acxico Temperature Control Board is compact, with dimensions of 56mm x 35mm x 20mm, designed to save space while ensuring stable performance. It features a dynamic LED indicator light for easy monitoring.
Q: Is the temperature sensor waterproof and how does it function?A: Yes, the temperature probe is sealed with epoxy resin, making it waterproof and moisture-proof. It is designed to detect temperature accurately at specified points and can withstand a maximum temperature of 110 degrees Celsius.
