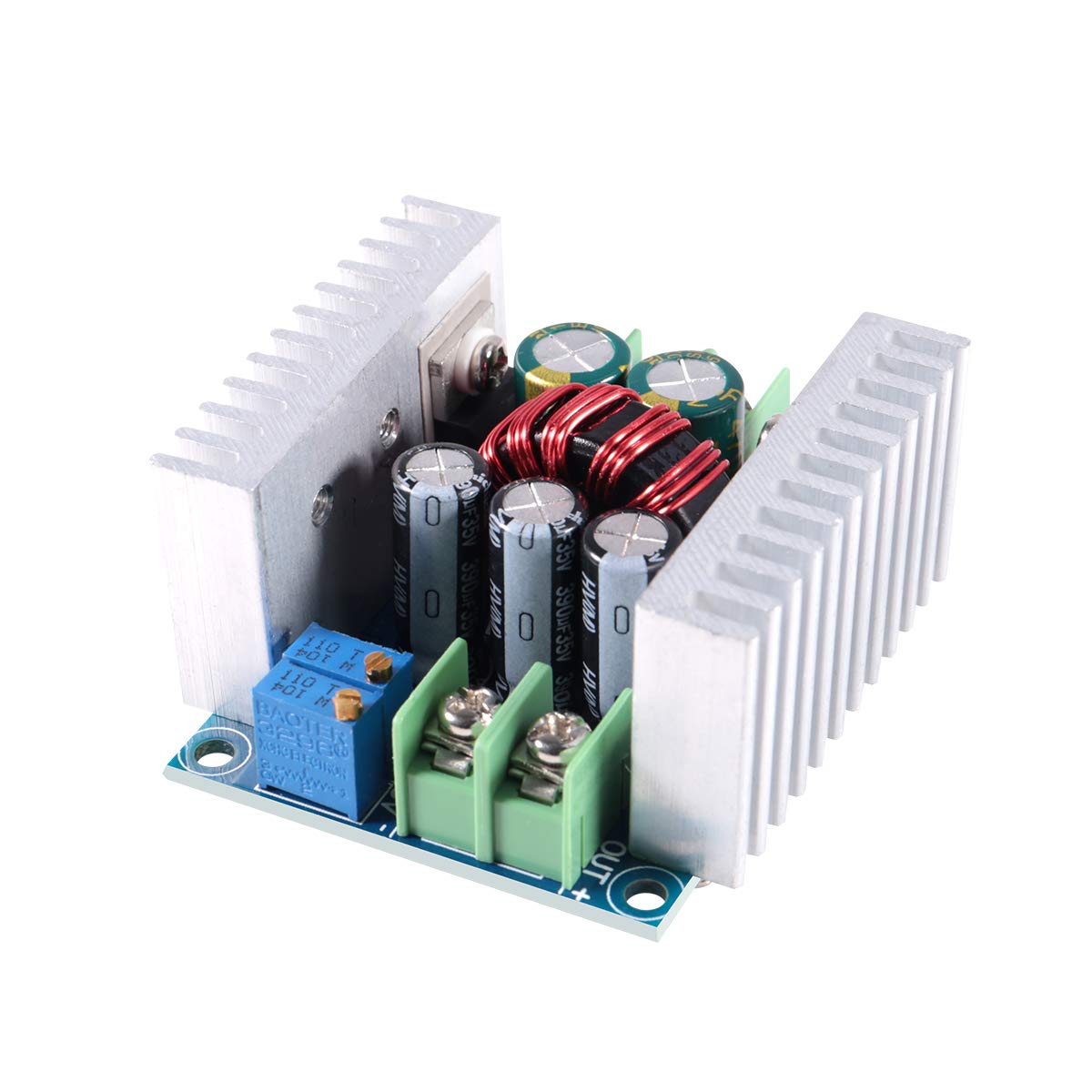

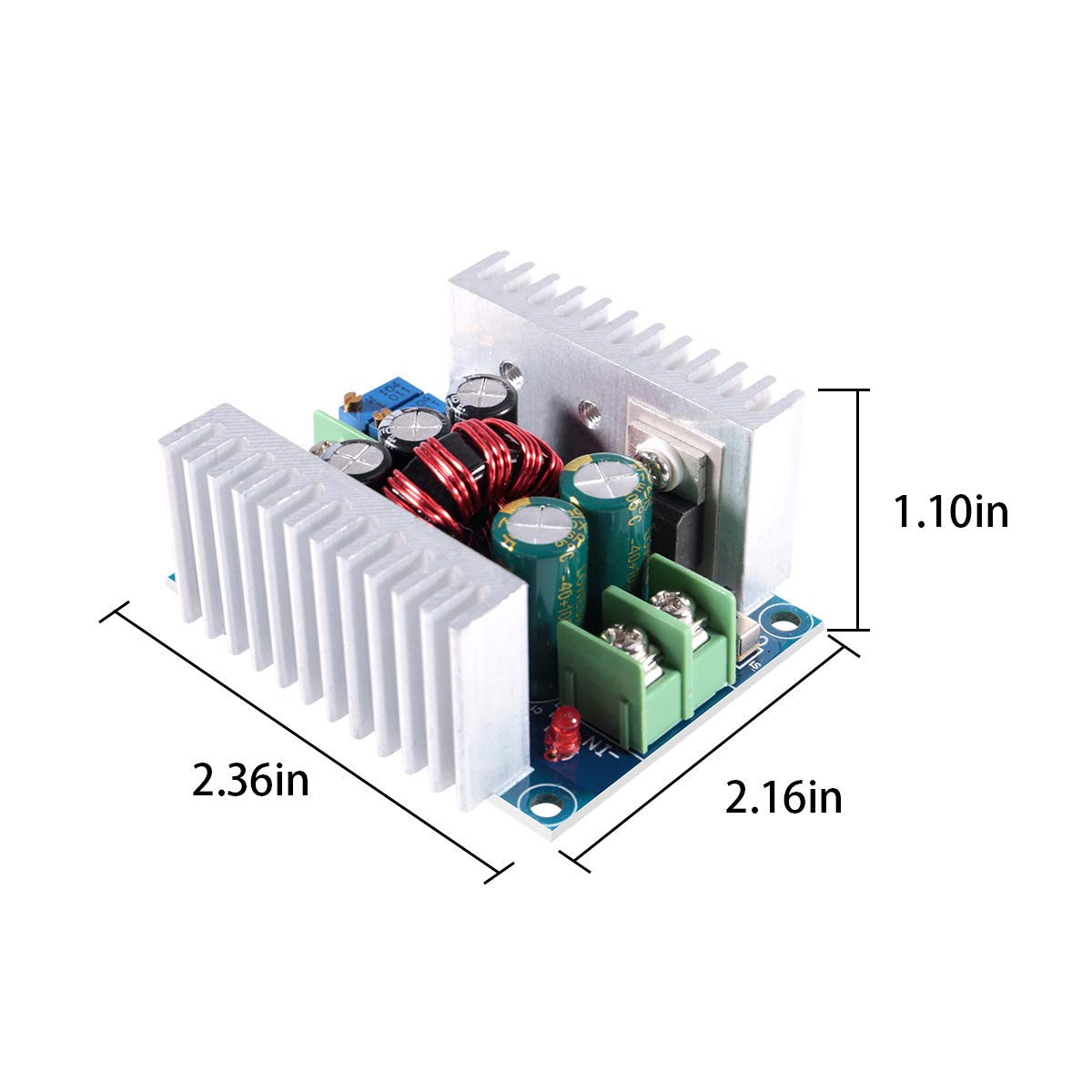

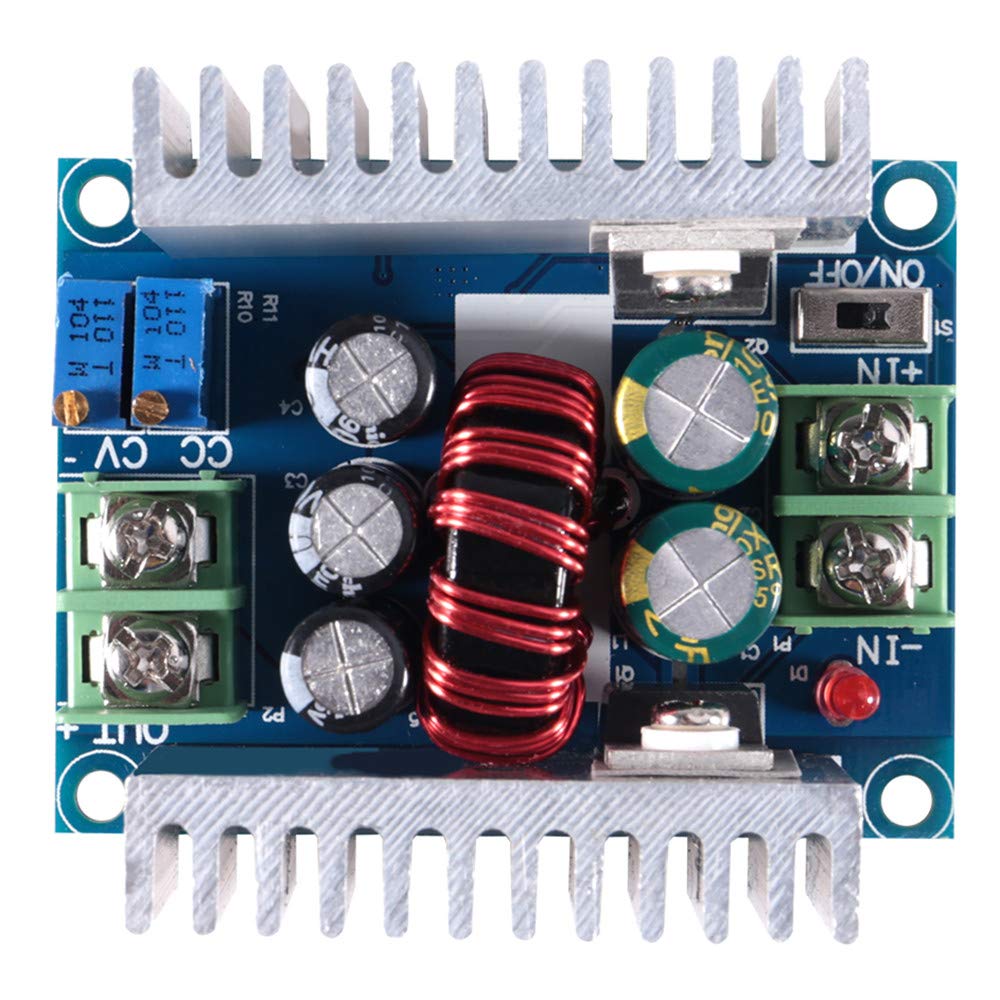

Features: &Nbsp;With A Wide Input Voltage Range From 6V To 40V, The Step-Down Converter Can Accurately Adjust Output Voltage And Current. &Nbsp;The Efficiency Can Be Up To 96%, Measured At 20A, Converting 24V To 12V. &Nbsp;It Is Designed With 75V/80A Large Current Dual Mos Tube. &Nbsp;Input And Output Use High Frequency Low Resistance Electrolytic Capacitor, Low Ripple, Stable Output. &Nbsp;Wiring Is Convenient With These Large Current 30A Screw Terminals. &Nbsp;The Buck Module Has 2 Heat Sink That Could Enhance Heat Dissipation. &Nbsp;When There Is A Big Difference Between Input And Output Voltage, Please Decrease Power And Current. &Nbsp;Specifications: &Nbsp;Input Voltage: 6V To 40V Dc(10V To 40V Is Suggested) &Nbsp;Output Voltage: 1.2V To 36V Dc &Nbsp;Output Current: 20A(Max.), 15A(Suggested) &Nbsp;Efficiency: 95%(24V To 12V, 20A) &Nbsp;Output Ripple: =50Mv &Nbsp;Wiring Method: Terminal &Nbsp;Short Circuit Protection: Self-Recovery(Cannot Short Circuit For Long Time) &Nbsp;Size: 60 X 53 X 27Mm / 2.36 X 2.08 X 1.06 &Nbsp;Vo+: Output Positive Vo-: Output Negative +In: Input Positive&Nbsp; -In: Input Negative Cv: Output Voltage Adjustment Cc: Output Current Adjustment En: Enable, Low Voltage Level Shut Off Output; Suspension, High Voltage Level Is Effective When Input And Output Is Common Grounded, No-Load Cv Output Constant Voltage,Cc Output Constant Current Package Includes:&Nbsp; 1 * 20A 300W Dc Dc Buck Converter
