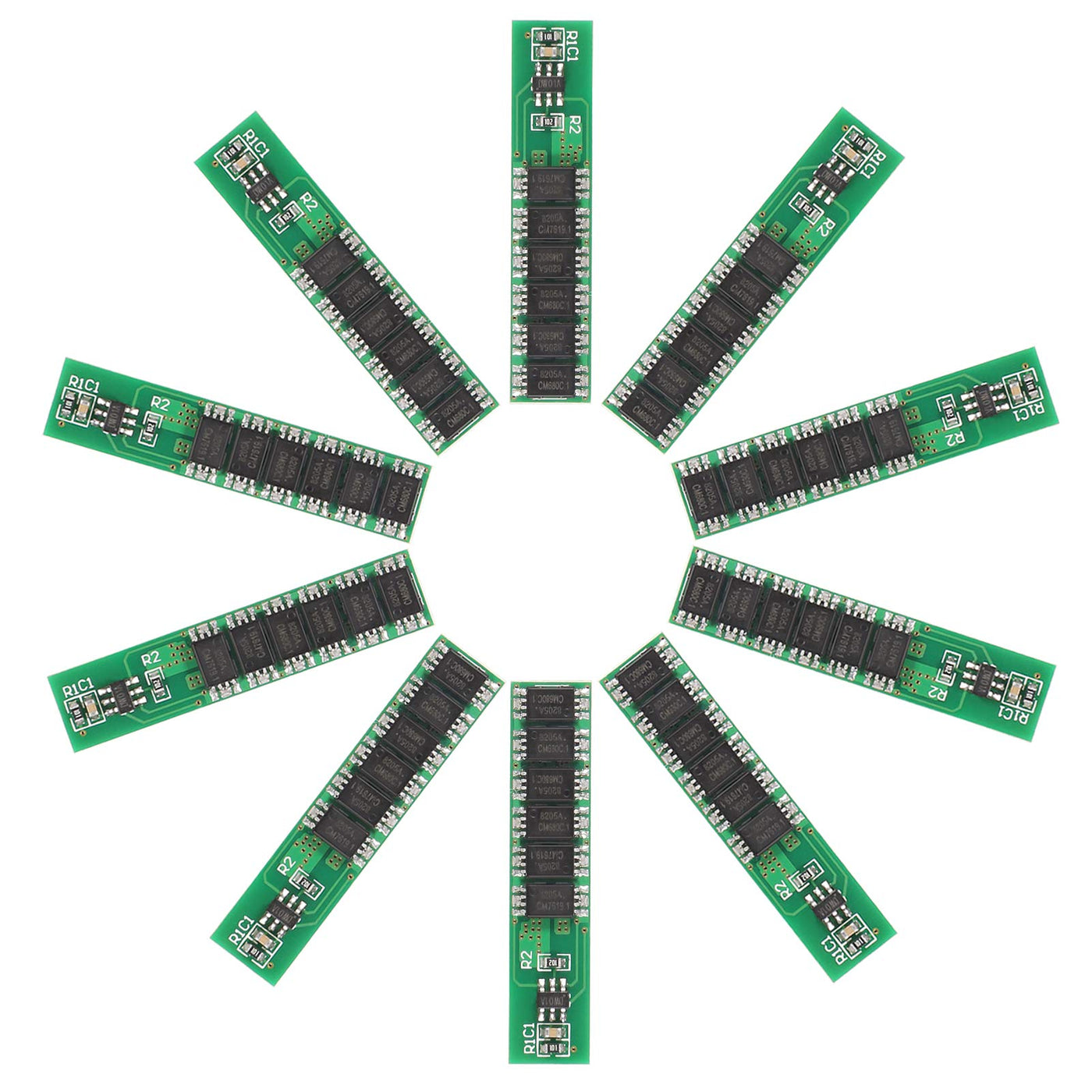

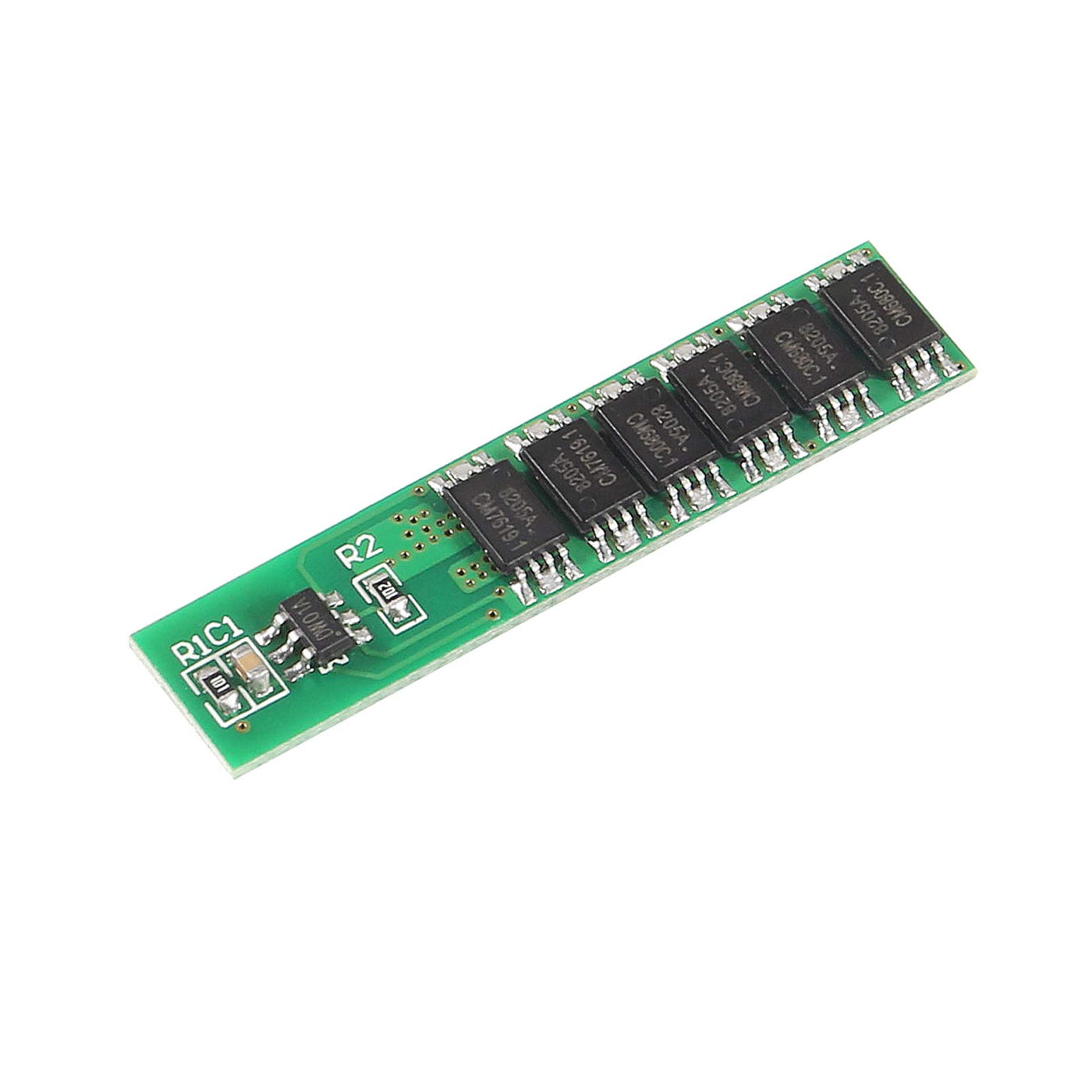

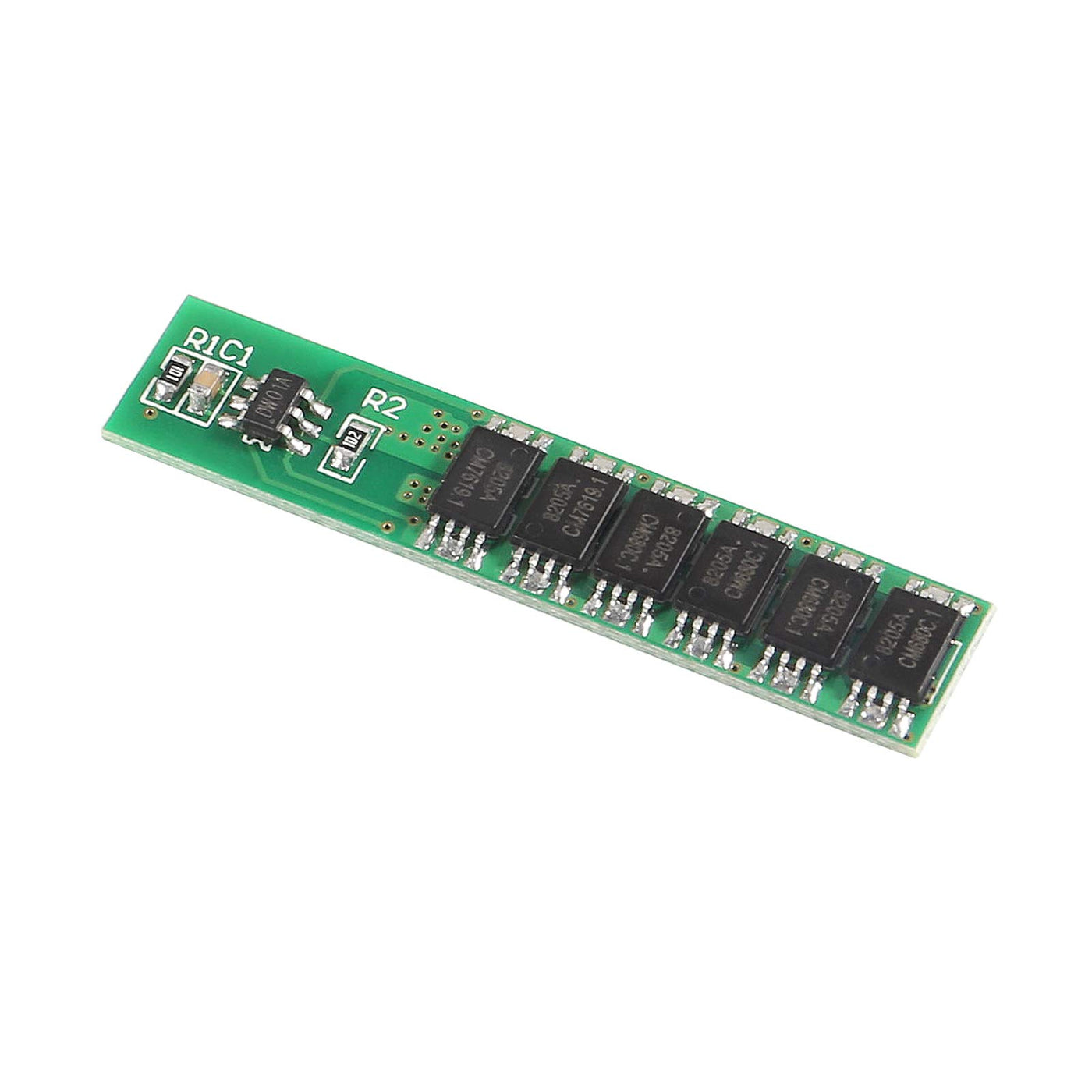

Aceirmc 1S 3.7V 10A 6Mos 18650 Charger Pcb Bms Protection Board For 18650 Li Ion Lithium Lipo Battery Cell (10Pcs)
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $97.32
Aceirmc 1S 3.7V 10A 6Mos 18650 Charger Pcb Bms Protection Board For 18650 Li Ion Lithium Lipo Battery Cell (10Pcs)
$14.46
Sold Out
Technical Parameter:
Charger Voltage: Dc 5V Cc/Cv
Over Charge Voltage Voltage: 4.275V�0.025V
Over Charge Detection Delay: 150-500Ms
Over Charge Recovery Voltage: 4.075V�0.025V
Over Discharge Voltage Range: 2.50V�0.10V
Over Discharge Detection Delay: 50-150Ms
Over Discharge Recovery Voltage: 2.9V�0.10V
Over-Current Detection Voltage:150 � 30Mv
Over-Current Detection Current: 8-15A
Over Discharge Detection Delay: 5-15Ms
Short Circuit Protection: Yes
Internal Resistance Protection Circuit (Mospet): = 60M?
Size: 39*8.0Mm
Package Includes:&Nbsp;
6 Pcs *&Nbsp;1S 3.7V 10A 18650 Charger Pcb Bms Protection Board
⚠️ WARNING (California Proposition 65):www.P65Warnings.ca.gov .
Frequently Asked Questions
Q: What are the dimensions of the ACEIRMC Charger PCB BMS Protection Board?
A: The dimensions are thirty-nine millimeters by eight millimeters. This compact size makes it suitable for various battery applications.
Q: What is the over charge voltage for this protection board?
A: The over charge voltage is four point two hundred seventy-five volts, with a tolerance of plus or minus zero point twenty-five volts.
Q: What type of battery does this BMS protection board support?
A: This protection board is designed for one series lithium-ion or lithium-polymer battery cells. It's perfect for managing single cell configurations.
Q: How do I install the ACEIRMC Charger PCB?

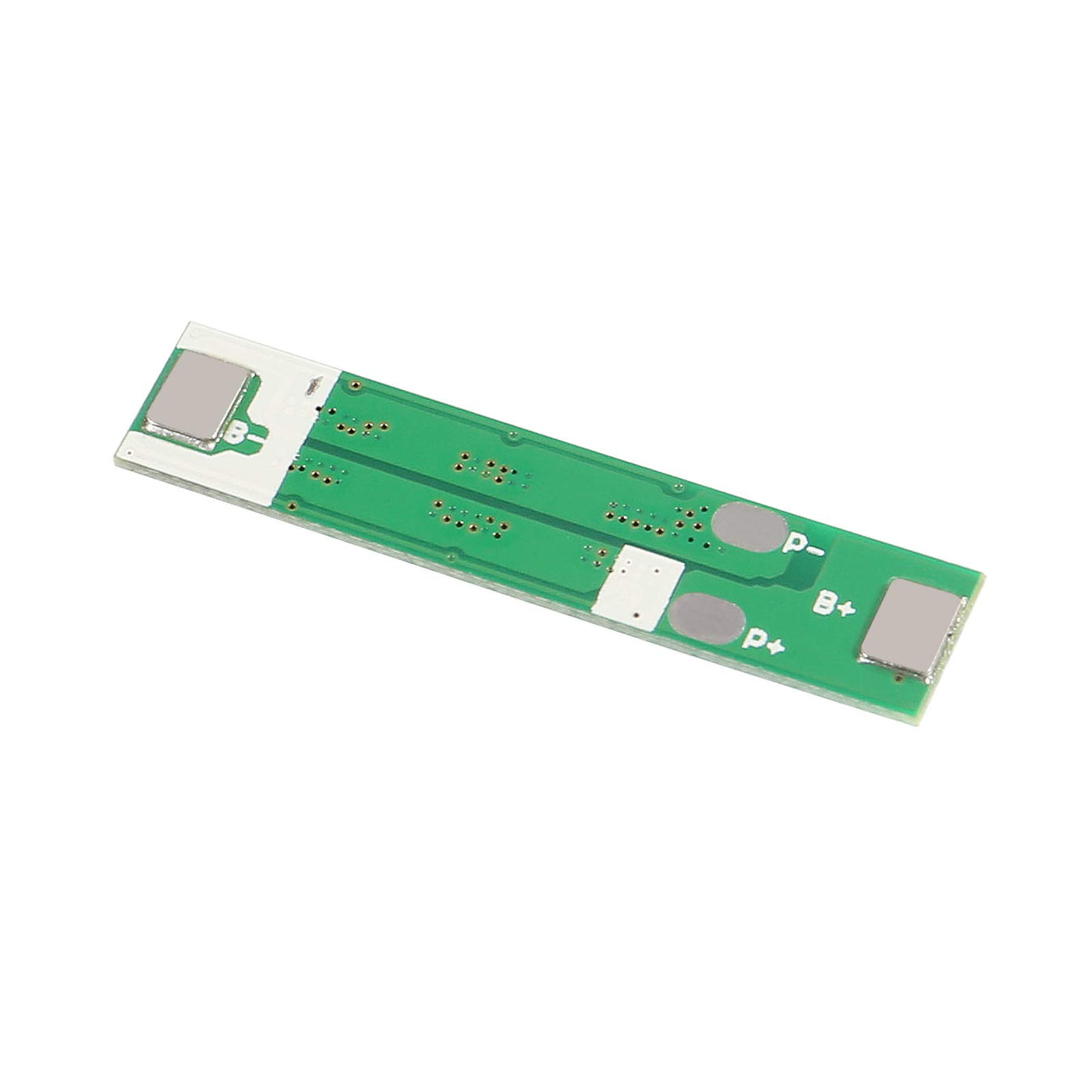

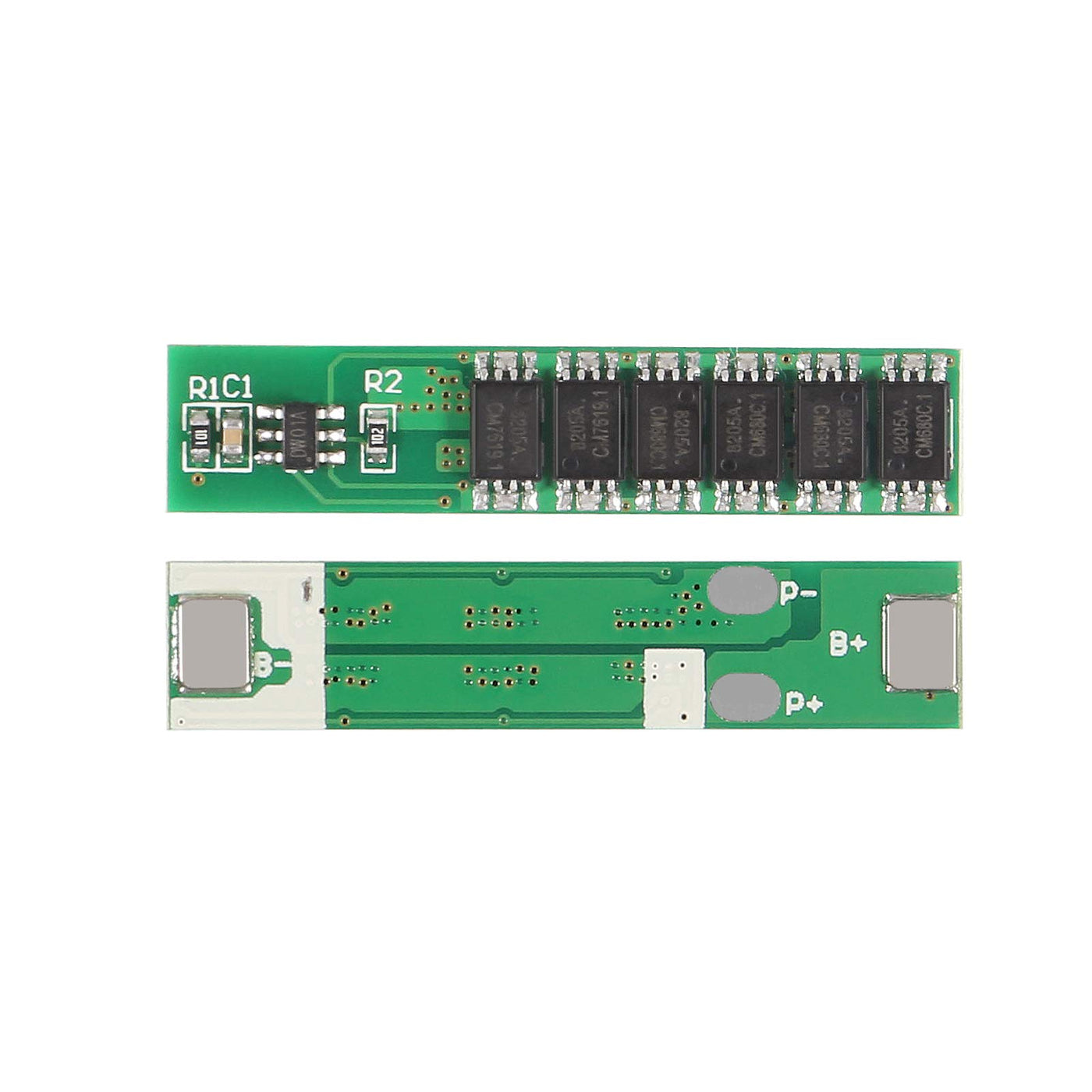

A: To install, connect the battery positive to B+ and the battery negative to B-. Ensure P+ and P- are connected correctly for battery output.
Q: Is this charger suitable for beginners?
A: Yes, it is suitable for beginners. However, it is important to follow the wiring diagram carefully to avoid damage.
Q: How do I use the ACEIRMC Charger PCB for charging?
A: Connect your battery to the designated B+ and B- terminals and then attach the charger to the P+ and P- terminals. Ensure the input voltage is five volts.
Q: What safety features does this protection board include?
A: This board includes over charge protection, over discharge protection, short circuit protection, and over current protection features.
Q: How do I maintain the safety of the battery with this board?
A: Ensure correct installation and avoid overcharging beyond four point two hundred seventy-five volts to maintain battery safety.
Q: How should I store the ACEIRMC Charger PCB?
A: Store the board in a dry, cool place away from direct sunlight and moisture to ensure longevity.
Q: What happens if I connect the wires incorrectly?
A: Connecting the wires incorrectly can damage the chip. Always refer to the wiring diagram provided for correct installation.
Q: Can I use this charger with different battery types?
A: No, this charger is specifically designed for one series lithium-ion or lithium-polymer batteries only.
Q: Is there a warranty for the ACEIRMC Charger PCB?
A: Warranty details are typically provided by the manufacturer. Check with ACEIRMC for specific warranty information.
Q: What is the maximum current this protection board can handle?
A: The maximum current is fifteen amperes. This allows for efficient charging and protection for connected batteries.
Q: Can I use this board for multiple batteries?
A: No, this board is designed for one single battery cell only. It cannot be used for multiple batteries simultaneously.
Q: Is the ACEIRMC Charger PCB easy to repair if damaged?
A: Repairing this PCB may not be feasible due to its complex components. It is recommended to replace the board if damaged.
