6 Pieces Electret Microphone Amplifier Module Max4466 Adjustable Gain Blue Breakout Board
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
6 Pieces Electret Microphone Amplifier Module Max4466 Adjustable Gain Blue Breakout Board
$14.46
Sold Out

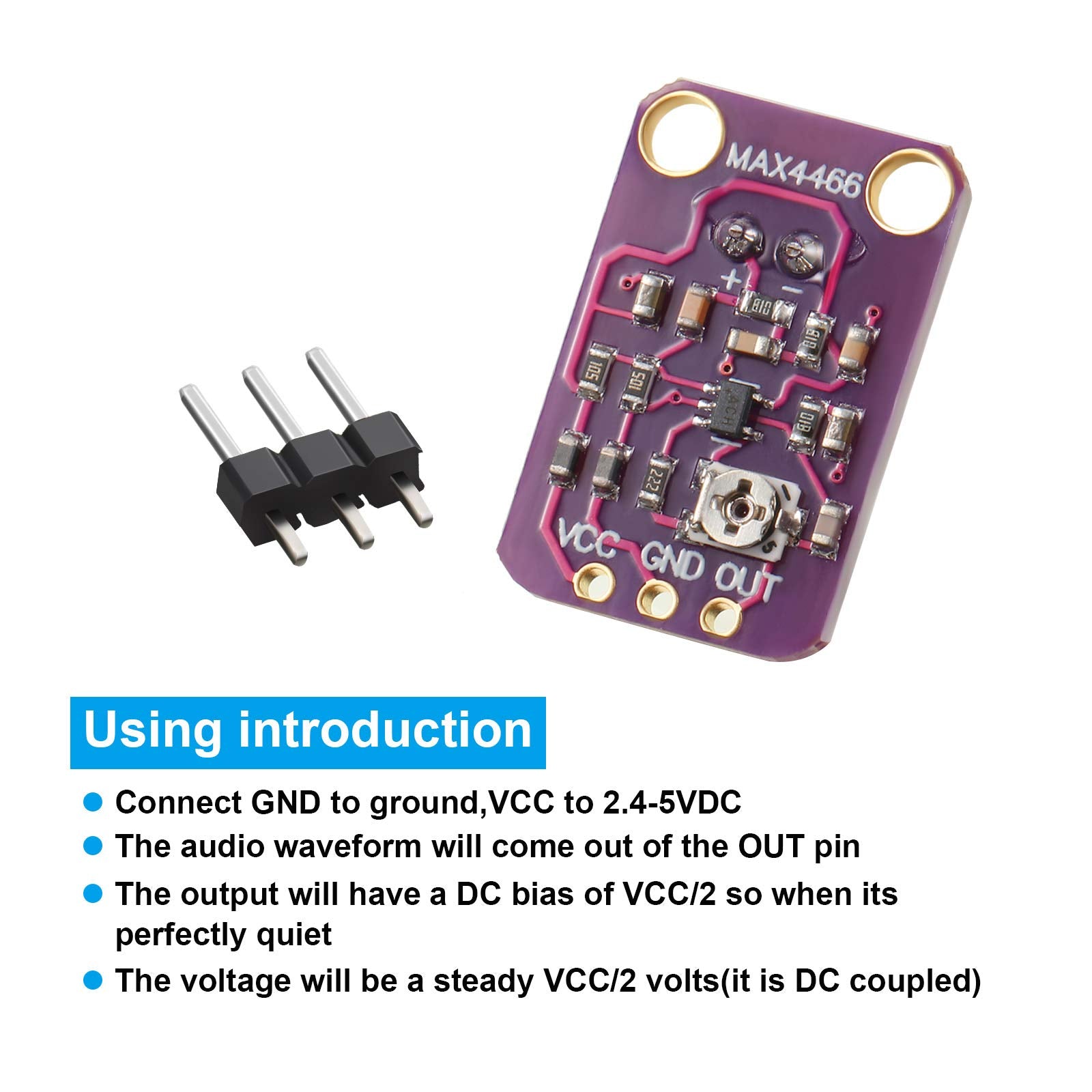

6 Pieces Electret Microphone Amplifier Module Max4466 Adjustable Gain Blue Breakout Board Features: The Max4466 Is A Micropower Operational Amplifier Optimized For Use As A Microphone Preamplifier. It Is A Nice Combination Of Optimized Gain Bandwidth Products And Supply Current, As Well As Low Voltage Operation In An Ultra-Small Package. The Max4466 Has Gain Stability, Requiring Only 24A Of Supply Current To Provide A 200Khz Gain Bandwidth. After Decompression, A Minimum Stable Gain Of +5V/V Can Be Achieved, And A 600Khz Gain Bandwidth Product Is Provided. These Amplifiers Also Have Rail-To-Rail Output, High Avol, And Good Power Supply Rejection And Common-Mode Rejection Ratio, Suitable For Working In Noisy Situations. Widely Applied In Cellular Phones, Digital Repeaters, Earphones, Hearing Aids, Microphone Preamplifiers, Portable Computers, And Voice Recognition Systems. How To Use: Connect Gnd To Ground, Vcc To 2.4 - 5Vdc. The Audio Waveform Will Come Out Of The Out Pin. The Output Will Have A Dc Bias Of Vcc/2, So When It'S Quiet, The Voltage Will Be A Steady Vcc/2 Volts (It Is Dc Coupled). If The Audio Device Requires Ac-Coupled Audio, Please Place A 100Uf Capacitor Between The Output Pin And The Input Of The Device. If You'Re Connecting To An Audio Amplifier That Has Differential Inputs Or Includes Decoupling Capacitors, The 100Uf Cap Is Not Required. The Output Pin Is Not Designed To Drive Speakers, But To Drive The Smallest In-Ear Headphones. You Need An Audio Amplifier (Such As A 3.7W Stereo Amplifier). If You Want To Connect The Amplifier Directly To The Speakers Or It Is Connected To A Microcontroller Pin, No Amplifier Or Decoupling Capacitor Is Needed To Connect The Out Pin Directly To The Microcontroller Adc Pin. For Audio-Reactive Projects, It Is Recommended To Use The Fft Driver Library, Which Can Take Audio Input And 'Translate' It Into Frequencies. Specifications: Module
