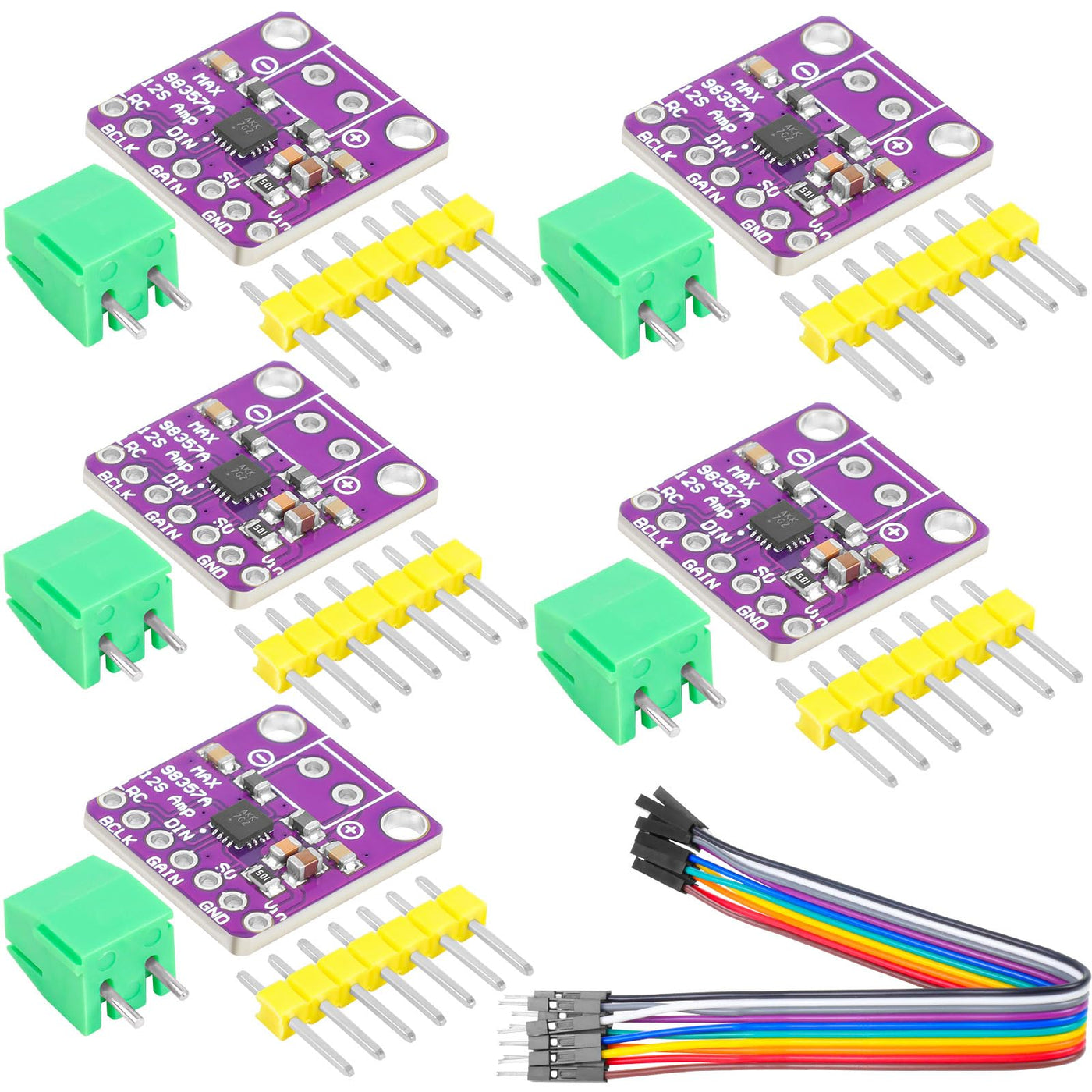

5Pcs Max98357 Audio Power Amplifier Module I2S Dac Class D Audio Board With Du Pont Wire For Raspberry Pi Arduino Esp32

Frequently Asked Questions

• Q: What are the output power specifications of the MAX98357 amplifier? A: The MAX98357 amplifier delivers three point two watts at four ohms and one point eight watts at eight ohms with ten percent total harmonic distortion.
• Q: What is the I2S sampling rate for this audio module? A: The I2S sampling rate for the MAX98357 ranges from eight kilohertz to ninety-six kilohertz, ensuring high-fidelity sound across devices.
• Q: What are the dimensions of the MAX98357 audio amplifier module? A: The MAX98357 measures three point five inches in length, three point nine inches in width, and zero point four inches in height.
• Q: How do I install the MAX98357 audio amplifier? A: To install the MAX98357, connect the digital input signal to the DIN pin and power the module with two point five to five point five volts DC, ensuring all pin connections are secure.
• Q: Can I use the MAX98357 with different microcontrollers? A: Yes, the MAX98357 is compatible with various microcontrollers, including Raspberry Pi, Arduino, and ESP32, making it versatile for different projects.
• Q: What is the shutdown mode for the MAX98357? A: The shutdown mode for the MAX98357 can be activated by pulling the SD_MODE pin low, which places the device in a low-power state.
• Q: How should I care for my MAX98357 amplifier module? A: To maintain the MAX98357, keep it dry and free from dust. Avoid exposing it to extreme temperatures or humidity to ensure longevity.
• Q: Is the MAX98357 safe for beginners to use? A: Yes, the MAX98357 is designed with plug-and-play convenience, making it suitable for beginners and experienced users alike.
• Q: What should I do if my MAX98357 arrives damaged? A: If your MAX98357 arrives damaged, contact customer support immediately for assistance with returns or replacements.
• Q: What connections are included with the MAX98357 module? A: The MAX98357 includes five audio amplifier modules, five pins, five plugs, and ten male-to-female Du-Pont lines for flexible connection options.
• Q: Does the MAX98357 require a master clock? A: No, the MAX98357 does not require a master clock (MCLK), simplifying the design and reducing the need for external components.
• Q: Can I customize the gain on the MAX98357 amplifier? A: Yes, the MAX98357 offers selectable gain options of three decibels, six decibels, nine decibels, twelve decibels, and fifteen decibels for tailored audio amplification.
• Q: What type of audio formats can the MAX98357 support? A: The MAX98357 can automatically configure for one hundred twenty-eight digital audio formats, providing broad compatibility with various devices.
• Q: Is the MAX98357 suitable for high-efficiency sound applications? A: Yes, the MAX98357 provides high-efficiency sound with ninety-two percent efficiency, delivering quality audio in a compact design.
• Q: What is the electromagnetic interference suppression capability of the MAX98357? A: The MAX98357 has excellent electromagnetic interference suppression ability, allowing the use of long wires to connect speakers without needing external filtering.
