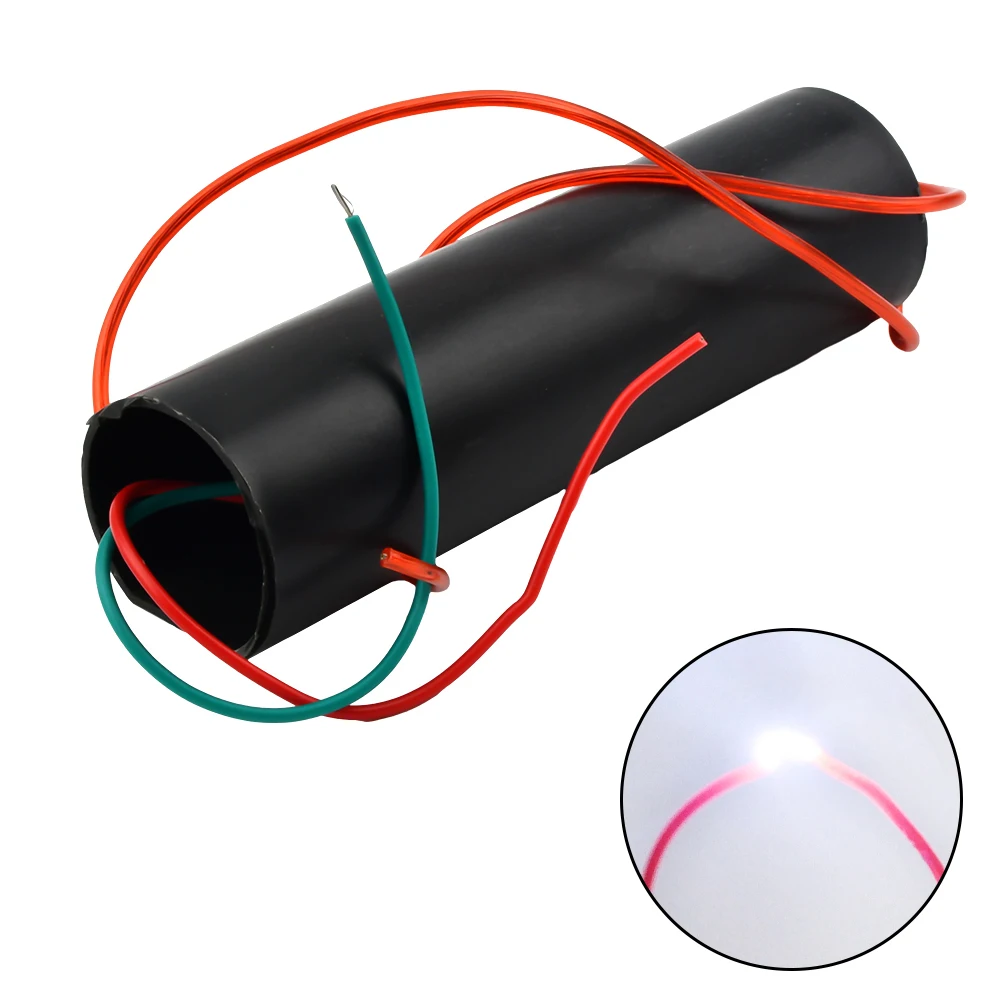

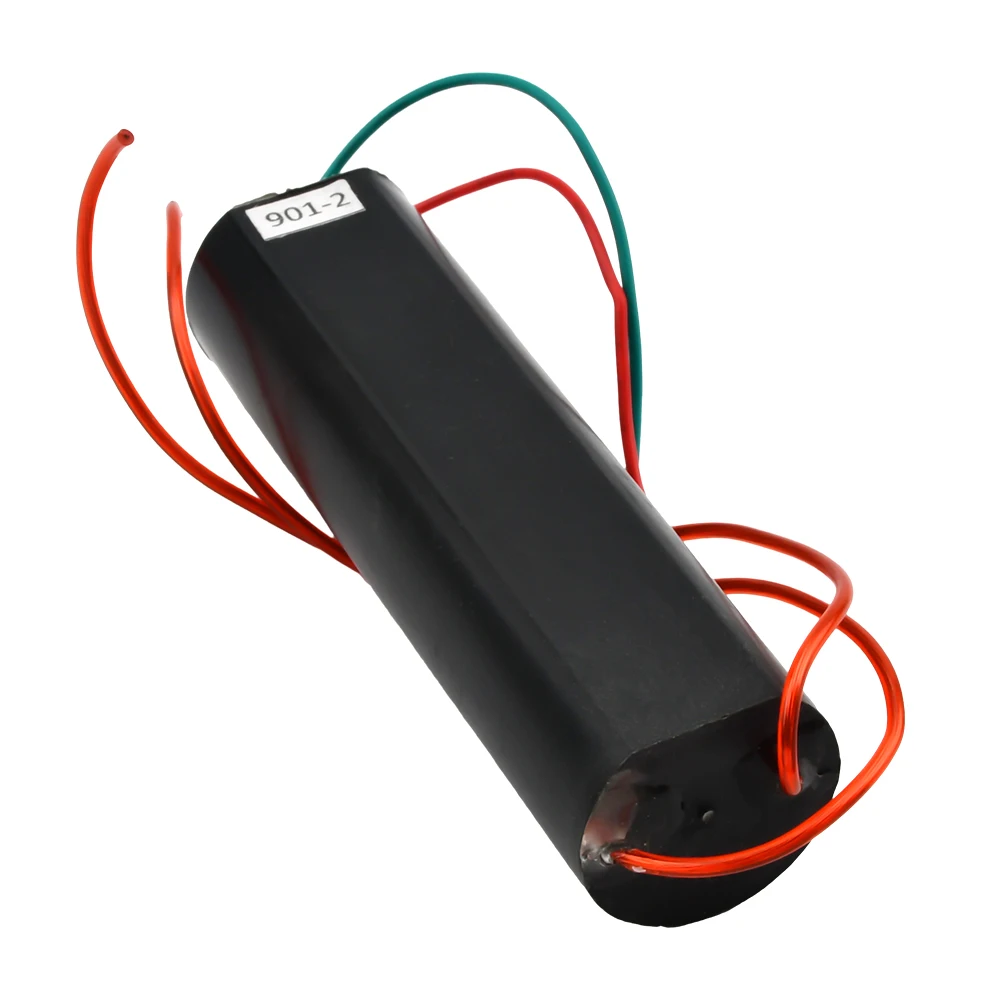

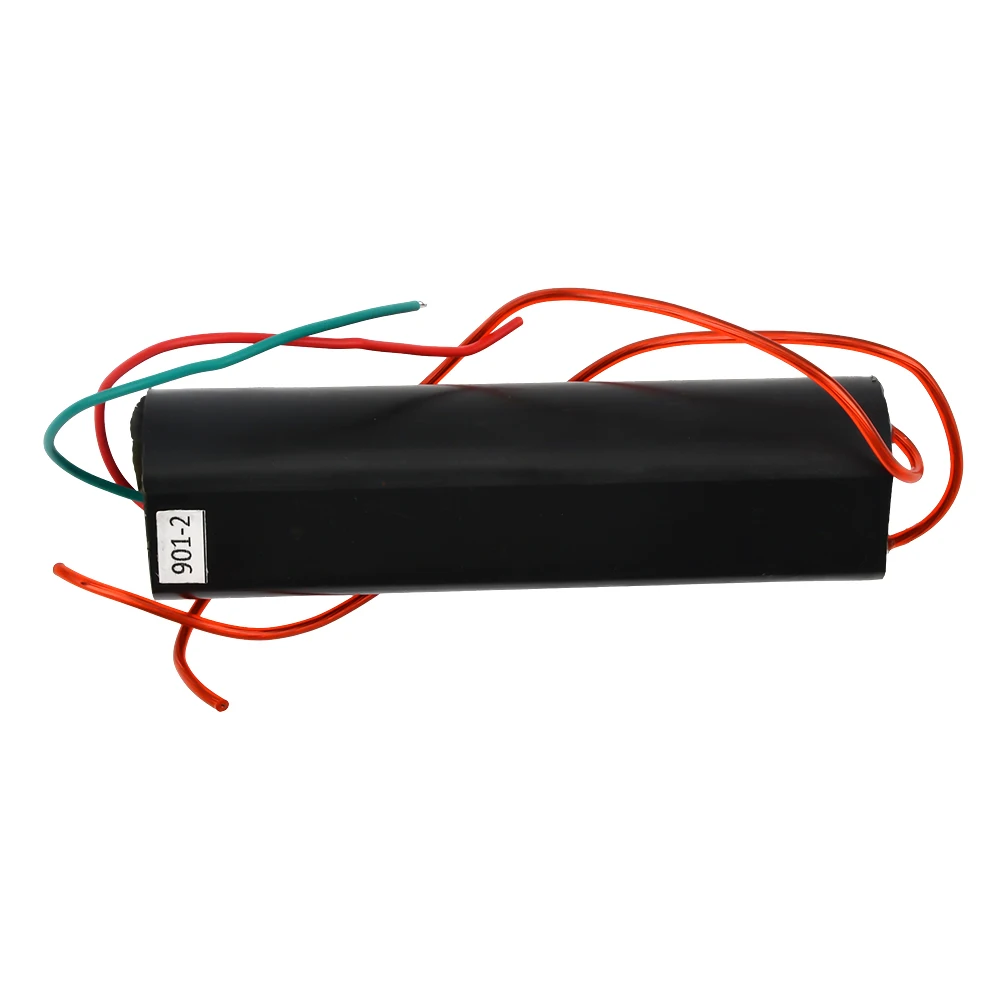

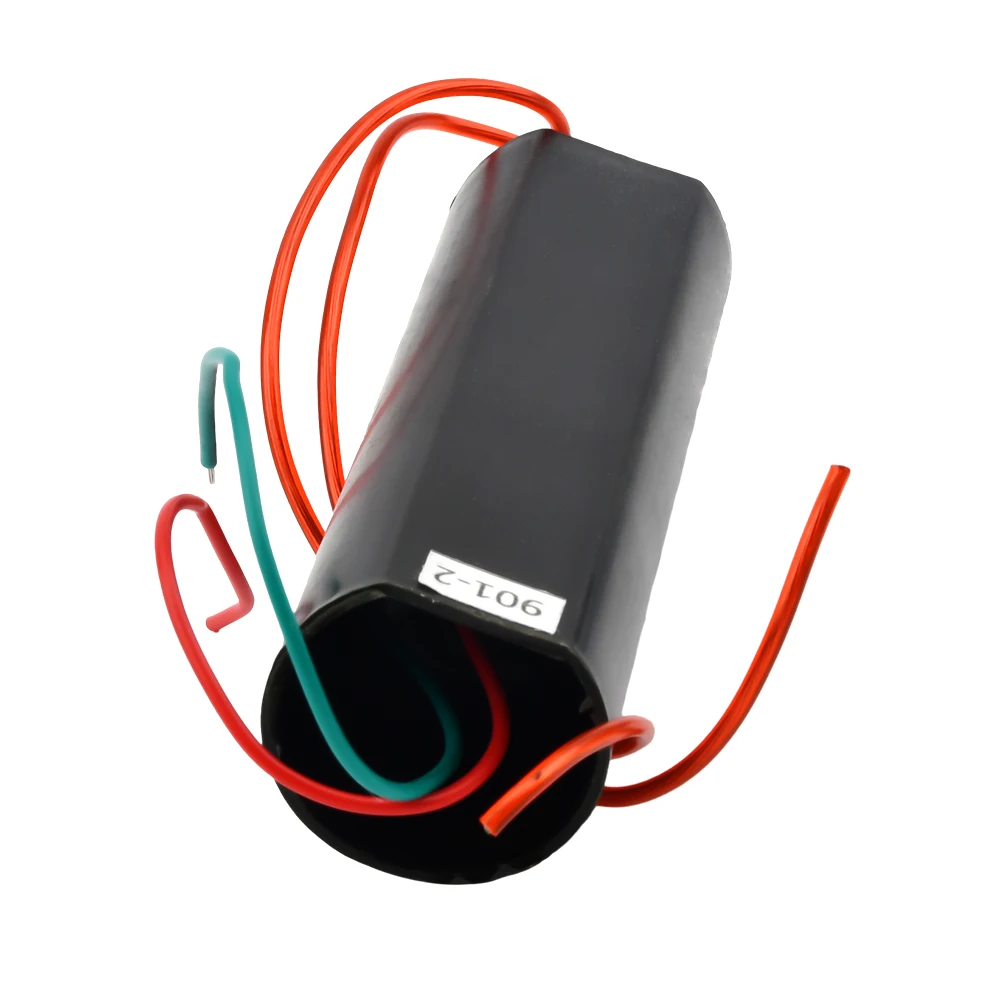

50-100kV High-Voltage Generator DC6-12V Arc High-Voltage Pack Boost Module High-Voltage Generator Module
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $676.94
50-100kV High-Voltage Generator DC6-12V Arc High-Voltage Pack Boost Module High-Voltage Generator Module - Default Title
Default Title
Default Title
$6.54
Add to Cart
SPECIFICATIONS Brand Name : Aideepen
Choice : yes
Condition : New
High-concerned chemical : none
Origin : Mainland China
Type : Module
Description:
1. Made with premium materials for guaranteed quality
2. Stable performance
3. Compact and elegant design
4. User-friendly operation
5. Widely applicable in various distance measurement scenarios
Specifications:
Input Voltage: DC 6-12V
Input Current: 1A-3A (voltage dependent)
High-Voltage Type: Integrated pulse high/low voltage
Output Voltage: Approx. 500,000-1,000,000 volts (Exercise caution during operation)

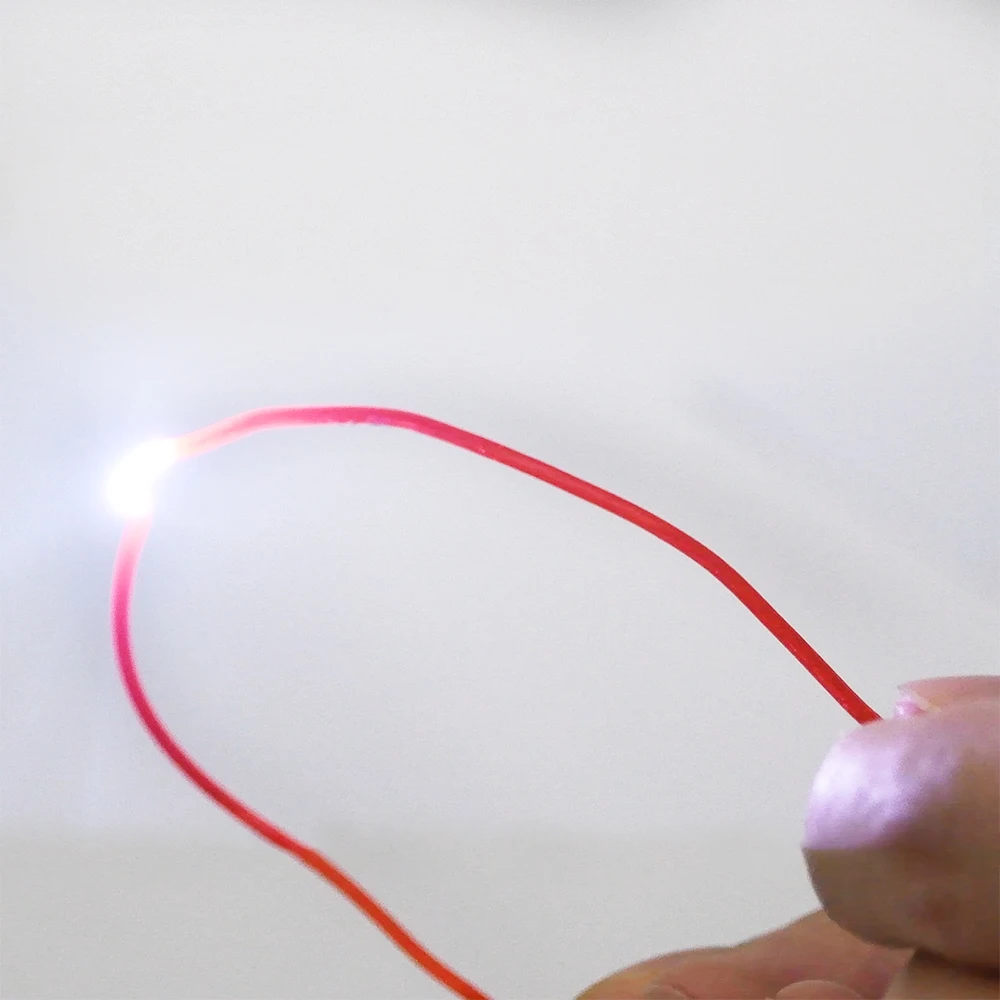

High-voltage electrode discharge distance: 5-15mm
Output high-voltage cable length: Approx. 100mm
Input power cable length: Approx. 100mm (Red wire is positive)

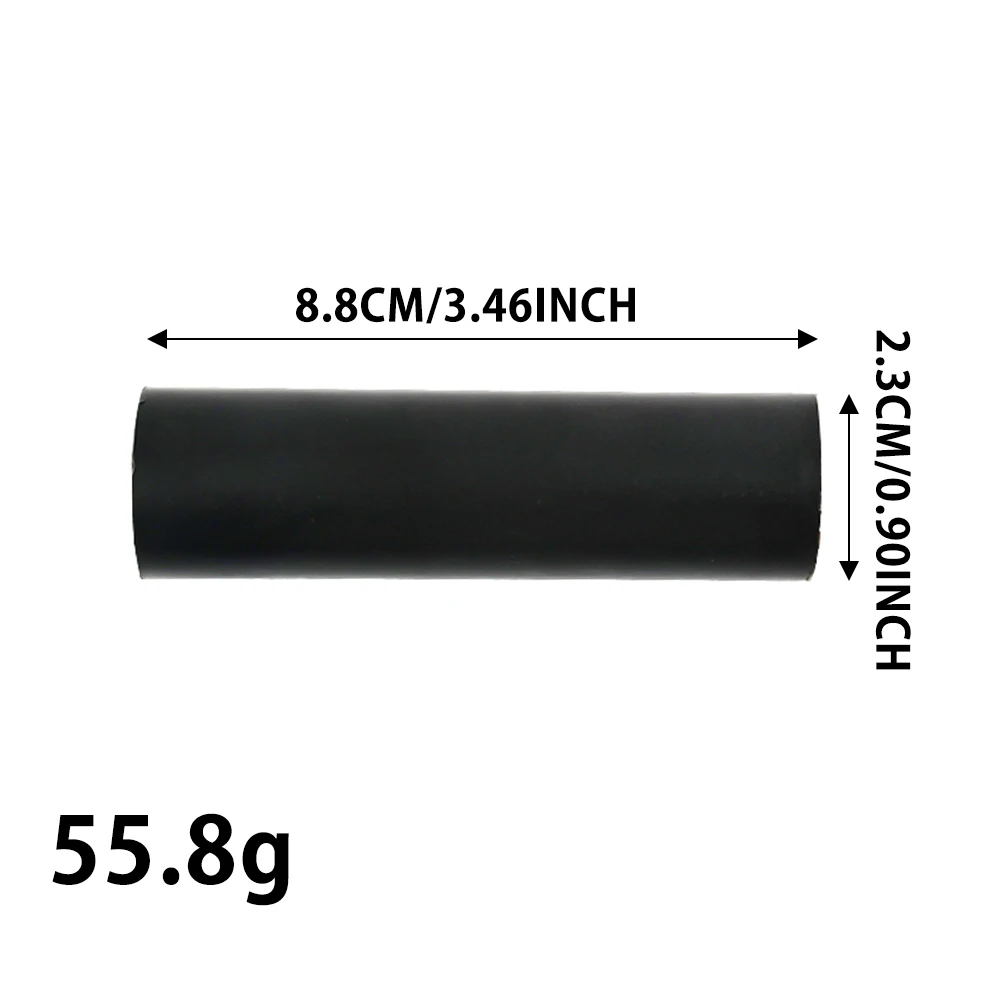

Dimensions: 88*26mm
Standard version cannot operate continuously. Enhanced version supports 1 minute of continuous operation but must not exceed this duration.
Power Supply: Can use two 3.7V lithium batteries in series, such as 18650 batteries, unused mobile phone batteries (remove protection board, recommended capacity above 2000mAh), NiCd/NiMH battery packs, or 6V lead-acid batteries.
This module is a ready-to-use high-voltage inverter transformer/booster for science projects. Inputting DC 6-12V generates approximately 10,000V DC high voltage at the output (producing an arc of about 5-15 cm). It serves as a high-voltage source for middle school science experiments, electronic instruments, negative ion generators, and DIY science projects.
Important Notes:
Avoid operating the high-voltage module under no-load conditions. (Before energizing, ensure the high-voltage leads are adjusted to the appropriate distance. The arc distance is proportional to the battery voltage and capacity. Test arc distances progressively from short to long. Never energize beyond the maximum tested arc distance, as trapped high-voltage energy can severely damage the module.)
Package Contents:
High-Voltage Generator ×1
