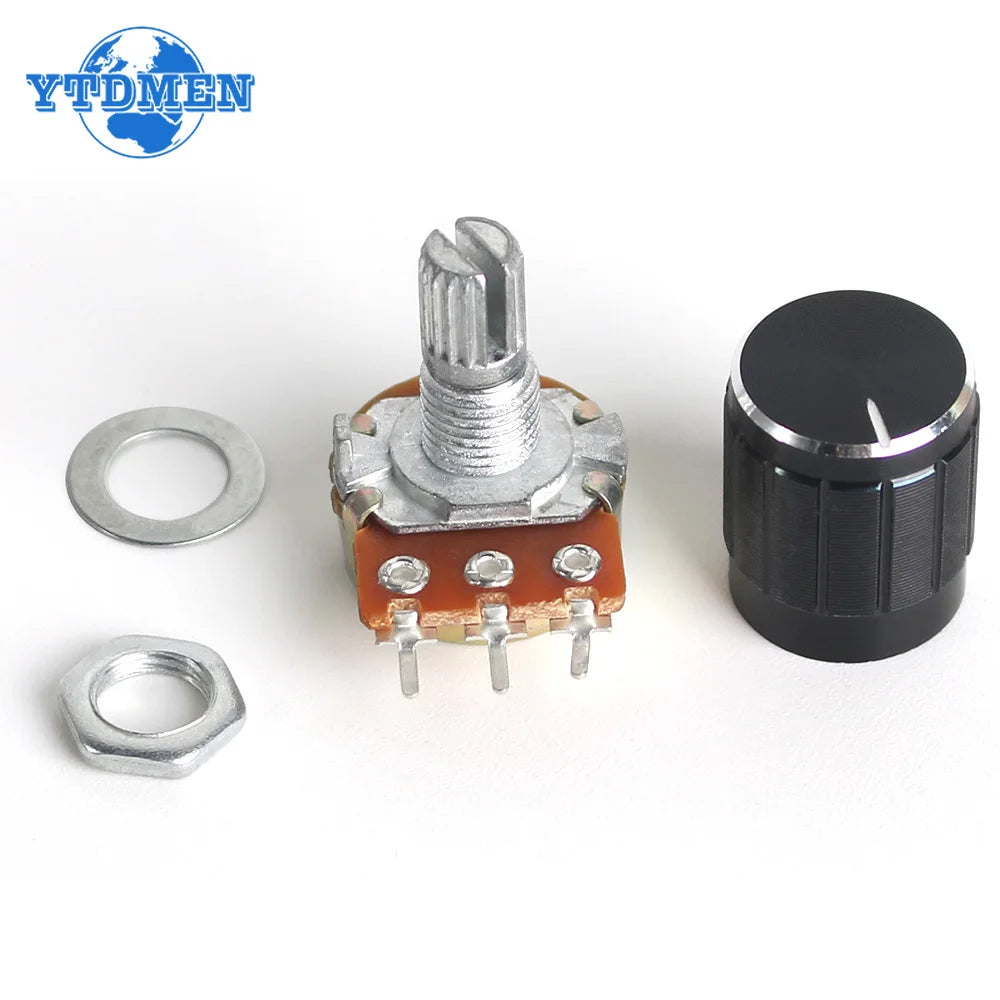

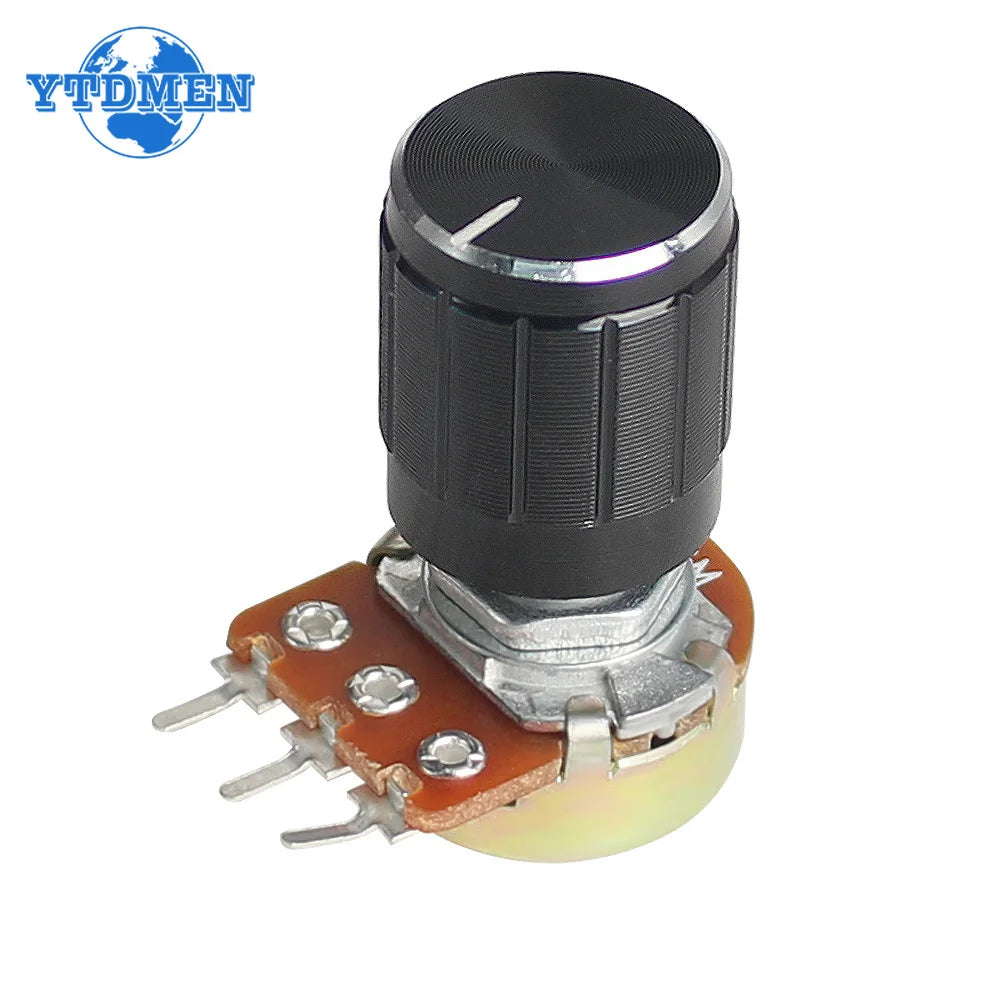

5 Set WH148 Linear Taper Rotary Potentiometer Resistor 15mm 3pin 1K 2K 5K 10K 20K 50K 100K 250K 1M with Black Aluminum Knob Kit
Free Standard Shipping Across USA
Vendor: Electroeshop
Type:
Sku: 696:4#250K OHM
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Double-boxed, fully insured & discreetly packaged
- Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
5 Set WH148 Linear Taper Rotary Potentiometer Resistor 15mm 3pin 1K 2K 5K 10K 20K 50K 100K 250K 1M with Black Aluminum Knob Kit - 250K OHM
$3.14
SPECIFICATIONS
Brand Name: YTDMEN
Choice: yes
Condition: New
High-concerned chemical: none
Max. Operating Voltage: Standard
Operating Temperature: Standard
Origin: Mainland China
Rated Power: Standard
Resistance Tolerance: Standard
Size: 3PIN
Technology: Carbon Film
Type: Rotary Potentiometer
feature: Potentiometers
feature 1: WH148 Potentiometers
feature 2: 15mm
feature 3: 3pin
feature 4: 1K 2K 5K1K 2K 5K 10K 20K 50K 100K 250K 1M 10K 20K 50K 100K 250K
feature 5: Aluminum alloy knob cap
feature 6: Potentiometer Kit
feature 7: 15x17mm knob cap
Product Feature:
100% high quality and brand new
Name: WH148 Potentiometer
Parameters:
1. Rotation Angle: 300°± 10°
2. Rotating torque: 10~ 200gf.com
3. Stop strength: 6.0kgf.cn Min
4. Axial push-pull strength: 8.0kgf,cm
5. Registration points: Center, 7/11/21/41 Detent
6. Electrical torque of point position: 50~ 150gf.cm
7. Resistance range: 10kΩ~1MΩ
8. Resistance tolerance: ±20% (more than 1MΩ±30%)
9. Load power: Curve B: 0.05W, other yhan B: 0.025W
10. Use voltage: Curve B:50VDC other than B:25V AV
11. Residual short rent: R≥25KΩ 0.1%max, of total tesistance
12. 250KΩ>R> 10KΩ 20Ωmax 20 Kω ≥R 10KΩ max
13. Insulation resistance: More than 100MΩ at DC 250V 1minute
14. Withstand voltage: 1 minute AC 250V
15. Synchronization error: -40~0dB <±3dB
16. Rotating noise: less than 100mV
17. Rotation life: 10,000 cycles
Package List:
5Set WH148 Potentiometer wiht Aluminum alloy knob cap
Product application:
Widely used in electrical equipment, audio equipment, communications, medical facilities, security products
UPS power supply, video recorder, MP3, VCD player, telephone and other equipment
100% high quality and brand new
Name: WH148 Potentiometer
Parameters:
1. Rotation Angle: 300°± 10°
2. Rotating torque: 10~ 200gf.com
3. Stop strength: 6.0kgf.cn Min
4. Axial push-pull strength: 8.0kgf,cm
5. Registration points: Center, 7/11/21/41 Detent
6. Electrical torque of point position: 50~ 150gf.cm
7. Resistance range: 10kΩ~1MΩ
8. Resistance tolerance: ±20% (more than 1MΩ±30%)
9. Load power: Curve B: 0.05W, other yhan B: 0.025W
10. Use voltage: Curve B:50VDC other than B:25V AV
11. Residual short rent: R≥25KΩ 0.1%max, of total tesistance
12. 250KΩ>R> 10KΩ 20Ωmax 20 Kω ≥R 10KΩ max
13. Insulation resistance: More than 100MΩ at DC 250V 1minute
14. Withstand voltage: 1 minute AC 250V
15. Synchronization error: -40~0dB <±3dB
16. Rotating noise: less than 100mV
17. Rotation life: 10,000 cycles
Package List:
5Set WH148 Potentiometer wiht Aluminum alloy knob cap
Product application:
Widely used in electrical equipment, audio equipment, communications, medical facilities, security products
UPS power supply, video recorder, MP3, VCD player, telephone and other equipment
