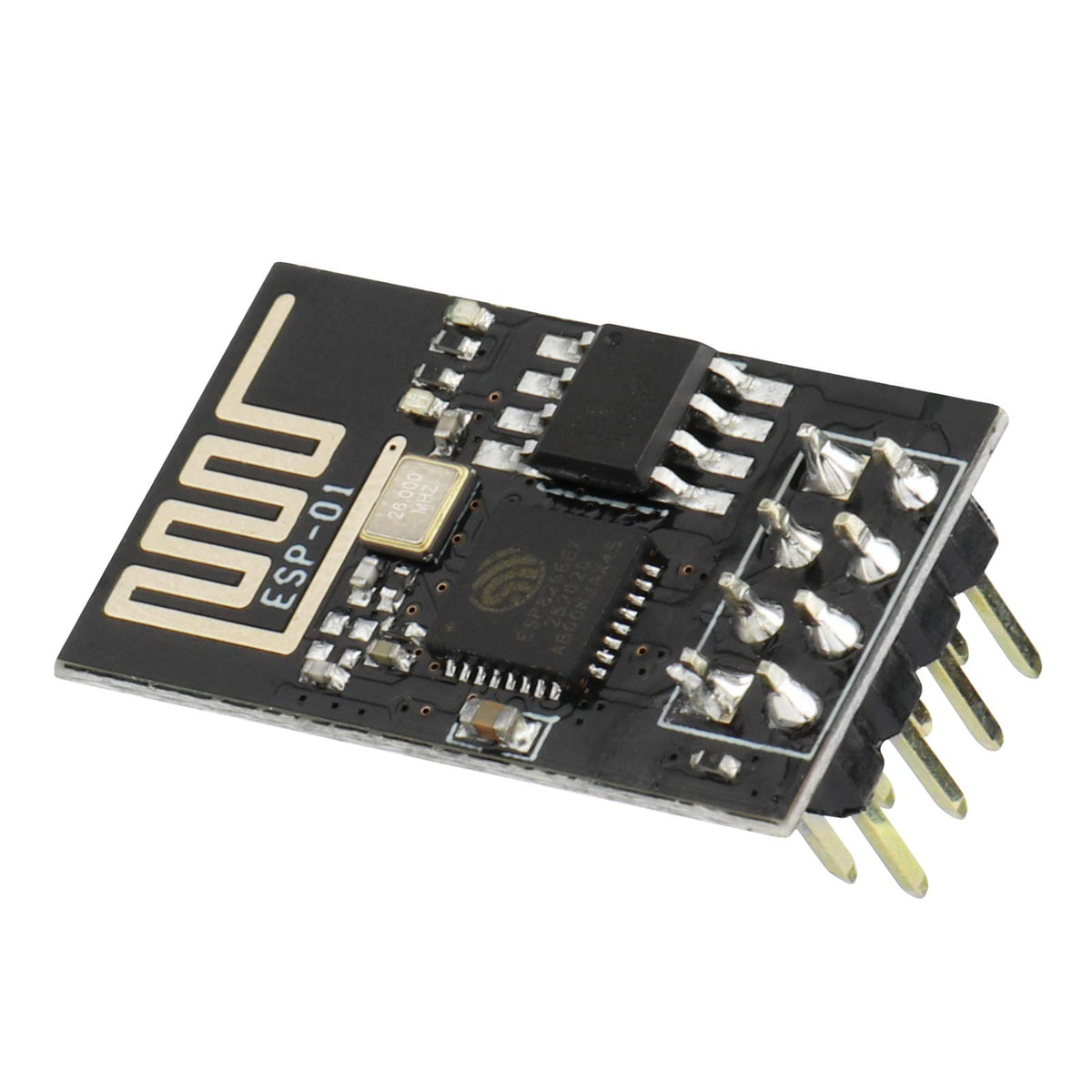

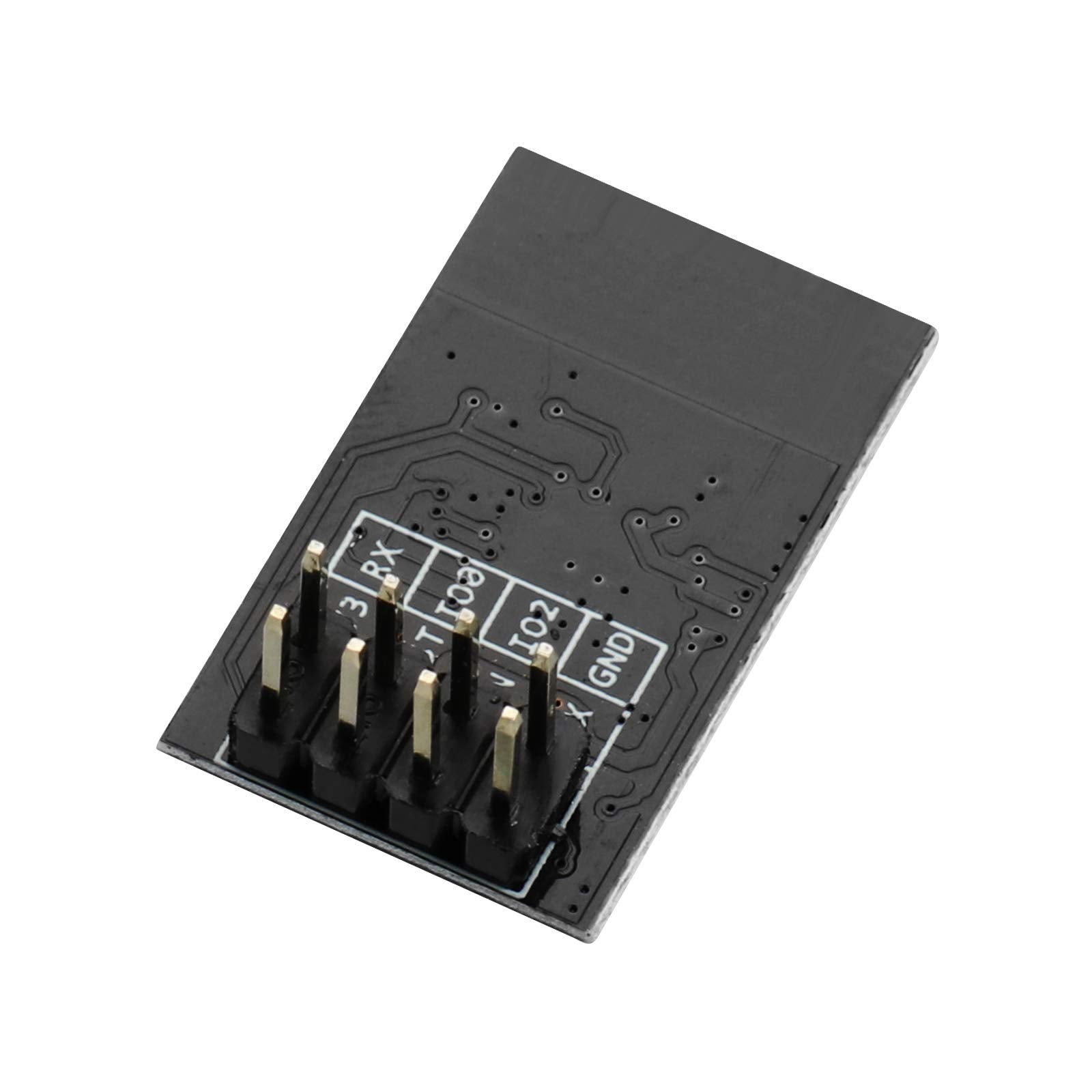

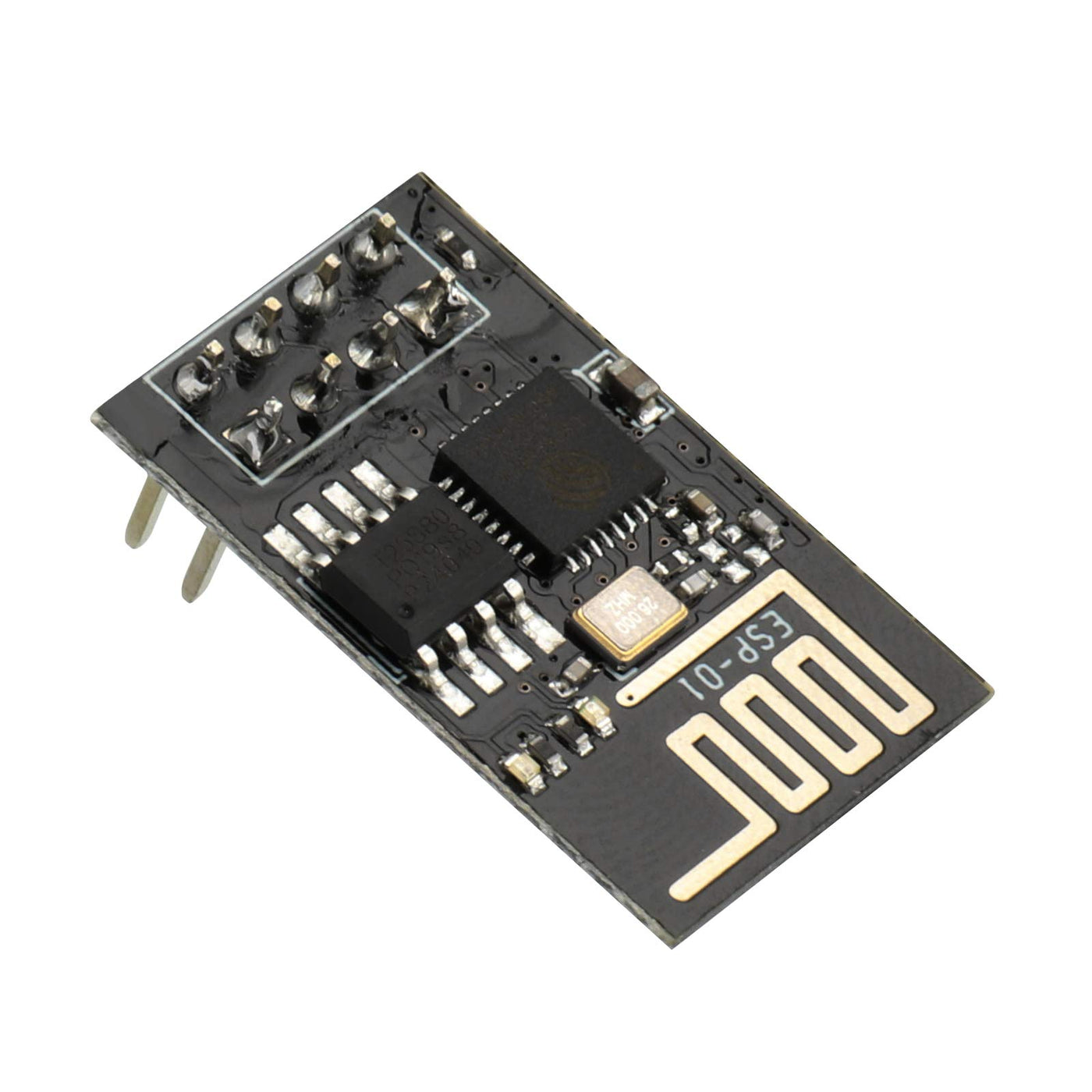

4Pcs Esp8266 Serial Wifi Module Esp 01 Updated Wireless Transceiver Board 3.3V For Arduino
$16.04
Regular price
$22.91
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Esp8266 Is A Highly Integrated Chip Designed For The Needs Of A New Connected World. It Offers A Complete And Self-Contained Wi-Fi Networking Solution, Allowing It To Either Host The Application Or To Offload All Wi-Fi Networking Functions From Another Application Processor.

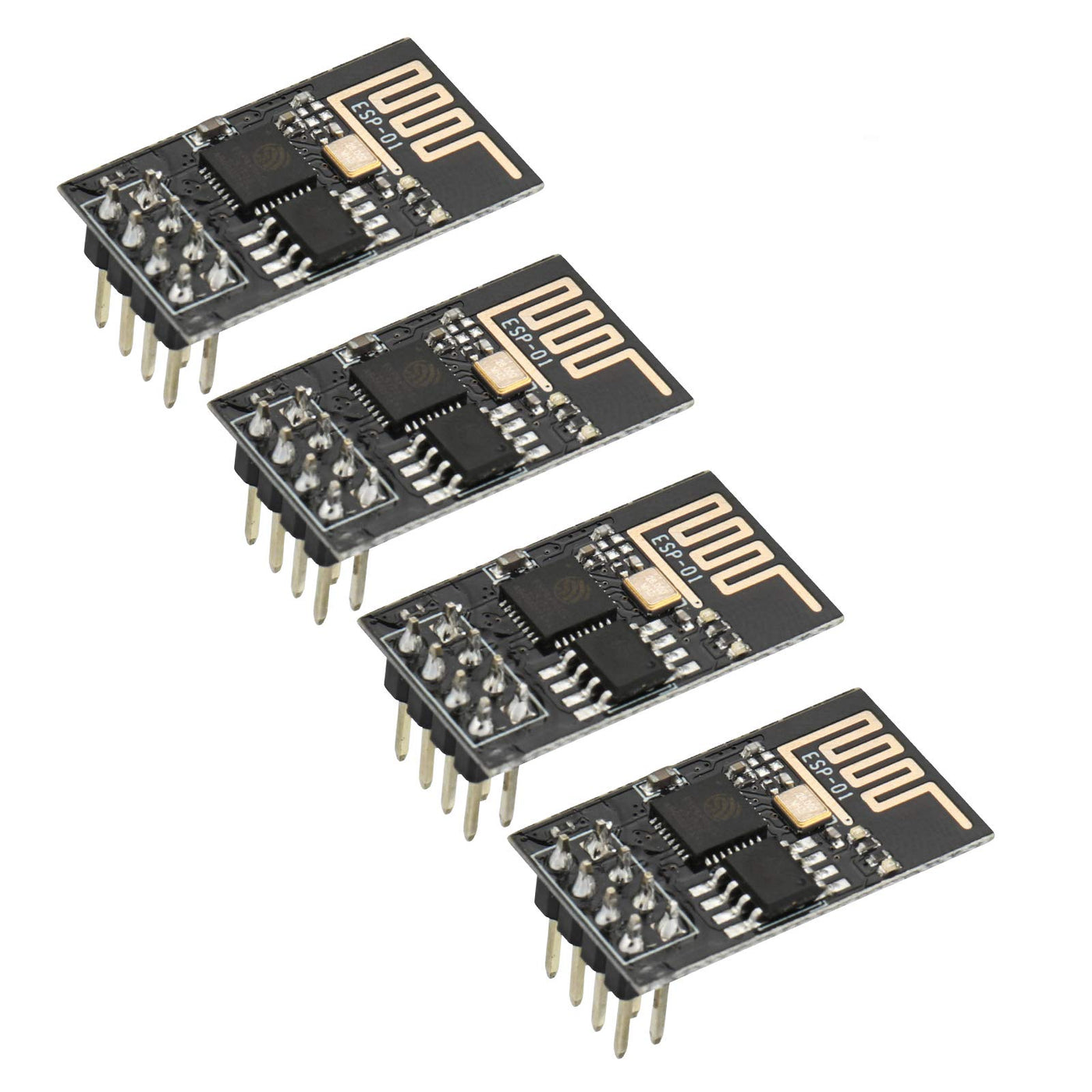

Package Including 4 * Esp8266 Wifi Transceiver Module &Nbsp; &Nbsp;

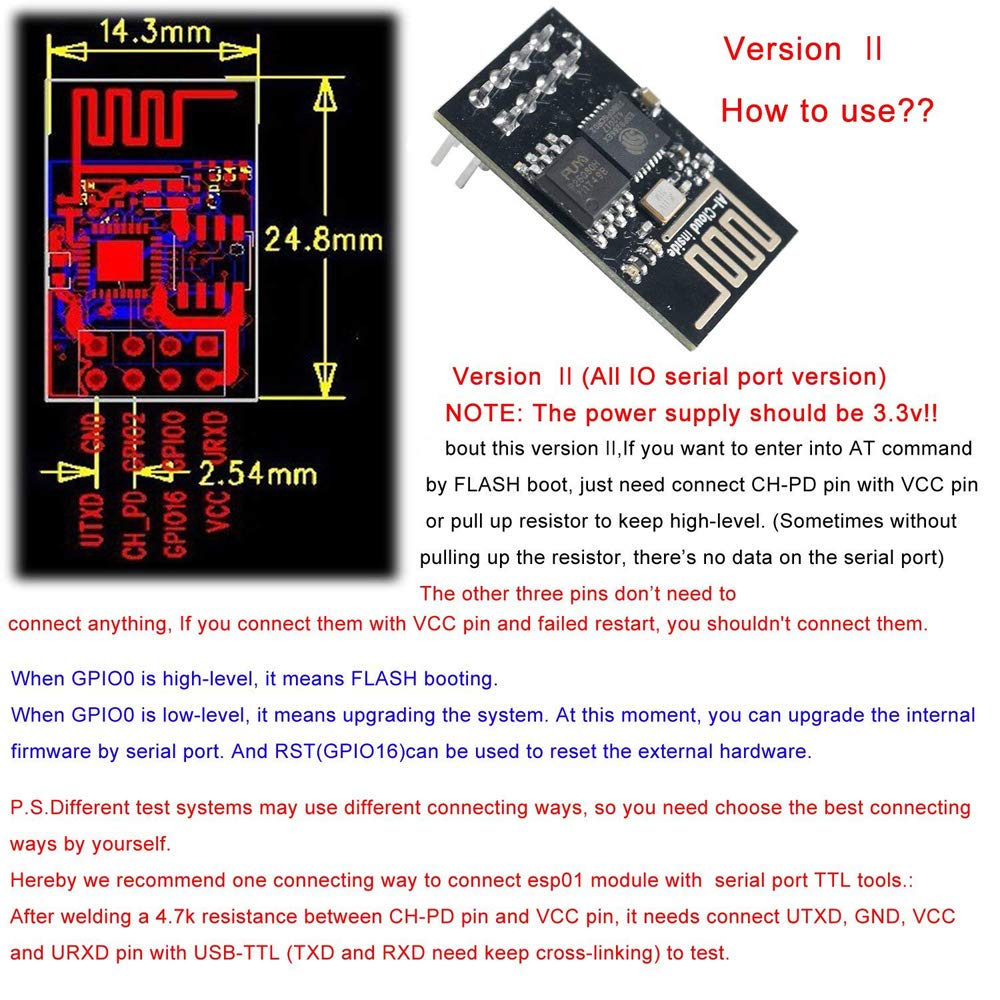

Version Ii---How To Use??
Version Ii(All Io Serial Port Version)
Note:The Power Supply Should Be 3.3V!!
About This Version Ii,If You Want To Enter Into At Command By Flash Boot,Just Need Connect Ch-Pd Pin With Vcc Pin Or Pull Up Resistor To Keep High-Level.(Sometimes Without Pulling Up The Resistor,There'S No Data On The Serial Port)
The Other Three Pins Don'T Need To Connect Anything,If You Connect Them With Vcc Pin And Failed Restart,You Shouldn'T Connect Them.When Gpio0 Is High-Level,It Means Flash Booting.
When Gpio0 Is Low-Level,It Means Upgrading The System.At This Moment,You Can Upgrade The Internal Firmware By Serial Port. And Rst(Gpio16)Can Be Used To Reset The External Hardware.
P.S.Different Test Systems May Use Different Connecting Ways,So You Need Choose The Best Connecting Ways By Yourself.
Hereby We Recommend One Connecting Way To Connect Esp01 Module With Serial Port Ttl Tools.:After Welding A 4.7K Resistance Between Ch-Pd Pin And Vcc Pin. It Needs Connect Utxd,Gnd,Vcc And Urxd Pin With Usb-Ttl(Txd And Rxd Need Keep Cross-Linking)To Test.
