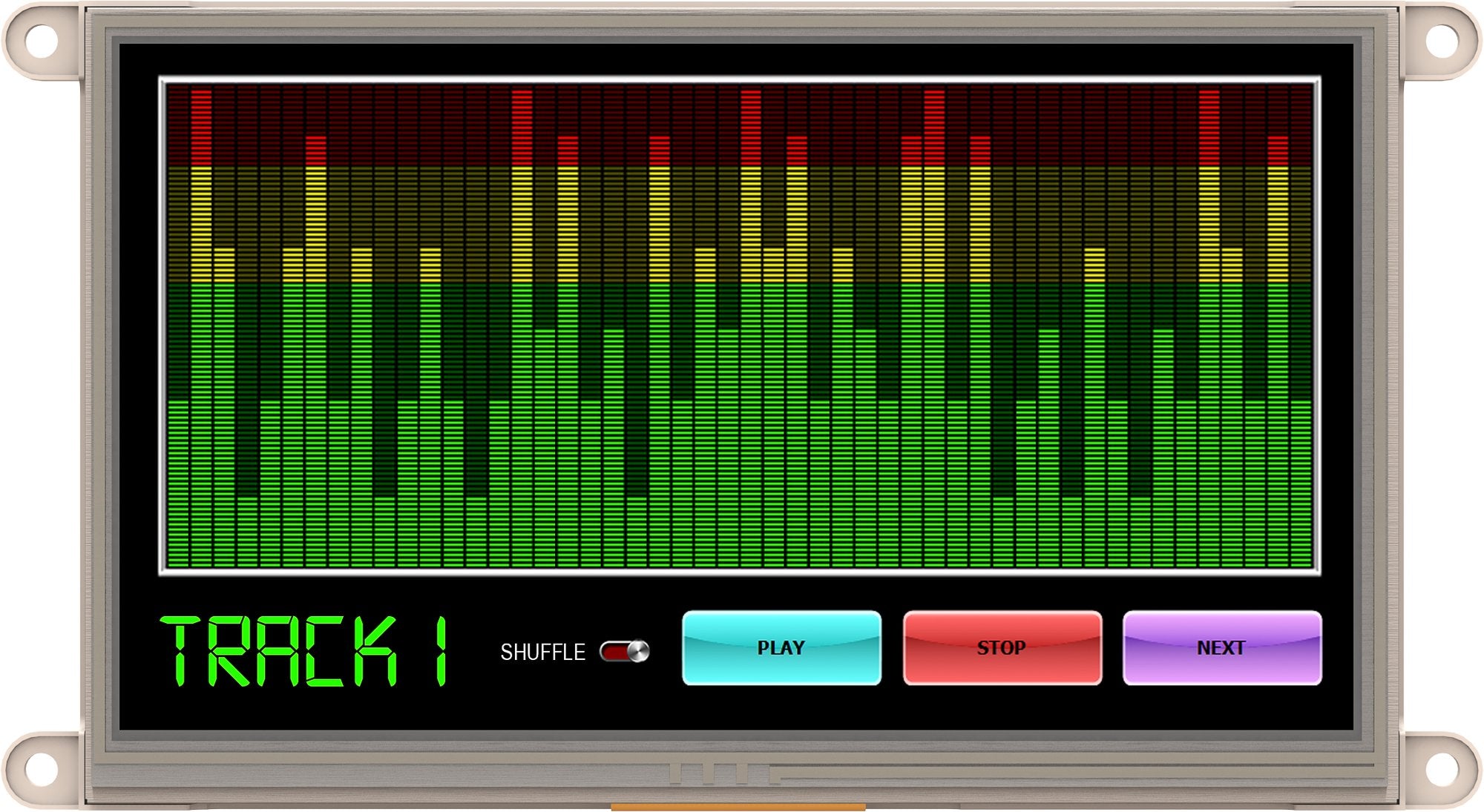

Detailed Features:Powerful 7.0 Intelligent LCD-TFT display module powered by DIABLO16.800 x 480 Resolution, RGB 65K true to life colours, TFT Screen with integrated 4-wire Resistive Touch Panel.6 banks of 32750 bytes of Flash memory for User Application Code and Data.32Kb of SRAM purely for the User.16 General Purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs.The GPIO is variously configurable for alternative functions such as:3x I2C channels available.1x SPI dedicated for SD Card and 3x configurable SPI channels available.1x dedicated and 3x configurable TTL Serial communication ports available.Up to 6 GPIO can be used as Pin Counters.Up to 6 GPIO for PWM (simple and Servo).Up to 10 GPIO for Pulse Output.Up to 14 GPIO can be configured for Quadrature Encoder Inputs (2 channels).30pin FPC connection, for all signals, power, communications, GPIO and programming.On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes.DOS compatible file access (FAT16 format) as well as low level access to card memory.Dedicated PWM Audio pin driven by WAV files from micro-SD card, and for sound generation, for an external amplifier.Display full colour images, animations, icons and video clips.4.0V to 5.5V range operation (single supply).Viewing Area: 153.84 x 85.63 mm4x mounting tabs with 4.2mm holes for mounting using M4 screws (D and DT only).
